AUDI Audi 100/Avant

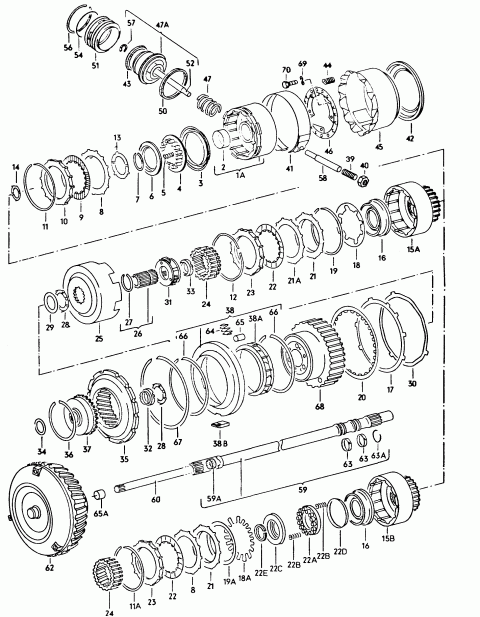

63- forward,direct, reverse gear clutch, torque converter
automatinei pavarų dėžei (KE,RW,RC,RADRY,RT,RAE) Rinktis kitą grupę
63- forward,direct, reverse gear clutch, torque converter
automatinei pavarų dėžei (KE,RW,RC,RADRY,RT,RAE) Rinktis kitą grupę
Džiaugiesi radęs? Pasidalink su draugais!
| # | Kodas | Pastaba | Kiekis |
|---|---|---|---|
| 1 | |||
| nebegaminama/pakeista: (atskiros dalys) | ??? € | ||
| 1A | 010323109 | RAE | 1 vnt. |
| clutch drum for direct and reverse gear | ??? € | ||
| (1A) | 010323109B | KE | 1 vnt. |
| clutch drum for direct and reverse gear | ??? € | ||
| (1A) | 010323109F | RW,RAD,RC,;RY,RT | 1 vnt. |
| clutch drum for direct and reverse gear | ??? € | ||
| 2 | 010323115 | 1 vnt. | |
| bearing bush | ??? € | ||
| 3 | 010323121B | 1 vnt. | |
| piston with gasket for direct and reverse gear clutch | ??? € | ||
| 4 | 010323127 | 1 vnt. | |
| seat for pressure spring | ??? € | ||
| 5 | 010323129A | 24 vnt. | |
| slėginė spyruoklė | ??? € | ||
| 5 | 010323129A | 16 vnt. | |
| slėginė spyruoklė | ??? € | ||
| 6 | 010323131A | 1 vnt. | |
| spiruoklinis diskas | ??? € | ||
| 7 | 003323135A | 1 vnt. | |
| užtvirtinantis žiedas | 55 | ??? € | |
| 8 | 010323139 | KE | 3 vnt. |
| išorinis diskas | ??? € | ||
| (8) | 010323139A | RW,RAD,RC,;RY,RT;RAE | 4 vnt. |
| išorinis diskas | ??? € | ||
| 9 | 010323141C | RW,RAD,RC,;RY,RT;KE,... | 4 vnt. |
| vidinis diskas | ??? € | ||
| 10 | 010323153 | 1 vnt. | |
| pressure plate | 6,3 | ??? € | |
| 11 | 010323157E | 1 vnt. | |
| užtvirtinantis žiedas | 1,5X129,3 | ??? € | |
| (11) | 010323157H | 1 vnt. | |
| užtvirtinantis žiedas | 2,3X129,3 | ??? € | |
| 11A | 010323157G | ||
| užtvirtinantis žiedas | 2,03X129,3 | ??? € | |
| 11A | 010323157E | RAE,RC | |
| užtvirtinantis žiedas | 1,5X129,3 | ??? € | |
| (11A) | 010323157F | ||
| užtvirtinantis žiedas | 1,7X129,3 | ??? € | |
| (11A) | 010323157H | RAE,RC | |
| užtvirtinantis žiedas | 2,3X129,3 | ??? € | |
| (11A) | 010323157J | ||
| užtvirtinantis žiedas | 2,5X129,3 | ??? € | |
| (11A) | 010323157K | RAE,RC | |
| užtvirtinantis žiedas | 2,9X129,3 | ??? € | |
| (11A) | 010323157L | RAE,RC | |
| užtvirtinantis žiedas | 3,5X129,3 | ??? € | |
| (11A) | 010323157M | RAE,RC | |
| užtvirtinantis žiedas | 3,7X129,3 | ??? € | |
| 12 | 010323159B | 1 vnt. | |
| wave spring washer | ??? € | ||
| 13 | 010323161A | 1 vnt. | |
| traukos tarpinė/poveržlė | 58 | ??? € | |
| 14 | 010321157A | 1 vnt. | |
| adatinis guolis - | ??? € | ||
| 15 | |||
| nebegaminama/pakeista: (atskiros dalys) | ??? € | ||
| 15A | 010323209 | KE | 1 vnt. |
| bell housing for forward gear clutch | ??? € | ||
| (15A) | 087323209 | RW,RAD,RC,;RY,RT | 1 vnt. |
| bell housing for forward gear clutch | ??? € | ||
| 15B | 010323209E | RAE | 1 vnt. |
| bell housing for forward gear clutch | ??? € | ||
| 16 | 010323217A | 1 vnt. | |
| stūmoklis | ??? € | ||
| 17 | 010323227A | KE;RAE,RC;RW,RAD,RY,... | 3 vnt. |
| išorinis diskas | ??? € | ||
| 18 | 010323229D | KE,RW,RAD;RY,RT | 1 vnt. |
| belleville spring for forward gear clutch | ??? € | ||
| 18A | 010323229E | RAE,RC | 1 vnt. |
| diaphragm spring for forward movement clutch | ??? € | ||
| 19 | 010323157 | 1 vnt. | |
| užtvirtinantis žiedas | 2,03X129,3 | ??? € | |
| 19A | 010323230 | RAE,RC | 1 vnt. |
| belleville spring for forward gear clutch | ??? € | ||
| 20 | 010323231C | KE;RAE,RC | 3 vnt. |
| vidinis diskas | ??? € | ||
| 20 | 010323231C | RW,RAD,RY,RT | 5 vnt. |
| vidinis diskas | ??? € | ||
| 21 | 010323237A | RW,RAD,RY,RT | 1 vnt. |
| pressure plate | ??? € | ||
| (21) | 010323237B | RAE,RC | 1 vnt. |
| pressure plate | ??? € | ||
| 21A | 010323139 | RAD;KE;RAE,RC,RW,RY | 4 vnt. |
| išorinis diskas | ??? € | ||
| 22 | 010323241C | RW,RAD,RY,RT;RAE,RC | 5 vnt. |
| vidinis diskas | ??? € | ||
| 22A | 010323243 | RAE,RC | 1 vnt. |
| spring intermediate ring | ??? € | ||
| 22B | 010323244 | RAE,RC | 36 vnt. |
| slėginė spyruoklė | ??? € | ||
| 22C | 010323245 | RAE,RC | 1 vnt. |
| spring support plate | ??? € | ||
| 22D | 010323246 | RAE,RC | 1 vnt. |
| spring thrust ring | ??? € | ||
| 22E | N 0237301 | RAE,RC | 1 vnt. |
| užtvirtinantis žiedas | 40X1,5 | ??? € | |
| 23 | 010323153 | RW,KE,RT,RY | |
| pressure plate | 6,3 | ??? € | |
| (23) | 010323253B | RW,KE,RT,;RAE,RC | |
| pressure plate | 6,8 | ??? € | |
| (23) | 010323253C | RW,KE,RT,RY | |
| pressure plate | 7,2 | ??? € | |
| (23) | 010323253D | RW,KE,RT,RY | |
| pressure plate | 7,6 | ??? € | |
| (23) | 010323253F | RW,KE,RT,RY | |
| pressure plate | 6 | ??? € | |
| (23) | 010323253G | RAD | |
| pressure plate | 2,3 | ??? € | |
| (23) | 010323253H | RAD | |
| pressure plate | 2,7 | ??? € | |
| (23) | 010323253J | RAD | |
| pressure plate | 3,1 | ??? € | |
| (23) | 010323253K | RAD | |
| pressure plate | 3,5 | ??? € | |
| (23) | 010323253L | RAD | |
| pressure plate | 3,9 | ??? € | |
| 24 | 010323273B | 1 vnt. | |
| annulus gear | ??? € | ||
| 25 | 010323281 | 1 vnt. | |
| driving shell | ??? € | ||
| 26 | 010323285E | 1 vnt. | |
| sun gear | ??? € | ||
| 27 | N 0424511 | 1 vnt. | |
| tvirtinimo žiedas | 40 | ??? € | |
| 28 | 010323291 | RW,RAD,RY,RC;RT,KE | 2 vnt. |
| traukos tarpinė/poveržlė | ??? € | ||
| 29 | 010323293B | 1 vnt. | |
| traukos tarpinė/poveržlė | ??? € | ||
| 30/31 | 1 vnt. | ||
| nebegaminama | ??? € | ||
| 30 | 010323295C | 1 vnt. | |
| spyruoklinė poveržlė | ??? € | ||
| 31 | 010323303 | 1 vnt. | |
| planet pinion carrier | ??? € | ||
| 32 | 010323339D | 1 vnt. | |
|
adatinis guolis - supplied; alternatively: |
;;010 323 339 C/;010 323 339 E | ??? € | |
| 33 | 010323340D | 1 vnt. | |
|
adatinis guolis - supplied; alternatively: |
;;010 323 340 C/;010 323 340 E | ??? € | |
| (34) | 010323345A | KE | |
| reguliuojama poveržlė | 0,4 | ??? € | |
| 34 | 010323345C | RW,RAD,RAE,;RY,RT,RC | |
| reguliuojama poveržlė | 0,4 | ??? € | |
| (34) | 010323346A | KE | |
| reguliuojama poveržlė | 1,2 | ??? € | |
| (34) | 010323346C | RW,RAD,RAE,;RY,RT,RC | |
| reguliuojama poveržlė | 1,2 | ??? € | |
| 35 | 090323363A | 1 vnt. | |
| annulus gear | ??? € | ||
| 36 | 090323369 | 1 vnt. | |
| užtvirtinantis žiedas | ??? € | ||
| 37 | 087323373AB | RW,RAD,RY,RT;RAE,RC | 1 vnt. |
| hub | ??? € | ||
| (37) | 090323373A | KE | 1 vnt. |
| hub | ??? € | ||
| 38 | 010323383C | 1 vnt. | |
| 1.gear-freewheel | ??? € | ||
| 38A | 010323395 | 10 vnt. | |
| freewheel segment | ??? € | ||
| 38B | 010323389E | 1 vnt. | |
| feather key | ??? € | ||
| 39 | 010323455A | 1 vnt. | |
| setting screw | ??? € | ||
| 40 | N 0111629 | 1 vnt. | |
| šešiakampė veržlė | M12X1,5 | ??? € | |
| 41 | 010323461A | 1 vnt. | |
| brake band | ??? € | ||
| 42 | 1 vnt. | ||
| nebegaminama | ??? € | ||
| 42 | 010323479A | 1 vnt. | |
| stūmoklis | ??? € | ||
| (43) | 010323487B | KE,RAE | 1 vnt. |
| O-žiedas | 51,2MM | ??? € | |
| 43 | 010323487C | RW,RAD,RY,;RT,RC | 1 vnt. |
| O-žiedas | 61,4MM | ??? € | |
| 44 | 010323489B | 20 vnt. | |
| slėginė spyruoklė | ??? € | ||
| 45 | 010323493D | 1 vnt. | |
| vamzdis | ??? € | ||
| (45) | 010323493E | KE | 1 vnt. |
| vamzdis | ??? € | ||
| 46 | 010323497C | 1 vnt. | |
| atraminė plokštelė | ??? € | ||
| 47 | 010323505A | 1 vnt. | |
| slėginė spyruoklė | ??? € | ||
| (47A) | 010323512 | KE,RAE | 1 vnt. |
| stūmoklis | ??? € | ||
| 47A | 010323512A | RW,RAD,RY,;RT,RC | 1 vnt. |
| stūmoklis | ??? € | ||
| 50 | 003323525A | RW,RAD,RY,;RT,RC | 1 vnt. |
| O-žiedas | 97MM | ??? € | |
| (50) | 010323525C | KE,RAE | 1 vnt. |
| O-žiedas | 71,6X80X5,6 | ??? € | |
| (51) | 010323529 | KE,RAE | 1 vnt. |
| dangtis | ??? € | ||
| 51 | 087323529 | RW,RAD,RY,;RT,RC | 1 vnt. |
| dangtis | ??? € | ||
| 52 | 010323517D | 1 vnt. | |
| piston rod | ??? € | ||
| 54 | 010323533 | ||
| O-žiedas | 91X3MM | ??? € | |
| 56 | 010323537A | 1 vnt. | |
| užtvirtinantis žiedas | ??? € | ||
| 57 | 010323541B | 1 vnt. | |
| fiksuojanti poveržlė | ??? € | ||
| 58 | 010323543A | 1 vnt. | |
| kontaktas/kaištis | ??? € | ||
| 59 | 087323553A | 1 vnt. | |
| turbine shaft | ??? € | ||
| (59) | 089323553A | KE | 1 vnt. |
| turbine shaft | ??? € | ||
| 59A | 087323559 | RW,RAD,RY,;RC,RAE | 1 vnt. |
| O-žiedas | ??? € | ||
| 60 | 010323561A | RW,RAD,RY,;RC,RAE | 1 vnt. |
| shaft - oil pump | ??? € | ||
| (60) | 089323561 | KE | 1 vnt. |
| shaft - oil pump | ??? € | ||
| 62 | 082323571 | RW,RAD,RY,;RC,RAE | 1 vnt. |
| konverteris | 'K' | ??? € | |
| (62) | 082323571 X | RW,RAD,RY,;RC,RAE,RT | 1 vnt. |
| konverteris | 'K' | ??? € | |
| (62) | 089323571A | KE | 1 vnt. |
| konverteris | 'M' | ??? € | |
| (62) | 089323571AX | KE,KD | 1 vnt. |
| konverteris | 'M' | ??? € | |
| 63 | 010323557A | 2 vnt. | |
| stūmoklių žiedai | ??? € | ||
| 63A | 010323558 | 1 vnt. | |
| wire ring | ??? € | ||
| 64 | 010323643 | 10 vnt. | |
| slėginė spyruoklė | ??? € | ||
| 65 | N 90351101 | 10 vnt. | |
| cylinder roller | 8X12 | ??? € | |
| 65A | 003323611 | 1 vnt. | |
| bearing bush | ??? € | ||
| 66 | 010323651 | 2 vnt. | |
| užtvirtinantis žiedas | ??? € | ||
| 67 | 010323653A | 1 vnt. | |
| užtvirtinantis žiedas | ??? € | ||
| 68 | 090323805 | 1 vnt. | |
| planet pinion carrier | ??? € | ||
| 69 | N 0120064 | 5 vnt. | |
| spyruoklinis žiedas | 6 | ??? € | |
| 70 | N 0103473 | 5 vnt. | |
| varžtas su šešiakampe galvute | M6X35 | ??? € | |
| 70 | N 0102213 | 5 vnt. | |
| varžtas su šešiakampe galvute | M6X35 | ??? € | |
