Transporto priemonė: MB 800 T; VIN numerio dalis: 397243

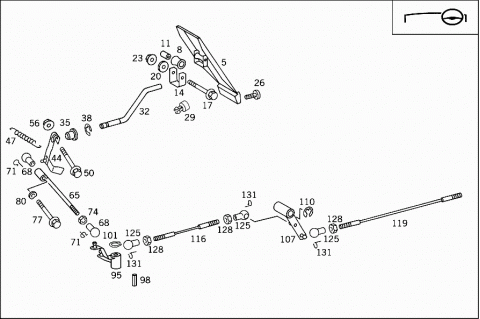

Grupė: 30 CONTROL - 060 ACCELERATOR PEDAL CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6843000004 | ACCELERATOR PEDAL |
| 008 | A 6843010011 | ROLLER |
| 011 | A 6843010450 | BUSHING |
| 014 | A 6843010008 | CLAMP |
| 017 | N 000931006102 | SCREW |
| Repalced by: A 0019901904 | ||
| 017 | A 0019901904 | SCREW |
| 020 | N 009021006203 | WASHER |
| 023 | N 913004006002 | NUT |
| Repalced by: A 0009906250 | ||
| 023 | A 0009906250 | NUT |
| 026 | N 914129006001 | SCREW |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| 029 | A 6842910086 | STOP |
| ACCELERATOR PEDAL TO FLOOR PLATE | ||
| 032 | A 6843010120 | LEVER |
| (CONTROL LEVER) | ||
| 035 | A 6843010050 | BUSHING |
| CONTROL LEVER | ||
| 038 | N 006799009001 | LOCK PLATE |
| CONTROL LEVER | ||
| 044 | A 6843000025 | LEVER |
| CONTROL LEVER TO PEDAL LEVER | ||
| 047 | A 3199930510 | SPRING |
| (RELEASE SPRING) | ||
| 050 | N 000931006197 | SCREW |
| Repalced by: A 0019901704 | ||
| 050 | A 0019901704 | SCREW |
| CONTROL LEVER TO SHAFT | ||
| M6X30 | ||
| 056 | N 913004006002 | NUT |
| Repalced by: A 0009906250 | ||
| 056 | A 0009906250 | NUT |
| CONTROL LEVER TO SHAFT | ||
| M 6 | ||
| 065 | A 6843004015 | ROD |
| FROM CONTROL LEVER TO REVERSING LEVER | ||
| 068 | N 071805010202 | BALL SOCKET |
| CONTROL ROD | ||
| 068 | A 0009912422 | BALL SOCKET |
| CONTROL ROD | ||
| 071 | N 071805010403 | CIRCLIP |
| CONTROL LEVER TO SHAFT | ||
| 074 | N 000934006029 | NUT |
| Repalced by: N 304032006004 | ||
| 074 | N 304032006004 | NUT |
| CONTROL ROD | ||
| 077 | N 000931006193 | SCREW |
| Repalced by: N 304017006036 | ||
| 077 | N 304017006036 | SCREW |
| CONTROL ROD | ||
| M6X35 | ||
| 080 | N 000137006203 | SPRING WASHER |
| CONTROL ROD | ||
| 095 | A 6843004428 | LEVER |
| (DOUBLE LEVER) | ||
| 098 | N 001472005009 | GROOVED PIN |
| DOUBLE LEVER | ||
| 101 | N 006799009001 | LOCK PLATE |
| DOUBLE LEVER | ||
| 107 | A 6843004128 | LEVER |
| Repalced by: A 6843004228 | ||
| 107 | A 6843004228 | LEVER |
| (INTERMEDIATE LEVER) | ||
| 110 | N 006799009001 | LOCK PLATE |
| INTERMEDIATE LEVER TO PIVOT PIN | ||
| 116 | A 6843000430 | WIRE CABLE |
| FROM FRONT INTERMEDIATE LEVER TO REAR INTERMEDIATE LEVER | ||
| 119 | A 6843000330 | WIRE CABLE |
| FROM INTERMEDIATE LEVER TO ENGINE | ||
| 125 | N 071805010202 | BALL SOCKET |
| CABLE | ||
| 128 | N 000934006029 | NUT |
| Repalced by: N 304032006004 | ||
| 128 | N 304032006004 | NUT |
| CABLE | ||
| 131 | N 071805010403 | CIRCLIP |
| CABLE | ||
