Transporto priemonė: L 613 D; VIN numerio dalis: 313404

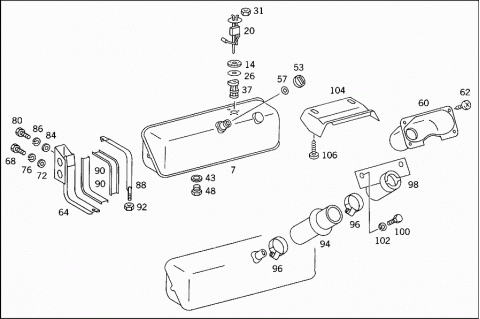

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 3094709101 | FUEL TANK |
| Repalced by: A 3094708301 | ||
| 007 | A 3094708301 | FUEL TANK |
| 80 L. | ||
| 014 | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 020 | A 0045425117 | SENDER UNIT |
| Repalced by: A 0075424117 | ||
| 020 | A 0075424117 | SENDER UNIT |
| 026 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 031 | N 000934005008 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 037 | A 3094700006 | FUEL STRAINER |
| 043 | N 915035000017 | SEAL RING |
| AT TANK | ||
| 048 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 048 | N 007604014110 | SCREW PLUG |
| AT TANK | ||
| 053 | A 0004716330 | FILLER CAP |
| Repalced by: A 1244700005 | ||
| 053 | A 0004717430 | FILLER CAP |
| Repalced by: A 1244700005 | ||
| 053 | A 1244700005 | FILLER CAP |
| Repalced by: A 0004700730 | ||
| 053 | A 0004700730 | FUEL FILLER CAP |
| Repalced by: A 9014700005 | ||
| 053 | A 9014700005 | FILLER CAP |
| Repalced by: A 9014700105 | ||
| 053 | A 9014700105 | FILLER CAP |
| 057 | A 1154710079 | SEAL RING |
| 060 | A 3094710081 | BOOT |
| (FILLER PIPE) | ||
| 060 | A 3094710281 | BOOT |
| (FILLER PIPE) | ||
| 062 | A 0009908720 | SCREW |
| ON SIDE PANEL | ||
| 064 | A 3094702842 | SUPPORT |
| TANK SUSPENSION | ||
| 064 | A 3094703142 | SUPPORT |
| TANK SUSPENSION | ||
| 068 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 068 | N 304017008034 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 072 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 072 | N 000125008443 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 076 | N 912004008102 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 080 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 080 | N 304017010002 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| N 000933010157 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| 084 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 084 | N 000125010532 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 086 | N 912004010102 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 088 | A 3144700240 | STRAP |
| FUEL TANK | ||
| 090 | A 3144750020 | PAD |
| FUEL TANK | ||
| 475 MM | ||
| 090 | A 3604750020 | PAD |
| FUEL TANK | ||
| 170 MM | ||
| 092 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 092 | N 304032010003 | NUT |
| FUEL TANK | ||
| 094 | A 3109970482 | HOSE |
| FILLER NECK | ||
| 096 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 096 | N 000000000672 | CLAMP |
| FILLER NECK | ||
| 098 | A 3104700220 | FILLER NECK |
| STOP TO REAR CONSOLE | ||
| 100 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 100 | N 304017008016 | SCREW |
| FILLER PIPE TO BODY | ||
| 102 | N 912004008102 | LOCK WASHER |
| FILLER PIPE TO BODY | ||
| 104 | A 3094710287 | COVERING |
| TO FILLER CAP | ||
| 106 | N 914113003100 | TAPPING SCREW |
| TO FILLER CAP | ||

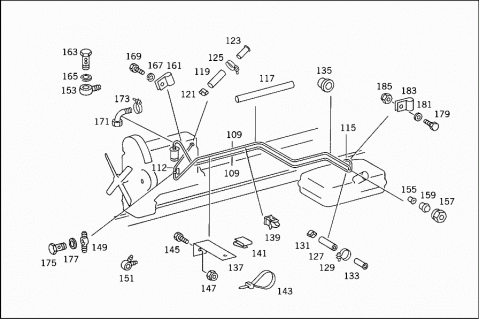

| 109 | A 0089975482 | HOSE |
| FROM TANK TO PUMP | ||
| 4X6 MM | ||
| 112 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 112 | A 0009872727 | PLASTIC PIPE |
| LEAK LINE | ||
| 6X8 MM | ||
| 112 | A 0009872727 | PLASTIC PIPE |
| FROM FUEL FILTER TO FUEL TANK | ||
| 6X8 MM | ||
| 115 | A 0109977082 | HOSE |
| FROM FUEL TANK TO FUEL HOSE | ||
| 6 X 4 MM | ||
| 115 | A 0109977082 | HOSE |
| FUEL LINE TO FEED PUMP | ||
| 6 X 4 MM | ||
| 117 | N 040621014200 | INSULATING HOSE |
| FUEL LINES | ||
| 119 | N 073379006203 | HOSE |
| LEAK LINE TO RETURN LINE | ||
| 121 | A 0029974390 | LOOM TIE |
| LEAK LINE TO RETURN LINE | ||
| 123 | N 915062004000 | SLEEVE |
| LEAK LINE TO RETURN LINE | ||
| 125 | N 916002009100 | CLAMP |
| LEAK LINE TO RETURN LINE | ||
| A 1144760826 | HOSE | |
| Repalced by: N 073379008200 | ||
| 127 | N 073379008200 | HOSE |
| FUEL LINE TO SENDER UNIT | ||
| 129 | N 916017011001 | CLAMP |
| Repalced by: N 000000000665 | ||
| 129 | N 000000000665 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||
| 131 | A 0029974390 | LOOM TIE |
| FUEL LINE TO SENDER UNIT | ||
| 133 | N 915062004000 | SLEEVE |
| FUEL LINE TO SENDER UNIT | ||
| 135 | A 3094760150 | BUSHING |
| FUEL LINE TO FRAME | ||
| 135 | A 3094760350 | BUSHING |
| Repalced by: A 0009973481 | ||
| 135 | A 0009973481 | GROMMET |
| FUEL LINE TO FRAME | ||
| 137 | A 3094761436 | BRACKET |
| FUEL LINE TO FRAME | ||
| 137 | A 3094761436 | BRACKET |
| FUEL LINE TO FRAME | ||
| A 3094760236 | BRACKET | |
| Repalced by: A 3094760636 | ||
| A 3094760636 | BRACKET | |
| FUEL LINE TO FRAME | ||
| 139 | A 0049881378 | CLIP |
| FUEL LINE TO FRAME | ||
| 141 | A 0049882678 | CLIP |
| FUEL LINE TO FRAME | ||
| 143 | A 0019978490 | LOOM TIE |
| FUEL LINE TO FRAME | ||
| 376 MM | ||
| 143 | A 0019978390 | LOOM TIE |
| FUEL LINE TO FRAME | ||
| 280 MM | ||
| 145 | N 000933010105 | SCREW |
| FUEL LINE TO FRAME | ||
| 147 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 147 | N 910113010000 | NUT |
| FUEL LINE TO FRAME | ||
| 149 | A 3139900086 | BANJO UNION |
| Repalced by: N 915052008016 | ||
| 149 | N 915052008016 | BANJO UNION |
| Repalced by: N 000000000363 | ||
| 149 | N 000000000363 | BANJO UNION |
| LEAK LINE TO RETURN LINE | ||
| 151 | A 0009909688 | BANJO UNION |
| FUEL HOSE TO FUEL PUMP | ||
| 153 | N 915052006021 | BANJO UNION |
| FROM FUEL FILTER TO FUEL TANK | ||
| A 0007630043 | SLEEVE | |
| Repalced by: N 915062006000 | ||
| 155 | N 915062006000 | SLEEVE |
| FROM FUEL FILTER TO FUEL TANK | ||
| 157 | N 915017008100 | UNION NUT |
| FROM FUEL FILTER TO FUEL TANK | ||
| 159 | N 003861008005 | GLAND |
| FROM FUEL FILTER TO FUEL TANK | ||
| 161 | N 916016011201 | CLAMP |
| FUEL LINE TO FRAME | ||
| 163 | N 915047010202 | HOLLOW SCREW |
| RETURN LINE TO FUEL FILTER | ||
| 165 | N 007603014406 | SEAL RING |
| RETURN LINE TO FUEL FILTER | ||
| 167 | N 912004008102 | LOCK WASHER |
| CLAMP TO ENGINE | ||
| 169 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 169 | N 304017008039 | SCREW |
| CLAMP TO ENGINE | ||
| 171 | A 0004760524 | ELBOW FITTING |
| FUEL LINE LEADING TO FILTER | ||
| 173 | N 900288010001 | CLAMP |
| FUEL LINE LEADING TO FILTER | ||
| 175 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 175 | N 915036010108 | HOLLOW SCREW |
| LINE TO FEED PUMP | ||
| 177 | N 007603014405 | SEAL RING |
| LINE TO FEED PUMP | ||
| 179 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 179 | N 304017008021 | SCREW |
| HOSE TO SIDE MEMBER | ||
| 181 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 181 | N 000125008443 | WASHER |
| HOSE TO SIDE MEMBER | ||
| 183 | N 916016006202 | CLAMP |
| HOSE TO SIDE MEMBER | ||
| 185 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 185 | N 913004008001 | NUT |
| HOSE TO SIDE MEMBER | ||
