Transporto priemonė: L 613 D; VIN numerio dalis: 313404

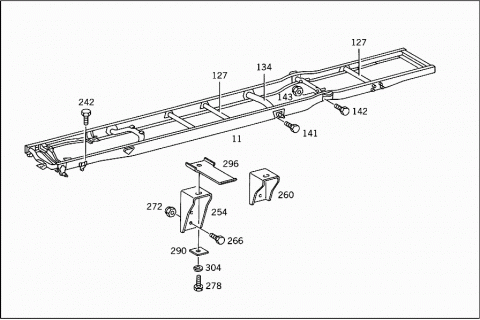

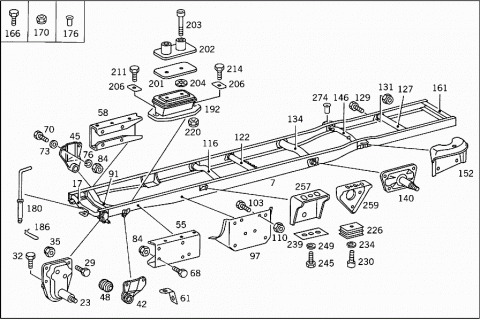

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 3133100801 | FRAME |
| 011 | A 3133100601 | FRAME |
| 017 | A 3133100022 | CROSS MEMBER |
| FRONT | ||
| 023 | A 3093200270 | REAR SUBFRAME |
| FRONT | ||
| 029 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 029 | N 304017010002 | SCREW |
| FRONT SPRING BRACKET AND CROSS MEMBER TO FRAME | ||
| M 10X30 | ||
| 032 | N 000933010105 | SCREW |
| FRONT SPRING BRACKET AND CROSS MEMBER TO FRAME | ||
| M 10X25 | ||
| 035 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 035 | N 910113010000 | NUT |
| FRONT SPRING BRACKET AND CROSS MEMBER TO FRAME | ||
| 042 | A 3143200478 | CONSOLE |
| LEFT | ||
| 045 | A 3143200578 | CONSOLE |
| RIGHT | ||
| 048 | A 3093200073 | BEARING |
| 055 | A 3092402006 | CONSOLE |
| FRONT LEFT | ||
| 058 | A 3092402106 | CONSOLE |
| FRONT RIGHT | ||
| 061 | A 3095420140 | BRACKET |
| Repalced by: A 3095421340 | ||
| 061 | A 3095421340 | BRACKET |
| LEFT CONSOLE TO FRAME | ||
| 068 | N 000933010105 | SCREW |
| CONSOLE TO FRAME | ||
| M 10X25 | ||
| 070 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 070 | N 304017010002 | SCREW |
| CONSOLE TO FRAME | ||
| M 10X30 | ||
| 073 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 073 | N 000125010532 | WASHER |
| CONSOLE TO FRAME | ||
| 076 | N 912004010102 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 084 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 084 | N 910113010000 | NUT |
| CONSOLE TO FRAME | ||
| 091 | A 3133120005 | ENGINE CROSS MEMBER |
| NO.2 | ||
| 097 | A 3133120040 | BRACKET |
| ENGINE REAR MOUNTING | ||
| 103 | N 000933010128 | SCREW |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 110 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 110 | N 910113010000 | NUT |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 116 | A 3134200168 | SUPPORT |
| NO.3 | ||
| 122 | A 3133100036 | CROSS MEMBER |
| NO.4 | ||
| 127 | A 3093100938 | CROSS MEMBER |
| NO.5 | ||
| 127 | A 3093100938 | CROSS MEMBER |
| NO.8 | ||
| 129 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 129 | N 304017010002 | SCREW |
| NO.8 CROSS MEMBER TO SIDE MEMBERS | ||
| 131 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 131 | N 910113010000 | NUT |
| NO.8 CROSS MEMBER TO SIDE MEMBERS | ||
| 134 | A 3103100837 | CROSS MEMBER |
| Repalced by: A 3103100937 | ||
| 134 | A 3103100937 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO.6 | ||
| 134 | A 3103100937 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO.6 | ||
| 140 | A 3093202175 | SPRING BRACKET |
| FRONT | ||
| 141 | N 000933010105 | SCREW |
| CROSS MEMBER AND SPRING BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 141 | N 000933010105 | SCREW |
| CROSS MEMBER AND SPRING BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 142 | N 000933010145 | SCREW |
| CROSS MEMBER AND SPRING BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 142 | N 000933010145 | SCREW |
| CROSS MEMBER AND SPRING BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 143 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 143 | N 910113010000 | NUT |
| CROSS MEMBER AND SPRING BRACKET TO SIDE MEMBER | ||
| 143 | N 910113010000 | NUT |
| CROSS MEMBER AND SPRING BRACKET TO SIDE MEMBER | ||
| 146 | A 3133100041 | CROSS MEMBER |
| NO.7 | ||
| 152 | A 3093121140 | BRACKET |
| RUBBER SPRING | ||
| 161 | A 3093121525 | CROSS MEMBER |
| Repalced by: A 3093122025 | ||
| 161 | A 3093122025 | CROSS MEMBER |
| REAR | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 166 | N 000609010004 | FITTED SCREW |
| M 10X11X14X28 | ||
| 166 | N 000610010003 | FITTED SCREW |
| M 10X11X25X38 | ||
| 166 | N 000609010014 | FITTED SCREW |
| M 10X11X24X40 | ||
| 166 | A 3859900514 | SCREW |
| M 10X11X26,5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 166 | A 3859900714 | SCREW |
| M 12X12X10X25 | ||
| 166 | A 3859901414 | SCREW |
| M 12X12X11X26 | ||
| 166 | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 166 | A 0029908201 | SCREW |
| M 12X12X12X28 | ||
| 166 | A 3859901514 | SCREW |
| M 12X12X13X28 | ||
| 166 | A 0029908201 | SCREW |
| M 12X12X14X30 | ||
| 166 | A 3859902114 | SCREW |
| M 12X12X15X30 | ||
| 166 | A 0029908301 | SCREW |
| Repalced by: N 308676012013 | ||
| 166 | N 308676012013 | SCREW |
| M 12X12X16X32 | ||
| 166 | A 3859902214 | SCREW |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 166 | A 6209900114 | SCREW |
| M 12X13X12X29 | ||
| 166 | A 3969900314 | SCREW |
| M 12X13X13X30 | ||
| 166 | A 3589901914 | SCREW |
| M 12X13X15X32 | ||
| 166 | A 3559900014 | SCREW |
| M 12X13X18X35 | ||
| 166 | A 3589900614 | SCREW |
| M 12X13X21X38 | ||
| 166 | A 6179900114 | SCREW |
| M 12X13X23X40 | ||
| 166 | A 6249900014 | SCREW |
| M 12X13X25X42 | ||
| 166 | A 3859900214 | SCREW |
| M 12X13X35X52 | ||
| 166 | A 6689900114 | SCREW |
| M 12X13X58X80 | ||
| 166 | A 6689900014 | SCREW |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 166 | A 3859900814 | SCREW |
| Repalced by: A 3229903101 | ||
| 166 | A 3229903101 | SCREW |
| M 14X14X18X32 | ||
| 166 | A 3859902014 | SCREW |
| M 14X14X18X34 | ||
| 166 | A 3559900114 | SCREW |
| M 12X14X13X35 | ||
| 166 | A 3219901601 | SCREW |
| Repalced by: A 3169900014 | ||
| 166 | A 3169900014 | SCREW |
| M 14X14X17X35 | ||
| 166 | A 3219901901 | SCREW |
| M 14X14X22X40 | ||
| 166 | A 3559900501 | SCREW |
| M 14X14X24X42 | ||
| 166 | A 3409900201 | SCREW |
| M 14X14X27X45 | ||
| 166 | N 308676014010 | SCREW |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 166 | A 3589900114 | SCREW |
| M 14X15X15X32 | ||
| 166 | A 3589900814 | SCREW |
| M 14X15X17X34 | ||
| 166 | A 6459900014 | SCREW |
| M 14X15X18X35 | ||
| 166 | A 3589901014 | SCREW |
| M 14X15X19X36 | ||
| 166 | A 3589900214 | SCREW |
| M 14X15X21X38 | ||
| 166 | A 3589900414 | SCREW |
| M 14X15X25X42 | ||
| 166 | A 3589900714 | SCREW |
| M 14X15X27X44 | ||
| 166 | A 3589900914 | SCREW |
| M 14X15X29X46 | ||
| 166 | A 3859900414 | SCREW |
| M 14X15X31X48 | ||
| 166 | A 3859900314 | SCREW |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 166 | A 3859900914 | SCREW |
| Repalced by: N 308676016020 | ||
| 166 | N 308676016020 | SCREW |
| M 16X16X18X36 | ||
| 166 | A 3859901714 | SCREW |
| M 16X16X20X38 | ||
| 166 | A 3859901014 | SCREW |
| M 16X16X22X40 | ||
| 166 | A 3859901114 | SCREW |
| Repalced by: N 000961016118 | ||
| 166 | N 000961016118 | SCREW |
| M 16X16X24X42 | ||
| 166 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 166 | A 3959900501 | SCREW |
| M 16X16X20X45 | ||
| 166 | A 3859901814 | SCREW |
| M 16X16X30X48 | ||
| 166 | A 3859901914 | SCREW |
| M 16X16X32X50 | ||
| 166 | A 6259900301 | SCREW |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 166 | A 3589900514 | SCREW |
| M 16X17X22X42 | ||
| 166 | A 6459900714 | SCREW |
| M 16X17X24X44 | ||
| 166 | A 3609900114 | SCREW |
| Repalced by: A 0009906314 | ||
| 166 | A 0009906314 | SCREW |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 166 | A 3469900014 | SCREW |
| M 16X18X18X40 | ||
| 166 | A 3859902314 | SCREW |
| M 18X18X23X45 | ||
| 166 | A 6209900014 | SCREW |
| M 16X18X26X48 | ||
| 166 | A 3469900114 | SCREW |
| M 16X18X31X50 | ||
| 166 | A 3859902414 | SCREW |
| Repalced by: N 000961018043 | ||
| 166 | N 000961018043 | SCREW |
| M 18X18X33X55 | ||
| 166 | A 6229900014 | SCREW |
| M 16X18X38X60 | ||
| 166 | A 3919900014 | SCREW |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 166 | N 000610018004 | FITTED SCREW |
| M 18X19X25X45 | ||
| 166 | N 000610018009 | FITTED SCREW |
| M 18X19X33X55 | ||
| 166 | N 000610018006 | FITTED SCREW |
| M 18X19X38X60 | ||
| 166 | N 000609018000 | FITTED SCREW |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 170 | N 913004010011 | NUT |
| 170 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 170 | N 910113012003 | NUT |
| 170 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 170 | N 910113014000 | NUT |
| 170 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 170 | N 910113016001 | NUT |
| 170 | N 913004018004 | NUT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 176 | N 910005010038 | RIVET |
| 10X16 MM | ||
| 176 | N 910005010012 | RIVET |
| 10X24 MM | ||
| 176 | N 910005010014 | RIVET |
| 10X26 MM | ||
| 176 | N 910005010016 | RIVET |
| 10X28 MM | ||
| 176 | N 910005010020 | RIVET |
| 10X32 MM | ||
| 176 | N 910005010022 | RIVET |
| 10X34 MM | ||
| 180 | A 3093150306 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 186 | A 3093150031 | LOCKING SPRING |
| COUPLING PIN | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| BODY FLEXIBLE MOUNTING | ||
| 192 | A 3093100777 | BUFFER |
| FRONT | ||
| 201 | A 3093110184 | SHIM |
| RUBBER MOUNTING TO BODY | ||
| 202 | A 3133100084 | SHIM |
| RUBBER MOUNTING TO BODY | ||
| 202 | A 3133100084 | SHIM |
| RUBBER MOUNTING TO BODY | ||
| 203 | A 0009905912 | SCREW |
| RUBBER MOUNTING TO BODY | ||
| 203 | A 3099900012 | SCREW |
| RUBBER MOUNTING TO BODY | ||
| 203 | A 3099900012 | SCREW |
| RUBBER MOUNTING TO BODY | ||
| 204 | N 006798010301 | SERRATED WASHER |
| RUBBER MOUNTING TO BODY | ||
| 206 | A 3093110684 | SHIM |
| FRONT RUBBER MOUNTING TO FRAME | ||
| 211 | N 000933010145 | SCREW |
| FRONT RUBBER MOUNTING TO FRAME | ||
| M 10X35 | ||
| 211 | N 000933010145 | SCREW |
| FRONT RUBBER MOUNTING TO FRAME | ||
| M 10X35 | ||
| 214 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 214 | N 304017010002 | SCREW |
| FRONT RUBBER MOUNTING TO FRAME | ||
| M 10X30 | ||
| 214 | N 304017010002 | SCREW |
| FRONT RUBBER MOUNTING TO FRAME | ||
| M 10X30 | ||
| 220 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 220 | N 910113010000 | NUT |
| FRONT RUBBER MOUNTING TO FRAME | ||
| 226 | A 3093100277 | BUFFER |
| REAR | ||
| 230 | N 000912012122 | SCREW |
| RUBBER MOUNTING TO BODY | ||
| 234 | N 007980012002 | LOCK WASHER |
| RUBBER MOUNTING TO BODY | ||
| 239 | A 3093110784 | SHIM |
| RUBBER MOUNTING TO CONSOLE | ||
| 242 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 242 | N 304017010028 | HEXAGON HEAD BOLT |
| RUBBER MOUNTING TO CONSOLE | ||
| M10X20 | ||
| 245 | N 000933010128 | SCREW |
| RUBBER MOUNTING TO CONSOLE | ||
| M 10X20 | ||
| 249 | N 912004010102 | LOCK WASHER |
| RUBBER MOUNTING TO CONSOLE | ||
| 254 | A 3133110063 | CONSOLE |
| BODY MOUNTING | ||
| 254 | A 3133110063 | CONSOLE |
| BODY MOUNTING | ||
| 257 | A 3093110663 | CONSOLE |
| BODY MOUNTING | ||
| 257 | A 3093110663 | CONSOLE |
| BODY MOUNTING | ||
| 259 | A 3093111063 | CONSOLE |
| BODY MOUNTING | ||
| 259 | A 3093111063 | CONSOLE |
| BODY MOUNTING | ||
| A 3093110363 | CONSOLE | |
| Repalced by: A 3093111863 | ||
| 260 | A 3093111863 | CONSOLE |
| BODY MOUNTING | ||
| 266 | N 000933010164 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 272 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 272 | N 910113010000 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 274 | N 910005010020 | RIVET |
| 10X32 MM | ||
| 274 | N 910005010014 | RIVET |
| 10X26 MM | ||
| 278 | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 278 | N 308676012013 | SCREW |
| CONSOLE TO BODY | ||
| M 12X30 | ||
| 278 | N 000961012106 | SCREW |
| CONSOLE TO BODY | ||
| M 12X35 | ||
| 278 | N 308676012039 | SCREW |
| CONSOLE TO BODY | ||
| M 12X70 | ||
| 290 | A 3148910111 | PLATE |
| CONSOLE TO BODY | ||
| 296 | A 3093110084 | SHIM |
| CONSOLE TO BODY | ||
| 304 | N 912004012100 | LOCK WASHER |
| CONSOLE TO BODY | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
