Transporto priemonė: L 613 D; VIN numerio dalis: 313404

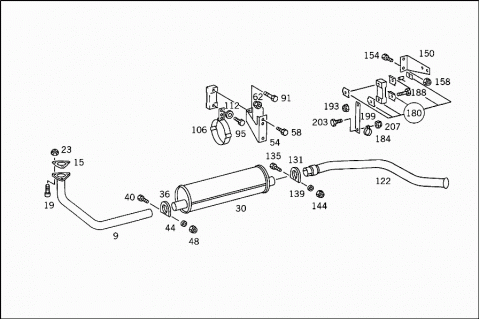

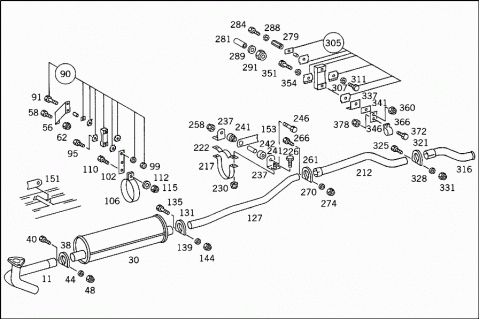

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 009 | A 3134900019 | EXHAUST PIPE |
| FRONT | ||
| 011 | A 3134900219 | EXHAUST PIPE |
| FRONT | ||
| 011 | A 3134900219 | EXHAUST PIPE |
| FRONT | ||
| 011 | A 3134900319 | EXHAUST PIPE |
| FRONT | ||
| 015 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 015 | A 4424920280 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 019 | N 000912010015 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 023 | A 0019907851 | NUT |
| Repalced by: N 913004010000 | ||
| 023 | N 913004010000 | NUT |
| Repalced by: N 910113010004 | ||
| 023 | N 910113010004 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 030 | A 3134900001 | EXHAUST MUFFLER |
| 036 | A 3134920240 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 038 | A 3134920340 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 040 | N 000931008251 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 044 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 044 | N 000125008443 | WASHER |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 048 | A 0019907751 | NUT |
| Repalced by: N 913004008007 | ||
| 048 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 048 | A 1201420072 | HEXAGON NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 054 | A 3094920516 | SUPPORT |
| EXHAUST MUFFLER | ||
| 056 | A 3094920616 | SUPPORT |
| EXHAUST MUFFLER | ||
| 058 | N 000933010128 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 062 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 062 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| A 1204920482 | DAMPING PAD | |
| Repalced by: A 3095860049 | ||
| A 1204920118 | BASE PLATE | |
| Repalced by: A 3095860049 | ||
| A 1209911140 | SPACER TUBE | |
| Repalced by: A 3095860049 | ||
| A 1204920083 | INSULATION | |
| Repalced by: A 3095860049 | ||
| A 3095860049 | REPAIR KIT | |
| Repalced by: A 3094900037 | ||
| 090 | A 3094900037 | SUSPENSION |
| EXHAUST MUFFLER SUSPENSION | ||
| 091 | N 000931008266 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| M8X40 | ||
| 091 | N 000931008266 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| M8X40 | ||
| 095 | N 000931008244 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| M8X45 | ||
| 099 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 099 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO SUPPORT | ||
| 102 | A 3184923841 | BRACKET |
| Repalced by: A 3184923441 | ||
| 102 | A 3184923441 | BRACKET |
| BRACKET TO MOUNTING PLATE | ||
| 106 | A 3134910041 | BRACKET |
| EXHAUST MUFFLER | ||
| 106 | A 3184910041 | BRACKET |
| EXHAUST MUFFLER | ||
| 110 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 110 | N 304017008021 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| M 8X20 | ||
| 112 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 112 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO BRACKET | ||
| 115 | A 0019907751 | NUT |
| Repalced by: N 913004008007 | ||
| 115 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 115 | A 1201420072 | HEXAGON NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 122 | A 3134920904 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 122 | A 3134921004 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 127 | A 3134921104 | REAR EXHAUST PIPE |
| FRONT PART | ||
| 127 | A 3134922504 | REAR EXHAUST PIPE |
| FRONT PART | ||
| 127 | A 3134921204 | REAR EXHAUST PIPE |
| FRONT PART | ||
| 127 | A 3134921204 | REAR EXHAUST PIPE |
| FRONT PART | ||
| 127 | A 3134922604 | REAR EXHAUST PIPE |
| FRONT PART | ||
| 131 | A 3134920340 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 135 | N 000931008251 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 139 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 139 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 144 | A 0019907751 | NUT |
| Repalced by: N 913004008007 | ||
| 144 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 144 | A 1201420072 | HEXAGON NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 150 | A 3094921341 | BRACKET |
| REAR EXHAUST PIPE | ||
| 151 | A 3134920441 | BRACKET |
| EXHAUST MUFFLER TO CROSS MEMBER | ||
| 153 | A 3134921241 | BRACKET |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 154 | N 000933010128 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 158 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 158 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| A 1204920482 | DAMPING PAD | |
| Repalced by: A 3095860049 | ||
| A 1204920118 | BASE PLATE | |
| Repalced by: A 3095860049 | ||
| A 1209911140 | SPACER TUBE | |
| Repalced by: A 3095860049 | ||
| A 3095860049 | REPAIR KIT | |
| Repalced by: A 3094900037 | ||
| 180 | A 3094900037 | SUSPENSION |
| EXHAUST PIPE SUSPENSION | ||
| 184 | N 071555065501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 188 | N 000931008266 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M8X40 | ||
| 193 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 193 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 199 | A 3094921441 | BRACKET |
| REAR EXHAUST PIPE | ||
| 203 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 203 | N 304017008034 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M8X25 | ||
| 207 | A 0019907751 | NUT |
| Repalced by: N 913004008007 | ||
| 207 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 207 | A 1201420072 | HEXAGON NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 212 | A 3134921504 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 212 | A 3134921504 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 212 | A 3134921604 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 217 | A 3134920641 | BRACKET |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 217 | A 3134920641 | BRACKET |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 222 | A 3134920741 | BRACKET |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 222 | A 3134920741 | BRACKET |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 226 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 226 | N 304017008021 | SCREW |
| BRACKET TO BRACKET | ||
| M 8X22 | ||
| 230 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 230 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 237 | A 3134921141 | BRACKET |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 241 | A 3134920082 | DAMPING PAD |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 242 | A 3134920053 | SPACER TUBE |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 246 | N 000931008408 | SCREW |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| M 8X60 | ||
| 258 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 258 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 261 | A 3134920340 | CLAMP |
| EXHAUST PIPE CONNECTION ABOVE REAR AXLE | ||
| 266 | N 000931008251 | SCREW |
| EXHAUST PIPE CONNECTION ABOVE REAR AXLE | ||
| 270 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 270 | N 000125008443 | WASHER |
| EXHAUST PIPE CONNECTION ABOVE REAR AXLE | ||
| 274 | A 0019907751 | NUT |
| Repalced by: N 913004008007 | ||
| 274 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 274 | A 1201420072 | HEXAGON NUT |
| EXHAUST PIPE CONNECTION ABOVE REAR AXLE | ||
| 279 | A 3094920172 | NUT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| A 3141840053 | SPACER TUBE | |
| Repalced by: A 3104920153 | ||
| A 3104920153 | SPACER TUBE | |
| Repalced by: A 3134920153 | ||
| 281 | A 3134920153 | SPACER TUBE |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 284 | N 000933010105 | SCREW |
| EXHAUST PIPE TO SIDE MEMBER | ||
| M 10X25 | ||
| 284 | N 000933008328 | SCREW |
| EXHAUST PIPE TO SIDE MEMBER | ||
| M 8X90 | ||
| 288 | N 912004010102 | LOCK WASHER |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 289 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 289 | N 000125008443 | WASHER |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 291 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 291 | N 913004008001 | NUT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| A 1204920482 | DAMPING PAD | |
| Repalced by: A 3095860049 | ||
| A 1204920118 | BASE PLATE | |
| Repalced by: A 3095860049 | ||
| A 1209911140 | SPACER TUBE | |
| Repalced by: A 3095860049 | ||
| A 3095860049 | REPAIR KIT | |
| Repalced by: A 3094900037 | ||
| 305 | A 3094900037 | SUSPENSION |
| TAIL PIPE | ||
| 307 | N 912004008102 | LOCK WASHER |
| DAMPING PAD TO SUPPORT | ||
| 311 | N 000931008266 | SCREW |
| DAMPING PAD TO SUPPORT | ||
| M 8X40 | ||
| 316 | A 3134921704 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 316 | A 3134921704 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 321 | A 3134920340 | CLAMP |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 325 | N 000931008251 | SCREW |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 328 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 328 | N 000125008443 | WASHER |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 331 | A 0019907751 | NUT |
| Repalced by: N 913004008007 | ||
| 331 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 331 | A 1201420072 | HEXAGON NUT |
| CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| 337 | A 3094920530 | PROTECTIVE PLATE |
| REAR EXHAUST PIPE | ||
| 341 | A 1204920083 | INSULATION |
| Repalced by: A 3094900037 | ||
| 341 | A 3094900037 | SUSPENSION |
| REAR EXHAUST PIPE | ||
| 346 | A 3094922841 | BRACKET |
| EXHAUST PIPE TO NUT | ||
| 346 | A 3094922841 | BRACKET |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 351 | N 000931008244 | SCREW |
| EXHAUST PIPE TO NUT | ||
| M 8X45 | ||
| 351 | N 000931008266 | SCREW |
| EXHAUST PIPE TO NUT | ||
| M 8X40 | ||
| 354 | N 912004008102 | LOCK WASHER |
| EXHAUST PIPE TO NUT | ||
| 360 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 360 | N 913004008001 | NUT |
| DAMPING PAD TO SUPPORT | ||
| 366 | N 071555070500 | CLAMP |
| TAIL PIPE | ||
| 372 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 372 | N 304017008034 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 378 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 378 | A 1201420072 | HEXAGON NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
