Transporto priemonė: L 613 D; VIN numerio dalis: 313404
Grupė: 42 BRAKES
43624

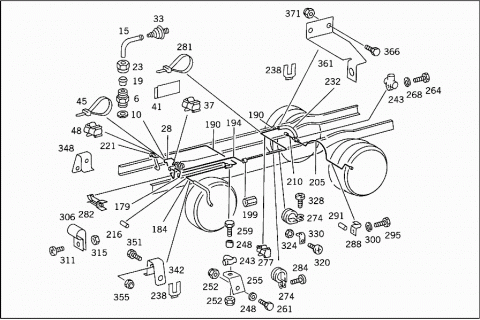

43625
43626

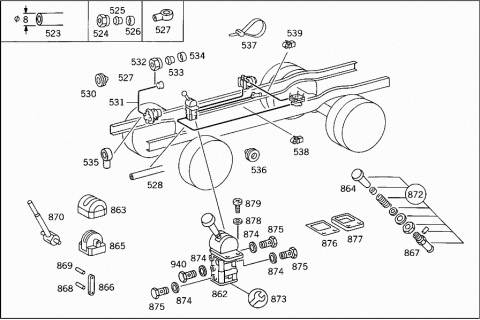

43627
43628

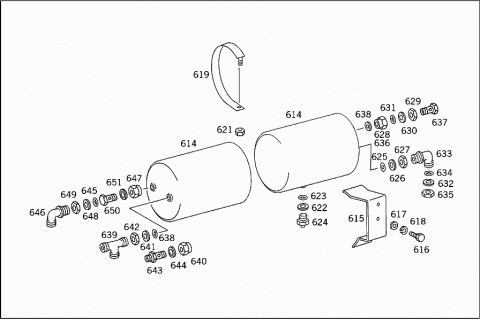

43629

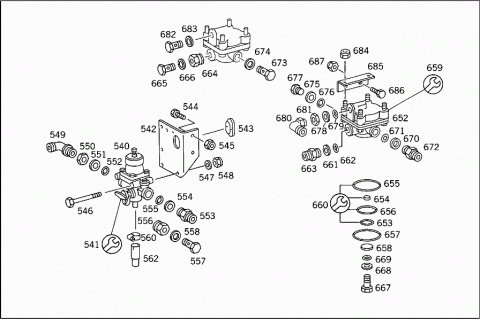

43630

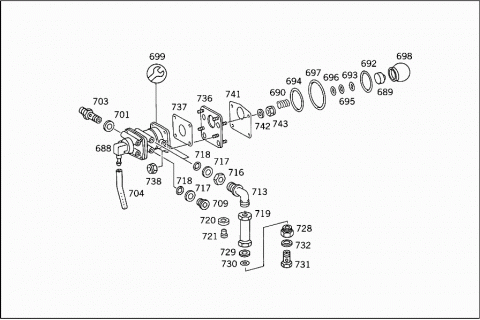

43631

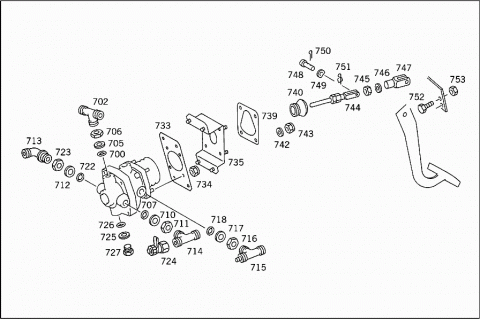

43632

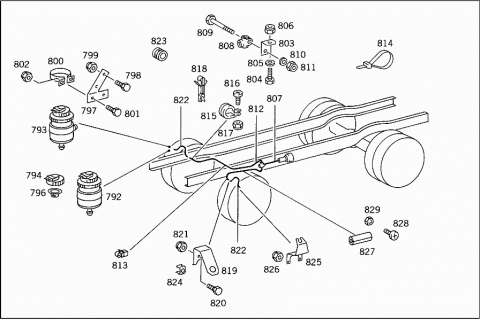

43633
43634

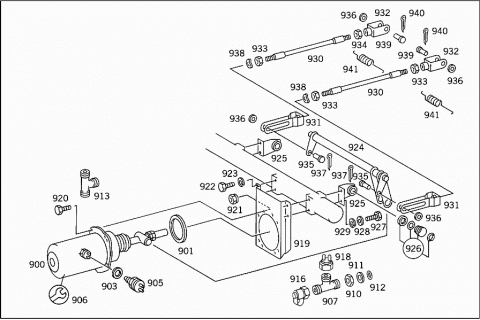

43635
43636
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
730.5
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
730.6
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
741.3
006 A 0029971172 FITTING
AT AIR COMPRESSOR
006 N 074313010100 FITTING
AT AIR COMPRESSOR
010 N 007603022102 SEAL RING
AT AIR COMPRESSOR
015 A 3104320038 PIPE
FROM FITTING TO VALVE
A 3094350525 LINE
FROM AIR COMPRESSOR TO CHECK VALVE
019 N 003861012007 GLAND
Repalced by: A 0019901967
019 A 0019901967 SEAL CONE
FROM FITTING TO VALVE
019 N 003861010005 GLAND
FROM FITTING TO VALVE
023 N 915017012100 UNION NUT
FROM FITTING TO VALVE
Repalced by: N 000000006239
023 N 000000006239 UNION NUT
FROM FITTING TO VALVE
023 N 915017010100 UNION NUT
FROM FITTING TO VALVE
028 A 0004358382 HOSE

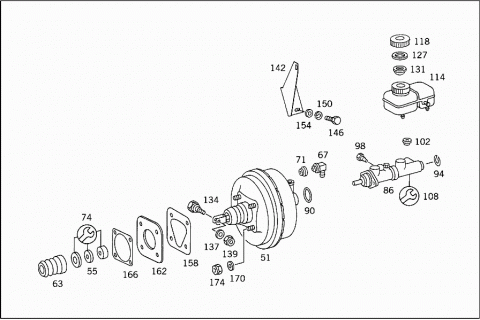

FROM CHECK VALVE TO BRAKE BOOSTER ASSY
033 A 0004313607 VALVE
CHECK VALVE
033 A 0004314007 VALVE
Repalced by: A 0004316107
033 A 0004316107 VALVE
CHECK VALVE
037 A 0049882678 CLIP
LINE TO FRONT PANEL
041 A 0009876870 RUBBER SECTION
LINE TO FRONT PANEL
045 A 0019978490 LOOM TIE
LINE TO FRONT PANEL
048 A 0049882778 CLIP
LINE TO FRONT PANEL
051 A 0014303030 BRAKE BOOSTER ASSEMBLY
055 A 0004350712 DAMPING RING
A 0004350612 FILTER RING
Repalced by: A 0015864143
063 A 0004312987 PROTECTIVE CAP
067 A 0019900371 ELBOW FITTING
071 A 0004319960 SEAL RING
074 A 0015864143 REPAIR KIT
TO 001 430 30 30
086 A 0034300601 BRAKE MASTER CYLINDER
090 A 0049973245 SEAL RING
094 N 000472028000 LOCK RING
098 A 0004308081 VALVE
102 A 0004310935 CONNECTOR
108 A 0015860543 REPAIR KIT
114 A 0004318602 RESERVOIR
A 0004313133 FILLER CAP
Repalced by: A 0004315133
118 A 0004314333 FILLER CAP
Repalced by: A 0004315133
118 A 0004315133 FILLER CAP
Repalced by: A 0004315433
118 A 0004315433 FILLER CAP
BUTTRESS THREAD
TO 000 431 86 02
127 A 0009972940 SEAL RING
TO 000 431 51 33
A 0004310034 STRAINER
Repalced by: A 0004313734
131 A 0004313734 STRAINER
Repalced by: A 0004314334
131 A 0004314334 STRAINER
TO 000 431 86 02
134 A 3094260171 SCREW
PUSH ROD TO BRAKE PEDAL
137 N 000125006421 WASHER
PUSH ROD TO BRAKE PEDAL
Repalced by: N 000125006449
137 N 000125006449 WASHER
PUSH ROD TO BRAKE PEDAL
139 N 913004006002 NUT
Repalced by: N 913004006001
139 N 913004006001 NUT
PUSH ROD TO BRAKE PEDAL
142 A 3094311240 BRACKET
BRAKE BOOSTER ASSEMBLY
146 N 000933008212 SCREW
Repalced by: N 304017008016
146 N 304017008016 SCREW
BRAKE BOOSTER ASSEMBLY
150 N 912004008102 LOCK WASHER
BRAKE BOOSTER ASSEMBLY
154 N 000125008418 WASHER
Repalced by: N 000125008443
154 N 000125008443 WASHER
BRAKE BOOSTER ASSEMBLY
158 A 3094350080 GASKET
BRAKE BOOSTER ASSEMBLY TO FIRE WALL
162 A 3094350180 GASKET
BRAKE BOOSTER ASSEMBLY TO FIRE WALL
166 A 1154310180 GASKET
BRAKE BOOSTER ASSEMBLY TO FIRE WALL
170 N 000125008418 WASHER
Repalced by: N 000125008443
170 N 000125008443 WASHER
BRAKE BOOSTER ASSEMBLY TO FIRE WALL
174 N 913004008004 NUT
Repalced by: N 913004008001
174 N 913004008001 NUT
BRAKE BOOSTER ASSEMBLY TO FIRE WALL
179 A 3404203629 LINE
FROM BRAKE BOOSTER ASSEMBLY TO FRONT DISTRIBUTOR
1950 MM
184 A 3404202129 LINE
FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE
1200 MM
184 A 3404204229 LINE
FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE
3000 MM
190 A 3404204329 LINE
FROM CONNECTOR TO HOSE
3200 MM
190 A 3404204629 LINE
FROM CONNECTOR TO REAR AXLE
3800 MM
194 A 3404203829 LINE
FROM BRAKE BOOSTER ASSEMBLY TO CONNECTOR
2200 MM
199 A 0004292736 CONNECTOR
205 A 3404202129 LINE
FROM DISTRIBUTOR TO LEFT REAR WHEEL
1200 MM
210 A 3404200629 LINE
FROM DISTRIBUTOR TO RIGHT REAR WHEEL
450 MM
216 A 3129970582 HOSE
A 0004287635 BRAKE HOSE
Repalced by: A 0024280535
221 A 0024280535 BRAKE HOSE
FRONT
221 A 0014285535 BRAKE HOSE
FRONT
232 A 0004280135 BRAKE HOSE
REAR
238 A 1072950073 LOCK
Repalced by: A 1072950173
238 A 1072950173 LOCK
243 A 0004290437 DISTRIBUTOR
243 A 0004294337 DISTRIBUTOR
248 N 000125008418 WASHER
Repalced by: N 000125008443
248 N 000125008443 WASHER
DISTRIBUTOR TO FRAME
252 N 913004008004 NUT
Repalced by: N 913004008001
252 N 913004008001 NUT
DISTRIBUTOR TO FRAME
255 A 3095420140 BRACKET
Repalced by: A 3095421340
255 A 3095421340 BRACKET
DISTRIBUTOR TO FRAME
259 N 000933008147 SCREW
Repalced by: N 304017008021
259 N 304017008021 SCREW
DISTRIBUTOR TO FRAME
261 N 000933008168 SCREW
DISTRIBUTOR TO FRAME
264 N 000933008116 SCREW
Repalced by: N 000933008337
264 N 000933008337 SCREW
Repalced by: A 0099900101
264 A 0099900101 SCREW
DISTRIBUTOR TO REAR AXLE
268 N 912004008102 LOCK WASHER
DISTRIBUTOR TO REAR AXLE
274 A 3604300143 CLAMP
Repalced by: N 916016008200
274 N 916016008200 CLAMP
Repalced by: N 000000000319
274 N 000000000319 CLAMP
LINE MOUNTING
277 A 0049882678 CLIP
LINE TO CROSS MEMBER
281 A 0019978490 LOOM TIE
LINE MOUNTING
282 A 0049881478 CLIP
LINE TO SIDE MEMBER
284 N 007516006105 TAPPING SCREW
288 A 3129951020 CLAMP
LINE TO STRUT
291 A 3129973482 HOSE
LINE TO STRUT
295 N 000933008175 SCREW
LINE TO STRUT
300 N 912004008102 LOCK WASHER
LINE TO STRUT
306 A 3129950935 CLAMP
HOSE TO BRAKE LINE
311 N 000084004151 SCREW
HOSE TO BRAKE LINE
315 N 000934004006 NUT
HOSE TO BRAKE LINE
N 007985006193 SCREW
Repalced by: N 000000001146
N 000000001146 SCREW
LINE TO CAB
M 6X16
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
LINE TO CAB
320 N 007516006105 TAPPING SCREW
LINE TO CAB
324 N 913004006002 NUT
Repalced by: N 913004006001
324 N 913004006001 NUT
LINE TO SIDE MEMBER
328 N 007985006193 SCREW
Repalced by: N 000000001146
328 N 000000001146 SCREW
LINE TO SIDE MEMBER
M 6X16
330 A 3604280143 ANGLE
LINE MOUNTING
N 007985006193 SCREW
Repalced by: N 000000001146
N 000000001146 SCREW
M 6X16
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
342 A 3094280043 ANGLE
LEFT
348 A 3094280143 ANGLE
RIGHT
351 N 000933010129 SCREW
Repalced by: N 304017010002
351 N 304017010002 SCREW
ANGLE TO FRAME
355 N 913004010008 NUT
Repalced by: N 910113010000
355 N 910113010000 NUT
ANGLE TO FRAME
361 A 3094281240 BRACKET
BRAKE HOSE
366 N 000933010105 SCREW
BRACKET TO SIDE MEMBER
371 N 913004010008 NUT
Repalced by: N 910113010000
371 N 910113010000 NUT
BRACKET TO SIDE MEMBER

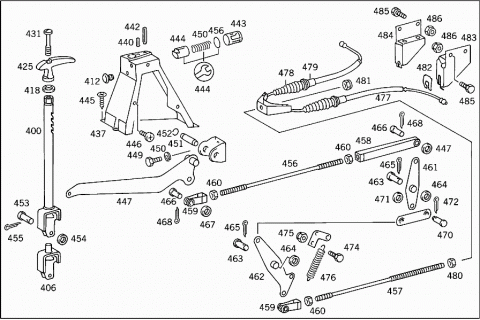

400 A 3134200088 RATCHET ROD
406 A 3134200189 SHACKLE
412 A 3139970035 PLUG
418 A 3124271086 DAMPING RING
425 A 3094270020 HANDLE
431 N 007985010120 SCREW
Repalced by: N 000965010006
431 N 000965010006 SCREW
437 A 3134200244 PROTECTIVE PLATE
A 3124271215 PAWL
Repalced by: A 3145860142
A 1539930701 SPRING
Repalced by: A 3145860142
A 3129900043 PLATE
Repalced by: A 3145860142
440 N 001472003009 GROOVED PIN
AS REQUIRED
442 N 001470003002 GROOVED PIN
443 A 3099870115 PLUG
A 3145860142 REPAIR KIT
Repalced by: A 3144200092
444 A 3144200092 REPAIR KIT
PAWL
445 N 007983005207 SHEET METAL SCREW
446 N 007985006161 SCREW
Repalced by: N 007985006580
446 N 007985006580 SCREW
447 A 3134200012 BRAKE LEVER
A 3134200078 BEARING BRACKET
449 N 000933010128 SCREW
BEARING BRACKET TO CAB
450 N 912004010102 LOCK WASHER
BEARING BRACKET TO CAB
451 A 3094270274 PIN
BRAKE LEVER TO BEARING BRACKET
452 N 007993016100 SNAP RING
BRAKE LEVER TO BEARING BRACKET
453 N 001434008112 PIN
454 N 000433008406 WASHER
455 N 000094002059 COTTER PIN
Repalced by: N 000094002060
455 N 000094002060 COTTER PIN
456 N 900331010654 PULL ROD
457 N 900331010655 PULL ROD
458 A 3094200276 END PIECE
459 A 3094200376 END PIECE
460 N 000934010014 NUT
Repalced by: N 304032010003
460 N 304032010003 NUT
461 A 3134200081 LEVER
462 A 3134200181 LEVER
463 N 001434016036 PIN
LEVER TO BRACKET
464 N 000433017004 WASHER
LEVER TO BRACKET
465 N 000094004021 COTTER PIN
LEVER TO BRACKET
466 N 001434010128 PIN
LEVER TO BRACKET
467 N 000434010505 WASHER
LEVER TO BRACKET
468 N 000094003219 COTTER PIN
LEVER TO BRACKET
A 3134200089 SHACKLE
470 N 001434010127 PIN
SHACKLE TO LEVER
471 N 000433010505 WASHER
Repalced by: N 000433010510
471 N 000433010510 WASHER
SHACKLE TO LEVER
472 N 000094003219 COTTER PIN
SHACKLE TO LEVER
A 3134270041 BRACKET
SHACKLE
474 N 000933008147 SCREW
Repalced by: N 304017008021
474 N 304017008021 SCREW
475 N 913004008004 NUT
Repalced by: N 913004008001
475 N 913004008001 NUT
476 A 3199930810 SPRING
RELEASE SPRING
A 3094201385 BRAKE CABLE
Repalced by: A 3094201685
A 3094201685 BRAKE CABLE
3975 MM
A 3094201485 BRAKE CABLE
Repalced by: A 3094201785
477 A 3094201785 BRAKE CABLE
5045 MM
478 A 3094270296 CUP
479 A 3094270077 THIMBLE
480 N 000934010014 NUT
Repalced by: N 304032010003
480 N 304032010003 NUT
BRAKE CABLE TO FORK
481 N 913004010008 NUT
Repalced by: N 910113010000
481 N 910113010000 NUT
BRAKE CABLE TO FORK
482 A 3093250040 BRACKET
(CLAMPING PIECE)
483 A 3094272941 BRACKET
LEFT
484 A 3094273041 BRACKET
RIGHT
485 N 000933008147 SCREW
Repalced by: N 304017008021
485 N 304017008021 SCREW
BRACKET TO FRAME
485 N 000933008153 SCREW
Repalced by: N 304017008034
485 N 304017008034 SCREW
BRACKET TO FRAME
486 N 913004008004 NUT
Repalced by: N 913004008001
486 N 913004008001 NUT
BRACKET TO FRAME

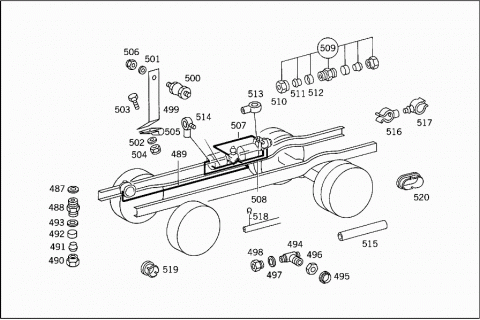

487 N 007603022102 SEAL RING
COMPRESSED AIR LINE TO AIR COMPRESSOR
487 N 007603022102 SEAL RING
COMPRESSED AIR LINE TO AIR COMPRESSOR
488 N 074298022203 DOUBLE FITTING
COMPRESSED AIR LINE TO AIR COMPRESSOR
488 N 074298022203 DOUBLE FITTING
COMPRESSED AIR LINE TO AIR COMPRESSOR
489 A 0004291401 LINE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
15 MM
489 A 0004291401 LINE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
15 MM
490 N 915018015000 UNION NUT
490 N 915018015000 UNION NUT
491 N 003861015004 GLAND
491 N 003861015004 GLAND
492 N 915065015101 THRUST RING
492 N 915065015101 THRUST RING
493 N 915045012100 SEAL RING
Repalced by: N 007603012121
493 N 007603012121 SEAL RING
493 N 007603012121 SEAL RING
494 A 0019903870 T-FITTING
494 A 0019903870 T-FITTING
495 A 3134290050 BUSHING
T-FITTING TO SIDE MEMBER
495 A 3134290050 BUSHING
T-FITTING TO SIDE MEMBER
496 N 074305022202 NUT
T-FITTING TO SIDE MEMBER
496 N 074305022202 NUT
T-FITTING TO SIDE MEMBER
497 N 915045012100 SEAL RING
Repalced by: N 007603012121
497 N 007603012121 SEAL RING
T-FITTING TO SIDE MEMBER
497 N 007603012121 SEAL RING
T-FITTING TO SIDE MEMBER
A 0004295434 ADAPTER FITTING
Repalced by: A 0029971072
498 A 0029971072 FITTING
T-FITTING TO SIDE MEMBER
498 A 0029971072 FITTING
T-FITTING TO SIDE MEMBER
499 A 3104290440 BRACKET
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
499 A 3104290440 BRACKET
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
A 3104290840 BRACKET
Repalced by: A 3104290940
499 A 3104290940 BRACKET
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
500 A 0019875240 RUBBER BUFFER
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
500 A 0019875240 RUBBER BUFFER
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
501 N 000125008418 WASHER
Repalced by: N 000125008443
501 N 000125008443 WASHER
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
501 N 000125008443 WASHER
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
502 N 000125006421 WASHER
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
Repalced by: N 000125006449
502 N 000125006449 WASHER
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
502 N 000125006449 WASHER
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
503 N 000933006183 SCREW
Repalced by: N 304017006016
503 N 304017006016 SCREW
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
M 6X15
503 N 304017006016 SCREW
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
M 6X15
504 N 913004006002 NUT
Repalced by: N 913004006001
504 N 913004006001 NUT
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
504 N 913004006001 NUT
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
A 3609950501 CLAMP
Repalced by: A 3609952001
A 3609952001 CLAMP
Repalced by: A 6739950001
505 A 6739950001 CLAMP
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
505 A 6739950001 CLAMP
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
506 N 913004008004 NUT
Repalced by: N 913004008001
506 N 913004008001 NUT
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
506 N 913004008001 NUT
AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING
507 A 0004292101 LINE
FROM PRESSURE REGULATOR TO PROTECTIVE VALVE
12X9 MM
507 A 0004292101 LINE
FROM PRESSURE REGULATOR TO PROTECTIVE VALVE
12X9 MM
508 A 0109975982 HOSE
Repalced by: A 0009872827
508 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
9X12 MM
508 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
9X12 MM
508 A 0009872827 PLASTIC PIPE
FROM PRESSURE REGULATOR TO PROTECTIVE VALVE
9X12 MM
A 0049971772 FITTING
Repalced by: A 0029906171
509 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
510 N 915017012100 UNION NUT
Repalced by: N 000000006239
510 N 000000006239 UNION NUT
510 N 000000006239 UNION NUT
511 N 003861012007 GLAND
Repalced by: A 0019901967
511 A 0019901967 SEAL CONE
511 A 0019901967 SEAL CONE
512 N 915062009000 SLEEVE
512 N 915062009000 SLEEVE
513 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
513 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
514 A 0019901088 BANJO UNION
515 N 040621030200 INSULATING HOSE
515 N 040621030200 INSULATING HOSE
A 1109950365 CLAMP
Repalced by: A 0004760436
516 A 0004760436 BRACKET
517 A 1159950565 CLAMP
Repalced by: A 0009956665
517 A 0009956665 CLAMP
Repalced by: A 0079973890
517 A 0079973890 BRACKET
518 A 0019877625 PLASTIC SECTION
518 A 0019877625 PLASTIC SECTION
519 A 3094760150 BUSHING
LINE THRU FRAME
519 A 3094760150 BUSHING
LINE THRU FRAME
519 A 3094760350 BUSHING
Repalced by: A 0009973481
519 A 0009973481 GROMMET
520 A 3094760250 BUSHING
LINE THRU FRAME
520 A 3094760250 BUSHING
LINE THRU FRAME

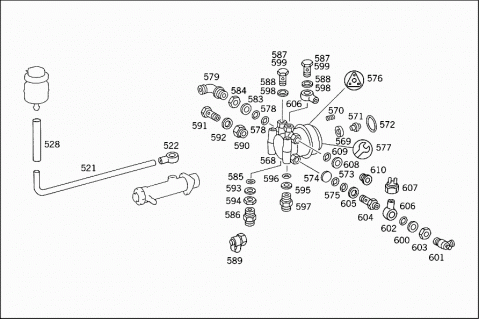

521 A 0089975482 HOSE
FROM FLUID RESERVOIR TO CYLINDER
522 N 915052008016 BANJO UNION
Repalced by: N 000000000363
522 N 000000000363 BANJO UNION
FROM FLUID RESERVOIR TO CYLINDER
523 A 0089979082 HOSE
Repalced by: A 0009872727
523 A 0009872727 PLASTIC PIPE
FOUR-CIRCUIT PROTECTIVE VALVE,HAND BRAKE VALVE,RELAY VALVE
6X8 MM
523 A 0009872727 PLASTIC PIPE
FOUR-CIRCUIT PROTECTIVE VALVE,HAND BRAKE VALVE,RELAY VALVE
6X8 MM
524 N 915017008100 UNION NUT
524 N 915017008100 UNION NUT
525 N 003861008005 GLAND
525 N 003861008005 GLAND
526 N 915062006000 SLEEVE
527 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
527 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
527 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
527 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
N 915017012100 UNION NUT
Repalced by: N 000000006239
N 000000006239 UNION NUT
528 A 0099973882 HOSE
528 A 0099973882 HOSE
A 3109970382 HOSE
Repalced by: A 6039970482
528 A 6039970482 HOSE
528 A 6039970482 HOSE
530 A 3359970081 GROMMET
530 A 3359970081 GROMMET
531 A 0089976082 HOSE
Repalced by: A 0009872627
531 A 0009872627 PLASTIC PIPE
FROM BRAKE VALVE TO PRESSURE GAUGE
6X4 MM
532 N 915017006100 UNION NUT
533 N 003861006007 GLAND
Repalced by: A 0019901667
533 A 0019901667 SEAL CONE
534 N 915062004000 SLEEVE
535 N 915052004019 BANJO UNION
HOSE WIDTH, / I.D.,
4/16 MM
536 A 1869970681 GROMMET
PRESSURE GAUGE LINE
536 A 1869970681 GROMMET
PRESSURE GAUGE LINE
537 A 0019978390 LOOM TIE
COMPRESSED AIR LINE MOUNTING
537 A 0019978490 LOOM TIE
COMPRESSED AIR LINE MOUNTING
538 A 0049882678 CLIP
COMPRESSED AIR LINE MOUNTING
539 A 0049881378 CLIP
COMPRESSED AIR LINE MOUNTING
A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
A 0024314906 PRESSURE REGULATOR
Repalced by: A 0024314306
540 A 0024314306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
BOSCH
540 A 0024314306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
BOSCH
540 A 0024318306 VALVE
KNORR
540 A 0024318306 VALVE
KNORR
A 0015864343 REPAIR KIT
Repalced by: A 0004301107
541 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
541 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
541 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
541 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
541 A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 32 00
541 A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 32 00
541 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
541 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
541 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
541 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH 0 481 039 201
541 A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 903 09
541 A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 903 09
541 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
542 A 3104314540 BRACKET
PRESSURE REGULATOR
542 A 3104314540 BRACKET
PRESSURE REGULATOR
TO 002 431 43 06,BOSCH 0 481 039 201
542 A 3104314540 BRACKET
PRESSURE REGULATOR
543 A 3094760250 BUSHING
BRACKET TO PRESSURE REGULATOR
543 A 3094760250 BUSHING
BRACKET TO PRESSURE REGULATOR
544 N 000933010105 SCREW
BRACKET TO FRAME
544 N 000933010105 SCREW
BRACKET TO FRAME
545 N 913004010008 NUT
Repalced by: N 910113010000
545 N 910113010000 NUT
BRACKET TO FRAME
545 N 910113010000 NUT
BRACKET TO FRAME
546 N 000931008228 SCREW
Repalced by: N 000933008134
546 N 000933008134 SCREW
PRESSURE REGULATOR TO BRACKET
546 N 000933008134 SCREW
PRESSURE REGULATOR TO BRACKET
547 N 000125008418 WASHER
Repalced by: N 000125008443
547 N 000125008443 WASHER
PRESSURE REGULATOR TO BRACKET
547 N 000125008443 WASHER
PRESSURE REGULATOR TO BRACKET
548 N 913004008004 NUT
Repalced by: N 913004008001
548 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
548 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
549 N 074301022203 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION "1"
549 N 074301022203 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION "1"
550 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION "1"
550 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION "1"
551 A 0004290227 THRUST RING
Repalced by: A 0009940203
551 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTION "1"
551 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTION "1"
552 A 0009870446 O-RING
PRESSURE REGULATOR,CONNECTION "1"
552 A 0009870446 O-RING
PRESSURE REGULATOR,CONNECTION "1"
553 A 0029971172 FITTING
PRESSURE REGULATOR,CONNECTION "21"
553 A 0029971172 FITTING
PRESSURE REGULATOR,CONNECTION "21"
554 A 0004290227 THRUST RING
Repalced by: A 0009940203
554 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTION "21"
554 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTION "21"
555 A 0009870446 O-RING
PRESSURE REGULATOR,CONNECTION "21"
555 A 0009870446 O-RING
PRESSURE REGULATOR,CONNECTION "21"
556 A 0009905168 FITTING
PRESSURE REGULATOR,CONNECTION "21"
557 N 915036012203 HOLLOW SCREW
PRESSURE REGULATOR,CONNECTION "21"
558 N 007603016401 SEAL RING
PRESSURE REGULATOR,CONNECTION "21"
560 N 916017025000 CLAMP
Repalced by: N 000000000668
560 N 000000000668 CLAMP
PRESSURE REGULATOR,CONNECTION "3"
562 A 0004300170 MUFFLER
PRESSURE REGULATOR,CONNECTION "3"
A 0014313806 VALVE
Repalced by: A 0024310406
568 A 0024310406 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
BOSCH
568 A 0024310406 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
BOSCH
568 A 0014314706 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO
568 A 0014314706 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO
A 0014313506 VALVE
Repalced by: A 0014318406
568 A 0014318406 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
KNORR
568 A 0014318406 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
KNORR
A 0014316806 VALVE
Repalced by: A 0024312906
A 0024312906 VALVE
Repalced by: A 0024319306
568 A 0024319306 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
GRAU
568 A 0024319306 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
GRAU
569 A 0014310986 CUP
TO 002 431 04 06,BOSCH
569 A 0014310986 CUP
TO 002 431 04 06,BOSCH
A 0009934905 SPRING
Repalced by: A 0009935205
570 A 0009935205 SPRING
TO 002 431 04 06,BOSCH
570 A 0009935205 SPRING
TO 002 431 04 06,BOSCH
571 A 0014311860 SEAL RING
34X2.3 MM,TO 001 431 68 06,GRAU
571 A 0014311860 SEAL RING
34X2.3 MM,TO 001 431 68 06,GRAU
572 A 0024298844 VALVE
TO 001 431 68 06,GRAU 37001
573 A 0099972448 SEAL RING
TO 001 431 68 06,GRAU 37001
573 A 0059973248 SEAL RING
25.3X2.4 MM,TO 001 431 68 06,GRAU
573 A 0059973248 SEAL RING
25.3X2.4 MM,TO 001 431 68 06,GRAU
574 A 0004313188 VALVE SEAT
TO 001 431 68 06,GRAU 37001
A 0014311960 SEAL RING
Repalced by: A 0009971548
575 A 0009971548 SEAL RING
15X2 MM,TO 001 431 68 06,GRAU 19001
576 A 0004302906 GASKET KIT
BOOT
TO 002 431 04 06,BOSCH
577 A 0025861743 REPAIR KIT
BOOT
TO 001 431 38 06,BOSCH
577 A 0025861743 REPAIR KIT
BOOT
TO 001 431 38 06,BOSCH
577 A 0025868443 REPAIR KIT
SEAL RING
TO 001 431 38 06,BOSCH
577 A 0025868443 REPAIR KIT
SEAL RING
TO 001 431 38 06,BOSCH
577 A 0025862843 REPAIR KIT
TO 001 431 47 06,WABCO 2100
577 A 0025862843 REPAIR KIT
TO 001 431 47 06,WABCO 2100
577 A 0004300468 REPAIR KIT
TO 001 431 47 06,WABCO 2210
577 A 0034300881 REPAIR KIT
TO 002 431 93 06 GRAU 74001
577 A 0015863842 REPAIR KIT
TO 001 431 35 06,KNORR
577 A 0015863842 REPAIR KIT
TO 001 431 35 06,KNORR
577 A 0004303160 REPAIR KIT
TO 001 431 84 06,KNORR
577 A 0004303160 REPAIR KIT
TO 001 431 84 06,KNORR
578 A 0009870446 O-RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
578 A 0009870446 O-RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
579 A 0009907771 ELBOW FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
579 A 0009907771 ELBOW FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
583 A 0004290227 THRUST RING
Repalced by: A 0009940203
583 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
583 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
584 N 074305022202 NUT
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
584 N 074305022202 NUT
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
585 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
585 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
585 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11"
585 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11"
586 A 0019979472 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11"
586 A 0019979472 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11"
586 A 0039977072 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"11"
587 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11"
588 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11"
589 A 0004312031 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12" VOSS
589 A 0004314531 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12" SCHAEFER
589 A 0004314831 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12" WABCO
589 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11,12" WIRA
A 0009979486 PROTECTIVE CAP
590 A 0009905168 FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
591 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
592 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
593 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11"
593 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11"
594 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11"
594 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"11"
595 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
21
595 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
21
596 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
21
596 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
21
597 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
597 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
598 N 007603016103 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"12,22"
598 N 007603016103 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"12,22"
599 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"12,22"
599 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"12,22"
600 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
600 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
601 A 0009909470 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
601 A 0009909470 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
602 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
602 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
603 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
603 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
604 N 915039012206 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
605 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
606 A 0019900788 BANJO UNION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
607 A 0005455414 SWITCH
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
608 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
608 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
609 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
609 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
610 N 000908016001 SCREW PLUG
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
610 N 000908016001 SCREW PLUG
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
614 A 0004326501 RESERVOIR
Repalced by: A 0034321501
614 A 0034321501 RESERVOIR
20L
614 A 0034321501 RESERVOIR
20L
615 A 3104301910 BRACKET
AIR RESERVOIR
615 A 3104301910 BRACKET
AIR RESERVOIR
616 N 000933010105 SCREW
BRACKET TO FRAME
616 N 000933010105 SCREW
BRACKET TO FRAME
617 N 000125010518 WASHER
Repalced by: N 000125010532
617 N 000125010532 WASHER
BRACKET TO FRAME
617 N 000125010532 WASHER
BRACKET TO FRAME
618 N 912004010102 LOCK WASHER
BRACKET TO FRAME
618 N 912004010102 LOCK WASHER
BRACKET TO FRAME
A 3184300040 STRAP
Repalced by: A 6204300040
619 A 6204300040 STRAP
AIR RESERVOIR TO FRAME
619 A 6204300040 STRAP
AIR RESERVOIR TO FRAME
A 3584320119 BASE
AIR RESERVOIR TO FRAME
A 3584320119 BASE
AIR RESERVOIR TO FRAME
621 N 000934010014 NUT
Repalced by: N 304032010003
621 N 304032010003 NUT
AIR RESERVOIR TO FRAME
621 N 304032010003 NUT
AIR RESERVOIR TO FRAME
622 A 0004290227 THRUST RING
Repalced by: A 0009940203
622 A 0009940203 THRUST RING
AIR RESERVOIR
"21,22"
622 A 0009940203 THRUST RING
AIR RESERVOIR
"21,22"
623 A 0009870446 O-RING
AIR RESERVOIR
"21,22"
623 A 0009870446 O-RING
AIR RESERVOIR
"21,22"
624 A 0004321107 VALVE
DRAIN
Repalced by: A 0004322407
624 A 0004322407 DRAIN VALVE
DRAIN
Repalced by: A 0004322107
624 A 0004322107 DRAIN VALVE
DRAIN
624 A 0004321107 VALVE
Repalced by: A 0004322407
624 A 0004322407 DRAIN VALVE
Repalced by: A 0004322107
624 A 0004322107 DRAIN VALVE
624 A 0004322407 VALVE
DRAIN
Repalced by: A 0004322107
624 A 0004322107 DRAIN VALVE
DRAIN
624 A 0004322107 DRAIN VALVE
DRAIN
625 A 0009870446 O-RING
FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
625 A 0009870446 O-RING
FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
626 A 0004290227 THRUST RING
Repalced by: A 0009940203
626 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
626 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
627 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
627 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
628 A 0009905168 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
629 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
630 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
631 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
632 A 0009870446 O-RING
REAR AIR RESERVOIR,INSIDE CONNECTION
"11"
632 A 0009870446 O-RING
REAR AIR RESERVOIR,INSIDE CONNECTION
"11"
633 A 0009907771 ELBOW FITTING
REAR AIR RESERVOIR,INSIDE CONNECTION
"11"
633 A 0009907771 ELBOW FITTING
REAR AIR RESERVOIR,INSIDE CONNECTION
"11"
634 A 0004290227 THRUST RING
Repalced by: A 0009940203
634 A 0009940203 THRUST RING
REAR AIR RESERVOIR,INSIDE CONNECTION
"11"
634 A 0009940203 THRUST RING
REAR AIR RESERVOIR,INSIDE CONNECTION
"11"
635 N 074305022202 NUT
REAR AIR RESERVOIR,INSIDE CONNECTION
"11"
635 N 074305022202 NUT
REAR AIR RESERVOIR,INSIDE CONNECTION
"11"
636 A 0009905168 FITTING
REAR AIR RESERVOIR,INSIDE CONNECTION
"11"
637 N 915036012203 HOLLOW SCREW
REAR AIR RESERVOIR,INSIDE CONNECTION
"11"
638 N 007603016401 SEAL RING
REAR AIR RESERVOIR,INSIDE CONNECTION
"11"
A 0009903970 T-FITTING
Repalced by: A 0019901070
639 A 0019901070 T-FITTING
FRONT AIR RESERVOIR,INSIDE CONNECTION
639 A 0019901070 T-FITTING
FRONT AIR RESERVOIR,INSIDE CONNECTION
640 A 0009905168 FITTING
FRONT AIR RESERVOIR,INSIDE CONNECTION
"22"
641 A 0004290227 THRUST RING
Repalced by: A 0009940203
641 A 0009940203 THRUST RING
FRONT AIR RESERVOIR,INSIDE CONNECTION
"22"
641 A 0009940203 THRUST RING
FRONT AIR RESERVOIR,INSIDE CONNECTION
"22"
642 N 074305022202 NUT
FRONT AIR RESERVOIR,INSIDE CONNECTION
"22"
642 N 074305022202 NUT
FRONT AIR RESERVOIR,INSIDE CONNECTION
"22"
643 N 915039012205 HOLLOW SCREW FITTING
FRONT AIR RESERVOIR,INSIDE CONNECTION
"22"
644 N 007603016401 SEAL RING
FRONT AIR RESERVOIR,INSIDE CONNECTION
"22"
645 A 0009870446 O-RING
FRONT AIR RESERVOIR,INSIDE CONNECTION
"22"
645 A 0009870446 O-RING
FRONT AIR RESERVOIR,INSIDE CONNECTION
"22"
N 074315012101 FITTING
Repalced by: A 0009907771
646 A 0009907771 ELBOW FITTING
FRONT AIR RESERVOIR,OUTSIDE CONNECTION
"12"
646 A 0009907771 ELBOW FITTING
FRONT AIR RESERVOIR,OUTSIDE CONNECTION
"12"
647 A 0009905168 FITTING
FRONT AIR RESERVOIR,OUTSIDE CONNECTION
"12"
648 A 0004290227 THRUST RING
Repalced by: A 0009940203
648 A 0009940203 THRUST RING
FRONT AIR RESERVOIR,OUTSIDE CONNECTION
"12"
648 A 0009940203 THRUST RING
FRONT AIR RESERVOIR,OUTSIDE CONNECTION
"12"
649 N 074305022202 NUT
FRONT AIR RESERVOIR,OUTSIDE CONNECTION
"12"
649 N 074305022202 NUT
FRONT AIR RESERVOIR,OUTSIDE CONNECTION
"12"
650 N 915036012203 HOLLOW SCREW
FRONT AIR RESERVOIR,OUTSIDE CONNECTION
"12"
651 N 007603016401 SEAL RING
FRONT AIR RESERVOIR,OUTSIDE CONNECTION
"12"
652 A 0014299144 VALVE
RELAY
GRAU
652 A 0014299144 VALVE
RELAY
GRAU
652 A 0014296844 VALVE
RELAY
WABCO
652 A 0014296844 VALVE
RELAY
WABCO
652 A 0034291644 VALVE
RELAY
BOSCH
652 A 0034291644 VALVE
RELAY
BOSCH
652 A 0034295344 VALVE
RELAY
KNORR
652 A 0034295344 VALVE
RELAY
KNORR
652 A 0024298444 VALVE
RELAY
WABCO
652 A 0034295944 VALVE
RELAY
BOSCH
653 A 0059972648 SEAL RING
22.3X2.4 MM,TO 001 429 91 44,GRAU
653 A 0059972648 SEAL RING
22.3X2.4 MM,TO 001 429 91 44,GRAU
A 0099970448 SEAL RING
Repalced by: A 0179979048
653 A 0179979048 SEAL RING
42.52X2.62 MM,TO 002 429 84 44,WABCO
654 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
654 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
654 A 0004311088 VALVE SEAT
TO 002 429 84 44,WABCO
655 A 0059972748 SEAL RING
80X3 MM,TO 000 429 28 95, GRAU
655 A 0059972748 SEAL RING
80X3 MM,TO 000 429 28 95, GRAU
655 A 0099970648 SEAL RING
82.22X2.62 MM,TO 002 429 84 44,WABCO
656 A 0014311660 SEAL RING
28X2 MM,TO 001 429 91 44,GRAU
656 A 0014311660 SEAL RING
28X2 MM,TO 001 429 91 44,GRAU
656 A 0059976745 SEAL RING
24.20X5.70 MM,TO 002 429 84 44,WABCO
657 A 0014311760 SEAL RING
86X2 MM,TO 001 429 91 44,GRAU
657 A 0014311760 SEAL RING
86X2 MM,TO 001 429 91 44,GRAU
658 A 0004311980 GASKET
34X2X6 MM,TO 001 429 91 44,GRAU
658 A 0004311980 GASKET
34X2X6 MM,TO 001 429 91 44,GRAU
659 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
659 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
A 0025865642 REPAIR KIT
Repalced by: A 0004201071
659 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
659 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
659 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
A 0025865742 REPAIR KIT
Repalced by: A 0004301109
659 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
659 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
660 A 0014309060 GASKET KIT
TO 002 429 84 44,WABCO
661 A 0004290227 THRUST RING
Repalced by: A 0009940203
661 A 0009940203 THRUST RING
RELAY VALVE,CONNECTION "1"
661 A 0009940203 THRUST RING
RELAY VALVE,CONNECTION "1"
662 A 0009870446 O-RING
RELAY VALVE,CONNECTION "1"
662 A 0009870446 O-RING
RELAY VALVE,CONNECTION "1"
663 A 0029971172 FITTING
RELAY VALVE,CONNECTION "1"
663 A 0029971172 FITTING
RELAY VALVE,CONNECTION "1"
664 A 0009905168 FITTING
RELAY VALVE,CONNECTION "1"
665 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION "1"
666 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION "1"
667 A 0004300370 MUFFLER
Repalced by: A 0004302370
667 A 0004302370 MUFFLER
667 A 0004300470 MUFFLER
668 A 0004290227 THRUST RING
Repalced by: A 0009940203
668 A 0009940203 THRUST RING
RELAY VALVE,CONNECTION:
"3"
669 A 0009870446 O-RING
RELAY VALVE,CONNECTION:
"3"
670 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "2"
670 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "2"
671 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2"
671 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2"
672 A 0029971572 FITTING
RELAY VALVE,CONNECTION "2"
672 A 0029971572 FITTING
RELAY VALVE,CONNECTION "2"
673 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION "2"
674 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION "2"
675 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "2"
675 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "2"
676 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2"
676 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2"
677 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION "2"
677 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION "2"
678 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "4"
678 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "4"
679 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "4"
679 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "4"
680 A 0004294238 ELBOW FITTING
RELAY VALVE,CONNECTION "4"
680 A 0004294238 ELBOW FITTING
RELAY VALVE,CONNECTION "4"
681 N 080705016003 NUT
RELAY VALVE,CONNECTION "4"
681 N 080705016003 NUT
RELAY VALVE,CONNECTION "4"
682 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION "4"
683 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION "4"
684 N 913004008004 NUT
Repalced by: N 913004008001
684 N 913004008001 NUT
VALVE TO BRACKET
684 N 913004008001 NUT
VALVE TO BRACKET
685 A 3104290740 BRACKET
RELAY VALVE
685 A 3104290740 BRACKET
RELAY VALVE
686 N 000933008147 SCREW
Repalced by: N 304017008021
686 N 304017008021 SCREW
BRACKET TO CONSOLE
686 N 304017008021 SCREW
BRACKET TO CONSOLE
687 N 913004008004 NUT
Repalced by: N 913004008001
687 N 913004008001 NUT
BRACKET TO CONSOLE
687 N 913004008001 NUT
BRACKET TO CONSOLE
A 0014315905 BRAKE VALVE
Repalced by: A 0014318905
A 0014317205 BRAKE VALVE
Repalced by: A 0014318905
688 A 0014318905 BRAKE VALVE
689 A 0004310378 RUBBER RING
TO 001 431 72 05
690 A 0014316903 HOUSING
TO 001 431 89 05
A 0014315893 SPRING
TO 001 431 72 05
A 0014316093 SPRING
TO 001 431 72 05
A 0109974348 SEAL RING
Repalced by: A 0049970248
692 A 0049970248 SEAL RING
TO 001 431 72 05,60X3 MM
693 A 0059975248 SEAL RING
TO 001 431 72 05,12X2 MM
694 A 0059975348 SEAL RING
TO 001 431 72 05,106X2 MM
695 A 0049979148 SEAL RING
TO 001 431 72 05,14X2.5 MM
696 A 0059975448 SEAL RING
TO 001 431 72 05,24X2.5 MM
697 A 0059975548 SEAL RING
TO 001 431 72 05,104X3 MM
698 A 0004317787 PROTECTIVE CAP
TO 001 431 72 05
699 A 0025861343 REPAIR KIT
VALVE DISC
TO 001 431 72 05
A 0025865742 REPAIR KIT
Repalced by: A 0004301109
699 A 0004301109 REPAIR KIT
SUPPORTING BODY
TO 001 431 72 05
699 A 0005868643 REPAIR KIT
TO 001 431 59 05
A 0025868743 REPAIR KIT
Repalced by: A 0004303506
699 A 0004303506 REPAIR KIT
TO 001 431 89 05
700 A 0009971548 SEAL RING
BRAKE VALVE,CONNECTIONS:
"11,12"
700 A 0009971548 SEAL RING
BRAKE VALVE,CONNECTIONS:
"11,12"
701 N 007603016401 SEAL RING
BRAKE VALVE,CONNECTIONS:
"11,12"
702 A 0009904770 T-FITTING
BRAKE VALVE,CONNECTIONS:
"11,12"
702 A 0009904770 T-FITTING
BRAKE VALVE,CONNECTIONS:
"11,12"
703 N 915039012206 HOLLOW SCREW FITTING
BRAKE VALVE,CONNECTIONS:
"11,12"
704 A 6734310073 BREATHER PIPE
BRAKE VALVE,CONNECTION:
"3"
705 A 0004290927 THRUST RING
BRAKE VALVE,CONNECTIONS:
"11,12"
705 A 0004290927 THRUST RING
BRAKE VALVE,CONNECTIONS:
"11,12"
706 N 080705016003 NUT
BRAKE VALVE,CONNECTIONS:
"11,12"
706 N 080705016003 NUT
BRAKE VALVE,CONNECTIONS:
"11,12"
707 A 0009971548 SEAL RING
BRAKE VALVE,CONNECTIONS:
"22,21,11,12"
707 A 0009971548 SEAL RING
BRAKE VALVE,CONNECTIONS:
"22,21,11,12"
N 074315012100 FITTING
Repalced by: A 0019903371
A 0019903371 ELBOW FITTING
BRAKE VALVE,CONNECTIONS:
"21,22"
A 0019903371 ELBOW FITTING
BRAKE VALVE,CONNECTIONS:
"21,22"
709 N 000908016001 SCREW PLUG
BRAKE VALVE,CONNECTIONS:
"21,22,11,12"
710 A 0004290927 THRUST RING
BRAKE VALVE,CONNECTIONS:
"21,22,11,12"
710 A 0004290927 THRUST RING
BRAKE VALVE,CONNECTIONS:
"21,22,11,12"
711 N 080705016003 NUT
BRAKE VALVE,CONNECTIONS:
"21,22"
711 N 080705016003 NUT
BRAKE VALVE,CONNECTIONS:
"21,22"
712 A 0009971548 SEAL RING
BRAKE VALVE,CONNECTIONS:
"21,22"
712 A 0009971548 SEAL RING
BRAKE VALVE,CONNECTIONS:
"21,22"
713 A 3529900071 ELBOW FITTING
BRAKE VALVE,CONNECTIONS:
"21,22"
713 A 3529900071 ELBOW FITTING
BRAKE VALVE,CONNECTIONS:
"21,22"
713 A 3104290038 ELBOW FITTING
BRAKE VALVE,CONNECTIONS:
"21,22"
714 A 3169900070 T-FITTING
BRAKE VALVE,CONNECTIONS:
"21,22"
715 A 0009904670 T-FITTING
BRAKE VALVE,CONNECTIONS:
"21,22"
716 N 074305022202 NUT
BRAKE VALVE,CONNECTIONS:
"21,22"
717 A 0004290227 THRUST RING
Repalced by: A 0009940203
717 A 0009940203 THRUST RING
VALVE TO VALVE
718 A 0009870446 O-RING
VALVE TO VALVE
719 A 0034293444 VALVE
BRAKE VALVE,CONNECTIONS:
"21,22"
720 A 0004290088 VALVE SEAT RING
TO 003 429 34 44
721 A 0004290049 BUSHING
TO 003 429 34 44
722 A 0004290927 THRUST RING
BRAKE VALVE,CONNECTIONS:
"21,22"
722 A 0004290927 THRUST RING
BRAKE VALVE,CONNECTIONS:
"21,22"
723 N 080705016003 NUT
BRAKE VALVE,CONNECTIONS:
"21,22"
723 N 080705016003 NUT
BRAKE VALVE,CONNECTIONS:
"21,22"
724 A 0004312031 TEST CONNECTION
BRAKE VALVE,CONNECTIONS:
"21,22"
724 A 0004312031 TEST CONNECTION
BRAKE VALVE,CONNECTIONS:
"21,22"
724 A 0004314531 TEST CONNECTION
BRAKE VALVE,CONNECTIONS:
"21,22"
724 A 0004314531 TEST CONNECTION
BRAKE VALVE,CONNECTIONS:
"21,22"
724 A 0004314831 TEST CONNECTION
BRAKE VALVE,CONNECTIONS:
"21,22"
724 A 0004314831 TEST CONNECTION
BRAKE VALVE,CONNECTIONS:
"21,22"
724 A 0004316131 TEST CONNECTION
BRAKE VALVE,CONNECTIONS:
"21,22"
724 A 0004316131 TEST CONNECTION
BRAKE VALVE,CONNECTIONS:
"21,22"
A 0009979486 PROTECTIVE CAP
725 A 0004290927 THRUST RING
BRAKE VALVE,BOTTOM CONNECTIONS:
"21,22"
725 A 0004290927 THRUST RING
BRAKE VALVE,BOTTOM CONNECTIONS:
"21,22"
726 A 0009971548 SEAL RING
BRAKE VALVE,BOTTOM CONNECTIONS:
"21,22"
726 A 0009971548 SEAL RING
BRAKE VALVE,BOTTOM CONNECTIONS:
"21,22"
727 N 000908016001 SCREW PLUG
BRAKE VALVE,BOTTOM CONNECTIONS:
"21,22"
727 N 000908016001 SCREW PLUG
BRAKE VALVE,BOTTOM CONNECTIONS:
"21,22"
728 A 0009905168 FITTING
CHECK VALVE,CONNECTION:
"1"
729 A 0004290227 THRUST RING
Repalced by: A 0009940203
729 A 0009940203 THRUST RING
CHECK VALVE,CONNECTION:
"1"
730 A 0009870446 O-RING
CHECK VALVE,CONNECTION:
"1"
731 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"1"
732 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"1"
733 A 3094312440 BRACKET
REINFORCEMENT
733 A 3094312440 BRACKET
REINFORCEMENT
734 N 913004008004 NUT
Repalced by: N 913004008001
734 N 913004008001 NUT
BRAKE VALVE
734 N 913004008001 NUT
BRAKE VALVE
735 A 3094300810 BRACKET
BRAKE VALVE
735 A 3094300810 BRACKET
BRAKE VALVE
736 A 3134300110 BRACKET
737 A 3134310080 GASKET
BRACKET TO BRAKE VALVE
738 N 913004008004 NUT
Repalced by: N 913004008001
738 N 913004008001 NUT
BRACKET TO BRAKE VALVE
739 A 3094350080 GASKET
BRACKET TO FIRE WALL
739 A 3094350080 GASKET
BRACKET TO FIRE WALL
739 A 3094350180 GASKET
BRACKET TO FIRE WALL
739 A 3094350180 GASKET
BRACKET TO FIRE WALL
740 A 3094260296 CUP
BRACKET TO FIRE WALL
740 A 3094260296 CUP
BRACKET TO FIRE WALL
741 A 3134310180 GASKET
BRACKET TO FIRE WALL
742 N 000125008418 WASHER
Repalced by: N 000125008443
742 N 000125008443 WASHER
BRACKET TO FIRE WALL
742 N 000125008443 WASHER
BRACKET TO FIRE WALL
743 N 913004008004 NUT
Repalced by: N 913004008001
743 N 913004008001 NUT
BRACKET TO FIRE WALL
743 N 913004008001 NUT
BRACKET TO FIRE WALL
A 3094202574 ROD
Repalced by: A 3094202674
744 A 3094202674 ROD
BRAKE SHOES TO BRAKE SHOE PIN
744 A 3094202674 ROD
BRAKE SHOES TO BRAKE SHOE PIN
744 A 3134200774 ROD
FROM BRAKE PEDAL TO BRAKE VALVE
745 N 000934012021 NUT
745 N 000934012021 NUT
745 N 000439010101 NUT
746 N 000125010518 WASHER
Repalced by: N 000125010532
746 N 000125010532 WASHER
746 N 000125010532 WASHER
A 3099960101 YOKE
Repalced by: A 3099960201
A 3099960201 YOKE
Repalced by: A 3139960001
747 A 3139960001 YOKE
747 A 3139960001 YOKE
748 N 001444008209 PIN
ROD TO BRAKE PEDAL
748 N 001444008209 PIN
ROD TO BRAKE PEDAL
748 A 1262920074 PIN
ROD TO BRAKE PEDAL
749 N 900055008002 SPRING WASHER
ROD TO BRAKE PEDAL
749 N 900055008002 SPRING WASHER
ROD TO BRAKE PEDAL
750 N 000094002059 COTTER PIN
ROD TO BRAKE PEDAL
Repalced by: N 000094002060
750 N 000094002060 COTTER PIN
ROD TO BRAKE PEDAL
750 N 000094002060 COTTER PIN
ROD TO BRAKE PEDAL
751 N 912011008000 LOCK
ROD TO BRAKE PEDAL
752 N 000933008153 SCREW
Repalced by: N 304017008034
752 N 304017008034 SCREW
BRAKE PEDAL STOP
752 N 304017008034 SCREW
BRAKE PEDAL STOP
753 N 304032008006 NUT
BRAKE PEDAL STOP
753 N 304032008006 NUT
BRAKE PEDAL STOP
754 A 0014313414 BRAKE CYLINDER
REAR AXLE
WABCO
754 A 0014313414 BRAKE CYLINDER
REAR AXLE
WABCO
754 A 0014318214 BRAKE CYLINDER
REAR AXLE
KNORR
754 A 0014318214 BRAKE CYLINDER
REAR AXLE
KNORR
755 A 0014316914 BRAKE CYLINDER
FRONT AXLE,DIAPHRAGM CYLINDER
WABCO
755 A 0014316914 BRAKE CYLINDER
FRONT AXLE,DIAPHRAGM CYLINDER
WABCO
755 A 0014318114 BRAKE CYLINDER
FRONT AXLE,DIAPHRAGM CYLINDER
KNORR
755 A 0014318114 BRAKE CYLINDER
FRONT AXLE,DIAPHRAGM CYLINDER
KNORR
756 A 0004214286 DIAPHRAGM
TO 001 431 34 14,001 431 69 14,WABCO
756 A 0004214286 DIAPHRAGM
TO 001 431 34 14,001 431 69 14,WABCO
757 N 000933008155 SCREW
TO 001 431 34 14,WABCO
757 N 000933008155 SCREW
TO 001 431 34 14,WABCO
758 N 304032008006 NUT
TO 001 431 34 14,WABCO
758 N 304032008006 NUT
TO 001 431 34 14,WABCO
A 0004310636 FILTER BOTTOM
TO 001 431 34 14,WABCO
A 0004310636 FILTER BOTTOM
TO 001 431 34 14,WABCO
760 A 0004310250 BUSHING
TO 001 431 34 14,001 431 69 14,WABCO
760 A 0004310250 BUSHING
TO 001 431 34 14,001 431 69 14,WABCO
761 N 000471022000 LOCK RING
TO 001 431 34 14,001 431 69 14,WABCO
761 N 000471022000 LOCK RING
TO 001 431 34 14,001 431 69 14,WABCO
762 A 0004300868 REPAIR KIT
TO 001 431 81 14,001 431 82 14,KNORR
762 A 0004300868 REPAIR KIT
TO 001 431 81 14,001 431 82 14,KNORR
N 074315012100 FITTING
Repalced by: A 0019903371
763 A 0019903371 ELBOW FITTING
DIAPHRAGM CYLINDER,CONNECTION "1"
763 A 0019903371 ELBOW FITTING
DIAPHRAGM CYLINDER,CONNECTION "1"
764 N 080705016003 NUT
DIAPHRAGM CYLINDER,CONNECTION "1"
764 N 080705016003 NUT
DIAPHRAGM CYLINDER,CONNECTION "1"
765 A 0004290927 THRUST RING
DIAPHRAGM CYLINDER,CONNECTION "1"
765 A 0004290927 THRUST RING
DIAPHRAGM CYLINDER,CONNECTION "1"
766 A 0009971548 SEAL RING
DIAPHRAGM CYLINDER,CONNECTION "1"
766 A 0009971548 SEAL RING
DIAPHRAGM CYLINDER,CONNECTION "1"
767 N 915036012203 HOLLOW SCREW
DIAPHRAGM CYLINDER,CONNECTION "1"
768 N 007603016401 SEAL RING
DIAPHRAGM CYLINDER,CONNECTION "1"
769 A 0004312031 TEST CONNECTION
DIAPHRAGM CYLINDER,CONNECTION "1"
769 A 0004314531 TEST CONNECTION
DIAPHRAGM CYLINDER,CONNECTION "1"
769 A 0004314831 TEST CONNECTION
DIAPHRAGM CYLINDER,CONNECTION "1"
769 A 0004316131 TEST CONNECTION
DIAPHRAGM CYLINDER,CONNECTION "1"
A 0009979486 PROTECTIVE CAP
775 A 0034308601 BRAKE MASTER CYLINDER
775 A 0034308601 BRAKE MASTER CYLINDER
A 0004310265 VALVE
Repalced by: A 3075530107
776 A 3075530107 VALVE
776 A 3075530107 VALVE
777 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
777 A 0004210887 PROTECTIVE CAP
777 A 0004210887 PROTECTIVE CAP
778 A 0025866943 REPAIR KIT
778 A 0025866943 REPAIR KIT
779 A 3134310040 BRACKET
MASTER CYLINDER,FRONT
779 A 3134310040 BRACKET
MASTER CYLINDER,FRONT
780 A 3134310340 BRACKET
BRAKE MASTER CYLINDER
780 A 3134310340 BRACKET
BRAKE MASTER CYLINDER
781 N 000933010073 SCREW
CYLINDER TO BRACKET
781 N 000933010073 SCREW
CYLINDER TO BRACKET
783 N 000933010105 SCREW
BRACKET TO FRAME
783 N 000933010105 SCREW
BRACKET TO FRAME
784 N 913004010008 NUT
Repalced by: N 910113010000
784 N 910113010000 NUT
BRACKET TO FRAME
784 N 910113010000 NUT
BRACKET TO FRAME
785 N 007603014405 SEAL RING
MASTER CYLINDER,CONNECTION "2"
785 N 007603014405 SEAL RING
MASTER CYLINDER,CONNECTION "2"
786 A 0004280830 CONNECTOR
MASTER CYLINDER,CONNECTION "2"
786 A 0004280830 CONNECTOR
MASTER CYLINDER,CONNECTION "2"
787 A 0004280026 HOLLOW SCREW
MASTER CYLINDER,CONNECTION "2"
787 A 0004280026 HOLLOW SCREW
MASTER CYLINDER,CONNECTION "2"
788 N 007603022102 SEAL RING
MASTER CYLINDER,CONNECTION "0"
788 N 007603022102 SEAL RING
MASTER CYLINDER,CONNECTION "0"
789 A 0009904968 FITTING
MASTER CYLINDER,CONNECTION "0"
789 A 0009904968 FITTING
MASTER CYLINDER,CONNECTION "0"
790 N 007603014405 SEAL RING
MASTER CYLINDER,CONNECTION "0"
790 N 007603014405 SEAL RING
MASTER CYLINDER,CONNECTION "0"
791 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
791 N 915036010108 HOLLOW SCREW
MASTER CYLINDER,CONNECTION "0"
791 N 915036010108 HOLLOW SCREW
MASTER CYLINDER,CONNECTION "0"
A 0004317002 RESERVOIR
Repalced by: A 0004315802
792 A 0004315802 RESERVOIR
FLUID RESERVOIR
792 A 0004315802 RESERVOIR
FLUID RESERVOIR
A 0014310802 RESERVOIR
Repalced by: A 0004318302
793 A 0004318302 RESERVOIR
FLUID RESERVOIR
793 A 0004318302 RESERVOIR
FLUID RESERVOIR
794 A 0004313433 FILLER CAP
TO 000 431 70 02
794 A 0004313433 FILLER CAP
TO 000 431 70 02
A 0004313733 FILLER CAP
Repalced by: A 0004316533
A 0004316533 FILLER CAP
Repalced by: A 0004317633
794 A 0004317633 FILLER CAP
TO 000 431 58 02,001 431 08 02
794 A 0004317633 FILLER CAP
TO 000 431 58 02,001 431 08 02
A 0009972940 SEAL RING
43.7X30 MM
A 0039976440 SEAL RING
42X21.5 MM
796 A 0004312134 STRAINER
TO 000 431 70 02
796 A 0004312134 STRAINER
TO 000 431 70 02
796 A 0004313134 STRAINER
TO 000 431 58 02,001 431 08 02
796 A 0004313134 STRAINER
TO 000 431 58 02,001 431 08 02
797 A 3094314640 BRACKET
FLUID RESERVOIR
797 A 3094314640 BRACKET
FLUID RESERVOIR
798 N 000933006102 SCREW
BRACKET TO CAB
798 N 000933006102 SCREW
BRACKET TO CAB
799 N 913004006002 NUT
Repalced by: N 913004006001
799 N 913004006001 NUT
BRACKET TO CAB
799 N 913004006001 NUT
BRACKET TO CAB
800 A 0004311040 CLAMP
FLUID RESERVOIR TO BRACKET
800 A 0004311040 CLAMP
FLUID RESERVOIR TO BRACKET
801 N 000933006102 SCREW
FLUID RESERVOIR TO BRACKET
801 N 000933006102 SCREW
FLUID RESERVOIR TO BRACKET
802 N 913004006002 NUT
Repalced by: N 913004006001
802 N 913004006001 NUT
FLUID RESERVOIR TO BRACKET
802 N 913004006001 NUT
FLUID RESERVOIR TO BRACKET
A 3095420140 BRACKET
Repalced by: A 3095421340
803 A 3095421340 BRACKET
803 A 3095421340 BRACKET
804 N 000933008147 SCREW
Repalced by: N 304017008021
804 N 304017008021 SCREW
BRACKET TO FRAME SIDE MEMBER
804 N 304017008021 SCREW
BRACKET TO FRAME SIDE MEMBER
805 N 000125008418 WASHER
Repalced by: N 000125008443
805 N 000125008443 WASHER
BRACKET TO FRAME SIDE MEMBER
805 N 000125008443 WASHER
BRACKET TO FRAME SIDE MEMBER
806 N 913004008004 NUT
Repalced by: N 913004008001
806 N 913004008001 NUT
BRACKET TO FRAME SIDE MEMBER
806 N 913004008001 NUT
BRACKET TO FRAME SIDE MEMBER
807 A 3404200329 LINE
FROM MASTER CYLINDER TO DISTRIBUTOR
300 MM
807 A 3404200329 LINE
FROM MASTER CYLINDER TO DISTRIBUTOR
300 MM
808 A 0004290437 DISTRIBUTOR
FRONT
808 A 0004290437 DISTRIBUTOR
FRONT
808 A 0004294337 DISTRIBUTOR
FRONT
808 A 0004294337 DISTRIBUTOR
FRONT
809 N 000933008168 SCREW
DISTRIBUTOR TO BRACKET
809 N 000933008168 SCREW
DISTRIBUTOR TO BRACKET
810 N 000125008418 WASHER
Repalced by: N 000125008443
810 N 000125008443 WASHER
DISTRIBUTOR TO BRACKET
810 N 000125008443 WASHER
DISTRIBUTOR TO BRACKET
811 N 913004008004 NUT
Repalced by: N 913004008001
811 N 913004008001 NUT
DISTRIBUTOR TO BRACKET
811 N 913004008001 NUT
DISTRIBUTOR TO BRACKET
812 A 3404202129 LINE
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
812 A 3404202129 LINE
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
812 A 3404201529 LINE
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
900 MM
812 A 3404204229 LINE
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
3000 MM
812 A 3404204229 LINE
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
3000 MM
812 A 3404204029 LINE
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
2600 MM
813 A 0049882678 CLIP
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
813 A 0049882678 CLIP
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
814 A 0019978490 LOOM TIE
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
814 A 0019978490 LOOM TIE
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
815 A 3604300143 CLAMP
Repalced by: N 916016008200
815 N 916016008200 CLAMP
Repalced by: N 000000000319
815 N 000000000319 CLAMP
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
815 N 000000000319 CLAMP
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
816 N 007985006193 SCREW
Repalced by: N 000000001146
816 N 000000001146 SCREW
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
M 6X16
816 N 000000001146 SCREW
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
M 6X16
817 N 913004006002 NUT
Repalced by: N 913004006001
817 N 913004006001 NUT
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
817 N 913004006001 NUT
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
818 A 0049881478 CLIP
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
818 A 0049881478 CLIP
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
A 3604300143 CLAMP
Repalced by: N 916016008200
N 916016008200 CLAMP
Repalced by: N 000000000319
N 000000000319 CLAMP
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
N 000000000319 CLAMP
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
N 007985006193 SCREW
Repalced by: N 000000001146
N 000000001146 SCREW
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
M 6X16
N 000000001146 SCREW
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
M 6X16
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
N 913004006001 NUT
FROM FRONT DISTRIBUTOR TO FRONT WHEEL
819 A 3094280043 ANGLE
LEFT FRONT BRAKE HOSE
819 A 3094280043 ANGLE
LEFT FRONT BRAKE HOSE
819 A 3094280443 ANGLE
LEFT FRONT BRAKE HOSE
819 A 3094280143 ANGLE
RIGHT FRONT BRAKE HOSE
819 A 3094280143 ANGLE
RIGHT FRONT BRAKE HOSE
819 A 3094280543 ANGLE
RIGHT FRONT BRAKE HOSE
820 N 000933010157 SCREW
ANGLE TO FRAME
821 N 913004010008 NUT
Repalced by: N 910113010000
821 N 910113010000 NUT
ANGLE TO FRAME
A 0004287635 BRAKE HOSE
Repalced by: A 0024280535
822 A 0024280535 BRAKE HOSE
FRONT
822 A 0014285535 BRAKE HOSE
FRONT
822 A 0004288235 BRAKE HOSE
FRONT
822 A 0024281235 BRAKE HOSE
FRONT
823 A 8339970081 GROMMET
BRAKE HOSE,FRONT
A 1072950073 LOCK
Repalced by: A 1072950173
824 A 1072950173 LOCK
BRAKE HOSE TO ANGLE
824 A 1072950173 LOCK
BRAKE HOSE TO ANGLE
A 0004280473 BRACKET
Repalced by: A 6525040038
824 A 6525040038 MOUNTING PLATE
BRAKE HOSE TO ANGLE
825 A 3104280640 BRACKET
LEFT STEERING KNUCKLE
826 N 913004010008 NUT
Repalced by: N 910113010000
826 N 910113010000 NUT
LEFT STEERING KNUCKLE
827 A 3129970582 HOSE
BRAKE LINE TO FRAME
827 A 3129970582 HOSE
BRAKE LINE TO FRAME
A 3129950935 CLAMP
Repalced by: A 0019978290
828 N 000084004151 SCREW
BRAKE LINE TO FRAME
828 N 000084004151 SCREW
BRAKE LINE TO FRAME
829 N 000934004006 NUT
BRAKE LINE TO FRAME
829 N 000934004006 NUT
BRAKE LINE TO FRAME
A 0019978390 LOOM TIE
BRAKE LINE TO FRAME
831 A 3404202529 LINE
FROM MASTER CYLINDER TO CONNECTOR
1400 MM
831 A 3404202529 LINE
FROM MASTER CYLINDER TO CONNECTOR
1400 MM
832 A 0004292736 CONNECTOR
832 A 0004292736 CONNECTOR
833 A 3404204329 LINE
FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE
3200 MM
833 A 3404204629 LINE
FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE
3800 MM
833 A 3404204629 LINE
FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE
3800 MM
833 A 3404204229 LINE
FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE
3000 MM
833 A 3404204629 LINE
FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE
3800 MM
834 A 0049881478 CLIP
FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE
834 A 0049881478 CLIP
BRAKE HOSE,REAR
835 A 0049882678 CLIP
FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE
835 A 0049882678 CLIP
FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE
836 A 0019978490 LOOM TIE
FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE
836 A 0019978490 LOOM TIE
FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE
837 A 3094281240 BRACKET
BRAKE HOSE,REAR
837 A 3094281240 BRACKET
BRAKE HOSE,REAR
838 N 000933010105 SCREW
BRACKET TO SIDE MEMBER
838 N 000933010105 SCREW
BRACKET TO SIDE MEMBER
839 N 913004010008 NUT
Repalced by: N 910113010000
839 N 910113010000 NUT
BRACKET TO SIDE MEMBER
839 N 910113010000 NUT
BRACKET TO SIDE MEMBER
840 A 0004280135 BRAKE HOSE
REAR
840 A 0004280135 BRAKE HOSE
REAR
A 1072950073 LOCK
Repalced by: A 1072950173
841 A 1072950173 LOCK
BRAKE HOSE TO BRACKET
841 A 1072950173 LOCK
BRAKE HOSE TO BRACKET
A 0004280473 BRACKET
Repalced by: A 6525040038
841 A 6525040038 MOUNTING PLATE
BRAKE HOSE TO BRACKET
A 3104280240 BRACKET
Repalced by: A 3104280740
842 A 3104280740 BRACKET
LEFT BRAKE LINE TO FRAME
843 N 000933008130 SCREW
Repalced by: N 304017008039
843 N 304017008039 SCREW
BRACKET TO REAR AXLE
M 8X12
844 A 0004290437 DISTRIBUTOR
REAR
844 A 0004290437 DISTRIBUTOR
REAR
844 A 0004294337 DISTRIBUTOR
REAR
844 A 0004294337 DISTRIBUTOR
REAR
845 N 000933008152 SCREW
Repalced by: N 304017008027
845 N 304017008027 SCREW
DISTRIBUTOR TO BRACKET
M 8X30
846 N 913004008004 NUT
Repalced by: N 913004008001
846 N 913004008001 NUT
DISTRIBUTOR TO BRACKET
847 A 3404200929 LINE
FROM DISTRIBUTOR TO RIGHT REAR WHEEL
600 MM
847 A 3404200829 LINE
FROM DISTRIBUTOR TO RIGHT REAR WHEEL
550 MM
848 A 3404202029 LINE
FROM DISTRIBUTOR TO LEFT REAR WHEEL
1150 MM
848 A 3404201929 LINE
FROM DISTRIBUTOR TO LEFT REAR WHEEL
1100 MM
849 A 3094281440 BRACKET
BRAKE LINE
849 A 3094281440 BRACKET
BRAKE LINE
850 N 000933010128 SCREW
BRACKET TO SIDE MEMBER
850 N 000933010128 SCREW
BRACKET TO SIDE MEMBER
851 N 913004010008 NUT
Repalced by: N 910113010000
851 N 910113010000 NUT
BRACKET TO SIDE MEMBER
851 N 910113010000 NUT
BRACKET TO SIDE MEMBER
852 A 3604300143 CLAMP
Repalced by: N 916016008200
852 N 916016008200 CLAMP
Repalced by: N 000000000319
852 N 000000000319 CLAMP
BRAKE LINE TO BRACKET
853 N 000933006102 SCREW
BRAKE LINE TO BRACKET
M 6X16
853 N 007985006193 SCREW
Repalced by: N 000000001146
853 N 000000001146 SCREW
BRAKE LINE TO BRACKET
M 6X16
853 N 000000001146 SCREW
BRAKE LINE TO BRACKET
M 6X16
854 N 913004006002 NUT
Repalced by: N 913004006001
854 N 913004006001 NUT
BRAKE LINE TO BRACKET
854 N 913004006002 NUT
Repalced by: N 913004006001
854 N 913004006001 NUT
BRAKE LINE TO BRACKET
854 N 913004006001 NUT
BRAKE LINE TO BRACKET
855 A 3104280340 BRACKET
RIGHT;REAR AXLE
855 A 3104200586 BRACKET
RIGHT;REAR AXLE
856 N 000933008152 SCREW
Repalced by: N 304017008027
856 N 304017008027 SCREW
AT DISTRIBUTOR
856 N 304017008027 SCREW
AT DISTRIBUTOR
856 N 000933008150 SCREW
Repalced by: N 304017008018
856 N 304017008018 SCREW
BRACKET TO REAR AXLE
856 N 000933008145 SCREW
BRACKET TO REAR AXLE
856 N 000933008145 SCREW
BRACKET TO REAR AXLE
857 N 912004008102 LOCK WASHER
BRACKET TO REAR AXLE
857 N 912004008102 LOCK WASHER
BRACKET TO REAR AXLE
858 A 3092840052 SPACER WASHER
859 A 3129973482 HOSE
BRACKET AND BRAKE LINE TO REAR AXLE
860 A 3129951020 CLAMP
BRACKET AND BRAKE LINE TO REAR AXLE
860 A 3129951020 CLAMP
BRACKET AND BRAKE LINE TO REAR AXLE
861 N 000933008160 SCREW
Repalced by: N 304017008040
861 N 304017008040 SCREW
Repalced by: N 910105008010
861 N 910105008010 SCREW
Repalced by: N 910143008005
861 N 910143008005 SCREW
BRACKET AND BRAKE LINE TO REAR AXLE
861 N 910143008005 SCREW
BRACKET AND BRAKE LINE TO REAR AXLE
A 0014300081 VALVE
Repalced by: A 0014306581
862 A 0014306581 VALVE
PARKING BRAKE
WABCO
862 A 0014306581 VALVE
PARKING BRAKE
WABCO
A 0014300781 VALVE
Repalced by: A 0024300381
862 A 0024300381 VALVE
PARKING BRAKE
BOSCH
862 A 0024300381 VALVE
PARKING BRAKE
BOSCH
A 0014301881 VALVE
PARKING BRAKE
KNORR
A 0014301881 VALVE
PARKING BRAKE
KNORR
863 A 0014310887 PROTECTIVE CAP
TO 001 430 00 81,65 81,WABCO
863 A 0014311087 PROTECTIVE CAP
TO 001 430 07 81,BOSCH
863 A 0014311287 PROTECTIVE CAP
TO 001 430 18 81,KNORR
864 A 0009972777 HANDLE
TO 001 430 65 81,WABCO
864 A 0009972877 HANDLE
TO 002 430 03 81,001 430 07 81,BOSCH
865 A 0004311122 COVER
TO 001 430 07 81,BOSCH
866 A 0004311064 ACTUATING PART
TO 002 430 03 81,001 430 07 81,BOSCH
866 A 0004311164 ACTUATING PART
TO 001 430 07 81,BOSCH
867 A 0009922905 BUSHING
TO 001 430 07 81,BOSCH
868 A 0009911501 PIN
TO 002 430 03 81,001 430 07 81,BOSCH
869 A 0009911601 PIN
TO 002 430 03 81,001 430 07 81,BOSCH
869 A 0009910855 PIN
TO 001 430 65 81,WABCO
A 0004312139 LEVER
Repalced by: A 0034302881
870 A 0034302881 REPAIR KIT
HAND BRAKE LEVER
TO 001 430 65 81,WABCO
A 0004300227 HANDLE
(PARTS KIT)
TO 001 430 18 81,KNORR
A 0004300227 HANDLE
(PARTS KIT)
TO 001 430 18 81,KNORR
872 A 0004300127 HANDLE
(PARTS KIT)
TO 001 430 07 81,BOSCH
872 A 0004300127 HANDLE
(PARTS KIT)
TO 001 430 07 81,BOSCH
873 A 0004301760 REPAIR KIT
GASKETS
TO 002 430 03 81,BOSCH
873 A 0025866343 REPAIR KIT
TO 001 430 07 81
TO 001 430 07 81,BOSCH
873 A 0025866343 REPAIR KIT
TO 001 430 07 81
TO 001 430 07 81,BOSCH
A 0025867443 REPAIR KIT
Repalced by: A 0034303181
873 A 0034303181 REPAIR KIT
TO 001 430 00 81,001 430 65 81,WABCO
873 A 0034303181 REPAIR KIT
TO 001 430 00 81,001 430 65 81,WABCO
A 0004300360 REPAIR KIT
TO 001 430 18 81,KNORR
A 0004300360 REPAIR KIT
TO 001 430 18 81,KNORR
874 N 007603014405 SEAL RING
CONNECTIONS "11,21"
874 N 007603014405 SEAL RING
CONNECTIONS "11,21"
875 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
875 N 915036010108 HOLLOW SCREW
CONNECTIONS "11,21"
875 N 915036010108 HOLLOW SCREW
CONNECTIONS "11,21"
A 3096890208 COVERING
TO 001 430 00 81,WABCO
A 3096890208 COVERING
TO 001 430 00 81,WABCO
876 A 3096890108 COVERING
TO 001 430 07 81,002 430 03 81,BOSCH
876 A 3096890108 COVERING
TO 001 430 07 81,002 430 03 81,BOSCH
877 A 3104310084 SHIM
877 A 3104310084 SHIM
878 N 000125008418 WASHER
Repalced by: N 000125008443
878 N 000125008443 WASHER
878 N 000125008443 WASHER
N 007985008183 SCREW
M 8X35
N 007985008183 SCREW
M 8X35
879 N 000966008021 SCREW
M 8X35
900 A 0014316214 BRAKE CYLINDER
SPRING LOAD ACCUMULATOR
900 A 0014316214 BRAKE CYLINDER
SPRING LOAD ACCUMULATOR
901 A 0079975048 SEAL RING
170X3.5
901 A 0079975048 SEAL RING
170X3.5
A 0004310736 FILTER BOTTOM
A 0004310736 FILTER BOTTOM
903 A 0059975248 SEAL RING
903 A 0059975248 SEAL RING
A 0014311786 CUP
A 0014311786 CUP
A 0005457309 SWITCH
Repalced by: A 0005455409
A 0005455409 SWITCH
Repalced by: A 0005458009
905 A 0005458009 SWITCH
Repalced by: A 0005459109
905 A 0005459109 SWITCH
Repalced by: A 0015451209
905 A 0015451209 SWITCH
Repalced by: A 0015452809
905 A 0015452809 SWITCH
SPRING LOAD ACCUMULATOR LINKE ADJUSTMENT CONTROL
TO 001 431 62 14
905 A 0015452809 SWITCH
SPRING LOAD ACCUMULATOR LINKE ADJUSTMENT CONTROL
TO 001 431 62 14
A 0004318186 CUP
Repalced by: A 0015864342
A 0015864342 REPAIR KIT
Repalced by: A 0034201724
906 A 0034201724 REPAIR KIT
906 A 0034201724 REPAIR KIT
907 A 0009904770 T-FITTING
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
907 A 0009904770 T-FITTING
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
907 A 0009909470 T-FITTING
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
910 N 080705016003 NUT
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
910 N 080705016003 NUT
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
911 A 0004290927 THRUST RING
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
911 A 0004290927 THRUST RING
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
912 A 0009971548 SEAL RING
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
912 A 0009971548 SEAL RING
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
913 N 003953006101 FITTING
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
913 N 003953006101 FITTING
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
916 A 0004312031 TEST CONNECTION
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
VOSS
916 A 0004312031 TEST CONNECTION
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
VOSS
916 A 0004314531 TEST CONNECTION
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
SCHAEFER
916 A 0004314531 TEST CONNECTION
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
SCHAEFER
916 A 0004314831 TEST CONNECTION
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
WABCO
916 A 0004314831 TEST CONNECTION
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
WABCO
916 A 0004316131 TEST CONNECTION
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
WIRA
916 A 0004316131 TEST CONNECTION
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
WIRA
A 0009979486 PROTECTIVE CAP
918 A 0005455414 SWITCH
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
918 A 0005455414 SWITCH
SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1"
919 A 3104316440 BRACKET
919 A 3104316440 BRACKET
920 N 000933010164 SCREW
920 N 000933010164 SCREW
921 N 913002012004 NUT
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
921 N 913002012004 NUT
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
922 N 000933012077 SCREW
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
922 N 000933012077 SCREW
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
923 N 912004010102 LOCK WASHER
923 N 912004010102 LOCK WASHER
924 A 3104200580 BRAKE INTERMEDIATE SHAFT
924 A 3104200580 BRAKE INTERMEDIATE SHAFT
925 A 3104200978 BEARING BRACKET
925 A 3104200978 BEARING BRACKET
A 3025860242 REPAIR KIT
Repalced by: A 3534200067
A 3534200067 REPAIR KIT
Repalced by: A 3534200167
926 A 3534200167 BALL CUP
BRAKE INTERMEDIATE SHAFT BEARING
926 A 3534200167 BALL CUP
BRAKE INTERMEDIATE SHAFT BEARING
927 N 000933010164 SCREW
BEARING BRACKET TO FRAME
927 N 000933010164 SCREW
BEARING BRACKET TO FRAME
928 N 000125010518 WASHER
Repalced by: N 000125010532
928 N 000125010532 WASHER
928 N 000125010532 WASHER
929 N 912004010102 LOCK WASHER
BEARING BRACKET TO FRAME
929 N 912004010102 LOCK WASHER
BEARING BRACKET TO FRAME
N 900331010483 PULL ROD
Repalced by: N 900331010669
930 N 900331010669 PULL ROD
FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE
930 N 900331010669 PULL ROD
FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE
931 A 3144200047 YOKE
FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE
931 A 3144200047 YOKE
FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE
N 071752010009 YOKE
Repalced by: A 0009961501
932 A 0009961501 YOKE
FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE
932 A 0009961501 YOKE
FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE
933 N 000934010014 NUT
Repalced by: N 304032010003
933 N 304032010003 NUT
FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE
933 N 304032010003 NUT
FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE
934 N 000934010035 NUT
FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE
934 N 000934010035 NUT
FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE
935 A 3149910207 PIN
PULL ROD TO INTERMEDIATE LEVER
935 A 3149910207 PIN
PULL ROD TO INTERMEDIATE LEVER
936 N 000125010518 WASHER
Repalced by: N 000125010532
936 N 000125010532 WASHER
PULL ROD TO INTERMEDIATE LEVER
936 N 000125010532 WASHER
PULL ROD TO INTERMEDIATE LEVER
937 N 000094003219 COTTER PIN
PULL ROD TO INTERMEDIATE LEVER
937 N 000094003219 COTTER PIN
PULL ROD TO INTERMEDIATE LEVER
938 N 900055010002 SPRING WASHER
Repalced by: N 000137010205
938 N 000137010205 SPRING WASHER
PULL ROD TO INTERMEDIATE LEVER
938 N 000137010205 SPRING WASHER
PULL ROD TO INTERMEDIATE LEVER
939 A 3529910007 PIN
PULL ROD TO BRAKE LEVER,REAR AXLE
939 A 3529910007 PIN
PULL ROD TO BRAKE LEVER,REAR AXLE
940 N 000094003219 COTTER PIN
PULL ROD TO BRAKE LEVER,REAR AXLE
940 N 000094003219 COTTER PIN
PULL ROD TO BRAKE LEVER,REAR AXLE
941 A 3189930410 SPRING
RELEASE SPRING
941 A 3189930410 SPRING
RELEASE SPRING
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
