Transporto priemonė: LUXUSKOMBI; VIN numerio dalis: 636813

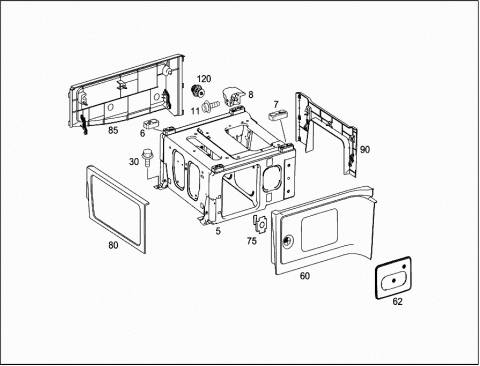

Grupė: 66 SEAT BOX/ENTRANCE - 120 SEAT BOX
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6366600040 | SEAT CONSOLE |
| LEFT | ||
| 005 | A 6366600140 | SEAT CONSOLE |
| RIGHT | ||
| 006 | A 6369110200 | FASTENING PLATE |
| LEFT | ||
| 006 | A 6369110300 | FASTENING PLATE |
| RIGHT | ||
| 007 | A 6369110000 | FASTENING PLATE |
| LEFT | ||
| 007 | A 6369110100 | FASTENING PLATE |
| RIGHT | ||
| 008 | A 6396641914 | BRACKET |
| BATTERY | ||
| 011 | A 0019846429 | FILLISTER HEAD SCREW |
| BRACKET TO SEAT BOX | ||
| M5X16 | ||
| 030 | N 910105010009 | HEXAGON HEAD BOLT |
| SEAT CASE LEFT FRONT | ||
| M10X25 | ||
| 030 | N 910105010009 | HEXAGON HEAD BOLT |
| SEAT FRAME RIGHT FRONT | ||
| M10X25 | ||
| 060 | A 6366600009 | COVER |
| SEAT CASE, LEFT, OUTER | ||
| 060 | A 6366600109 | COVER |
| SEAT CASE RIGHT, OUTER | ||
| 060 | A 6366600409 | COVER |
| SEAT CASE RIGHT, OUTER | ||
| 062 | A 6366640825 | TRIM SEAT CONSOLE |
| SUBWOOFER | ||
| 075 | A 0079882278 | CLIP |
| SEAT BOX | ||
| 080 | A 6366640025 | TRIM SEAT CONSOLE |
| SEAT CASE LEFT, FRONT | ||
| 080 | A 6366640125 | TRIM SEAT CONSOLE |
| SEAT CASE RIGHT, FRONT | ||
| 085 | A 6366640225 | TRIM SEAT CONSOLE |
| SEAT CASE LEFT, INNER | ||
| 085 | A 6366640325 | TRIM SEAT CONSOLE |
| SEAT CASE RIGHT, INNER | ||
| 090 | A 6366640425 | TRIM SEAT CONSOLE |
| REAR LEFT SEAT FRAME | ||
| 090 | A 6366640525 | TRIM SEAT CONSOLE |
| REAR RIGHT SEAT FRAME | ||
| 120 | A 0009912771 | MOUNTING CLIP |
