Transporto priemonė: LKO 508 DG; VIN numerio dalis: 309433

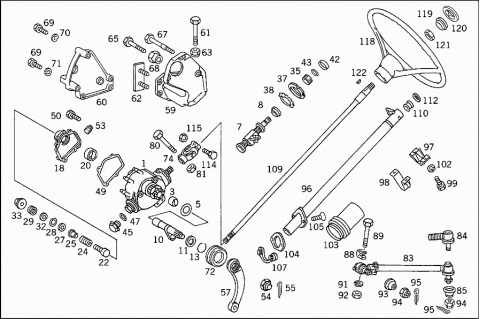

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3094601501 | STEERING BOX ASSEMBLY |
| Repalced by: A 3084600001 | ||
| 001 | A 3084600001 | STEERING BOX ASSEMBLY |
| LESS PITMAN ARM | ||
| 001 | A 3274606501 | STEERING BOX ASSEMBLY |
| Repalced by: A 3444601201 | ||
| 001 | A 3444601201 | STEERING BOX ASSEMBLY |
| LESS PITMAN ARM | ||
| 003 | A 3214610350 | BUSHING |
| STEERING SHAFT BEARING | ||
| 005 | A 0019970645 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 005 | A 0049976845 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 007 | A 3094600708 | STEERING WORM |
| Repalced by: A 3094601018 | ||
| 007 | A 3094601018 | STEERING NUT |
| Repalced by: A 3094600708 | ||
| 007 | A 3094600708 | STEERING WORM |
| WITH STEERING NUT | ||
| 007 | A 4064600118 | STEERING NUT |
| Repalced by: A 4064600218 | ||
| 007 | A 4064600218 | STEERING NUT |
| WITH STEERING WORM | ||
| 008 | A 0009811306 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 008 | A 3459817006 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 008 | A 0009810806 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 010 | A 3214601111 | STEERG. WORM SECTOR SHAFT |
| 011 | A 3214620537 | BALL CUP |
| STEERING SHAFT BEARING | ||
| 013 | N 009045038001 | SNAP RING |
| A 3274600214 | STEERING BOX COVER | |
| Repalced by: A 3214600414 | ||
| 018 | A 3214600414 | STEERING BOX COVER |
| STEERING BOX | ||
| A 3274600314 | STEERING BOX COVER | |
| Repalced by: A 3214600514 | ||
| 018 | A 3214600514 | STEERING BOX COVER |
| STEERING BOX | ||
| 020 | A 3214620250 | BUSHING |
| STEERING SHAFT BEARING IN COVER | ||
| 022 | A 3214620171 | SCREW |
| 024 | A 3219932201 | SPRING |
| STEERING SHAFT BEARING IN COVER | ||
| 025 | A 3214620185 | THRUST PIECE |
| STEERING SHAFT BEARING IN COVER | ||
| 027 | A 3214610162 | THRUST WASHER |
| STEERING SHAFT BEARING IN COVER | ||
| 028 | A 0009946041 | LOCK |
| STEERING SHAFT BEARING IN COVER | ||
| 029 | A 3219900050 | NUT |
| STEERING SHAFT BEARING IN COVER | ||
| 032 | A 0019976140 | SEAL RING |
| STEERING SHAFT BEARING IN COVER | ||
| 033 | A 0029900251 | NUT |
| STEERING SHAFT BEARING IN COVER | ||
| 035 | A 3224620151 | RING |
| STEERING NUT BEARING | ||
| 037 | A 6743560226 | GROOVED NUT |
| STEERING NUT BEARING | ||
| 038 | A 3229940115 | LOCK |
| STEERING NUT BEARING | ||
| 042 | A 0029974346 | SEAL RING |
| STEERING NUT BEARING | ||
| 043 | A 0029979845 | SEAL RING |
| STEERING NUT BEARING | ||
| 045 | N 007604030201 | SCREW PLUG |
| Repalced by: N 007604030206 | ||
| 045 | N 007604030206 | SCREW PLUG |
| OIL DRAIN | ||
| 047 | N 007603030400 | SEAL RING |
| OIL DRAIN | ||
| A 3214610880 | GASKET | |
| Repalced by: A 3524610180 | ||
| 049 | A 3524610180 | GASKET |
| COVER TO STEERING BOX | ||
| 050 | A 0019909101 | SCREW |
| COVER TO STEERING BOX | ||
| A 3029970035 | PLUG | |
| Repalced by: N 000906016002 | ||
| 053 | N 000906016002 | SCREW PLUG |
| BOX COVER | ||
| 054 | A 0009902555 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 055 | N 000094006013 | COTTER PIN |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 057 | A 3094630601 | PITMAN ARM |
| 057 | A 3094630901 | PITMAN ARM |
| 057 | A 3094631601 | PITMAN ARM |
| 057 | A 3094631001 | PITMAN ARM |
| 057 | A 3094631701 | PITMAN ARM |
| 059 | A 3094611140 | STEERING SUPPORT |
| 059 | A 3094611440 | STEERING SUPPORT |
| 059 | A 3094611540 | STEERING SUPPORT |
| 060 | A 3104610340 | STEERING SUPPORT |
| 060 | A 3104610440 | STEERING SUPPORT |
| 061 | N 000931010424 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| 061 | N 000931010260 | SCREW |
| Repalced by: N 304017010030 | ||
| 061 | N 304017010030 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M10X50 | ||
| 061 | N 000931010271 | SCREW |
| Repalced by: N 304017010051 | ||
| 061 | N 304017010051 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M10X60 | ||
| 061 | N 000931010337 | SCREW |
| Repalced by: N 304017010051 | ||
| 061 | N 304017010051 | SCREW |
| 061 | N 000933010145 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M10X35 | ||
| 061 | N 000931010356 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M 10X70 | ||
| 061 | N 000931010122 | SCREW |
| STEERING SUPPORT TO FRAME | ||
| M10X75 | ||
| 062 | A 3104600028 | PLATE |
| STEERING SUPPORT TO FRAME | ||
| 062 | A 3104600028 | PLATE |
| STEERING SUPPORT TO FRAME | ||
| 063 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 063 | N 910113010000 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 063 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 063 | N 304032010002 | NUT |
| STEERING SUPPORT TO FRAME | ||
| 065 | A 3099900114 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 065 | A 3099900114 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 067 | A 3099900214 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 067 | A 3099900214 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 068 | A 0019900951 | NUT |
| STEERING TO STEERING BRACKET | ||
| 068 | A 0019900951 | NUT |
| STEERING TO STEERING BRACKET | ||
| 069 | A 3099901014 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 069 | N 000961012122 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 069 | N 000960012087 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 069 | N 000960012199 | SCREW |
| Repalced by: N 308676012018 | ||
| 069 | N 308676012018 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 069 | N 000961012151 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 070 | N 900055012001 | SPRING WASHER |
| STEERING TO STEERING BRACKET | ||
| 071 | N 912004012100 | LOCK WASHER |
| STEERING TO STEERING BRACKET | ||
| 072 | A 3104620296 | BOOT |
| STEERING TO STEERING BRACKET | ||
| A 3164600057 | UNIVERSAL JOINT | |
| Repalced by: A 0004600057 | ||
| 074 | A 0004600057 | UNIVERSAL JOINT |
| A 3164600157 | UNIVERSAL JOINT | |
| Repalced by: A 0004600157 | ||
| 074 | A 0004600157 | UNIVERSAL JOINT |
| A 4069905014 | SCREW | |
| Repalced by: A 3169900114 | ||
| 080 | A 3169900114 | SCREW |
| UNIVERSAL JOINT | ||
| M 8X38 | ||
| 080 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| M 8X42 | ||
| A 0019901651 | NUT | |
| Repalced by: N 913004008005 | ||
| 081 | N 910113008001 | NUT |
| UNIVERSAL JOINT | ||
| A 3094602905 | DRAG LINK | |
| Repalced by: A 3094603105 | ||
| 083 | A 3094603105 | DRAG LINK |
| 083 | A 3094603205 | DRAG LINK |
| 084 | A 0004604148 | DRAG LINK END |
| Repalced by: A 0004608548 | ||
| 084 | A 0004608548 | DRAG LINK END |
| ADJUSTABLE | ||
| LEMFOERDER | ||
| A 3103301335 | JOINT | |
| Repalced by: A 0004604548 | ||
| 084 | A 0004604548 | DRAG LINK END |
| ADJUSTABLE | ||
| EHRENREICH | ||
| A 0004631396 | BOOT | |
| Repalced by: A 0004631896 | ||
| 085 | A 0004631896 | BOOT |
| STEERING JOINT | ||
| 088 | A 0003380563 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| 088 | A 0003382745 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| 089 | N 000960010023 | SCREW |
| DRAG LINK END TO DRAG LINK | ||
| 091 | N 912004010102 | LOCK WASHER |
| DRAG LINK END TO DRAG LINK | ||
| 092 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 092 | N 910113010002 | NUT |
| DRAG LINK END TO DRAG LINK | ||
| A 0004631396 | BOOT | |
| Repalced by: A 0004631896 | ||
| 093 | A 0004631896 | BOOT |
| FIXED PART OF JOINT | ||
| 094 | N 000979014007 | NUT |
| DRAG LINK TO LEVER | ||
| 095 | N 000094003226 | COTTER PIN |
| DRAG LINK TO LEVER | ||
| 096 | A 3094600416 | STEER. COLUMN JACKET TUBE |
| 096 | A 3104600016 | STEER. COLUMN JACKET TUBE |
| 096 | A 3094601916 | STEER. COLUMN JACKET TUBE |
| 097 | A 3094610045 | STEERING COLUMN BRACKET |
| STEERING COLUMN JACKET TUBE,FIRE WALL | ||
| 098 | A 3094600165 | STRAP |
| STEERING COLUMN JACKET TUBE,FIRE WALL | ||
| 099 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 099 | N 304017008021 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 102 | N 912004008102 | LOCK WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| 103 | A 3094620596 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 104 | A 3094620397 | SEAL |
| STEERING COLUMN JACKET TUBE TO FLOOR PLATE | ||
| 105 | N 000966006020 | SCREW |
| STEERING COLUMN JACKET TUBE TO FLOOR PLATE | ||
| A 0009902291 | NUT RETAINER | |
| Repalced by: A 3094600235 | ||
| 107 | A 3094600235 | BRACKET |
| STEERING COLUMN JACKET TUBE TO FLOOR PLATE | ||
| A 3094620301 | STEERING SHAFT | |
| Repalced by: A 3094600309 | ||
| 109 | A 3094600309 | STEERING SHAFT |
| A 3094602509 | STEERING SHAFT | |
| Repalced by: A 3094603409 | ||
| A 3094602609 | STEERING SHAFT | |
| Repalced by: A 3094603409 | ||
| 109 | A 3094603409 | STEERING SHAFT |
| 110 | A 3124621050 | BUSHING |
| STEERING COLUMN TUBE TO UNIVERSAL JOINT | ||
| 112 | A 3124621065 | RING |
| STEERING COLUMN TUBE TO UNIVERSAL JOINT | ||
| A 4069905014 | SCREW | |
| Repalced by: A 3169900114 | ||
| 114 | A 3169900114 | SCREW |
| STEERING SHAFT TO JOINT | ||
| M 8X38 | ||
| 115 | A 0019901651 | NUT |
| Repalced by: N 913004008005 | ||
| 115 | N 910113008001 | NUT |
| STEERING SHAFT TO JOINT | ||
| A 3144600303 | STEERING WHEEL | |
| Repalced by: A 3104640001 | ||
| 118 | A 3104640001 | STEERING WHEEL |
| A 0004641231 | CAP | |
| Repalced by: A 0004642631 | ||
| 119 | A 0004642631 | CAP |
| STEERING WHEEL | ||
| 120 | A 0004640432 | BADGE |
| STEERING WHEEL | ||
| 121 | N 308675022001 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 122 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
