Transporto priemonė: 914/42; VIN numerio dalis: 685211

Grupė: 40 WHEELS - 090 DISC WHEELS AND SPARE WHEEL CARRIER

#	Kodas	Pavadinimas

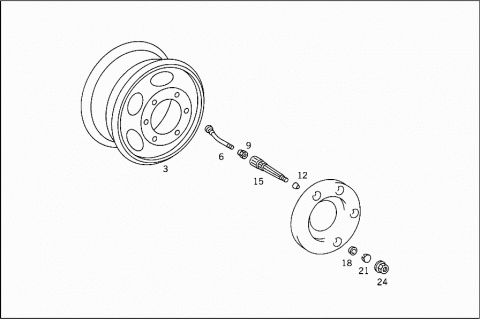

003	A 6884007302	DISC WHEEL
		6.75X17.5
006	A 0004013213	VALVE
		(TIRE INFLATOR VALVE)
006	A 0004017213	VALVE
		(TIRE INFLATOR VALVE)
009	A 0004010272	NUT
		VALVE
012	N 007757008600	VALVE CAP
015	A 3104010113	VALVE
		EXTENSION
015	A 3104010413	VALVE
		EXTENSION
018	A 3249970026	SPHERICAL RING
		DISC WHEEL TO REAR AXLE
021	N 074361018353	SPRING LOCK WASHER
		DISC WHEELS TO FRONT AND REAR AXLES
024	N 074361018205	NUT
		DISC WHEELS TO FRONT AND REAR AXLES

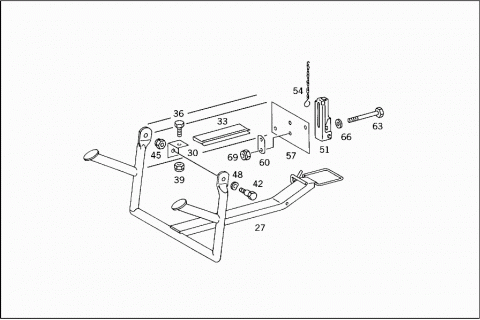

027	A 6884007041	MOUNTING BOW
		SPARE WHEEL
030	A 6884037340	BRACKET
		MOUNTING BRACKET TO FRAME
033	A 6884037144	COVER PLATE
036	N 000933008270	SCREW
		BRACKET TO SIDE MEMBER
		M 8X25
039	N 913004008001	NUT
		BRACKET TO SIDE MEMBER
042	A 3084037075	PIN
		CARRIER TO BRACKET
045	N 913004010004	NUT
		CARRIER TO BRACKET
048	N 900055014003	SPRING WASHER
		CARRIER TO BRACKET
051	A 6884007068	FASTENER
		SPARE WHEEL CARRIER
	A 6889917107	PIN
		SPARE WHEEL CARRIER
	N 000125006417	WASHER
		SPARE WHEEL CARRIER
	N 000094001616	COTTER PIN
		SPARE WHEEL CARRIER
054	A 0008500095	FASTENER
		SPARE WHEEL CARRIER
057	A 6884037008	REINFORCEMENT
		SPARE WHEEL CARRIER
060	A 6884037019	BASE BLOCK
		SPARE WHEEL CARRIER
063	N 000933010174	SCREW
		REINFORCEMENT TO REAR CROSS MEMBER
		M 10X25
063	N 000933010174	SCREW
		SPARE WHEEL CARRIER
		M 10X25
066	N 000125010517	WASHER
		REINFORCEMENT TO REAR CROSS MEMBER
066	N 000125010517	WASHER
		SPARE WHEEL CARRIER
069	N 913004010004	NUT
		REINFORCEMENT TO REAR CROSS MEMBER
069	N 913004010004	NUT
		SPARE WHEEL CARRIER
