Transporto priemonė: 914/42; VIN numerio dalis: 685211

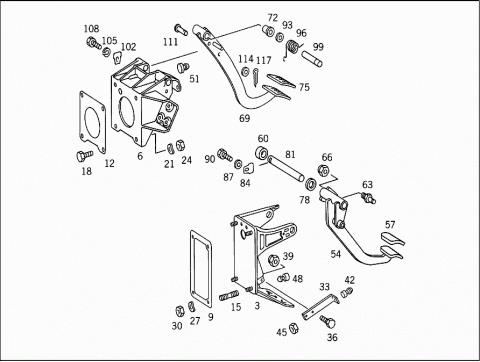

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 6882940201 | BEARING BRACKET |
| Repalced by: A 6882947001 | ||
| 003 | A 6882947001 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 006 | A 3842947001 | BEARING BRACKET |
| Repalced by: A 3842947201 | ||
| 006 | A 3842947201 | BEARING BRACKET |
| BRAKE PEDAL | ||
| 009 | A 6452940080 | GASKET |
| Repalced by: A 6452940280 | ||
| 009 | A 6452940280 | GASKET |
| BEARING BRACKET TO CAB | ||
| 012 | A 3842947080 | GASKET |
| BEARING BRACKET TO CAB | ||
| 015 | A 6882920070 | STUD |
| BEARING BRACKET TO CAB | ||
| 018 | N 000933008275 | SCREW |
| BEARING BRACKET TO CAB | ||
| M8X35 | ||
| 021 | N 000137008202 | SPRING WASHER |
| BEARING BRACKET TO CAB | ||
| 024 | N 000934008008 | NUT |
| BEARING BRACKET TO CAB | ||
| 027 | N 000137008202 | SPRING WASHER |
| BEARING BRACKET TO CAB | ||
| 030 | N 000934008008 | NUT |
| BEARING BRACKET TO CAB | ||
| 033 | A 3842907032 | STOP |
| (ANGLE) | ||
| 036 | N 000933006221 | SCREW |
| STOP TO BEARING BRACKET | ||
| 039 | N 913004006001 | NUT |
| STOP TO BEARING BRACKET | ||
| 042 | A 3012910241 | STOP |
| CLUTCH PEDAL | ||
| 045 | N 000934008008 | NUT |
| CLUTCH PEDAL | ||
| 048 | A 3862917086 | STOP |
| CLUTCH PEDAL | ||
| 051 | A 6882917386 | STOP |
| BRAKE PEDAL | ||
| 054 | A 6882900216 | PEDAL |
| CLUTCH | ||
| 057 | A 1102910182 | PAD |
| 060 | A 0019816310 | NEEDLE BEARING |
| 060 | A 0109818010 | NEEDLE BEARING |
| 063 | A 6882910074 | PIN |
| 066 | N 913002010001 | NUT |
| 069 | A 3842907018 | PEDAL |
| BRAKE | ||
| 072 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 075 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 078 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 081 | A 6452940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 084 | A 3852920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 087 | N 000125006420 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 090 | N 000933006220 | SCREW |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 093 | A 1154630152 | SPACER WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 096 | A 3849937020 | SPRING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 099 | A 3842927174 | PIN |
| Repalced by: A 6452940074 | ||
| 099 | A 6452940074 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 102 | A 3852920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 105 | N 000127006203 | LOCK WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 108 | N 000933006223 | SCREW |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 111 | A 3529910007 | PIN |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 114 | N 000433010504 | WASHER |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 117 | N 000094003207 | COTTER PIN |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 3.2X16 | ||

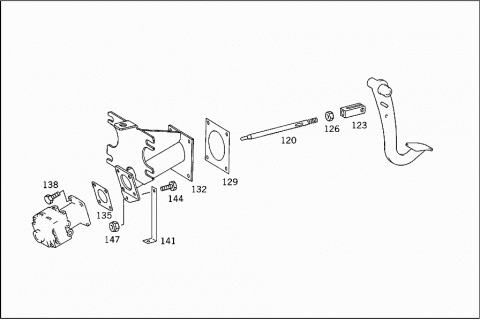

| 120 | A 6884260230 | ROD |
| 123 | A 3849967001 | YOKE |
| 126 | N 000934012009 | NUT |
| 129 | A 6884310080 | GASKET |
| BRACKET TO FIRE WALL AND TO PEDAL BEARING BRACKET | ||
| 132 | A 6884307010 | BRACKET |
| BRAKE VALVE | ||
| 135 | A 3134310080 | GASKET |
| BRAKE VALVE TO BRACKET | ||
| 138 | N 000933008270 | SCREW |
| BRAKE VALVE TO BRACKET | ||
| 141 | A 6884310395 | WEB |
| BRAKE VALVE | ||
| 144 | N 000933008271 | SCREW |
| STAY TO BRACKET AND TO SIDE MEMBER | ||
| M 8X20 | ||
| 144 | N 000933008268 | SCREW |
| STAY TO BRACKET AND TO SIDE MEMBER | ||
| M 8X16 | ||
| 147 | N 913004008001 | NUT |
| STAY TO BRACKET AND TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR CYLINDERS & HYDRAULIC LINES, SEE GROUP 25 | ||
