Transporto priemonė: 510 CDI; VIN numerio dalis: 900657

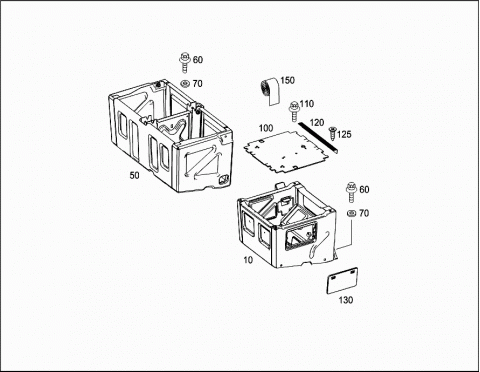

Grupė: 66 SEAT BOX/ENTRANCE - 120 SEAT BOX
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 9006600040 | SEAT CONSOLE |
| LEFT | ||
| 050 | A 9006600140 | SEAT CONSOLE |
| RIGHT | ||
| 060 | N 000000000428 | HEXAGON HEAD BOLT |
| SEAT BOX TO FLOOR | ||
| M10X35 | ||
| 070 | N 007349010007 | WASHER |
| SEAT BOX TO FLOOR | ||
| 100 | A 9066640308 | COVER |
| SEAT BOX | ||
| 100 | A 9009111500 | COVER |
| COVERING | ||
| 110 | N 000000000521 | TAPPING SCREW |
| MOUNTING, COVER | ||
| 4.2X13 | ||
| 120 | A 9009850062 | PROTECTIVE STRIP |
| 125 | N 000000000482 | TAPPING SCREW |
| MOUNTING OF CARRIER | ||
| 4.2X13 | ||
| 130 | A 9065450003 | COVER |
| FUSE COVER | ||
| 150 | A 0069893085 | ADHESIVE TAPE |
| AT SEAT BOX LEFT | ||
| 46 MM | ||
| 150 | A 0069893085 | ADHESIVE TAPE |
| TO RIGHT SEAT BOX | ||
| 46 MM |
