Transporto priemonė: 508 I INDONESIA; VIN numerio dalis: 684001

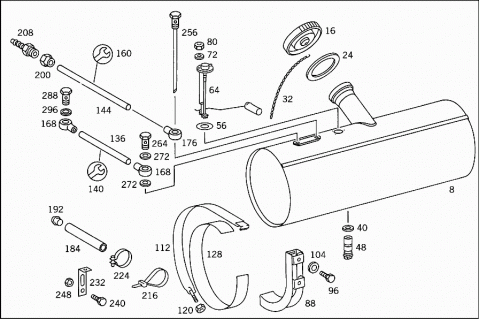

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 6844700101 | FUEL TANK |
| 100 L | ||
| 016 | A 3094700005 | FILLER CAP |
| 024 | A 3049970340 | SEAL RING |
| FILLER CAP | ||
| 032 | A 3034700031 | CHAIN |
| 040 | A 0029977245 | SEAL RING |
| FUEL STRAINER SCREEN TO FUEL TANK | ||
| 048 | A 3074700106 | FUEL STRAINER |
| 056 | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 064 | A 0005426517 | SENDER UNIT |
| FUEL GAUGE | ||
| MOTO METER | ||
| 064 | A 0005426617 | SENDER UNIT |
| FUEL GAUGE | ||
| VDO | ||
| 072 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 080 | N 000934005008 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 088 | A 3284700042 | SUPPORT |
| FUEL TANK | ||
| 096 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 104 | N 007349013003 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 112 | A 3284700140 | STRAP |
| FUEL TANK TO SUPPORT | ||
| 120 | N 000934012022 | NUT |
| STRAP TO SUPPORT | ||
| 128 | A 3219870114 | RUBBER STRIP |
| STRAP TO SUPPORT | ||
| 136 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 136 | A 0009872627 | PLASTIC PIPE |
| FROM FEED LINE TO ENGINE | ||
| 6 MM | ||
| 140 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 144 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 144 | A 0009872727 | PLASTIC PIPE |
| 8 MM | ||
| 144 | A 0009872727 | PLASTIC PIPE |
| FROM FUEL TANK TO FEED LINE | ||
| 8 MM | ||
| 144 | A 0009872727 | PLASTIC PIPE |
| RETURN LINE TO FUEL FILTER | ||
| 8 MM | ||
| 160 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 160 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 168 | N 915052006014 | BANJO UNION |
| FEED LINE AND RETURN LINE | ||
| 6X16 MM | ||
| 176 | A 0009909688 | BANJO UNION |
| FEED LINE | ||
| 184 | N 073379006203 | HOSE |
| LEAK LINE | ||
| 192 | N 915062004000 | SLEEVE |
| LEAK LINE | ||
| 192 | A 0009920105 | BUSHING |
| LEAK LINE | ||
| 200 | N 915017008200 | UNION NUT |
| RETURN LINE | ||
| 208 | A 0019977672 | FITTING |
| RETURN LINE | ||
| 216 | A 0019978490 | LOOM TIE |
| (FUEL LINE) | ||
| 376 MM | ||
| 216 | A 0019978390 | LOOM TIE |
| (FUEL LINE) | ||
| 280 MM | ||
| 224 | N 916002010100 | CLAMP |
| LEAK LINE | ||
| 232 | A 3524282140 | BRACKET |
| FUEL LINE TO SIDE MEMBER | ||
| 240 | N 000933008152 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 248 | N 913004008004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 256 | A 6844700026 | RISING PIPE |
| FEED LINE TO FUEL TANK | ||
| 264 | N 915036012101 | HOLLOW SCREW |
| RETURN LINE TO FUEL TANK | ||
| 272 | N 007603016301 | SEAL RING |
| FUEL LINE TO FUEL TANK | ||
| 288 | N 915036010204 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 296 | N 007603014104 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
