Transporto priemonė: 508 I INDONESIA; VIN numerio dalis: 684001

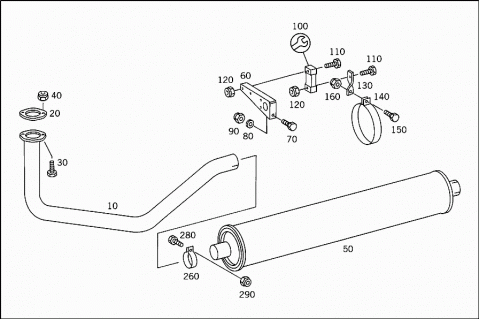

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3144901819 | EXHAUST PIPE |
| FRONT | ||
| 020 | N 917003060003 | GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 030 | N 000931012114 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 040 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 050 | A 3144900501 | EXHAUST MUFFLER |
| 060 | A 3164920316 | SUPPORT |
| EXHAUST PIPE SUSPENSION | ||
| 070 | N 000933010105 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 080 | N 000125010517 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 090 | N 913004010008 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 100 | A 3094900037 | SUSPENSION |
| EXHAUST PIPE SUSPENSION | ||
| 110 | N 000931008266 | SCREW |
| DAMPING PAD TO SUPPORT | ||
| 110 | N 000931008266 | SCREW |
| BRACKET TO DAMPING PAD | ||
| 110 | N 000931008244 | SCREW |
| BRACKET TO DAMPING PAD | ||
| 120 | N 913004008004 | NUT |
| DAMPING PAD TO SUPPORT | ||
| 120 | N 913004008007 | NUT |
| BRACKET TO DAMPING PAD | ||
| 130 | A 3144910341 | BRACKET |
| EXHAUST MUFFLER | ||
| 140 | A 3184910041 | BRACKET |
| EXHAUST MUFFLER | ||
| 150 | N 000933010128 | SCREW |
| BRACKET TO EXHAUST MUFFLER | ||
| 160 | N 913004010000 | NUT |
| BRACKET TO EXHAUST MUFFLER | ||
| 170 | A 3184924304 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 180 | A 6844920204 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 190 | A 3184921307 | CONNECTOR |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 200 | A 3185440538 | BRACKET |
| REAR EXHAUST PIPE | ||
| 210 | N 000933010128 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 220 | N 913004010008 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 230 | A 3184924041 | BRACKET |
| REAR EXHAUST PIPE | ||
| 240 | N 000933008145 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 250 | N 913004008004 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 260 | A 3144910240 | CLAMP |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 270 | A 3144910340 | CLAMP |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 280 | N 000933008152 | SCREW |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 290 | N 913004008007 | NUT |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 300 | A 3164920216 | SUPPORT |
| EXHAUST PIPE SUSPENSION | ||
| 310 | N 000933010105 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 320 | N 000125010517 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 330 | N 913004010008 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 340 | A 3094900037 | SUSPENSION |
| REAR EXHAUST PIPE | ||
| 350 | N 000931008266 | SCREW |
| DAMPING PAD TO SUPPORT | ||
| 360 | N 913004008004 | NUT |
| DAMPING PAD TO SUPPORT | ||
| 370 | A 3184923441 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 380 | N 071555060502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 390 | N 000933008152 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 400 | N 913004008007 | NUT |
| REAR EXHAUST PIPE TO BRACKET |
