Transporto priemonė: 508 I INDONESIA; VIN numerio dalis: 684001

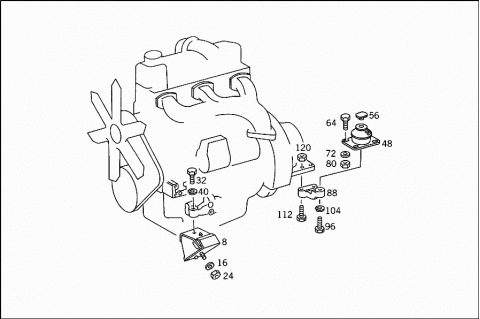

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3102410313 | RUBBER MOUNTING |
| FRONT | ||
| 016 | N 000125017010 | WASHER |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 024 | N 913004016004 | NUT |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 032 | N 000961016105 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 040 | N 912004016101 | LOCK WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 048 | A 3142230012 | RUBBER MOUNTING |
| REAR | ||
| 056 | N 915042015000 | PLUG |
| RUBBER MOUNT | ||
| 064 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 072 | N 000125010517 | WASHER |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 080 | N 913004010008 | NUT |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 088 | A 3142231004 | ENGINE SUPPORT |
| REAR | ||
| 096 | N 000961016013 | SCREW |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| 104 | N 912004016101 | LOCK WASHER |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| 112 | N 000960014247 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| 120 | N 913004014005 | NUT |
| SUPPORTING ARM TO BELL HOUSING |
