Transporto priemonė: U 90; VIN numerio dalis: 408100

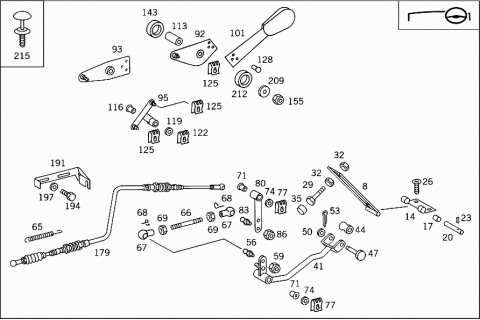

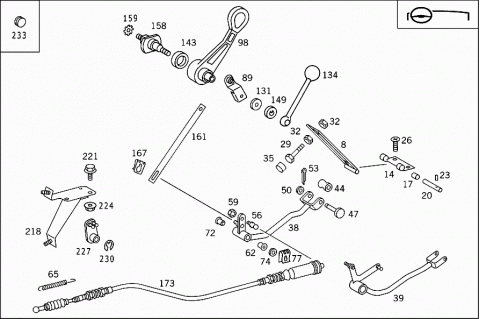

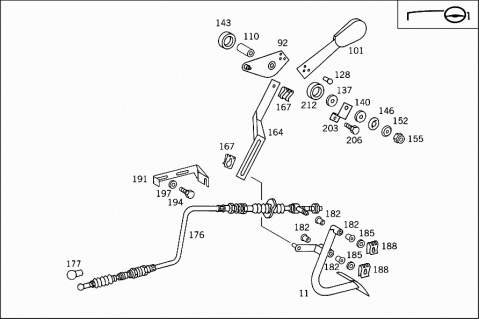

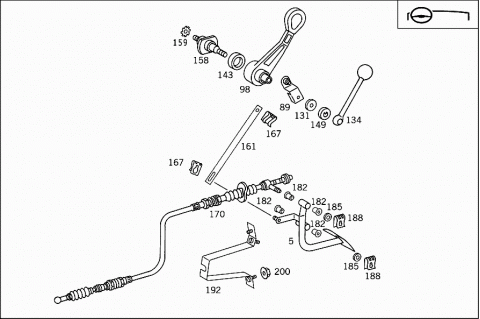

Grupė: 30 CONTROL - 025 MANUAL/ACCELERATOR-PEDAL CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4083000104 | ACCELERATOR PEDAL |
| 008 | A 4083000504 | ACCELERATOR PEDAL |
| 008 | A 4083000504 | ACCELERATOR PEDAL |
| 008 | A 4083000504 | ACCELERATOR PEDAL |
| 011 | A 4083000204 | ACCELERATOR PEDAL |
| 014 | A 4083010105 | ARTICULATION PIECE |
| ACCELERATOR PEDAL | ||
| 014 | A 4083010105 | ARTICULATION PIECE |
| 014 | A 4083010105 | ARTICULATION PIECE |
| 017 | A 3143010050 | BUSHING |
| ACCELERATOR PEDAL TO JOINT | ||
| 017 | A 3143010050 | BUSHING |
| 017 | A 3143010050 | BUSHING |
| 020 | N 000007008251 | CYLINDRICAL PIN |
| ACCELERATOR PEDAL TO JOINT | ||
| 020 | N 000007008251 | CYLINDRICAL PIN |
| 020 | N 000007008251 | CYLINDRICAL PIN |
| 023 | N 001473003023 | GROOVED PIN |
| ACCELERATOR PEDAL TO JOINT | ||
| 023 | N 001473003023 | GROOVED PIN |
| 023 | N 001473003023 | GROOVED PIN |
| 026 | N 000965006046 | SCREW |
| ACCELERATOR PEDAL TO CAB | ||
| M6X12 | ||
| 029 | N 000931008266 | SCREW |
| STOP TO ACCELERATOR PEDAL | ||
| M 8X40 | ||
| 029 | N 000931008266 | SCREW |
| 029 | N 000931008266 | SCREW |
| 029 | N 910105008010 | SCREW |
| Repalced by: N 910143008005 | ||
| 029 | N 910143008005 | SCREW |
| STOP TO ACCELERATOR PEDAL | ||
| M 8X40 | ||
| 032 | N 000439008211 | NUT |
| Repalced by: N 304035008000 | ||
| 032 | N 304035008000 | NUT |
| STOP TO ACCELERATOR PEDAL | ||
| 032 | N 304035008000 | NUT |
| 032 | N 304035008000 | NUT |
| 035 | N 913018013100 | PROTECTION CAP |
| STOP TO ACCELERATOR PEDAL | ||
| 035 | N 913018013100 | PROTECTION CAP |
| 035 | N 913018013100 | PROTECTION CAP |
| 038 | A 4083001125 | LEVER |
| ACCELERATOR PEDAL CONTROL | ||
| 039 | A 4083001625 | LEVER |
| ACCELERATOR PEDAL CONTROL | ||
| 041 | A 4083001425 | LEVER |
| ACCELERATOR PEDAL CONTROL | ||
| 041 | A 4083001425 | LEVER |
| 044 | A 4083010011 | ROLLER |
| 044 | A 4083010011 | ROLLER |
| 044 | A 4083010011 | ROLLER |
| 047 | N 001444006220 | PIN |
| 047 | N 001444006220 | PIN |
| 047 | N 001444006220 | PIN |
| ROLLER TO LEVER | ||
| 050 | N 001440006001 | WASHER |
| ROLLER TO LEVER | ||
| 050 | N 001440006001 | WASHER |
| 050 | N 001440006001 | WASHER |
| 053 | N 000094001610 | COTTER PIN |
| Repalced by: N 000094001617 | ||
| 053 | N 000094001617 | COTTER PIN |
| 053 | N 000094001617 | COTTER PIN |
| 053 | N 000094001617 | COTTER PIN |
| 056 | N 071803010300 | BALL PIVOT |
| WIRE CABLE TO LEVER | ||
| 056 | N 071803010300 | BALL PIVOT |
| 056 | N 071803010300 | BALL PIVOT |
| LINK TO LEVER | ||
| 056 | N 071803010300 | BALL PIVOT |
| 059 | N 000934006007 | NUT |
| 059 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 059 | N 913023006001 | NUT |
| Repalced by: A 0009902150 | ||
| 059 | A 0009902150 | NUT |
| LINK TO LEVER | ||
| 059 | A 0009902150 | NUT |
| WIRE CABLE TO LEVER | ||
| 059 | A 0009902150 | NUT |
| 062 | A 4075510050 | BUSHING |
| WIRE CABLE TO LEVER | ||
| 065 | A 4089930110 | SPRING |
| WIRE CABLE TO LEVER ON ENGINE END | ||
| 065 | A 4089930210 | SPRING |
| WIRE CABLE TO LEVER ON ENGINE END | ||
| 066 | A 4083000115 | ROD |
| Repalced by: N 071805010204 | ||
| 066 | N 900331006615 | PULL ROD |
| (LINK) | ||
| 066 | N 900331006616 | PULL ROD |
| 066 | N 900331005174 | PULL ROD |
| (LINK) | ||
| 067 | N 071805010204 | BALL SOCKET |
| LINK TO LEVER | ||
| 067 | N 071805010204 | BALL SOCKET |
| 067 | N 071805008207 | BALL SOCKET |
| LINK TO LEVER | ||
| 067 | N 071805008105 | BALL SOCKET |
| LINK TO LEVER | ||
| 068 | N 071805010403 | CIRCLIP |
| LINK TO LEVER | ||
| 068 | N 071805010403 | CIRCLIP |
| 069 | N 000934006007 | NUT |
| LINK TO LEVER | ||
| 069 | N 000934006007 | NUT |
| 069 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 069 | N 304032005005 | NUT |
| LINK TO LEVER | ||
| 069 | N 304032005004 | NUT |
| LINK TO LEVER | ||
| 069 | N 304032005004 | NUT |
| L.H. THREAD | ||
| 071 | A 4075510050 | BUSHING |
| REVERSING LEVER BEARING | ||
| 071 | A 4075510050 | BUSHING |
| 072 | A 4063010350 | BUSHING |
| LEVER TO CAB | ||
| 072 | A 4063010350 | BUSHING |
| 074 | N 000125010532 | WASHER |
| LEVER TO CAB | ||
| 074 | N 000125010532 | WASHER |
| 074 | N 000125010532 | WASHER |
| REVERSING LEVER BEARING | ||
| 074 | N 000125010532 | WASHER |
| 077 | N 912007010001 | CLIP |
| LEVER TO CAB | ||
| 077 | N 912007010001 | CLIP |
| 077 | N 912007010001 | CLIP |
| REVERSING LEVER BEARING | ||
| 077 | N 912007010001 | CLIP |
| 080 | A 4083001325 | LEVER |
| (REVERSING LEVER) | ||
| 080 | A 4083001325 | LEVER |
| 083 | N 071803010300 | BALL PIVOT |
| WIRE CABLE TO LEVER | ||
| 083 | N 071803010300 | BALL PIVOT |
| 086 | N 913004006002 | NUT |
| Repalced by: N 913023006001 | ||
| 086 | N 913023006001 | NUT |
| Repalced by: A 0009902150 | ||
| 086 | A 0009902150 | NUT |
| WIRE CABLE TO LEVER | ||
| 086 | A 0009902150 | NUT |
| 089 | A 4083000028 | LEVER |
| MANUAL CONTROL | ||
| 089 | A 4083000028 | LEVER |
| 092 | A 4083000925 | LEVER |
| MANUAL CONTROL | ||
| 093 | A 4083001225 | LEVER |
| MANUAL CONTROL | ||
| 095 | A 4083000128 | LEVER |
| MANUAL CONTROL | ||
| 095 | A 4083000128 | LEVER |
| 098 | A 4083020114 | LEVER |
| MANUAL CONTROL | ||
| 098 | A 4083020114 | LEVER |
| 101 | A 4083000517 | LEVER |
| MANUAL CONTROL | ||
| 101 | A 4083000517 | LEVER |
| A 4083020115 | SHAFT | |
| MANUAL-CONTROL/ACCELERATOR-PEDAL CONNECTION | ||
| A 4083020304 | ROD | |
| MANUAL-CONTROL/ACCELERATOR-PEDAL CONNECTION | ||
| 110 | A 4083210150 | BUSHING |
| MANUAL CONTROL | ||
| 113 | A 4083020150 | BUSHING |
| MANUAL CONTROL | ||
| 113 | A 4083020150 | BUSHING |
| 116 | A 4075510050 | BUSHING |
| LEVER BEARING | ||
| 116 | A 4075510050 | BUSHING |
| 119 | N 000125010532 | WASHER |
| LEVER BEARING | ||
| 119 | N 000125010532 | WASHER |
| 122 | N 912007010001 | CLIP |
| LEVER BEARING | ||
| 122 | N 912007010001 | CLIP |
| 125 | N 912007006001 | CLIP |
| LINK TO LEVER | ||
| 125 | N 912007006001 | CLIP |
| 128 | N 910006003040 | RIVET |
| MANUAL CONTROL | ||
| 3X10 MM | ||
| 128 | N 910006003040 | RIVET |
| 131 | A 4083020154 | GUARD PLATE |
| CONTROL LEVER | ||
| 131 | A 4083020154 | GUARD PLATE |
| 134 | N 006337063000 | BALL HANDLE |
| MANUAL CONTROL | ||
| 134 | N 006337063000 | BALL HANDLE |
| 137 | A 4083020054 | GUARD PLATE |
| CONTROL LEVER | ||
| 140 | N 000125008423 | WASHER |
| CLUTCH PEDAL | ||
| 143 | A 4063020554 | GUARD PLATE |
| BETWEEN CONTROL LEVER AND CAB | ||
| 143 | A 4063020554 | GUARD PLATE |
| 146 | A 4253010085 | RUBBER BUFFER |
| BETWEEN CONTROL LEVER AND CAB | ||
| 149 | A 4083020176 | WASHER |
| MANUAL CONTROL | ||
| 149 | A 4083020176 | WASHER |
| 152 | A 4253020162 | THRUST WASHER |
| MANUAL CONTROL | ||
| 155 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 155 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 155 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 155 | N 913023008002 | NUT |
| MANUAL CONTROL | ||
| 155 | N 913023008003 | NUT |
| 155 | N 913023008003 | NUT |
| Repalced by: N 913023008002 | ||
| 155 | N 913023008002 | NUT |
| MANUAL CONTROL | ||
| 158 | A 4083000474 | PIN |
| MANUAL CONTROL | ||
| 158 | A 4083000474 | PIN |
| 159 | N 006798008101 | SERRATED WASHER |
| MANUAL CONTROL | ||
| 161 | A 4083020102 | LEVER |
| MANUAL-CONTROL/ACCELERATOR-PEDAL CONNECTION | ||
| 161 | A 4083020102 | LEVER |
| 164 | A 4083000015 | ROD |
| MANUAL-CONTROL/ACCELERATOR-PEDAL CONNECTION | ||
| 167 | N 912007006001 | CLIP |
| MANUAL-CONTROL/ACCELERATOR-PEDAL CONNECTION | ||
| 167 | N 912007006001 | CLIP |
| 170 | A 4083000030 | WIRE CABLE |
| MANUAL CONTROL | ||
| 173 | A 4083000530 | WIRE CABLE |
| MANUAL CONTROL | ||
| 176 | A 4183000430 | WIRE CABLE |
| MANUAL CONTROL | ||
| 176 | A 4083000330 | WIRE CABLE |
| Repalced by: A 4183000430 | ||
| 176 | A 4183000430 | WIRE CABLE |
| MANUAL CONTROL | ||
| 177 | N 071805008207 | BALL SOCKET |
| TO 418 300 04 30 | ||
| 179 | A 4083000730 | WIRE CABLE |
| Repalced by: A 4183000630 | ||
| 179 | A 4183000630 | WIRE CABLE |
| MANUAL CONTROL | ||
| 179 | A 4183000630 | WIRE CABLE |
| 182 | A 4063010350 | BUSHING |
| MANUAL CONTROL | ||
| 182 | A 4063010350 | BUSHING |
| 185 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 185 | N 000125010532 | WASHER |
| MANUAL CONTROL | ||
| 185 | N 000125010532 | WASHER |
| MANUAL CONTROL | ||
| 188 | N 912007010001 | CLIP |
| MANUAL CONTROL | ||
| 188 | N 912007010001 | CLIP |
| 191 | A 4083010340 | BRACKET |
| WIRE CABLE TO FIRE WALL | ||
| 192 | A 4086101136 | BRACKET |
| WIRE CABLE TO CAB | ||
| 194 | N 000933006207 | SCREW |
| WIRE CABLE TO FIRE WALL | ||
| M 6X14 | ||
| 197 | N 000125006421 | WASHER |
| BOWDEN CABLE TO FIRE WALL | ||
| Repalced by: N 000125006449 | ||
| 197 | N 000125006449 | WASHER |
| BOWDEN CABLE TO FIRE WALL | ||
| 200 | N 910112006001 | NUT |
| Repalced by: N 913023006001 | ||
| 200 | N 913023006001 | NUT |
| Repalced by: A 0009902150 | ||
| 200 | A 0009902150 | NUT |
| BRACKET TO CAB | ||
| 203 | A 4083020414 | LEVER |
| MANUAL CONTROL | ||
| A 4083020514 | LEVER | |
| MANUAL CONTROL | ||
| 206 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 206 | N 304017006018 | SCREW |
| MANUAL CONTROL | ||
| M 6X12 | ||
| 209 | A 2014710176 | WASHER |
| MANUAL CONTROL | ||
| 209 | A 2014710176 | WASHER |
| 212 | A 4063020554 | GUARD PLATE |
| MANUAL CONTROL | ||
| 212 | A 4063020554 | GUARD PLATE |
| 215 | A 3819900392 | RIVET |
| TO PLUG THE HOLES | ||
| 218 | A 4083000034 | BRACKET |
| SET POINT SENDER UNIT | ||
| 218 | A 4083000134 | BRACKET |
| SET POINT SENDER UNIT | ||
| 221 | N 914146006102 | SCREW |
| DESIRED VALUE SENDER UNIT TO BRACKET | ||
| M 6X16 | ||
| 221 | N 914146006102 | SCREW |
| BRACKET TO CAB FLOOR | ||
| 224 | N 913023006002 | NUT |
| Repalced by: N 913023006001 | ||
| 224 | N 913023006001 | NUT |
| Repalced by: A 0009902150 | ||
| 224 | A 0009902150 | NUT |
| BRACKET TO CAB FLOOR | ||
| 227 | A 4083001925 | LEVER |
| FROM ACCELERATOR PEDAL TO DESIRED VALUE SENDER UNIT | ||
| 230 | N 006799007007 | LOCK PLATE |
| FROM ACCELERATOR PEDAL TO DESIRED VALUE SENDER UNIT | ||
| 233 | A 4259970081 | GROMMET |
| TO PLUG THE HOLES | ||
| 233 | A 3099870144 | EXPANSION PLUG |
| TO PLUG THE HOLES | ||
