Transporto priemonė: U 2450 L/6X6; VIN numerio dalis: 437156

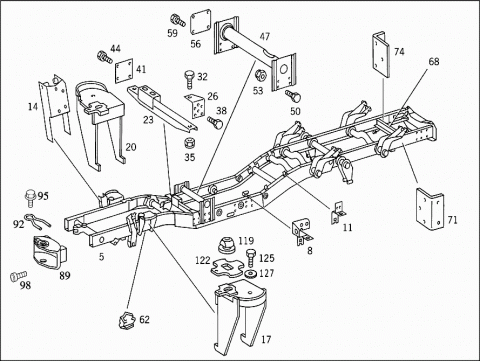

Grupė: 31 FRAME

#	Kodas	Pavadinimas
005	A 4373100601	FRAME
008	A 4374201686	BRACKET
		BRAKE LINE MOUNTING
011	A 4374201586	BRACKET
		BRAKE LINE MOUNTING
014	A 4253200743	BRACKET
		SHOCK ABSORBER,RIGHT FRONT
017	A 4253200670	REAR SUBFRAME
		LEFT FRONT
020	A 4253200570	REAR SUBFRAME
		RIGHT FRONT
023	A 4375501138	SUPPORT
		PROPELLER SHAFT BEARING
026	A 4375512440	BRACKET
		SUPPORT TO FRAME
026	A 4375512540	BRACKET
		SUPPORT TO FRAME
032	N 910105012020	SCREW
		SUPPORT TO BRACKET
		M 12X1.5X35
035	N 913023012002	NUT
		SUPPORT TO BRACKET
038	N 914126014016	SCREW
	Repalced by: N 910105014005
038	N 910105014005	SCREW
		LEFT BRACKET TO FRAME
		M 14X1.5X40
041	A 4375510741	PLATE
		RIGHT BRACKET TO FRAME
044	N 910105014011	SCREW
		RIGHT BRACKET TO FRAME
		M 14X1.5X50
047	A 4373102022	CROSS MEMBER
		BODY MOUNTING
050	N 910105014009	SCREW
		CROSS MEMBER TO FRAME
		M 14X1.5X70
050	N 910105014009	SCREW
		NO.3
053	N 913023014003	NUT
		CROSS MEMBER TO FRAME
053	N 913023014003	NUT
		CROSS MEMBER TO RIGHT SIDE MEMBER
053	N 913023014003	NUT
		NO.3
056	A 4376120013	PLATE
		CROSS MEMBER TO RIGHT SIDE MEMBER
059	N 910105014033	SCREW
		CROSS MEMBER TO RIGHT SIDE MEMBER
		M 14X1.5X90
062	A 4063110087	STOP
		AXLE STOP
065	A 4373120635	CROSS MEMBER
		REAR CROSS MEMBER
068	A 4253120225	CROSS MEMBER
		REAR CROSS MEMBER
071	A 4253130142	ANGLE
		LEFT
074	A 4253130242	ANGLE
		RIGHT
077	N 910105016012	SCREW
		FRAME FLANGE TO SIDE MEMBER
		M 16X1.5X50
077	N 910105016012	SCREW
		REAR CROSS MEMBER TO FRAME FLANGE
077	N 910105016007	SCREW
		REAR CROSS MEMBER TO FRAME FLANGE
		M 16X1.5X45
077	N 910105014028	SCREW
		FRAME FLANGE TO SIDE MEMBER
		M 14X45
077	N 910105012023	SCREW
		REAR CROSS MEMBER TO FRAME FLANGE
		M 12X45
077	N 910105016003	SCREW
		ANGLE TO FRAME
		M 16X1.5X35
077	N 910105016015	SCREW
		ANGLE AND TRANSVERSE CONTROL ARM BRACKET TO FRAME
		M 16X1.5X65
077	N 910105016009	SCREW
		ANGLE AND TRANSVERSE CONTROL ARM BRACKET TO FRAME
		M 16X1.5X100
077	N 910105012020	SCREW
		CROSS MEMBER TO ANGLE
		M 12X1.5X35
080	N 913023016001	NUT
		FRAME FLANGE TO SIDE MEMBER
	Repalced by: N 000000005738
080	N 000000005738	NUT
		FRAME FLANGE TO SIDE MEMBER
080	N 913023016001	NUT
		REAR CROSS MEMBER TO FRAME FLANGE
	Repalced by: N 000000005738
080	N 000000005738	NUT
		REAR CROSS MEMBER TO FRAME FLANGE
080	N 913023014003	NUT
		FRAME FLANGE TO SIDE MEMBER
080	N 913023012004	NUT
		REAR CROSS MEMBER TO FRAME FLANGE
080	N 913023016001	NUT
		ANGLE TO FRAME
	Repalced by: N 000000005738
080	N 000000005738	NUT
		ANGLE TO FRAME
080	N 913023016001	NUT
		ANGLE AND TRANSVERSE CONTROL ARM BRACKET TO FRAME
	Repalced by: N 000000005738
080	N 000000005738	NUT
		ANGLE AND TRANSVERSE CONTROL ARM BRACKET TO FRAME
080	N 913023012002	NUT
		CROSS MEMBER TO ANGLE
083	A 4253120045	FLANGE
		LEFT
086	A 4253120145	FLANGE
		RIGHT
089	A 4275250030	COUPLING MOUTH
		FRONT
092	A 4259940060	LOCK
		COUPLING PIN
095	N 910105008011	SCREW
		LOCK
		M 8X20
098	N 000912012140	SCREW
		COUPLING MOUTH TO FRAME
		M 12X1.5X40
101	A 4253100367	BODY SUPPORT
104	A 0019880410	RUBBER MOUNTING
107	A 4253111250	BUSHING
110	A 0079902801	SCREW
	Repalced by: N 000960020188
110	N 000960020188	SCREW
	Repalced by: N 308765020011
110	N 308765020011	SCREW
		BODY SUPPORT TO FRAME
113	N 910113020000	NUT
		SUPPORT TO FRAME
116	A 4375200133	SUPPORT
119	A 4258917001	INTERMEDIATE BEARING
		CAB TO CHASSIS
122	A 4255240384	SHIM
		CAB TO CHASSIS
125	N 304017008016	SCREW
		CAB TO CHASSIS
		M 8X16
127	N 009021008108	WASHER
	Repalced by: N 009021008213
127	N 000000003250	WASHER
		CAB TO CHASSIS
