Transporto priemonė: U4000 MBT; VIN numerio dalis: 436330
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

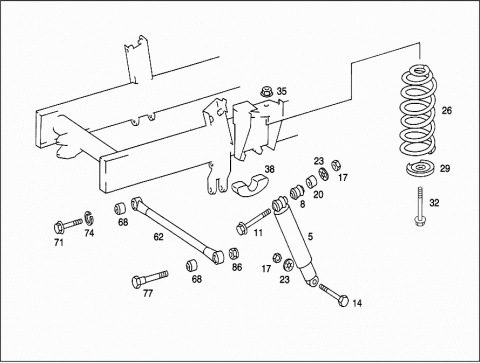

| 005 | A 0063232000 | SHOCK ABSORBER |
| FRONT AND REAR AXLES | ||
| FICHTEL & SACHS | ||
| 005 | A 0073230600 | SHOCK ABSORBER |
| FRONT AXLE SHOCK ABSORBERS | ||
| SACHS | ||
| 005 | A 0073230600 | SHOCK ABSORBER |
| FRONT AXLE SHOCK ABSORBERS | ||
| SACHS | ||
| 005 | A 0063261900 | SHOCK ABSORBER |
| REAR AXLE SHOCK ABSORBERS | ||
| SACHS | ||
| 005 | A 0063261900 | SHOCK ABSORBER |
| REAR AXLE SHOCK ABSORBERS | ||
| SACHS | ||
| 008 | A 0003235285 | RUBBER MOUNTING |
| 008 | A 0003235285 | RUBBER MOUNTING |
| 011 | N 000000000246 | HEXAGON HEAD BOLT |
| FRONT DAMPER TO LEFT FRAME | ||
| M20X1.5X160 | ||
| 011 | N 000000005398 | HEXAGON HEAD BOLT |
| FRONT DAMPER TO LEFT FRAME | ||
| M20X1.5X160 | ||
| 011 | N 910105020030 | HEXAGON HEAD BOLT |
| FRONT SHOCK ABSORBER TO FRAME,ON THE RIGHT | ||
| M20X1.5X150 | ||
| 011 | N 000000005730 | HEXAGON HEAD BOLT |
| FRONT SHOCK ABSORBER TO FRAME,ON THE RIGHT | ||
| M20X1.5X150 | ||
| 011 | N 000000005398 | HEXAGON HEAD BOLT |
| REAR SHOCK ABSORBER TO FRAME | ||
| M20X1.5X160 | ||
| 014 | N 000960020078 | SCREW |
| SHOCK ABSORBER TO AXLE | ||
| M20X1.5X85 | ||
| 014 | N 000960020138 | SCREW |
| SHOCK ABSORBER TO AXLE | ||
| M20X1.5X85 | ||
| 017 | N 308675020003 | HEXAGON NUT |
| SHOCK ABSORBER MOUNTING | ||
| 017 | N 000000005470 | HEXAGON NUT |
| SHOCK ABSORBER MOUNTING | ||
| M20 | ||
| 020 | A 4253230150 | BUSHING |
| SHOCK ABSORBER TO FRAME | ||
| 020 | A 4253230150 | BUSHING |
| SHOCK ABSORBER TO FRAME | ||
| 023 | N 900050021001 | LOCK PLATE |
| SHOCK ABSORBER MOUNTING | ||
| 023 | N 900050021001 | LOCK PLATE |
| SHOCK ABSORBER MOUNTING | ||
| 026 | A 4373210304 | FRONT SPRING |
| L = 418 MM | ||
| 026 | A 4373210904 | FRONT SPRING |
| L = 433,0 MM | ||
| 026 | A 4373210904 | FRONT SPRING |
| L = 433,0 MM | ||
| 029 | A 4353250126 | PLATE |
| FRONT SPRING TO FRAME | ||
| 029 | A 4353250126 | PLATE |
| FRONT SPRING TO FRAME | ||
| 032 | N 910105018026 | HEXAGON HEAD BOLT |
| FRONT SPRING TO FRAME | ||
| M18X1.5X70 | ||
| 032 | N 000000005565 | HEXAGON HEAD BOLT |
| FRONT SPRING TO FRAME | ||
| M18X1.5X70 | ||
| 035 | N 913023018002 | NUT |
| FRONT SPRING TO FRAME | ||
| 035 | N 000000005739 | NUT |
| FRONT SPRING TO FRAME | ||
| M18X1.5 | ||
| 038 | A 4063220044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 038 | A 4063220044 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||

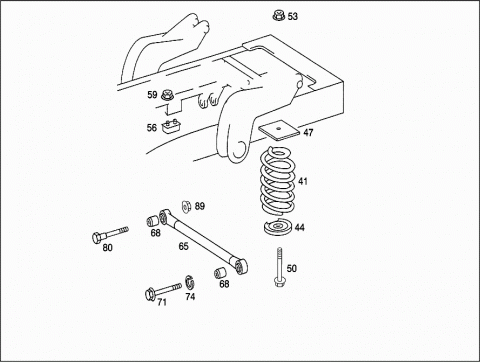

| 041 | A 4373240504 | REAR SPRING |
| L = 490,2 MM | ||
| 041 | A 4373240904 | REAR SPRING |
| L = 505,7 MM | ||
| 041 | A 4373240904 | REAR SPRING |
| L = 505,7MM | ||
| 044 | A 4353250126 | PLATE |
| REAR SPRING TO SPRING BRACKET ON FRAME | ||
| 044 | A 4353250126 | PLATE |
| REAR SPRING TO SPRING BRACKET ON FRAME | ||
| 047 | A 4373240035 | SPACER |
| REAR SPRING | ||
| 047 | A 4373240035 | SPACER |
| REAR SPRING | ||
| 050 | N 910105018027 | HEXAGON HEAD BOLT |
| REAR SPRING TO SPRING BRACKET ON FRAME | ||
| M18X1.5X80 | ||
| 050 | N 000000005724 | HEXAGON HEAD BOLT |
| REAR SPRING TO SPRING BRACKET ON FRAME | ||
| M18X1.5X80 | ||
| 053 | N 913023018002 | NUT |
| REAR SPRING TO SPRING BRACKET ON FRAME | ||
| 053 | N 000000005739 | NUT |
| REAR SPRING TO SPRING BRACKET ON FRAME | ||
| 056 | A 3353250044 | RUBBER BUFFER |
| REAR SPRING TO SPRING BRACKET ON AXLE | ||
| 056 | A 3353250044 | RUBBER BUFFER |
| REAR SPRING TO SPRING BRACKET ON AXLE | ||
| 059 | N 913023010002 | NUT |
| RUBBER BUFFER TO SPRING SEAT | ||
| 059 | N 910112010001 | NUT |
| RUBBER BUFFER TO SPRING SEAT | ||
| 062 | A 4253300607 | TRANSVERSE CONTROL ARM |
| FRONT AXLE | ||
| 062 | A 4253300607 | TRANSVERSE CONTROL ARM |
| FRONT AXLE | ||
| 065 | A 4253300707 | TRANSVERSE CONTROL ARM |
| REAR AXLE | ||
| 065 | A 4253300707 | TRANSVERSE CONTROL ARM |
| REAR AXLE | ||
| 068 | A 0019880610 | RUBBER MOUNTING |
| FRONT AND REAR AXLES | ||
| Repalced by: A 0013330014 | ||
| 068 | A 0013330014 | BEARING |
| FRONT AND REAR AXLES | ||
| 068 | A 0013330014 | BEARING |
| FRONT AND REAR AXLES | ||
| 071 | N 000000004781 | HEXAGON HEAD BOLT |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| M16X1.5X100 | ||
| 071 | N 000000006218 | HEXAGON HEAD BOLT |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| M16X1.5X100 | ||
| 074 | A 4419900047 | LOCK WASHER |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 074 | A 4419900047 | LOCK WASHER |
| CONTROL ARMS TO FRONT AND REAR AXLES | ||
| 077 | A 4259905301 | SCREW |
| CONTROL ARM TO FRAME,FRONT | ||
| 077 | A 4259905301 | SCREW |
| CONTROL ARM TO FRAME,FRONT | ||
| 080 | A 4259905301 | SCREW |
| STRUT AND CONTROL ARM TO FRAME | ||
| 080 | A 4259905301 | SCREW |
| STRUT AND CONTROL ARM TO FRAME | ||
| 086 | N 913004016005 | NUT |
| CONTROL ARM TO FRAME,FRONT | ||
| Repalced by: N 913004016008 | ||
| 086 | N 913004016008 | NUT |
| CONTROL ARM TO FRAME,FRONT | ||
| 086 | N 913004016005 | NUT |
| CONTROL ARM TO FRAME,FRONT | ||
| Repalced by: N 913004016008 | ||
| 086 | N 913004016008 | NUT |
| CONTROL ARM TO FRAME,FRONT | ||
| 089 | N 000000005738 | NUT |
| STRUT AND CONTROL ARM TO FRAME | ||
| 089 | N 000000005735 | HEXAGON NUT |
| STRUT AND CONTROL ARM TO FRAME | ||

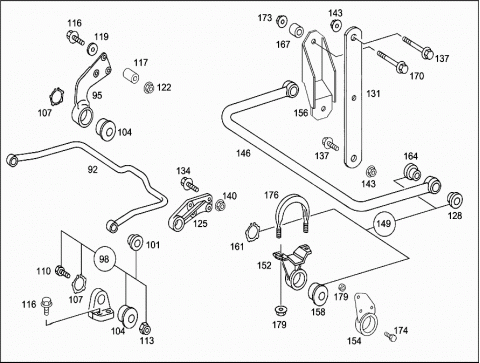

| 092 | A 4373231465 | TORSION BAR |
| FRONT | ||
| 092 | A 4373231465 | TORSION BAR |
| FRONT | ||
| 095 | A 4253231063 | BEARING BRACKET |
| LEFT | ||
| 095 | A 4253231063 | BEARING BRACKET |
| LEFT | ||
| 095 | A 4253231163 | BEARING BRACKET |
| RIGHT | ||
| 095 | A 4253231163 | BEARING BRACKET |
| RIGHT | ||
| 098 | A 4373200747 | SILENT BLOCK |
| PARTS KIT | ||
| TO A 437 323 14 65 | ||
| 098 | A 4373200747 | SILENT BLOCK |
| PARTS KIT | ||
| TO A 437 323 14 65 | ||
| 101 | A 3183200073 | RUBBER MOUNTING |
| SHACKLE TO BEARING BRACKET | ||
| 101 | A 3183200073 | RUBBER MOUNTING |
| SHACKLE TO BEARING BRACKET | ||
| 104 | A 3873230285 | RUBBER MOUNTING |
| SHACKLE TO BEARING BRACKET | ||
| 104 | A 3873230285 | RUBBER MOUNTING |
| SHACKLE TO BEARING BRACKET | ||
| 107 | N 000983068001 | LOCK RING |
| SHACKLE TO BEARING BRACKET | ||
| 107 | N 000983068000 | RETAINING RING |
| SHACKLE TO BEARING BRACKET | ||
| 110 | N 000960016241 | SCREW |
| 113 | N 910113016001 | HEXAGON NUT |
| 116 | N 910105012017 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO FRAME | ||
| M12X1.5X70 | ||
| Repalced by: N 000000002346 | ||
| 116 | N 000000002346 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M12X1.5X70 | ||
| 116 | N 000000002346 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M12X1.5X70 | ||
| 116 | A 0049908804 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M12X1.5X75 | ||
| 116 | A 0049908804 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M12X1.5X75 | ||
| 116 | A 0049908804 | SCREW |
| COVERING TO BEARING BRACKET | ||
| M12X1.5X75 | ||
| 116 | A 0049908804 | SCREW |
| EXHAUST PIPE BRACKET TO SIDE MEMBER | ||
| M12X1.5X75 | ||
| 116 | A 0049908804 | SCREW |
| EXHAUST PIPE BRACKET TO SIDE MEMBER | ||
| M12X1.5X75 | ||
| 116 | N 000000005291 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO FRAME | ||
| M14X1.5X80 | ||
| 117 | A 4375510250 | BUSHING |
| BEARING BRACKET TO FRAME | ||
| 117 | A 4375510250 | BUSHING |
| BEARING BRACKET TO FRAME | ||
| 119 | N 009021013203 | WASHER |
| COVERING TO BEARING BRACKET | ||
| 122 | N 913023012002 | NUT |
| BEARING BRACKET TO FRAME | ||
| 122 | N 913023012002 | NUT |
| BEARING BRACKET TO FRAME | ||
| 122 | N 000000005662 | NUT |
| BEARING BRACKET TO FRAME | ||
| M14 | ||
| 125 | A 4373230763 | BEARING BRACKET |
| LEFT | ||
| 125 | A 4373230863 | BEARING BRACKET |
| RIGHT | ||
| 128 | A 3183200073 | RUBBER MOUNTING |
| 128 | A 3183200073 | RUBBER MOUNTING |
| 131 | A 4373260847 | SHACKLE |
| STABILIZER MOUNTING | ||
| L = 160 MM | ||
| 131 | A 4373260847 | SHACKLE |
| STABILIZER MOUNTING | ||
| L = 160 MM | ||
| 131 | A 4373260247 | SHACKLE |
| STABILIZER MOUNTING | ||
| L = 225 MM | ||
| 131 | A 4373261247 | SHACKLE |
| STABILIZER MOUNTING | ||
| L = 250 MM | ||
| 131 | A 4373261247 | SHACKLE |
| STABILIZER MOUNTING | ||
| L = 250 MM | ||
| 134 | N 910105012047 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO FRONT AXLE | ||
| M 12 X 1,5 X 40 | ||
| 137 | N 000000005537 | HEXAGON HEAD BOLT |
| SHACKLE ON STABILIZER AND BEARING BRACKET | ||
| M16X1.5X80 | ||
| 137 | N 000000005537 | HEXAGON HEAD BOLT |
| SHACKLE ON STABILIZER AND BEARING BRACKET | ||
| M16X1.5X80 | ||
| 140 | N 913023012002 | NUT |
| BEARING BRACKET TO FRONT AXLE | ||
| 143 | N 000000005738 | NUT |
| SHACKLE ON STABILIZER AND BEARING BRACKET | ||
| M16 | ||
| 143 | N 000000005738 | NUT |
| SHACKLE ON STABILIZER AND BEARING BRACKET | ||
| M16 | ||
| 146 | A 4373260265 | TORSION BAR |
| REAR | ||
| 146 | A 4373260265 | TORSION BAR |
| REAR | ||
| 149 | A 4373200147 | SILENT BLOCK |
| PARTS KIT | ||
| TO A 437 326 02 65 | ||
| 149 | A 4373200147 | SILENT BLOCK |
| PARTS KIT | ||
| TO A 437 326 02 65 | ||
| 152 | A 4353231463 | BEARING BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 154 | A 4373204878 | CONSOLE |
| TORSION BAR TO REAR AXLE | ||
| 154 | A 4373204878 | CONSOLE |
| TORSION BAR TO REAR AXLE | ||
| 156 | A 4373204378 | CONSOLE |
| TORSION BAR TO FRAME | ||
| 156 | A 4373204378 | CONSOLE |
| TORSION BAR TO FRAME | ||
| 158 | A 3873230285 | RUBBER MOUNTING |
| TORSION BAR TO BEARING BRACKET | ||
| 158 | A 3873230285 | RUBBER MOUNTING |
| TORSION BAR TO BEARING BRACKET | ||
| 161 | N 000983068000 | RETAINING RING |
| TORSION BAR TO BEARING BRACKET | ||
| 161 | N 000983068000 | RETAINING RING |
| TORSION BAR TO BEARING BRACKET | ||
| 164 | A 3183200073 | RUBBER MOUNTING |
| SHACKLE TO TORSION BAR | ||
| 164 | A 3183200073 | RUBBER MOUNTING |
| SHACKLE TO TORSION BAR | ||
| 167 | A 4185660049 | BUSHING |
| BEARING BRACKET TO FRAME | ||
| 170 | N 000000005548 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO FRAME | ||
| M16X1.5X55 | ||
| 170 | N 000000005548 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO FRAME | ||
| M16X1.5X55 | ||
| 173 | N 000000005738 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M16 | ||
| 173 | N 000000005738 | NUT |
| BEARING BRACKET TO FRAME | ||
| M16 | ||
| 174 | N 000000005519 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO REAR AXLE | ||
| M14X35 | ||
| Repalced by: N 910105014013 | ||
| 174 | N 910105014013 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO REAR AXLE | ||
| M14X35 | ||
| 174 | N 000000005519 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO REAR AXLE | ||
| M14X35 | ||
| Repalced by: N 910105014013 | ||
| 174 | N 910105014013 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO REAR AXLE | ||
| M14X35 | ||
| 176 | A 4355520026 | CLAMP |
| BEARING BRACKET TO REAR AXLE | ||
| 179 | N 913023014003 | NUT |
| BEARING BRACKET TO REAR AXLE | ||
| 179 | N 000000005662 | SCREW |
| BEARING BRACKET TO REAR AXLE | ||
| M14 | ||
| 179 | N 000000005662 | NUT |
| BEARING BRACKET TO REAR AXLE | ||
| M14 | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
