Transporto priemonė: MB-TRAC 900; VIN numerio dalis: 440164

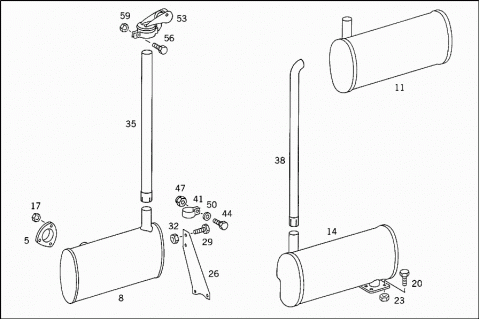

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 005 | A 4424920280 | FLANGE GASKET |
| 008 | A 0004910399 | REAR MUFFLER |
| 011 | A 0014916501 | MUFFLER |
| 014 | A 4404900001 | EXHAUST MUFFLER |
| 014 | A 4404900101 | EXHAUST MUFFLER |
| 014 | A 4404900201 | EXHAUST MUFFLER |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR EXHAUST MUFFLER,SEE ENGINE STANDARD VERSION,GROUP 14 | ||
| 017 | N 913004010008 | NUT |
| Repalced by: N 913023010003 | ||
| 017 | N 913023010003 | NUT |
| 020 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 020 | N 304017008018 | SCREW |
| MUFFLER TO CHARGER ELBOW | ||
| 023 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 023 | A 0009903250 | NUT |
| MUFFLER TO CHARGER ELBOW | ||
| 026 | A 4404910041 | BRACKET |
| 029 | N 000933008045 | SCREW |
| 032 | N 304032008006 | NUT |
| 035 | A 4404920001 | FRONT EXHAUST PIPE |
| 035 | A 4404920401 | FRONT EXHAUST PIPE |
| A 4404920501 | FRONT EXHAUST PIPE | |
| Repalced by: A 4404921201 | ||
| 038 | A 4404921201 | FRONT EXHAUST PIPE |
| A 4414920001 | FRONT EXHAUST PIPE | |
| Repalced by: A 4414920601 | ||
| 038 | A 4414920601 | FRONT EXHAUST PIPE |
| A 4404910040 | CLAMP | |
| Repalced by: N 071555053503 | ||
| 041 | N 071555053503 | CLAMP |
| A 4404910140 | CLAMP | |
| Repalced by: N 071555068501 | ||
| 041 | N 071555068502 | CLAMP |
| 044 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 044 | N 304017008034 | SCREW |
| CLAMP | ||
| 044 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 044 | N 304017010028 | HEXAGON HEAD BOLT |
| EXHAUST MUFFLER TO BRACKET | ||
| 044 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 044 | N 304017008018 | SCREW |
| EXHAUST MUFFLER TO BRACKET | ||
| 047 | N 913004008004 | NUT |
| CLAMP | ||
| 047 | N 913004010008 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 047 | N 913004008004 | NUT |
| Repalced by: N 913003008003 | ||
| 047 | N 913003008003 | PART NAME MISSING |
| Repalced by: N 913023008003 | ||
| 047 | N 913023008003 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 050 | N 007349008003 | WASHER |
| EXHAUST MUFFLER TO BRACKET | ||
| A 0004900263 | FLAP | |
| Repalced by: A 0004900963 | ||
| 053 | A 0004900963 | FLAP |
| 053 | A 0004900963 | FLAP |
| 053 | A 0004901063 | FLAP |
| 056 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 056 | N 304017008021 | SCREW |
| 059 | N 304032008006 | NUT |
