Transporto priemonė: TYP 190SL BM 121.040, .042; VIN numerio dalis: 121042

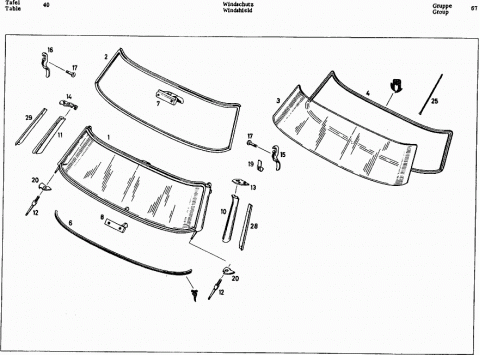

Grupė: 67 WINDSHIELD

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		WINDSHIELD
	A 401216700001	PART NAME MISSING
	A 401216701001	WINDSHIELD
001	A 401216700201	WINDSHIELD
	A 401216700601	WINDSHIELD
	A 401216700016	PART NAME MISSING
	A 401216700316	WINDSHIELD FRAME
002	A 401216700102	WINDSHIELD FRAME
003	A 401216710010	WINDSHIELD (GLASS PANE)
004	A 401216710120	WEATHERSTRIP
		(RUBBER MOULDING)
		COUNTERSUNK SCREW
		(BOTTOM PART OF FRAME TO TOP PART OF FRAME) A M 4X10 DIN 7987 DBL 8451-21
006	A 0009874052	RUBBER SEAL,
		BOTTOM, 1,400-MM LONG ORDER BY THE METER
007	A 401216710014	LOWER PART
		(FOR TOP LOCK, CENTER, TOP)
		LENS HEAD
		COUNTERSUNK SCREW (LOWER PART OF TOP LOCK TO TOP PART OF FRAME) A M 5X12 DIN 7988 DBL 8451-21
008	A 401216710013	MOUNTING PLATE,
		CENTER, BOTTOM (BRACKET FOR HINGED TIE BAR)
		COUNTERSUNK SCREW
		(MOUNTING PLATE TO BOTTOM PART OF FRAME) A M 4X12 DIN 7987 DBL 8451-21
010	A 401216710337	WINDSHIELD PILLAR, LEFT
011	A 401216710437	WINDSHIELD PILLAR, RIGHT
012	A 401216710018	MOUNTING BOLT
		(FOR WINDSHIELD PILLARS)
		LENS HEAD SCREW
		A M 5X20 DIN 7985 DBL 8451-21 WINDSHIELD PILLARS TO WINDSHIELD FRAME
		WASHER
		5,3 DIN 125 DBL 8451-11 WINDSHIELD PILLARS TO WINDSHIELD FRAME
		LOCK WASHER
		B 5 DIN 127 DBL 8451-11 WINDSHIELD PILLARS TO WINDSHIELD FRAME
013	A 401216710317	PLATE, LATERAL, LEFT
		AT WINDSHIELD PILLARS, TOP
014	A 401216710417	PLATE, LATERAL, RIGHT
		AT WINDSHIELD PILLARS, TOP
		COUNTERSUNK SCREW
		(PLATES TO WINDSHIELD PILLARS) A M 5X15 DIN 7987 DBL 8451-21
	A 401217700726	REPLACED BY
		40 121 770 09 26 TOGETHER WITH 1 LEAF SPRING 40 121 776 02 35 1 ROUND HEAD SCREW A M 4X8 DIN 7986 1 LOCK WASHER B 4 DIN
015	A 401217700926	TENSION LOCK, LEFT
	A 401217700826	REPLACED BY
		40 121 770 10 26 TOGETHER WITH 1 LEAF SPRING 40 121 776 02 35 1 ROUND HEAD SCREW A M 4X8 DIN 7986 1 LOCK WASHER B 4 DIN
016	A 401217701026	TENSION LOCK, RIGHT
017	A 0009900821	LENS HEAD
		SCREW, CHROMIUM PLATED TENSION LOCKS TO WINDSHIELD PILLARS
		SPRING WASHER
		A 6 DIN 137 TENSION LOCKS TO WINDSHIELD PILLARS
	A 0009843156	WASHER
		TENSION LOCKS TO WINDSHIELD PILLARS
	A 401217760035	PRESSURE SPRING
		(FOR LOCK LEVER)
019	A 401217760235	LEAF SPRING
		LENS HEAD SCREW
		A M 4X8 DIN 7985 LEAF SPRINGS TO WINDSHIELD PILLARS
		LOCK WASHER
		B 4 DIN 127 LEAF SPRINGS TO WINDSHIELD PILLARS
		THREADED PIN,
		CHROMIUM PLATED (INSTEAD OF THREADED HOLES FOR SUN VISOR) M 5X4 DIN 551 VERCHROMT
020	A 401216710196	SHIM
		WINDSHIELD TO FRONT PANEL
		WASHER
		10,5 DIN 433 WINDSHIELD TO FRONT PANEL
		LOCK WASHER
		B 10 DIN 127 WINDSHIELD TO FRONT PANEL
		HEX. NUT
		M 10 DIN 934-5 S WINDSHIELD TO FRONT PANEL
025	A 401216710027	BRACE
		(CENTER, WINDSHIELD, INSIDE)
		SPOKE NIPPLE
		(BRACE TO WINDSHIELD) M 3,5 DIN 74 371-9 S 20 K VERCHROMT
	A 401216700151	WINDOW MOULDING, LEFT
		FOR INSTRUMENT PANEL
	A 401216700551	WINDOW MOULDING, LEFT
		FOR INSTRUMENT PANEL
	A 401216710151	WINDOW MOULDING, LEFT
		FOR INSTRUMENT PANEL MUST BE ADAPTED TO CROSS ARMS
	A 401216700251	WINDOW MOULDING,
		RIGHT COVERED WITH IMITATION LEATHER FOR INSTRUMENT PANEL MUST BE ADAPTED TO CROSS ARMS
	A 401216700451	WINDOW MOULDING,
		RIGHT COVERED WITH LEATHER FOR INSTRUMENT PANEL MUST BE ADAPTED TO CROSS ARMS
	A 401216700351	WINDOW MOULDING, RIGHT
		FOR INSTRUMENT PANEL MUST BE ADAPTED TO CROSS ARMS
		WASHER
		5,3 DIN 125 WINDOW MOULDING TO RIGHT CROSS ARM
		LOCK WASHER
		B 5 DIN 127 WINDOW MOULDING TO RIGHT CROSS ARM
		HEX. NUT
		M 5 DIN 934-5 S WINDOW MOULDING TO RIGHT CROSS ARM
		SHEET METAL
		COUNTERSUNK SCREW B 3,9X22 DIN 7972 WINDOW MOULDING TO RIGHT CROSS ARM
		WASHER
		5,3 DIN 125 WINDOW MOULDING TO LEFT CROSS ARM
		LOCK WASHER
		B 5 DIN 127 WINDOW MOULDING TO LEFT CROSS ARM
		HEX. NUT
		M 5 DIN 934-5 S WINDOW MOULDING TO LEFT CROSS ARM
028	A 401216710125	COVER RAIL, LEFT
		FOR WINDSHIELD PILLAR DRIP MOULDINGS
029	A 401216710225	COVER RAIL, RIGHT
		FOR WINDSHIELD PILLAR DRIP MOULDINGS
		COUNTERSUNK SHEET
		METAL SCREW, CHROMIUM PLATED (COVER RAILS TO WINDSHIELD PILLARS) B 2,9X9,5 DIN 7982 VERCHROMT
	A 401216780010	GLASS PANE
		FOR REAR WINDOW SEE GROUP 79
	A 401216780020	WEATHERSTRIP
		FOR REAR WINDOW SEE GROUP 79
	A 401216780030	FRAME (GARNISH MOULDING)
		FOR REAR WINDOW SEE GROUP 79
