Transporto priemonė: TYP 190D BM 121.110 - .111; VIN numerio dalis: 121111

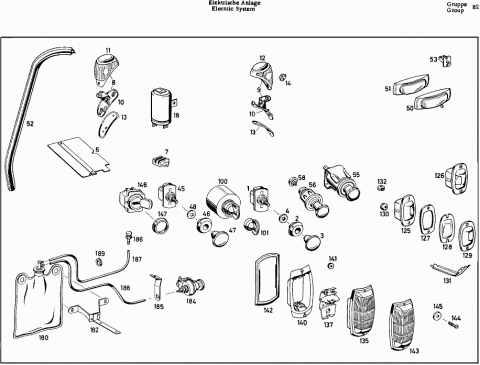

Grupė: 82 ELECTRIC SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| ELECTRIC SYSTEM | ||
| A 1205400044 | PUSH-PULL SWITCH | |
| FOR BLOWER | ||
| 001 | A 0005450611 | PUSH-PULL SWITCH |
| FOR BLOWER | ||
| 002 | A 1205450072 | ESCUTCHEON |
| 003 | A 1205450237 | BUTTON |
| 004 | A 0009972040 | FELT RING |
| 006 | A 101208200112 | CABLE COVERING |
| BEHIND FIXING PLATE FOR OPERATION KNOBS | ||
| A 101208200212 | CABLE COVERING | |
| BEHIND FIXING PLATE FOR OPERATION KNOBS | ||
| 007 | A 0005461841 | CABLE CONNECTOR, 2-POLE |
| A 0009883378 | CLIP WITH TONGUE | |
| FOR CABLE AT CROSS DUCT | ||
| A 0009883478 | CLIP WITH TONGUE | |
| FOR CABLE AT WINDSCREEN WIPER CABLE | ||
| LENS-HD. SHEET | ||
| METAL SCREW BZ 4,2X13 DIN 7981 FOR CABLE CONNECTOR AT REAR BASE PLATE, BOTTOM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| BLINKER LIGHT | ||
| A 1205400095 | BLINKER LIGHT | |
| WITH CLEARANCE LIGHT, LEFT | ||
| 008 | A 1205400495 | BLINKER LIGHT |
| WITH CLEARANCE LIGHT, LEFT | ||
| A 1205400195 | BLINKER LIGHT | |
| WITH CLEARANCE LIGHT, RIGHT | ||
| 009 | A 1205400595 | BLINKER LIGHT |
| WITH CLEARANCE LIGHT, RIGHT | ||
| A 1205400295 | BLINKER LIGHT | |
| WITH CLEARANCE LIGHT, LEFT WITH YELLOW GLASS FOR EXPORT CARS TO VENEZUELA | ||
| A 1205400695 | BLINKER LIGHT | |
| WITH CLEARANCE LIGHT, LEFT WITH YELLOW GLASS FOR EXPORT CARS TO VENEZUELA | ||
| A 1205400395 | BLINKER LIGHT | |
| WITH CLEARANCE LIGHT, RIGHT WITH YELLOW GLASS FOR EXPORT CARS TO VENEZUELA | ||
| A 1205400795 | BLINKER LIGHT | |
| WITH CLEARANCE LIGHT, RIGHT WITH YELLOW GLASS FOR EXPORT CARS TO VENEZUELA | ||
| A 1205440031 | BASE PLATE | |
| WITH LAMP SOCKET, LEFT AND RIGHT | ||
| 010 | A 1205440131 | BASE PLATE |
| WITH LAMP SOCKET, LEFT AND RIGHT | ||
| A 1205440095 | HOUSING WITH GLASS, LEFT | |
| ORANGE COLOURED | ||
| 011 | A 1205440495 | HOUSING WITH GLASS, LEFT |
| ORANGE COLOURED | ||
| A 1205440195 | HOUSING WITH GLASS, RIGHT | |
| ORANGE COLOURED | ||
| 012 | A 1205440595 | HOUSING WITH GLASS, RIGHT |
| ORANGE COLOURED | ||
| A 1205440295 | HOUSING WITH GLASS, LEFT | |
| YELLOW FOR EXPORT CARS TO VENEZUELA | ||
| A 1205440695 | HOUSING WITH GLASS, LEFT | |
| YELLOW FOR EXPORT CARS TO VENEZUELA | ||
| A 1205440395 | HOUSING WITH GLASS, RIGHT | |
| YELLOW FOR EXPORT CARS TO VENEZUELA | ||
| A 1205440795 | HOUSING WITH GLASS, RIGHT | |
| YELLOW FOR EXPORT CARS TO VENEZUELA | ||
| LENS-HD. COUNTERSUNK | ||
| SCREW AM 4X8 DIN 7988-4 S VERCHROMT FOR HOUSING AT BASE PLATE | ||
| 013 | A 1205440026 | PAD |
| RUBBER FOR BLINKER LIGHT AT FRONT MUDGUARD | ||
| 014 | A 0009902291 | CAGE CLIP WITH NUT |
| FOR BLINKER LIGHT AT FRONT MUDGUARD | ||
| LENS-HD. SCREW | ||
| AM 6X15 DIN 7985-4S FOR BLINKER LIGHT AT FRONT MUDGUARD | ||
| BULB | ||
| F 12 V 15 W DIN 72601 BLINKER LIGHT | ||
| BULB | ||
| H 12 V 2 W DIN 72601 CLEARANCE LIGHT | ||
| A 0005443894 | BULB | |
| CLEARANCE LIGHT | ||
| 018 | A 0005443332 | BLINKER TRANSMITTER |
| MAKE BOSCH OPTIONAL | ||
| A 0005443932 | BLINKER TRANSMITTER | |
| MAKE SWF OPTIONAL | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| WINDSCREEN WIPER SYSTEM | ||
| 020 | A 101208240511 | PLATE |
| FOR WINDSCREEN WIPER | ||
| A 101208202043 | PLATE | |
| FOR WINDSCREEN WIPER | ||
| 021 | A 101208241107 | GEAR WITH WIPER ARM, LEFT |
| 022 | A 101208241207 | GEAR WITH WIPER ARM |
| MOUNTED ON THE RIGHT IN CASE OF LEFT-HAND DRIVE; MOUNTED ON THE LEFT IN CASE OF RIGHT-HAND DRIVE | ||
| A 101208241507 | GEAR WITH | |
| WIPER ARM, RIGHT | ||
| BUTTON-HD. RIVET | ||
| 3X8 DIN 660 ST FOR GEAR AT PLATE | ||
| 023 | A 111208240101 | MOTOR WITH CRANK |
| A 111208240301 | MOTOR WITH CRANK | |
| 025 | A 0008240475 | CARBON BRUSH |
| 026 | A 101208240510 | CRANK |
| HEX. -HD.SCREW | ||
| M 6X22 DIN 933-8 G FOR MOTOR AT PLATE | ||
| 027 | A 0009876940 | RUBBER BUFFER |
| FOR MOTOR AT PLATE | ||
| 028 | A 1209911940 | SPACER TUBE |
| FOR MOTOR AT PLATE | ||
| 029 | A 0009840355 | WASHER |
| FOR MOTOR AT PLATE | ||
| LOCK WASHER | ||
| B 6 DIN 127 FOR MOTOR AT PLATE | ||
| HEX. NUT | ||
| M 6 DIN 934-5 S FOR MOTOR AT PLATE | ||
| 032 | A 101208240123 | SLEEVE OVER |
| WINDSCREEN WIPER MOTOR | ||
| 033 | A 101208240506 | DRIVE ROD |
| FROM MOTOR TO LEFT GEAR, CRANK | ||
| 034 | A 101208240305 | COUPLING ROD |
| FROM GEAR CRANK, LEFT TO GEAR CRANK, RIGHT | ||
| 035 | A 101208240098 | SEALING RUBBER |
| ON SHAFT BETWEEN CAP AND COWL | ||
| 036 | A 311368240399 | CAP |
| OVER SEALING RUBBER ON WIPER ARM | ||
| 037 | A 101208240228 | WIPER ARM |
| 038 | A 101868240097 | INTERMEDIATE LAYER |
| 039 | A 101208240026 | WIPER BLADE |
| 040 | A 0008240127 | RUBBER MOULDING, |
| 280-MM LONG FOR WIPER BLADE SHORTEN AS REQUIRED | ||
| 041 | A 1209911940 | SPACER TUBE |
| PLATE WITH LINKAGE AND GEAR AT COWL | ||
| HEX. -HD. SCREW | ||
| M 6X22 DIN 933-8 G PLATE WITH LINKAGE AND GEAR AT COWL | ||
| 042 | A 0009876940 | RUBBER BUFFER |
| PLATE WITH LINKAGE AND GEAR AT COWL | ||
| 043 | A 0009840355 | WASHER |
| PLATE WITH LINKAGE AND GEAR AT COWL | ||
| LOCK WASHER | ||
| B 6 DIN 127 PLATE WITH LINKAGE AND GEAR AT COWL | ||
| 044 | A 0009902291 | CAGE CLIP WITH NUT |
| PLATE WITH LINKAGE AND GEAR AT COWL | ||
| A 1205400044 | PULL-PUSH SWITCH | |
| FOR WINDSCREEN WIPER | ||
| 045 | A 0005450611 | PULL-PUSH SWITCH |
| FOR WINDSCREEN WIPER | ||
| 046 | A 1205450072 | ESCUTCHEON |
| 047 | A 1205450237 | BUTTON |
| 048 | A 0009972040 | FELT RING |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| INNER LIGHTING | ||
| 050 | A 101208200001 | DOME LIGHT WITH SWITCH |
| 051 | A 101208250009 | HOUSING |
| A 0005444194 | BULB | |
| COUNTERSUNK SHEET | ||
| METAL SCREW BZ 3,9X9,5 DIN 7982 FOR DOME LIGHT AT ROOF, FRONT | ||
| 052 | A 101208210086 | CABLE LINE |
| FOR CABLE - DOME LIGHT | ||
| A 0009881678 | CLIP WITH HOOK | |
| FOR CABLE - DOME LIGHT | ||
| A 1839970181 | RUBBER SLEEVE | |
| FOR CABLE - DOME LIGHT | ||
| 053 | A 0008210252 | DOOR CONTAKT |
| FOR DRIVER'S DOOR | ||
| COUNTERSUNK SHEET | ||
| METAL SCREW B 2,9X9,5 DIN 7982 FOR DOOR CONTAKT AT FRONT WALL PILLAR | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CIGAR LIGHTER | ||
| 055 | A 0008250953 | CIGAR LIGHTER 12 V |
| 056 | A 111208250451 | INSERT WITH |
| GLOW SPIRAL AND BUTTON | ||
| 058 | A 0008250252 | GLOW SPIRAL |
| GLÜHSPIRALE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

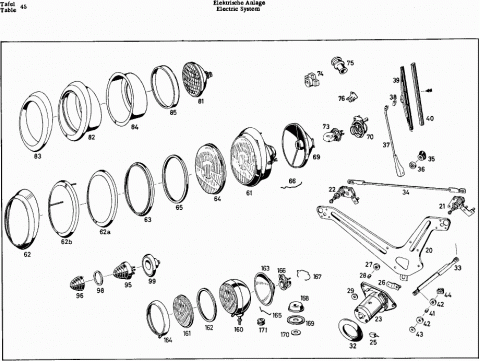

| HEADLIGHT | ||
| 061 | A 0005443202 | HEADLIGHT |
| MAKE BOSCH OPTIONAL ONLY FOR COUNTRIES WITH RIGHT-HAND TRAFFIC ASYMMETRIC | ||
| A 0005444402 | HEADLIGHT | |
| MAKE HELLA OPTIONAL ONLY FOR COUNTRIES WITH RIGHT-HAND TRAFFIC ASYMMETRIC | ||
| A 0005443902 | HEADLIGHT | |
| MAKE BOSCH OPTIONAL ONLY FOR COUNTRIES WITH LEFT-HAND TRAFFIC ASYMMETRIC FROM CHASSIS 8502356 WHEN ORDERING STATE KIND O | ||
| A 0005444902 | HEADLIGHT | |
| MAKE HELLA OPTIONAL ONLY FOR COUNTRIES WITH LEFT-HAND TRAFFIC ASYMMETRIC FROM CHASSIS 8502356 WHEN ORDERING STATE KIND O | ||
| 062 | A 0005440989 | ORNAMENTAL RING |
| MAKE BOSCH | ||
| A 0005443889 | ORNAMENTAL RING | |
| MAKE HELLA | ||
| 62a | A 0005449189 | COVER RING |
| MAKE HELLA UP TO CHASSIS 8500815 | ||
| 62b | A 0005449289 | COVER RING, BLACK |
| MAKE BOSCH FOR HEADLIGHT 000 544 32 02/39 02/49 02 | ||
| 063 | A 0005442989 | COVER RING, BLACK |
| FROM CHASSIS 8500816 FOR HEADLIGHT 000 544 44 02 | ||
| 064 | A 0005448190 | GLASS |
| MAKE BOSCH ONLY FOR COUNTRIES WITH RIGHT-HAND TRAFFIC | ||
| A 0005448790 | GLASS | |
| MAKE HELLA ONLY FOR COUNTRIES WITH RIGHT-HAND TRAFFIC | ||
| A 0005449990 | GLASS | |
| MAKE BOSCH ONLY FOR COUNTRIES WITH LEFT-HAND TRAFFIC FROM CHASSIS 8502356 | ||
| A 0015440990 | GLASS | |
| MAKE HELLA ONLY FOR COUNTRIES WITH LEFT-HAND TRAFFIC FROM CHASSIS 8502356 | ||
| 065 | A 0005441180 | SEALING RING |
| MAKE BOSCH | ||
| A 0005442880 | SEALING RING | |
| MAKE HELLA | ||
| 066 | A 0005440391 | RETAINING SPRING |
| MAKE BOSCH | ||
| A 0005442391 | RETAINING SPRING | |
| MAKE HELLA | ||
| 069 | A 0005443492 | REFLECTOR |
| MAKE BOSCH ONLY FOR COUNTRIES WITH RIGHT HAND TRAFFIC | ||
| A 0005443792 | REFLECTOR | |
| MAKE HELLA ONLY FOR COUNTRIES WITH RIGHT HAND TRAFFIC UP TO CHASSIS 8500815 | ||
| A 0005444192 | REFLECTOR | |
| MAKE HELLA ONLY FOR COUNTRIES WITH RIGHT HAND TRAFFIC FROM CHASSIS 8500816 | ||
| A 0005444092 | REFLECTOR | |
| MAKE BOSCH ONLY FOR COUNTRIES WITH LEFT-HAND TRAFFIC FROM CHASSIS 8502356 | ||
| A 0005444992 | REFLECTOR | |
| MAKE HELLA ONLY FOR COUNTRIES WITH WLEFT-HAND TRAFFIC FROM CHASSIS 8502356 | ||
| A 0005443193 | LOCKING CAP | |
| MAKE HELLA FOR LAMP SOCKET | ||
| 070 | A 0005443293 | LOCKING CAP |
| MAKE BOSCH FOR LAMP SOCKET | ||
| 073 | A 0005443794 | BULB 12 V - 45/40 W |
| FOR ASYMMETRIC HEADLIGHT | ||
| A 0005444894 | BULB 12 V - 45/40 W | |
| FOR ASYMMETRIC HEADLIGHT SPECIAL REQUEST WITH YELLOW GLASS | ||
| A 0005443894 | BULB | |
| FOR PARKING LIGHT FOR ASYMMETRIC HEADLIGHT | ||
| 074 | A 0005440386 | SOCKET |
| MAKE BOSCH FOR ASYMMETRIC HEADLIGHT | ||
| A 0005451928 | SCREW PLUG | |
| MAKE HELLA FOR ASYMMETRIC HEADLIGHT | ||
| 075 | A 1209870037 | SLEEVE |
| FOR CABLE PROTECTIVE TUBE, WHEEL ARCH PARL | ||
| 076 | A 0009889878 | CLIP WITH HOOK |
| FOR HOLDING HEADLIGHT AT HOUSING, MUDGUARD | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| HEADLIGHT, SEALED BEAM | ||
| 081 | A 0005442502 | INSERT, SEALED BEAM |
| MAKE BOSCH FOR CARS EXPORTED TO USA | ||
| 082 | A 0005402756 | HEADLIGHT WITHOUT |
| INSERT, SEALED BEAM MAKE BOSCH FOR CARS EXPORTED TO USA | ||
| 083 | A 0005442689 | ORNAMENTAL RING |
| MAKE BOSCH FOR CARS EXPORTED TO USA | ||
| 084 | A 0005448889 | COVER RING |
| MAKE BOSCH FOR CARS EXPORTED TO USA | ||
| 085 | A 0005440597 | COVER RING |
| MAKE BOSCH FOR CARS EXPORTED TO USA | ||
| A 1819970281 | RUBBER SLEEVE | |
| FOR CABLE PASSAGE AT HEADLIGHT HOUSING FOR CARS EXPORTED TO USA | ||
| 095 | A 0005442930 | BLINKER, PARKING |
| AND CLEARANCE LIGHT FOR CARS EXPORTED TO USA | ||
| 096 | A 0005449690 | GLASS |
| PLEXIGUM, COLOUR CRYSTAL-CLEAR FOR CARS EXPORTED TO USA | ||
| 098 | A 0005445680 | RUBBER GASKET |
| BETWEEN GLASS AND ESCUTCHEON FOR CARS EXPORTED TO USA | ||
| 099 | A 0005440723 | GASKET |
| FOR BLINKER, PARKING AND CLEARANCE LIGHT FOR CARS EXPORTED TO USA | ||
| A 0005441994 | BULB | |
| FOR BLINKER, PARKING AND CLEARANCE LIGHT FOR CARS EXPORTED TO USA | ||
| A 0005464341 | CABLE CONNECTOR, 3-POLE | |
| FOR CARS EXPORTED TO USA | ||
| A 0009970481 | RUBBER SLEEVE | |
| FOR LOCKING CABLE TERMINALS FOR BLINKER LIGHT, TOP FOR CARS EXPORTED TO USA | ||
| A 0009970681 | RUBBER SLEEVE | |
| FOR LOCKING CABLE TERMINALS FOR BLINKER LIGHT, TOP FOR CARS EXPORTED TO USA | ||
| HEX. NUT | ||
| M 5 DIN 934-5 S FOR BLINKER, PARKING AND CLEARANCE LIGHT AT FRONT MUDGUARD FOR CARS EXPORTED TO USA | ||
| LOCK WASHER | ||
| B 5 DIN 127 FOR BLINKER, PARKING AND CLEARANCE LIGHT AT FRONT MUDGUARD FOR CARS EXPORTED TO USA | ||
| 100 | A 1205400058 | TURNING SWITCH |
| FOR HEADLIGHT AND FOGLIGHT | ||
| 101 | A 1205450137 | KNOB WITH ESCUTCHEON |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| LICENCE PLATE LIGHT, RIGHT | ||
| 125 | A 1805400004 | LICENCE PLATE LIGHT, LEFT |
| AT OVERRIDER, REAR | ||
| 126 | A 1805400104 | LICENCE PLATE, |
| LIGHT, RIGHT AT OVERRIDER, REAR | ||
| 127 | A 0005445080 | PAD |
| 128 | A 0005448090 | WASHER |
| FOR LIGHT OUTLET | ||
| 129 | A 0005440397 | LIGHT STOP |
| LENS-HD. COUNTERSUNK | ||
| SCREW AM 4X10 DIN 7988-4 S VERCHROMT FOR LICENCE PLATE LIGHT WITH GLASS AND LIGHT STOP AT OVERRIDER | ||
| 130 | A 0009971881 | RUBBER SLEEVE |
| AT CABLE | ||
| A 0005443694 | BULB 12 V 10 W | |
| FOR LICENCE PLATE LIGHT | ||
| 131 | A 101208260124 | COVER PLATE |
| FOR CABLE, LICENCE PLATE LIGHT | ||
| 132 | A 0009973181 | RUBBER SLEEVE |
| FOR CABLE PASSAGE, LUGGAGE COMPARTMENT FLOOR | ||
| 132 | A 0009973181 | RUBBER SLEEVE |
| FOR CABLE PASSAGE, REAR BASE PLATE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STOP AND TAIL LIGHT | ||
| 135 | A 101808200664 | STOP, TAIL, |
| BLINKER AND REVERSE DRIVE LIGHT, LEFT AND RIGHT | ||
| 137 | A 101808200322 | BASE PLATE, |
| LEFT AND RIGHT WITH LAMP SOCKET AND REFLECTOR | ||
| 140 | A 101808200059 | HOUSING |
| FOR HOLDING BASE PLATE | ||
| 141 | A 0009972281 | RUBBER SLEEVE |
| FOR CABLE PASSAGE | ||
| 142 | A 101808260497 | GASKET |
| OPTIONAL BETWEEN HOUSING AND COVER | ||
| A 101808260597 | GASKET | |
| OPTIONAL BETWEEN HOUSING AND COVER | ||
| 143 | A 101808200271 | COVER |
| WITH FIXED GLASSES | ||
| 144 | A 101808260071 | SCREW |
| FOR COVER AT HOUSING | ||
| A 0005441994 | BULB | |
| FOR TAIL AND STOP LIGHT | ||
| BULB | ||
| H 12 V 2 W DIN 72601 FOR CLEARANCE LIGHT | ||
| BULB | ||
| F 12 V 15 W DIN 72601 FOR BLINKER | ||
| BULB | ||
| F 12 V 15 W DIN 72601 FOR REVERSE DRIVE LIGHT | ||
| 145 | A 0009870241 | RUBBER WASHER |
| FOR STOP AND TAIL LIGHT AT REAR MUDGUARD | ||
| WASHER | ||
| A 6,4 DIN 9021 FOR STOP AND TAIL LIGHT AT REAR MUDGUARD | ||
| HEX. NUT | ||
| M 6 DIN 934-5 S FOR STOP AND TAIL LIGHT AT REAR MUDGUARD | ||
| 146 | A 1205400244 | TOGGLE SWITCH |
| FOR CLEARANCE LIGHT | ||
| 147 | A 1205450272 | ESCUTCHEON |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SPECIAL REQUEST - FOGLIGHT-FOR CARS EXPORTED TO THE USA ONLY FOGLIGHTS MAKE "HELLA" ARE DELIVERED | ||
| 160 | A 0005443006 | FOGLIGHT, CLEAR |
| MAKE BOSCH, OPTIONAL WITH MAKE HELLA | ||
| A 0005443106 | FOGLIGHT, YELLOW | |
| MAKE BOSCH, OPTIONAL WITH MAKE HELLA | ||
| 161 | A 0005442990 | GLASS, CLEAR |
| A 0005444290 | GLASS, YELLOW-GREEN | |
| 162 | A 0005442280 | SEALING RING |
| FOR GLASS | ||
| 163 | A 0005441092 | REFLECTOR |
| MIRROR WITH COVER MIRROR | ||
| 164 | A 0005444189 | COVER RING |
| WITH CROSS SLOTTED SCREW | ||
| 165 | A 0005440591 | LOCK SPRING |
| FOR HOLDING MIRROR | ||
| 166 | A 0005441293 | LAMP SOCKET |
| WITH CONNECTION PLATE | ||
| 167 | A 0005441191 | TIGHTENING CLAMP |
| FOR HOLDING LAMP SOCKET | ||
| A 0005443206 | FOGLIGHT, CLEAR | |
| MAKE HELLA, OPTIONAL WITH MAKE BOSCH | ||
| A 0005443306 | FOGLIGHT, YELLOW | |
| MAKE HELLA, OPTIONAL WITH MAKE BOSCH | ||
| A 0005444090 | GLASS, CLEAR | |
| A 0005444190 | GLASS, YELLOW | |
| A 0005444089 | GLASS HOLDING | |
| RING WITH FIXING SCREW | ||
| A 0005441991 | SPRING | |
| A 0005442480 | GASKET | |
| A 0005441893 | LAMP SOCKET | |
| A 0005441892 | REFLECTOR WITH | |
| BULB | ||
| D 12 V 35 W DIN 72601 FOR FOGLIGHT | ||
| 168 | A 1805440115 | FIXING BASE |
| FOR FOGLIGHT AT COVER PLATE | ||
| 169 | A 0009842156 | WASHER |
| FOR FOGLIGHT AT COVER PLATE | ||
| 170 | A 0009870741 | RUBBER WASHER |
| FOR FOGLIGHT AT COVER PLATE | ||
| WASHER | ||
| A 10,5 DIN 9021 FOR FOGLIGHT AT COVER PLATE | ||
| A 0009971881 | RUBBER SLEEVE | |
| FOR CABLE THROUGH FRONT COVER PLATE | ||
| 171 | A 0009973181 | RUBBER SLEEVE |
| FOR CABLE THROUGH FRONT COVER PLATE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SPECIAL REQUEST - WINDSCREEN SPRAYER WITH FOOT OPERATION | ||
| A 0008690720 | REPLACED BY | |
| 000 869 09 20 TOGETHER WITH 1 HOSE 002 997 59 82 UP TO CHASSIS | ||
| A 0008690820 | LIQUID TANK | |
| 180 | A 0008690920 | LIQUID TANK |
| FROM CHASSIS | ||
| A 0008690114 | PART NAME MISSING | |
| A 101808600114 | BRACKET | |
| FOR LIQUID TANK | ||
| 182 | A 1208600014 | BRACKET |
| FOR LIQUID TANK | ||
| HEX. -HD.SCREW | ||
| M 5X12 DIN 933-8 G FOR BRACKET AT TANK CLAMP | ||
| LOCK WASHER | ||
| B 5 DIN 127 FOR BRACKET AT TANK CLAMP | ||
| HEX. NUT | ||
| M 5 DIN 934-5 S FOR BRACKET AT TANK CLAMP | ||
| A 0008690421 | REPLACED BY | |
| 000 869 06 21 TOGETHER WITH 1 HOSE 002 997 59 82 UP TO CHASSIS | ||
| 184 | A 0008690621 | FOOT PUMP |
| WITH SWITCH FOR WINDSCREEN WIPER FROM CHASSIS | ||
| A 101808690014 | BRACKET | |
| FOR FOOT PUMP | ||
| 185 | A 1208690114 | BRACKET |
| FOR FOOT PUMP | ||
| A 101808690414 | BRACKET | |
| FOR FOOT PUMP UP TO CHASSIS | ||
| A 1208690214 | BRACKET | |
| FOR FOOT PUMP FROM CHASSIS | ||
| HEX. -HD. SCREW | ||
| M 6X65 DIN 931-8 G FOR BRACKET AT HEATING DUCT | ||
| 186 | A 0008690647 | SPRAYING NOZZLE |
| DOUBLE NOZZLE | ||
| 187 | A 0029975982 | HOSE 1,400 MM LONG |
| PRESSURE HOSE FROM LIQUID TANK TO NOZZLE ORDER BY THE METER | ||
| A 0029975882 | HOSE 800 MM LONG | |
| SUCTION HOSE FROM LIQUID TANK TO PUMP ORDER BY THE METER | ||
| 188 | A 0029975982 | HOSE 800 MM LONG |
| SUCTION HOSE FROM LIQUID TANK TO PUMP ORDER BY THE METER | ||
| 189 | A 1869970681 | RUBBER SLEEVE |
| FOR PASSAGE OF HOSES AT FRONT WALL |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
