Transporto priemonė: TYP 190D BM 121.110 - .111; VIN numerio dalis: 121111

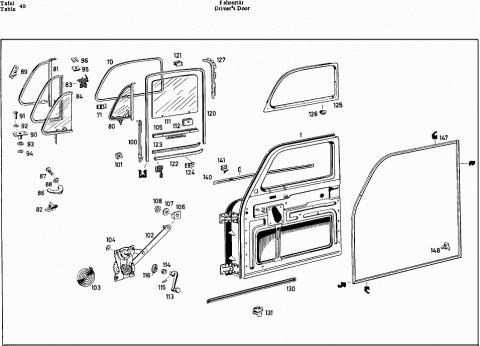

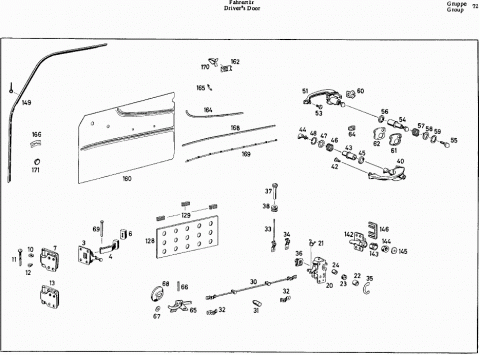

Grupė: 72 DRIVER'S DOOR
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| DRIVER'S DOOR | ||
| A 101217200102 | PART NAME MISSING | |
| A 101217200302 | PART NAME MISSING | |
| A 101217200202 | PART NAME MISSING | |
| A 101217200402 | PART NAME MISSING | |
| A 101807200305 | DRIVER'S DOOR, | |
| SHELL, LEFT WITH HINGE | ||
| 001 | A 101807200405 | DRIVER'S DOOR, |
| SHELL, RIGHT WITH HINGE | ||
| A 101207200143 | DOOR BRAKE | |
| WITH THREADED PLATE FOR DRIVER'S DOOR, LEFT | ||
| A 1207200143 | DOOR BRAKE | |
| WITH THREADED PLATE FOR DRIVER'S DOOR, LEFT | ||
| A 101207200243 | DOOR BRAKE | |
| WITH THREADED PLATE FOR DRIVER'S DOOR, RIGHT | ||
| 003 | A 1207200243 | DOOR BRAKE |
| WITH THREADED PLATE FOR DRIVER'S DOOR, RIGHT | ||
| A 101207200316 | DOOR BRAKE | |
| 004 | A 1207200116 | DOOR BRAKE |
| A 101207200416 | DOOR BRAKE STRAP | |
| NO LONGER DELIVERED AS SPARE PART | ||
| 006 | A 0009874140 | RUBBER BUFFER |
| A 101207200137 | HINGE, TOP, LEFT | |
| 007 | A 101207200237 | HINGE, TOP, RIGHT |
| A 101207230141 | HINGE PLATE, FRONT, LEFT | |
| AT FRONT WALL NO LONGER DELIVERED AS SPARE PART, ONLY AS HINGE, COMPLETE | ||
| A 101207230241 | HINGE PLATE, FRONT, RIGHT | |
| AT FRONT WALL NO LONGER DELIVERED AS SPARE PART, ONLY AS HINGE, COMPLETE | ||
| A 101207230142 | HINGE PART, REAR, LEFT | |
| AT DOOR NO LONGER DELIVERED AS SPARE PART, ONLY AS HINGE, COMPLETE | ||
| A 101207230242 | HINGE PART, REAR, RIGHT | |
| AT DOOR NO LONGER DELIVERED AS SPARE PART, ONLY AS HINGE, COMPLETE | ||
| 010 | A 101207230082 | WASHER |
| 011 | A 101207230052 | HINGE PIN |
| 012 | A 0009970488 | GREASE NIPPLE |
| COUNTERSUNK SCREW | ||
| AM 8X18 DIN 7987-6 G FOR HINGE, TOP AT DRIVER'S DOOR | ||
| A 101207200138 | HINGE, BOTTOM, LEFT | |
| 013 | A 101207200238 | HINGE, BOTTOM, RIGHT |
| A 101207230144 | HINGE PLATE, FRONT, LEFT | |
| AT FRONT WALL NO LONGER DELIVERED AS SPARE PART, ONLY AS HINGE, COMPLETE | ||
| A 101207230244 | HINGE PLATE, FRONT, RIGHT | |
| AT FRONT WALL NO LONGER DELIVERED AS SPARE PART, ONLY AS HINGE, COMPLETE | ||
| A 101207230145 | HINGE PART, REAR, LEFT | |
| AT DOOR NO LONGER DELIVERED AS SPARE PART, ONLY AS HINGE, COMPLETE | ||
| A 101207230245 | HINGE PART, REAR, RIGHT | |
| AT DOOR NO LONGER DELIVERED AS SPARE PART, ONLY AS HINGE, COMPLETE | ||
| A 101207230082 | WASHER | |
| A 101207230052 | HINGE PIN | |
| A 0009970488 | GREASE NIPPLE | |
| COUNTERSUNK SCREW | ||
| AM 8X18 DIN 7987-6 G FOR HINGE, BOTTOM AT DRIVER'S DOOR | ||
| A 101207201335 | DOOR LOCK, LEFT | |
| MAKE "KIEKERT" OPTIONAL WITH MAKE "BOMORO" STATE CHASSIS NO. AND MAKER'S NAME WHEN ORDERING | ||
| 020 | A 301807201835 | DOOR LOCK, RIGHT |
| MAKE "KIEKERT" OPTIONAL WITH MAKE "BOMORO" STATE CHASSIS NO. AND MAKER'S NAME WHEN ORDERING | ||
| A 301807201735 | DOOR LOCK, LEFT | |
| MAKE "KIEKERT" OPTIONAL WITH MAKE "BOMORO" STATE CHASSIS NO. AND MAKER'S NAME WHEN ORDERING | ||
| A 101207201435 | DOOR LOCK, RIGHT | |
| MAKE "KIEKERT" OPTIONAL WITH MAKE "BOMORO" STATE CHASSIS NO. AND MAKER'S NAME WHEN ORDERING | ||
| A 301807201535 | DOOR LOCK, LEFT | |
| MAKE "KIEKERT" OPTIONAL WITH MAKE "BOMORO" STATE CHASSIS NO. AND MAKER'S NAME WHEN ORDERING SPECIAL REQUEST ANTI-LOCK-OU | ||
| A 301807201835 | DOOR LOCK, RIGHT | |
| MAKE "KIEKERT" OPTIONAL WITH MAKE "BOMORO" STATE CHASSIS NO. AND MAKER'S NAME WHEN ORDERING SPECIAL REQUEST ANTI-LOCK-OU | ||
| A 301807201735 | DOOR LOCK, LEFT | |
| MAKE "KIEKERT" OPTIONAL WITH MAKE "BOMORO" STATE CHASSIS NO. AND MAKER'S NAME WHEN ORDERING SPECIAL REQUEST ANTI-LOCK-OU | ||
| A 301807201635 | DOOR LOCK, RIGHT | |
| MAKE "KIEKERT" OPTIONAL WITH MAKE "BOMORO" STATE CHASSIS NO. AND MAKER'S NAME WHEN ORDERING SPECIAL REQUEST ANTI-LOCK-OU | ||
| 021 | A 101807230256 | TORSION SPRING, RIGHT |
| FOR RIGHT LOCK AT LOCKING LEVER, TOP STATE CHASSIS NO. AND MAKER'S NAME WHEN ORDERING | ||
| A 101807230156 | TORSION SPRING, LEFT | |
| FOR LEFT LOCK AT LOCKING LEVER, TOP STATE CHASSIS NO. AND MAKER'S NAME WHEN ORDERING | ||
| 022 | A 101807230078 | CUP |
| FOR MOUNTING LOCK BOLT AND FIXING PLATE STATE CHASSIS NO. AND MAKER'S NAME WHEN ORDERING | ||
| 023 | A 0007660199 | RUBBER RING |
| FOR MOUNTING, CUP STATE CHASSIS NO. AND MAKER'S NAME WHEN ORDERING | ||
| 024 | A 0007660135 | CAP |
| ON PUSH ROD FOR SUPPORT TO PUSH BUTTON STATE CHASSIS NO. AND MAKER'S NAME WHEN ORDERING | ||
| 030 | A 101807200492 | PULL ROD |
| STATE CHASSIS NO. AND MAKER'S NAME WHEN ORDERING | ||
| 031 | A 1209870137 | LINKAGE GUIDE |
| RUBBER STATE CHASSIS NO. AND MAKER'S NAME WHEN ORDERING | ||
| 032 | A 101807230055 | LOCKING SPRING |
| STATE CHASSIS NO. AND MAKER'S NAME WHEN ORDERING | ||
| A 101807200093 | LOCKING ROD | |
| FOR RIGHT DOOR LOCK IN CASE OF LEFT-HAND DRIVE | ||
| 033 | A 1207200093 | LOCKING ROD |
| FOR RIGHT DOOR LOCK IN CASE OF LEFT-HAND DRIVE STATE CHASSIS NO. AND MAKER'S NAME WHEN ORDERING | ||
| 033 | A 1207200093 | LOCKING ROD |
| FOR LEFT DOOR LOCK IN CASE OF RIGHT-HAND DRIVE STATE CHASSIS NO. AND MAKER'S NAME WHEN ORDERING | ||
| 034 | A 101807230055 | LOCKING SPRING |
| STATE CHASSIS NO. AND MAKER'S NAME WHEN ORDERING | ||
| 035 | A 101207230124 | COVER PLATE |
| BETWEEN LOCK AND DOOR LINING | ||
| LENS-HD. COUNTERSUNK | ||
| SCREW AM 4X5 DIN 7988-4 S FOR COVER PLATE AT DOOR LOCK | ||
| A 0009904191 | POLYSTOP, CAGE NUT | |
| FOR DOOR LOCK AT DRIVER'S DOOR, INNER PLATE | ||
| 036 | A 0009905391 | POLYSTOP, CAGE NUT |
| FOR DOOR LOCK AT DRIVER'S DOOR, INNER PLATE | ||
| COUNTERSUNK SCREW | ||
| AM 6X15 DIN 7987-8 G FOR DOOR LOCK AT DRIVER'S DOOR, INNER PLATE | ||
| LENS-HD. COUNTERSUNK | ||
| SCREW AM 6X15 DIN 7988-8 G FOR DOOR LOCK AT DRIVER'S DOOR, INNER PLATE | ||
| 037 | A 101207660258 | KNOB |
| FOR DOOR LOCK SPECIAL REQUEST ANTI-LOCK-OUT MECHANISM, BOTH DRIVER'S DOORS WITH LOCK, INSIDE | ||
| 037 | A 101207660258 | KNOB |
| FOR DOOR LOCK SPECIAL REQUEST ANTI-LOCK-OUT MECHANISM, BOTH DRIVER'S DOORS WITH LOCK, INSIDE | ||
| 038 | A 0009974281 | RUBBER SLEEVE |
| FOR PASSAGE OF DOOR LOCK SPECIAL REQUEST ANTI-LOCK-OUT MECHANISM BOTH DRIVER'S DOORS WITH LOCK, INSIDE | ||
| 038 | A 0009974281 | RUBBER SLEEVE |
| FOR PASSAGE OF DOOR LOCK SPECIAL REQUEST ANTI-LOCK-OUT MECHANISM BOTH DRIVER'S DOORS WITH LOCK, INSIDE | ||
| 040 | A 101807660301 | DOOR HANDLE, LEFT |
| FOR DRIVER'S DOOR, LEFT HAND SIDE LOCKABLE STATE CHASSIS NO. AND MAKER'S NAME OF DOOR LOCK WHEN ORDERING | ||
| A 101807660401 | DOOR HANDLE, RIGHT | |
| FOR DRIVER'S DOOR, RIGHT HAND SIDE LOCKABLE STATE CHASSIS NO. AND MAKER'S NAME OF DOOR LOCK WHEN ORDERING | ||
| A 101807660501 | DOOR HANDLE, LEFT | |
| FOR DRIVER'S DOOR, LEFT HAND SIDE LOCKABLE STATE CHASSIS NO. AND MAKER'S NAME OF DOOR LOCK WHEN ORDERING SPECIAL REQUEST | ||
| A 101807660601 | DOOR HANDLE, RIGHT | |
| FOR DRIVER'S DOOR, RIGHT HAND SIDE LOCKABLE STATE CHASSIS NO. AND MAKER'S NAME OF DOOR LOCK WHEN ORDERING SPECIAL REQUES | ||
| A 101807660127 | HANDLE, CAST PART | |
| FOR DRIVER'S DOOR, LEFT HAND SIDE WITHOUT PUSH BUTTON AND WITHOUT YALE-LOCK NO LONGER DELIVERED AS SPARE PART, ONLY AS D | ||
| A 101807660227 | HANDLE, CAST PART | |
| FOR DRIVER'S DOOR, RIGHT HAND SIDE WITHOUT PUSH BUTTON AND WITHOUT YALE-LOCK NO LONGER DELIVERED AS SPARE PART, ONLY AS | ||
| 042 | A 101207660115 | FIXING PIN |
| AT HANDLE, FRONT | ||
| 043 | A 101807660626 | PUSH BUTTON |
| WITH YALE-LOCK AND DUST CAP WITHOUT BUTTON BASE | ||
| A 301807660126 | PUSH BUTTON | |
| WITH YALE-LOCK AND DUST CAP WITHOUT BUTTON BASE SPECIAL REQUEST ANTI-LOCK-OUT MECHANISM BOTH DRIVER'S DOORS WITH LOCK, I | ||
| 044 | A 101807660131 | BUTTON BASE WITH HEX. NUT |
| A 101807660231 | BUTTON BASE WITH HEX. NUT | |
| SPECIAL REQUEST ANTI-LOCK-OUT MECHANISM BOTH DRIVER'S DOORS WITH LOCK, INSIDE | ||
| 045 | A 101807660099 | RING |
| FOR PUSH BUTTON IN HANDLE, CAST PART | ||
| 046 | A 101807660029 | PRESSURE SPRING, OUTSIDE |
| FOR PUSH BUTTON IN HANDLE, CAST PART | ||
| 047 | A 101807660199 | GROOVED RING |
| SPACER RING FOR PUSH BUTTON IN HANDLE, CAST PART | ||
| 048 | A 101807660022 | SQUARE, SNAP RING |
| FOR PUSH BUTTON IN HANDLE, CAST PART | ||
| LOCK WASHER | ||
| B 6 DIN 127 UNDER HEX. NUT, BUTTON BASE | ||
| 051 | A 101807660402 | DOOR HANDLE, |
| RIGHT, NOT LOCKABLE FOR DRIVER'S DOOR, RIGHT HAND SIDE STATE CHASSIS NO. WHEN ORDERING | ||
| A 101807660302 | DOOR HANDLE, | |
| LEFT, NOT LOCKABLE FOR DRIVER'S DOOR, LEFT HAND SIDE STATE CHASSIS NO. WHEN ORDERING | ||
| A 101807660227 | HANDLE, CAST | |
| PART WITHOUT PUSH BUTTON FOR DRIVER'S DOOR RIGHT HAND SIDE NO LONGER DELIVERED AS SPARE PART, ONLY AS DOOR HANDLE, COMPL | ||
| A 101807660127 | HANDLE, CAST | |
| PART WITHOUT PUSH BUTTON FOR DRIVER'S DOOR LEFT HAND SIDE NO LONGER DELIVERED AS SPARE PART, ONLY AS DOOR HANDLE, COMPLE | ||
| 053 | A 101207660115 | FIXING PIN |
| AT HANDLE, FRONT | ||
| 054 | A 101807660426 | PUSH BUTTON |
| A 101807660131 | PUSH BUTTON BASE | |
| 055 | A 1207660231 | PUSH BUTTON BASE |
| 056 | A 101807660099 | RING |
| FOR PUSH BUTTON IN HANDLE, CAST PART | ||
| 057 | A 101807660029 | PRESSURE SPRING, OUTSIDE |
| FOR PUSH BUTTON IN HANDLE, CAST PART | ||
| 058 | A 101807660199 | GROOVED RING |
| SPACER RING FOR PUSH BUTTON IN HANDLE, CAST PART | ||
| 059 | A 101807660022 | SQUARE SNAP RING |
| FOR PUSH BUTTON IN HANDLE, CAST PART | ||
| HEX. NUT | ||
| M 6 DIN 934-5 S FOR PUSH BUTTON BASE FOR PUSH BUTTON IN HANDLE, CAST PART | ||
| LOCK WASHER | ||
| B 6 DIN 127 FOR PUSH BUTTON BASE FOR PUSH BUTTON IN HANDLE, CAST PART | ||
| LENS-HD.SCREW | ||
| AM 6X15 DIN 7985-4 S FOR DOOR HANDLE AT DOOR, OUTSIDE | ||
| 060 | A 101207230274 | LOCKING CAP |
| SAFETY DEVICE FOR DOOR HANDLE AT DOOR, OUTSIDE | ||
| SPRING WASHER | ||
| B 6 DIN 137 FOR DOOR HANDLE AT DOOR, OUTSIDE | ||
| 061 | A 101207660305 | RUBBER PAD |
| UNDER DOOR HANDLE, LEFT, REAR FOR DOOR HANDLE AT DOOR, OUTSIDE | ||
| 062 | A 101207660405 | RUBBER PAD |
| UNDER DOOR HANDLE, RIGHT, REAR FOR DOOR HANDLE AT DOOR, OUTSIDE | ||
| 064 | A 101207660005 | RUBBER PAD |
| FOR DOOR HANDLE, LEFT AND RIGHT, FRONT FOR DOOR HANDLE AT DOOR, OUTSIDE | ||
| A 101807600561 | INNER HANDLE | |
| MECHANISM, LEFT FOR LEFT DRIVER'S DOOR | ||
| 065 | A 101807600661 | INNER HANDLE |
| MECHANISM, RIGHT FOR RIGHT DRIVER'S DOOR | ||
| 066 | A 101807660015 | PIVOT PIN |
| FOR GRIP AT BASE PLATE | ||
| LENS-HD. SCREW | ||
| AM 6X15 DIN 7985-4 S FOR INNER HANDLE MECHANISM AT DRIVER'S DOOR, INNER PLATE | ||
| TOOTHED WASHER | ||
| A 6,4 DIN 6797 FOR INNER HANDLE MECHANISM AT DRIVER'S DOOR, INNER PLATE | ||
| 067 | A 0009841755 | WASHER |
| FOR INNER HANDLE MECHANISM AT DRIVER'S DOOR, INNER PLATE | ||
| 068 | A 101807600181 | ESCUTCHEON |
| FOR INNER HANDLE MECHANISM | ||
| 069 | A 1209910505 | PIN FOR DOOR BRAKE STRAP |
| FOR DOOR BRAKE STRAP AT HINGE, TOP, FRONT WALL PILLAR | ||
| COTTER PIN | ||
| 1,5 X 10 DIN 94 FOR DOOR BRAKE STRAP AT HINGE, TOP, FRONT WALL PILLAR | ||
| A 1207230034 | LEAF SPRING | |
| FOR CLAMPING DOOR HOLDER MOUNTING | ||
| SPRING WASHER | ||
| B 5 DIN 137 FOR DOOR BRAKE STRAP AT HINGE, TOP, FRONT WALL PILLAR | ||
| A 101807250355 | WINDOW FRAME, LEFT | |
| AT DRIVER'S DOOR | ||
| 070 | A 101807250455 | WINDOW FRAME, RIGHT |
| AT DRIVER'S DOOR | ||
| 071 | A 0009883278 | CLIP WITH HOOK |
| FOR WINDOW FRAME AT DRIVER'S DOOR | ||
| COUNTERSUNK SHEET | ||
| METAL SCREW B 2,9X6,5 DIN 7982 FOR WINDOW FRAME AT DRIVER'S DOOR | ||
| A 101807200755 | DEFLECTOR WINDOW, LEFT | |
| 080 | A 101807200855 | DEFLECTOR WINDOW, RIGHT |
| A 101807201114 | FIXING FRAME, LEFT | |
| RUBBER FRAME FOR DEFLECTOR WINDOW | ||
| 081 | A 101807201214 | FIXING FRAME, RIGHT |
| RUBBER FRAME FOR DEFLECTOR WINDOW | ||
| A 101807250548 | STOP, LEFT | |
| FOR TURNBUCKLE | ||
| 082 | A 101807250648 | STOP, RIGHT |
| FOR TURNBUCKLE | ||
| BUTTON-HD.RIVET | ||
| 4X6 DIN 660 | ||
| A 101807251124 | SEALING FRAME, LEFT | |
| FOR DEFLECTOR WINDOW IN FIXING FRAME | ||
| 083 | A 101807251224 | SEALING FRAME, RIGHT |
| FOR DEFLECTOR WINDOW IN FIXING FRAME | ||
| A 101807200355 | DEFLECTOR WINDOW, LEFT | |
| WITHOUT FIXING FRAME AND SEALING FRAME WITH TURNBUCKLE | ||
| A 1207200155 | DEFLECTOR WINDOW, LEFT | |
| WITHOUT FIXING FRAME AND SEALING FRAME WITH TURNBUCKLE | ||
| A 101807200455 | DEFLECTOR WINDOW, RIGHT | |
| WITHOUT FIXING FRAME AND SEALING FRAME WITH TURNBUCKLE | ||
| 084 | A 1207200255 | DEFLECTOR WINDOW, RIGHT |
| WITHOUT FIXING FRAME AND SEALING FRAME WITH TURNBUCKLE | ||
| A 101807200555 | DEFLECTOR WINDOW, LEFT | |
| WITHOUT TURNBUCKLE NO LONGER DELIVERED AS SPARE PART, ONLY AS DEFLECTOR WINDOW WITH TURNBUCKLE | ||
| A 101807200655 | DEFLECTOR WINDOW, RIGHT | |
| WITHOUT TURNBUCKLE NO LONGER DELIVERED AS SPARE PART, ONLY AS DEFLECTOR WINDOW WITH TURNBUCKLE | ||
| A 101807250379 | TURNBUCKLE | |
| FOR DEFLECTOR WINDOW, LEFT | ||
| 086 | A 101807250479 | TURNBUCKLE |
| FOR DEFLECTOR WINDOW, RIGHT | ||
| 087 | A 101807250162 | SHAFT |
| FOR TURNBUCKLE AT WINDOW FRAME | ||
| 088 | A 0009900248 | SPRING WASHER |
| FOR TURNBUCKLE AT WINDOW FRAME | ||
| GROOVED PIN | ||
| 2X14 DIN 1472 FOR TURNBUCKLE AT WINDOW FRAME | ||
| A 101807250380 | MOUNTING, TOP, LEFT | |
| 089 | A 101807250480 | MOUNTING, TOP, RIGHT |
| COUNTERSUNK SCREW | ||
| AM 4X6 DIN 7987-4 S FOR MOUNTING, TOP AT FIXING FRAME | ||
| A 101807250382 | MOUNTING, BOTTOM, LEFT | |
| 090 | A 101807250482 | MOUNTING, BOTTOM, RIGHT |
| 091 | A 0009901433 | SQUARE-HD.SCREW |
| FOR MOUNTING, BOTTOM AT FIXING FRAME | ||
| 092 | A 1369901340 | SHIM |
| FOR MOUNTING, BOTTOM AT FIXING FRAME | ||
| WASHER | ||
| A 5,3 DIN 9021 FOR MOUNTING, BOTTOM AT FIXING FRAME | ||
| SPRING WASHER | ||
| B 5 DIN 137 FOR MOUNTING, BOTTOM AT FIXING FRAME | ||
| HEX. NUT | ||
| M 5 DIN 934-5 S FOR MOUNTING, BOTTOM AT FIXING FRAME | ||
| 093 | A 0009900148 | SPRING WASHER |
| FOR DEFLECTOR WINDOW AT MOUNTING, BOTTOM | ||
| 094 | A 0009842556 | WASHER |
| FOR DEFLECTOR WINDOW AT MOUNTING, BOTTOM | ||
| HEX. NUT | ||
| M 6 DIN 934-5 S FOR DEFLECTOR WINDOW AT MOUNTING, BOTTOM | ||
| 095 | A 101807250018 | THREADED PLATE |
| FOR DEFLECTOR WINDOW AT DRIVER'S DOOR | ||
| LENS-HD.COUNTERSUNK SCREW | ||
| AM 5X8 DIN 7988-4 S FOR DEFLECTOR WINDOW AT DRIVER'S DOOR | ||
| 096 | A 101807250084 | SHIM |
| FOR DEFLECTOR WINDOW AT DRIVER'S DOOR | ||
| COUNTERSUNK SCREW | ||
| AM 5X10 DIN 7987-4 S FOR DEFLECTOR WINDOW AT DRIVER'S DOOR | ||
| A 101807200317 | WINDOW RUN, LEFT | |
| HINGE SIDE | ||
| 100 | A 101807200417 | WINDOW RUN, RIGHT |
| HINGE SIDE | ||
| LENS-HD.SCREW | ||
| AM 6X12 DIN 7985-4 S FOR WINDOW RUN AT STRUT | ||
| TOOTHED WASHER | ||
| A 6,4 DIN 6797 FOR WINDOW RUN AT STRUT | ||
| WASHER | ||
| A 6,4 DIN 9021 FOR WINDOW RUN AT STRUT | ||
| 101 | A 0009902291 | CAGE CLIP WITH NUT |
| FOR WINDOW RUN AT STRUT | ||
| A 101807250302 | WINDOW LIFTER | |
| FOR DRIVER'S DOOR, LEFT MAKE "BROSE" OPTIONAL | ||
| 102 | A 101807250402 | WINDOW LIFTER |
| FOR DRIVER'S DOOR, RIGHT MAKE "BROSE" OPTIONAL | ||
| 103 | A 0007680105 | COMPENSATING SPRING |
| STATE MAKER'S NAME OF CRANK MECHANISM WHEN ORDERING MAKE "BROSE" OPTIONAL | ||
| A 101807250502 | WINDOW LIFTER | |
| FOR DRIVER'S DOOR, LEFT MAKE "KEIPER" OPTIONAL | ||
| A 101807250602 | WINDOW LIFTER | |
| FOR DRIVER'S DOOR, RIGHT MAKE "KEIPER" OPTIONAL | ||
| A 0007680405 | FLAT SPIRAL SPRING | |
| STATE MAKER'S NAME OF CRANK MECHANISM WHEN ORDERING MAKE "KEIPER" OPTIONAL | ||
| LENS-HD.SCREW | ||
| AM 6X10 DIN 7985-4 S FOR WINDOW LIFTER AT DRIVER'S DOOR, INNER PLATE | ||
| 104 | A 0009940510 | WASHER |
| FOR WINDOW LIFTER AT DRIVER'S DOOR, INNER PLATE | ||
| LOCK WASHER | ||
| B 6 DIN 127 FOR WINDOW LIFTER AT DRIVER'S DOOR, INNER PLATE | ||
| 105 | A 101807200345 | WINDOW LIFTING RAIL |
| FOR DRIVER'S DOOR | ||
| 106 | A 1209840137 | SLIDE |
| FOR WINDOW LIFTING RAIL AT WINDOW LIFTER | ||
| 107 | A 0009842456 | WASHER |
| FOR WINDOW LIFTING RAIL AT WINDOW LIFTER | ||
| 108 | A 0009900548 | SPRING WASHER |
| FOR WINDOW LIFTING RAIL AT WINDOW LIFTER | ||
| LOCKING WASHER | ||
| 7 DIN 6799 FOR WINDOW LIFTING RAIL AT WINDOW LIFTER | ||
| 111 | A 101807250110 | GLASS |
| FOR CRANK OPERATED WINDOW | ||
| 112 | A 101207250080 | RUBBER MOUNTING |
| FOR CRANK OPERATED WINDOW | ||
| 113 | A 101207680202 | WINDOW CRANK |
| 114 | A 0009878140 | RUBBER BUFFER |
| PASTED INTO CRANK | ||
| 115 | A 121367680015 | CYLINDRICAL PIN |
| PIN FOR CRANK DELIVERED TOGETHER WITH CRANK, NOT MOUNTED | ||
| 116 | A 121367680003 | ESCUTCHEON WITH |
| PRESSURE SPRING AND SLEEVE FOR CRANK | ||
| 120 | A 0009850530 | WINDOW RUN, |
| FLEXIBLE, 1870-MM LONG ORDER BY THE METER | ||
| 121 | A 0009882478 | CLIP WITH TONGUE |
| FOR WINDOW RUN AT DRIVER'S DOOR | ||
| A 101807250165 | SEALING RAIL | |
| FOR CRANK-OPERATED WINDOW, OUTSIDE, LEFT AND INSIDE, RIGHT | ||
| 122 | A 101807350265 | SEALING RAIL |
| FOR CRANK-OPERATED WINDOW, OUTSIDE, LEFT AND INSIDE, RIGHT | ||
| A 101807250265 | SEALING RAIL | |
| FOR CRANK-OPERATED WINDOW, OUTSIDE, RIGHT AND INSIDE, LEFT | ||
| 123 | A 101807350165 | SEALING RAIL |
| FOR CRANK-OPERATED WINDOW, OUTSIDE, RIGHT AND INSIDE, LEFT | ||
| 124 | A 0009883178 | CLIP WITH HOOK |
| FOR SEALING RAIL AT DRIVER'S DOOR | ||
| A 101207201351 | WINDOW MOULDING, LEFT | |
| A 101207201551 | WINDOW MOULDING, LEFT | |
| 125 | A 101207201451 | WINDOW MOULDING, RIGHT |
| A 101207201651 | WINDOW MOULDING, RIGHT | |
| A 101207201551 | WINDOW MOULDING, LEFT | |
| SPECIAL REQUEST ANTI-LOCK-OUT MECHANISM BOTH DRIVER'S DOORS WITH LOCK, INSIDE | ||
| A 101207201451 | WINDOW MOULDING, RIGHT | |
| SPECIAL REQUEST ANTI-LOCK-OUT MECHANISM BOTH DRIVER'S DOORS WITH LOCK, INSIDE | ||
| A 101217200151 | WINDOW MOULDING, LEFT | |
| EXPORT - SPECIAL REQUEST (TROPICAL DESIGN) | ||
| A 101217200251 | WINDOW MOULDING, RIGHT | |
| EXPORT - SPECIAL REQUEST (TROPICAL DESIGN) | ||
| A 101217200351 | WINDOW MOULDING, LEFT | |
| EXPORT - SPECIAL REQUEST (TROPICAL DESIGN) | ||
| A 101217200451 | WINDOW MOULDING, RIGHT | |
| EXPORT - SPECIAL REQUEST (TROPICAL DESIGN) | ||
| A 101207250008 | COVER - SEPARATING LINE | |
| FOR WINDOW MOULDING EXPORT - SPECIAL REQUEST (TROPICAL DESIGN) | ||
| LENS-HD.SHEET METAL SCREW | ||
| B 3,5X16 DIN 7981 VERCHROMT FOR WINDOW MOULDING EXPORT - SPECIAL REQUEST (TROPICAL DESIGN) | ||
| LENS-HD.SHEET METAL SCREW | ||
| B 3,5X13 DIN 7981 VERCHROMT FOR WINDOW MOULDING | ||
| 126 | A 0009872941 | RUBBER WASHER |
| FOR WINDOW MOULDING | ||
| A 101207250172 | SEAL BRUSH, LEFT | |
| FOR DRIVER'S DOOR LOCK SIDE | ||
| 127 | A 101207250272 | SEAL BRUSH, RIGHT |
| FOR DRIVER'S DOOR LOCK SIDE | ||
| 128 | A 121367270190 | ANTISQUEAK |
| BIT. CORK-FELT CARDBOARD | ||
| 129 | A 0009832292 | INTERMEDIATE LAYER |
| 10X25X60-MM LONG WAFFLE FELT STATE MEASURING WHEN ORDERING | ||
| 130 | A 101207200081 | ORNAMENTAL BAR |
| FOR DRIVER'S DOOR, BOTTOM | ||
| 131 | A 0009885978 | CLIP |
| FOR ORNAMENTAL BAR AT DRIVER'S DOOR, BOTTOM | ||
| A 101807200380 | ORNAMENTAL BAR, LEFT | |
| AT EDGE | ||
| 140 | A 101807200480 | ORNAMENTAL BAR, RIGHT |
| AT EDGE | ||
| 141 | A 0009885978 | CLIP |
| FOR ORNAMENTAL BAR AT EDGE, DRIVER'S DOOR | ||
| BUTTON-HD.SCREW | ||
| AM 4X8 DIN 7986-4 S FOR ORNAMENTAL BAR AT EDGE, DRIVER'S DOOR | ||
| SPRING WASHER | ||
| A 4 DIN 137 FOR ORNAMENTAL BAR AT EDGE, DRIVER'S DOOR | ||
| COUNTERSUNK SCREW | ||
| AM 8X18 DIN 7987-6 G FOR DRIVER'S DOOR SHELL AT FRONT WALL PILLAR, TOP AND BOTTOM | ||
| A 101807200704 | LOCK BOLT | |
| 142 | A 101807200804 | LOCK BOLT |
| 143 | A 101807230299 | ADJUSTING RING |
| 144 | A 101807230096 | RUBBER CORE |
| LENS-HD.COUNTERSUNK SCREW | ||
| AM 5X15 DIN 7988-4 S | ||
| TOOTHED WASHER | ||
| V 5,3 DIN 6798 | ||
| 145 | A 101807230076 | WASHER |
| FOR ADJUSTING RING AND RUBBER CORE IN LOCK BOLT AND FIXING PLATE | ||
| 146 | A 101207230205 | PLATE 0.50 MM THICK |
| FOR LOCK BOLT AND FIXING PLATE AT CENTER PILLAR OPTIONAL | ||
| A 101207230305 | PLATE 1.00 MM THICK | |
| FOR LOCK BOLT AND FIXING PLATE AT CENTER PILLAR OPTIONAL | ||
| A 101207230405 | PLATE 1.50 MM THICK | |
| FOR LOCK BOLT AND FIXING PLATE AT CENTER PILLAR OPTIONAL | ||
| COUNTERSUNK SCREW | ||
| AM 6X15 DIN 7987-8 G FOR LOCK BOLT AND FIXING PLATE AT CENTER PILLAR OPTIONAL | ||
| A 1207200178 | DOOR SEALING FRAME | |
| DOR DRIVER'S DOOR, LEFT | ||
| 147 | A 1207200278 | DOOR SEALING FRAME |
| FOR DRIVER'S DOOR, RIGHT | ||
| 148 | A 0009885178 | CLIP |
| FOR SEALING FRAME AT DRIVER'S DOOR | ||
| 149 | A 101207270593 | HOSE, FRONT, |
| LEFT AND RIGHT SEND SAMPLE WHEN ORDERING | ||
| SCREW NAIL | ||
| A 14X10 N 46 FOR HOSE AT FRONT WALL AND ROOF FRAME | ||
| A 101217200770 | DOOR LINING, LEFT | |
| STATE COLOUR OF INNER LINING AND CHASSIS NO. WHEN ORDERING | ||
| 160 | A 101217200870 | DOOR LINING, RIGHT |
| STATE COLOUR OF INNER LINING AND CHASSIS NO. WHEN ORDERING | ||
| A 101217200573 | REINFORCEMENT, LEFT | |
| NO LONGER DELIVERED AS SPARE PART, ONLY AS DOOR LINING, COMPLETE | ||
| A 101217200673 | REINFORCEMENT, RIGHT | |
| NO LONGER DELIVERED AS SPARE PART, ONLY AS DOOR LINING, COMPLETE | ||
| 162 | A 1369840160 | CLIP, LOWER PART |
| A 0009884478 | FIXING CLIP | |
| FOR COVER AT REINFORCEMENT NO LONGER DELIVERED AS SPARE PART | ||
| A 101217270382 | ORNAMENTAL BAR, | |
| INSIDE, TOP, LEFT AT DOOR LINING | ||
| 164 | A 101217270482 | ORNAMENTAL BAR, |
| INSIDE, TOP, RIGHT AT DOOR LINING | ||
| 165 | A 101217280375 | FIXING STRIP |
| FOR ORNAMENTAL BAR, INSIDE, TOP AT DOOR LINING, DRIVER'S DOOR | ||
| A 101217280475 | FIXING STRIP | |
| FOR ORNAMENTAL BAR, INSIDE, TOP AT DOOR LINING, DRIVER'S DOOR | ||
| 166 | A 0009942245 | FLAT CLIP |
| FOR ORNAMENTAL BAR, INSIDE, TOP AT DOOR LINING, DRIVER'S DOOR | ||
| A 101217270582 | ORNAMENTAL BAR, | |
| INSIDE, BOTTOM, LEFT AT DOOR LINING | ||
| 168 | A 101217270682 | ORNAMENTAL BAR, |
| INSIDE, BOTTOM, RIGHT AT DOOR LINING | ||
| 169 | A 101217280075 | FIXING RAIL |
| FOR ORNAMENTAL BAR, INSIDE, BOTTOM, AT DOOR LINING | ||
| A 0009942245 | FLAT CLIP | |
| FOR ORNAMENTAL BAR, INSIDE, BOTTOM, AT DOOR LINING | ||
| 170 | A 0009886178 | CLIP |
| FOR FIXING DOOR LINING | ||
| LENS-HD.COUNTERSUNK SHEET | ||
| METAL SCREW B 2,9X13 DIN 7983 VERCHROMT FOR DOOR LINING AT DRIVER'S DOOR | ||
| 171 | A 0009850562 | COUNTERSUNK SHEET |
| METAL SCREW FOR DOOR LINING AT DRIVER'S DOOR |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
