Transporto priemonė: 600; VIN numerio dalis: 100012

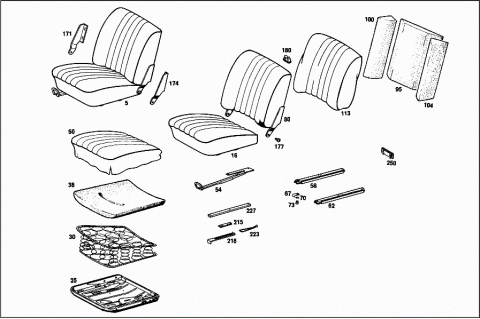

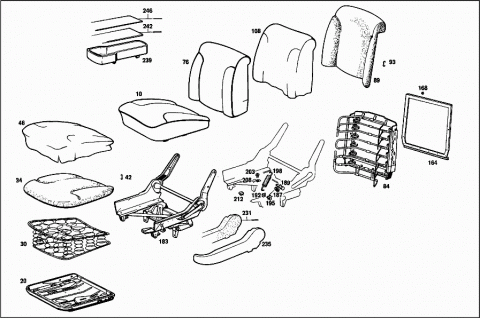

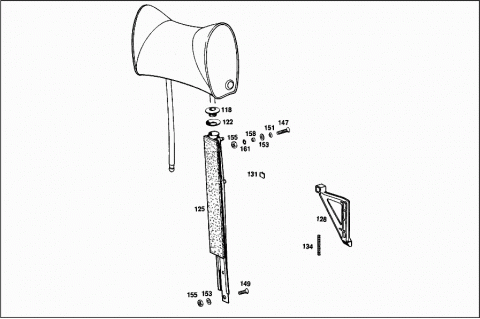

Grupė: 91 FRONT SEATS - 001 PASSENGER SEATS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1009100101 | FRONT SEAT |
| LEFT | ||
| A 1009100201 | FRONT SEAT | |
| RIGHT | ||
| A 1009100301 | FRONT SEAT | |
| LEFT | ||
| A 1009100401 | FRONT SEAT | |
| RIGHT | ||
| A 1009100501 | FRONT SEAT | |
| LEFT | ||
| A 1009100601 | FRONT SEAT | |
| RIGHT | ||
| A 1009100130 | SEAT CUSHION | |
| LEFT | ||
| 010 | A 1009100930 | SEAT CUSHION |
| LEFT | ||
| A 1009100230 | SEAT CUSHION | |
| RIGHT | ||
| A 1009101030 | SEAT CUSHION | |
| RIGHT | ||
| A 1009101330 | SEAT CUSHION | |
| Repalced by: A 1009102530 | ||
| A 1009101430 | SEAT CUSHION | |
| Repalced by: A 1009102530 | ||
| A 1009102530 | SEAT CUSHION | |
| WOOL-VELOURS | ||
| A 1009100530 | SEAT CUSHION | |
| Repalced by: A 1009102930 | ||
| A 1009100630 | SEAT CUSHION | |
| Repalced by: A 1009102930 | ||
| 016 | A 1009102930 | SEAT CUSHION |
| LEATHER | ||
| A 1009100622 | CUSHION FRAME | |
| Repalced by: A 1169100122 | ||
| A 1009101322 | CUSHION FRAME | |
| Repalced by: A 1169100122 | ||
| 020 | A 1169100122 | CUSHION FRAME |
| A 1009100822 | CUSHION FRAME | |
| Repalced by: A 1159104322 | ||
| A 1009101422 | CUSHION FRAME | |
| Repalced by: A 1159104322 | ||
| 025 | A 1159104322 | CUSHION FRAME |
| 030 | A 1009100340 | SPRING CORE |
| 030 | A 1009100340 | SPRING CORE |
| A 1129140414 | PAD | |
| 034 | A 1129141514 | PAD |
| A 1129140514 | PAD | |
| LATERAL LEFT | ||
| A 1129140614 | PAD | |
| LATERAL RIGHT | ||
| A 1129140714 | PAD | |
| CENTRAL | ||
| A 1129140814 | PAD | |
| FRONT; TRANSVERSE | ||
| A 1009140214 | PAD | |
| Repalced by: A 1009140314 | ||
| 038 | A 1009140314 | PAD |
| 042 | A 0009842061 | CLIP |
| A 1129103346 | COVER | |
| DRALON-VELOURS | ||
| 046 | A 1129100492 | COVER |
| DRALON-VELOURS | ||
| A 1009101546 | COVER | |
| WOOL-VELOURS | ||
| A 1009100246 | COVER | |
| Repalced by: A 1009102046 | ||
| 050 | A 1009102046 | COVER |
| LEATHER | ||
| A 1009102546 | COVER | |
| LEATHER | ||
| 054 | A 1109108105 | ADJUSTER |
| LEFT | ||
| A 1109108205 | ADJUSTER | |
| RIGHT | ||
| 058 | A 1089100405 | ADJUSTER |
| Repalced by: A 1159100805 | ||
| 058 | A 1159100805 | SEAT GUIDE |
| INSIDE | ||
| A 1089104005 | ADJUSTER | |
| Repalced by: A 1159100705 | ||
| 062 | A 1159100705 | SEAT GUIDE |
| OUTSIDE | ||
| N 000965006077 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| A 0009901521 | SCREW | |
| Repalced by: N 914028006100 | ||
| A 1239900822 | SCREW | |
| 067 | A 1109190312 | ANGLE |
| 070 | N 000966006035 | SCREW |
| 073 | N 000125007408 | WASHER |
| A 1009100132 | BACKREST | |
| LEFT, DRALON-VELOURS | ||
| 076 | A 1009100932 | BACKREST |
| LEFT, DRALON-VELOURS | ||
| A 1009101732 | BACKREST | |
| LEFT, WOOL-VELOURS | ||
| A 1009100232 | BACKREST | |
| RIGHT; DRALON-VELOURS | ||
| A 1009101032 | BACKREST | |
| RIGHT; DRALON-VELOURS | ||
| A 1009101832 | BACKREST | |
| RIGHT; WOOL-VELOURS | ||
| 080 | A 1009101532 | BACKREST |
| LEFT; LEATHER | ||
| A 1009102532 | BACKREST | |
| LEFT; LEATHER | ||
| A 1009103732 | BACKREST | |
| LEFT; LEATHER | ||
| A 1009101632 | BACKREST | |
| RIGHT;LEATHER | ||
| A 1009102632 | BACKREST | |
| RIGHT;LEATHER | ||
| A 1009103832 | BACKREST | |
| RIGHT;LEATHER | ||
| 084 | A 1009100334 | BACKREST FRAME |
| LEFT | ||
| A 1009100434 | BACKREST FRAME | |
| RIGHT | ||
| A 1129140416 | PAD | |
| A 1129140716 | PAD | |
| CENTRAL | ||
| A 1129141116 | PAD | |
| LATERAL INSIDE LEFT | ||
| A 1129141216 | PAD | |
| LATERAL INSIDE RIGHT | ||
| A 1129140516 | PAD | |
| LATERAL OUTSIDE LEFT | ||
| A 1129140616 | PAD | |
| LATERAL OUTSIDE RIGHT | ||
| 089 | A 1009140916 | PAD |
| LEFT | ||
| A 1009141016 | PAD | |
| RIGHT | ||
| 093 | A 0009842061 | CLIP |
| 095 | A 1009140716 | PAD |
| Repalced by: A 1009141916 | ||
| 095 | A 1009141916 | PAD |
| CENTRAL LEFT | ||
| A 1009141916 | PAD | |
| CENTRAL LEFT | ||
| A 1009140816 | PAD | |
| Repalced by: A 1009142016 | ||
| A 1009142016 | PAD | |
| CENTRAL RIGHT | ||
| A 1009142016 | PAD | |
| CENTRAL RIGHT | ||
| 100 | A 1009140316 | PAD |
| Repalced by: A 1009141816 | ||
| 100 | A 1009141816 | PAD |
| LATERAL INSIDE LEFT | ||
| A 1009141716 | PAD | |
| LATERAL INSIDE LEFT | ||
| A 1009140416 | PAD | |
| Repalced by: A 1009141716 | ||
| A 1009141716 | PAD | |
| LATERAL INSIDE RIGHT | ||
| A 1009141816 | PAD | |
| LATERAL INSIDE RIGHT | ||
| 104 | A 1009140516 | PAD |
| Repalced by: A 1009142116 | ||
| 104 | A 1009142116 | PAD |
| LATERAL OUTSIDE LEFT | ||
| A 1009142116 | PAD | |
| LATERAL OUTSIDE LEFT | ||
| A 1009140616 | PAD | |
| Repalced by: A 1009142216 | ||
| A 1009142216 | PAD | |
| LATERAL OUTSIDE RIGHT | ||
| A 1009142216 | PAD | |
| LATERAL OUTSIDE RIGHT | ||
| A 1129103947 | COVER | |
| LEFT, DRALON-VELOURS | ||
| 108 | A 1129101393 | COVER |
| LEFT, DRALON-VELOURS | ||
| A 1009102547 | COVER | |
| LEFT, WOOL-VELOURS | ||
| A 1129104047 | COVER | |
| RIGHT; DRALON-VELOURS | ||
| A 1129101493 | COVER | |
| RIGHT; DRALON-VELOURS | ||
| A 1009102647 | COVER | |
| RIGHT; WOOL-VELOURS | ||
| 113 | A 1009101747 | COVER |
| LEFT; LEATHER | ||
| A 1009104347 | COVER | |
| LEFT; LEATHER | ||
| A 1009106947 | COVER | |
| LEFT; LEATHER | ||
| A 1009101847 | COVER | |
| RIGHT;LEATHER | ||
| A 1009104447 | COVER | |
| RIGHT;LEATHER | ||
| A 1009107047 | COVER | |
| RIGHT;LEATHER | ||
| A 1159880282 | EYE | |
| Repalced by: A 1169880082 | ||
| 118 | A 1169880082 | EYE |
| Repalced by: A 1269880082 | ||
| 118 | A 1269880082 | EYE |
| 122 | A 1159880382 | EYE |
| Repalced by: A 1269901240 | ||
| 122 | A 1269901240 | WASHER |
| 125 | A 1079700115 | RAIL |
| LEFT | ||
| A 1009700715 | RAIL | |
| LEFT | ||
| A 1079700215 | RAIL | |
| RIGHT | ||
| A 1009700815 | RAIL | |
| RIGHT | ||
| 128 | A 1009750085 | CONTROL MECHANISM |
| 131 | A 1159880478 | CLIP |
| 134 | A 1159750337 | SPRING |
| N 007987004130 | SCREW | |
| N 000934004006 | NUT | |
| N 006797004333 | TOOTHED WASHER | |
| 147 | N 000966006041 | SCREW |
| 149 | N 000966006044 | SCREW |
| 151 | A 0009900242 | WASHER |
| 153 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 153 | N 009021006208 | WASHER |
| 155 | N 000934006007 | NUT |
| 158 | A 1159911440 | SPACER TUBE |
| 161 | N 006797006145 | TOOTHED WASHER |
| 164 | A 1009100139 | PANELLING |
| LEFT, DRALON-VELOURS | ||
| A 1009101139 | PANELLING | |
| LEFT, WOOL-VELOURS | ||
| A 1009100239 | PANELLING | |
| RIGHT; DRALON-VELOURS | ||
| A 1009101239 | PANELLING | |
| RIGHT; WOOL-VELOURS | ||
| N 007983003221 | SHEET METAL SCREW | |
| 3.9 X 19 MM | ||
| 168 | A 0009850662 | WASHER |
| N 007981004208 | SHEET METAL SCREW | |
| 4.2 X 22 MM | ||
| 171 | A 1009130326 | BACKREST BRACKET |
| INSIDE LEFT | ||
| A 1009130426 | BACKREST BRACKET | |
| INSIDE RIGHT | ||
| 174 | A 1009130325 | BACKREST BRACKET |
| OUTSIDE LEFT | ||
| A 1009130425 | BACKREST BRACKET | |
| OUTSIDE RIGHT | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 000933006127 | SCREW | |
| 177 | A 1009840631 | SCREW |
| A 1869902640 | WASHER | |
| 180 | A 1009970681 | GROMMET |
| N 000084008138 | SCREW | |
| FRONT SEAT TO FRONT CONSOLE | ||
| N 000127008203 | LOCK WASHER | |
| FRONT SEAT TO FRONT CONSOLE | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| FRONT SEAT TO FRONT CONSOLE | ||
| N 007985006128 | SCREW | |
| FRONT SEAT TO REAR CONSOLE | ||
| N 912004006102 | LOCK WASHER | |
| FRONT SEAT TO REAR CONSOLE | ||
| H 101809190096 | BUFFER | |
| Repalced by: A 1809190096 | ||
| A 1809190096 | BUFFER | |
| PARTITION PANEL,FRONT SEAT STOP | ||
| 183 | A 1009100136 | SEAT ADJUSTER |
| LEFT | ||
| A 1009100236 | SEAT ADJUSTER | |
| RIGHT | ||
| 187 | A 1009190022 | SUPPORTING RING |
| 189 | A 1009910407 | PIN |
| HYDRAULIC ELEMENT TO BEARING TUBE | ||
| A 0009940360 | LOCK | |
| Repalced by: N 912002010000 | ||
| 192 | N 912002010001 | LOCK |
| HYDRAULIC ELEMENT TO BEARING TUBE | ||
| N 900055010002 | SPRING WASHER | |
| Repalced by: N 000137010205 | ||
| N 000137010205 | SPRING WASHER | |
| HYDRAULIC ELEMENT TO BEARING TUBE | ||
| 195 | A 1009910507 | PIN |
| HYDRAULIC ELEMENT TO MOUNTING | ||
| A 0009940360 | LOCK | |
| Repalced by: N 912002010000 | ||
| N 912002010001 | LOCK | |
| HYDRAULIC ELEMENT TO MOUNTING | ||
| N 900055010002 | SPRING WASHER | |
| Repalced by: N 000137010205 | ||
| N 000137010205 | SPRING WASHER | |
| HYDRAULIC ELEMENT TO MOUNTING | ||
| N 912004006102 | LOCK WASHER | |
| HYDRAULIC ELEMENT TO UPPER AND LOWER PARTS | ||
| N 000127008203 | LOCK WASHER | |
| HYDRAULIC ELEMENT TO UPPER AND LOWER PARTS | ||
| N 000934006007 | NUT | |
| HYDRAULIC ELEMENT TO UPPER AND LOWER PARTS | ||
| N 000439008211 | NUT | |
| Repalced by: N 304035008001 | ||
| N 304035008001 | NUT | |
| HYDRAULIC ELEMENT TO UPPER AND LOWER PARTS | ||
| N 001587006002 | CAP NUT | |
| HYDRAULIC ELEMENT TO UPPER AND LOWER PARTS | ||
| A 0009830887 | CARPET | |
| VELOURS,FRONT SEAT ADJUSTMENT;120X520 MM | ||
| 198 | A 1009190137 | SPRING |
| N 000088006107 | SCREW | |
| BACKREST TO SEAT ADJUSTMENT BRACKET | ||
| N 007985004149 | SCREW | |
| Repalced by: N 000000001933 | ||
| N 000000001933 | SCREW | |
| COMBINATION SWITCH TO SEAT ADJUSTMENT | ||
| N 007985004132 | SCREW | |
| COMBINATION SWITCH TO SEAT ADJUSTMENT | ||
| N 000934004006 | NUT | |
| COMBINATION SWITCH TO SEAT ADJUSTMENT | ||
| N 006797004132 | TOOTHED WASHER | |
| COMBINATION SWITCH TO SEAT ADJUSTMENT | ||
| A 0009901521 | SCREW | |
| Repalced by: N 914028006100 | ||
| 203 | N 914116006400 | SCREW |
| N 007985006154 | SCREW | |
| N 006797006145 | TOOTHED WASHER | |
| 208 | A 1129950120 | CLAMP |
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| N 006797008120 | TOOTHED WASHER | |
| 212 | A 0009881678 | CLIP |
| 215 | A 1009190134 | RAIL |
| 218 | A 1009190034 | RAIL |
| 223 | A 1009100064 | PULL |
| 227 | A 1009100297 | UNDERLAYER |
| A 0009830898 | FOAM PLASTICS | |
| Repalced by: A 0009831298 | ||
| 231 | A 0009831298 | FOAM PLASTICS |
| 231 | A 0009831298 | FOAM PLASTICS |
| A 0009830284 | LEATHER | |
| A 0009830284 | LEATHER | |
| A 0009830284 | LEATHER | |
| 235 | A 0009832084 | LEATHER |
| 235 | A 0009832084 | LEATHER |
| 235 | A 0009832084 | LEATHER |
| A 0009830887 | CARPET | |
| VELOURS CARPET,110X352MM; OUTSIDE BOTTOM SKIRTING | ||
| 239 | A 1008400074 | SHELL |
| A 1008400174 | SHELL | |
| N 007983004229 | SHEET METAL SCREW | |
| Repalced by: N 007983004228 | ||
| N 007983004228 | SHEET METAL SCREW | |
| A 0009830898 | FOAM PLASTICS | |
| Repalced by: A 0009831298 | ||
| 242 | A 0009831298 | FOAM PLASTICS |
| A 0009830284 | LEATHER | |
| 246 | A 0009832084 | LEATHER |
| A 0009880564 | LATCH | |
| Repalced by: A 0009880664 | ||
| A 0009880664 | LATCH | |
| PIGEONHOLE AND BAR COMPARTMENT | ||
| 250 | A 1008400836 | COVER |
| REMOTE CONTROL APERTURE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
