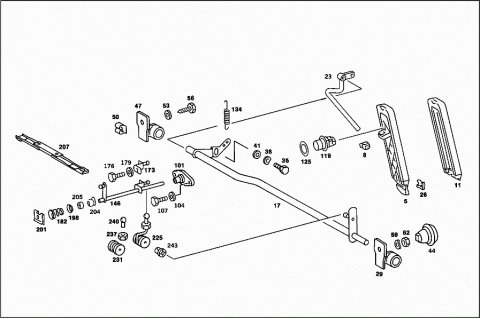

Transporto priemonė: 560 SL,AUSTRALIA; VIN numerio dalis: 107048
Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1233000204 | ACCELERATOR PEDAL |
| 008 | A 1233010022 | JOINT |
| 011 | A 1233010082 | PAD |
| 017 | A 1073000820 | SHAFT |
| 023 | A 1073010301 | LEVER |
| (CONTROL SHAFT) | ||
| 026 | A 1073010040 | BRACKET |
| Repalced by: A 1249888678 | ||
| 026 | A 1249888678 | CLIP |
| ACCELERATOR PEDAL TO BRACKET | ||
| 029 | A 1153010818 | BEARING |
| CONTROL SHAFT | ||
| 035 | N 000933008131 | SCREW |
| CONTROL SHAFT | ||
| 038 | N 000137008204 | SPRING WASHER |
| CONTROL SHAFT | ||
| 041 | N 000125008418 | WASHER |
| CONTROL SHAFT | ||
| 044 | A 1079972581 | GROMMET |
| CONTROL SHAFT | ||
| 047 | A 1153010818 | BEARING |
| 050 | A 0029886778 | CLIP |
| BEARING TO FIRE WALL | ||
| 053 | N 000125006421 | WASHER |
| BEARING TO FIRE WALL | ||
| 056 | N 007976005207 | SHEET METAL SCREW |
| Repalced by: N 914031005208 | ||
| 056 | N 914031005208 | COMBINATION BOLT |
| BEARING TO FIRE WALL | ||
| 059 | N 000137005203 | SPRING WASHER |
| BEARING TO FIRE WALL | ||
| 062 | N 000934005008 | NUT |
| BEARING TO FIRE WALL | ||
| 101 | A 1073000040 | BRACKET |
| 104 | N 000125005317 | WASHER |
| BEARING BRACKET TO FIRE WALL | ||
| 107 | N 007976004211 | SHEET METAL SCREW |
| BEARING BRACKET TO FIRE WALL | ||
| 119 | A 0025452214 | SWITCH |
| (KICK-DOWN SWITCH) | ||
| 125 | A 1159970640 | SEAL RING |
| 134 | A 1169930610 | SPRING |
| 146 | A 1073003620 | SHAFT |
| 173 | A 1073000025 | LEVER |
| 176 | N 000933006103 | SCREW |
| 179 | N 000125006421 | WASHER |
| 182 | A 1079931201 | SPRING |
| CONTROL SHAFT TO FIRE WALL | ||
| 198 | A 1093010051 | SPACER RING |
| CONTROL SHAFT TO FIRE WALL | ||
| 201 | N 912007008000 | CLIP |
| CONTROL SHAFT TO ENGINE | ||
| 204 | A 1263000085 | JOINT BALL |
| Repalced by: A 1263010485 | ||
| 204 | A 1263010485 | RUBBER BUFFER |
| CONTROL SHAFT TO ENGINE | ||
| 205 | A 1163010150 | BUSHING |
| CONTROL SHAFT TO ENGINE | ||
| 207 | A 0003000415 | ROD |
| CONTROL SHAFT TO ENGINE | ||
| 225 | A 1073001015 | ROD |
| PUSH ROD TO CONTROL SHAFT | ||
| 231 | A 1073010097 | DAMPING RING |
| 237 | N 000934005004 | NUT |
| 237 | N 000934005008 | NUT |
| 240 | A 0009911622 | BALL SOCKET |
| Repalced by: A 0009918922 | ||
| 240 | A 0009918922 | BALL SOCKET |
| 243 | A 1150720450 | BUSHING |
| CONTROL LEVER TO PIVOT PIN | ||
