Transporto priemonė: 450 SE; VIN numerio dalis: 116032

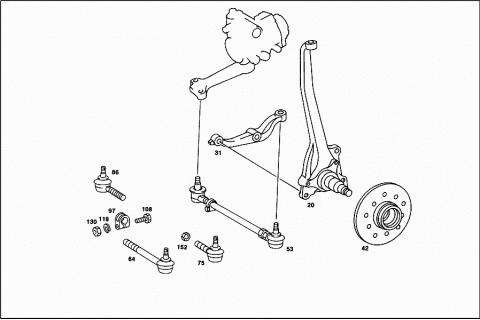

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| Q 000000000001 | . | |
| THIS DESIGN GROUP COMPRISES SAFETY PARTS ONLY | ||
| Q 000000000001 | . | |
| FRONT AXLE | ||
| 020 | A 1163302020 | STEERING KNUCKLE |
| Repalced by: A 1163304620 | ||
| 020 | A 1163304620 | STEERING KNUCKLE |
| Repalced by: A 1163304220 | ||
| 020 | A 1163304220 | STEERING KNUCKLE |
| Repalced by: A 1263301220 | ||
| 020 | A 1263301220 | STEERING KNUCKLE |
| LEFT | ||
| 020 | A 1163302120 | STEERING KNUCKLE |
| Repalced by: A 1163304720 | ||
| 020 | A 1163304720 | STEERING KNUCKLE |
| Repalced by: A 1163304320 | ||
| 020 | A 1163304320 | STEERING KNUCKLE |
| Repalced by: A 1263301320 | ||
| 020 | A 1263301320 | STEERING KNUCKLE |
| RIGHT | ||
| 031 | A 1163321820 | STEERING ARM |
| LEFT | ||
| 031 | A 1163321920 | STEERING ARM |
| RIGHT | ||
| 042 | A 1163342301 | WHEEL HUB |
| Q 000000000001 | . | |
| TIE ROD | ||
| 053 | A 1233300703 | TIE ROD |
| Repalced by: A 1233301503 | ||
| 053 | A 1233301503 | TIE ROD |
| Repalced by: A 1233301803 | ||
| 053 | A 1233301803 | TIE ROD |
| 064 | A 1233380110 | BALL JOINT |
| R.H. THREAD | ||
| TO 123 330 07 03 | ||
| 075 | A 0003384710 | BALL JOINT |
| Repalced by: A 0003385110 | ||
| 075 | A 0003385110 | BALL JOINT |
| R.H. THREAD | ||
| TO 123 330 18 03 | ||
| 075 | A 0003384810 | BALL JOINT |
| Repalced by: A 0003385410 | ||
| 075 | A 0003385410 | BALL JOINT |
| R.H. THREAD | ||
| TO 123 330 18 03 | ||
| 086 | A 1233380210 | BALL JOINT |
| L.H. THREAD | ||
| TO 123 330 07 03 | ||
| 086 | A 0003382010 | BALL JOINT |
| Repalced by: A 0003385010 | ||
| 086 | A 0003385010 | BALL JOINT |
| L.H. THREAD | ||
| TO 123 330 18 03 | ||
| 086 | A 0003385310 | BALL JOINT |
| L.H. THREAD | ||
| TO 123 330 18 03 | ||
| 097 | A 0009951444 | CLAMP |
| JOINT TO TIE ROD | ||
| TO 123 330 07 03 | ||
| 097 | A 0009951444 | CLAMP |
| JOINT TO TIE ROD | ||
| TO 123 330 15 03 , 18 03 | ||
| 108 | N 000933008118 | SCREW |
| CLAMP TO TIE ROD | ||
| TO 123 330 07 03 | ||
| 108 | N 000931008221 | SCREW |
| CLAMP TO TIE ROD | ||
| TO 123 330 15 03 , 18 03 | ||
| 119 | N 912004008102 | LOCK WASHER |
| CLAMP TO TIE ROD | ||
| TO 123 330 07 03 | ||
| 130 | N 000934008013 | NUT |
| CLAMP TO TIE ROD | ||
| TO 123 330 07 03 | ||
| 130 | N 913004008004 | NUT |
| CLAMP TO TIE ROD | ||
| TO 123 330 15 03 , 18 03 | ||
| 141 | A 0003382563 | CLAMPING RING |
| Repalced by: A 0003380044 | ||
| 141 | A 0003380044 | VALVE COLLET |
| JOINT TO TIE ROD | ||
| TO 123 330 15 03 , 18 03 | ||
| 152 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 152 | N 308675014000 | NUT |
| JOINT TO TIE ROD | ||
| TO 123 330 15 03 , 18 03 | ||
