Transporto priemonė: 450 SEL 6,9; VIN numerio dalis: 116036

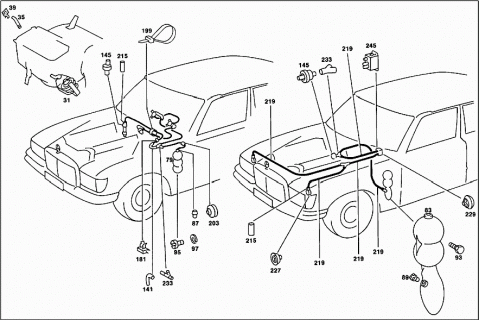

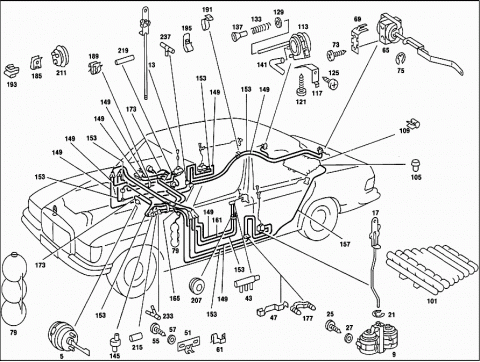

Grupė: 80 HYDRAULIC SYSTEM - 001 VACUUM SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1168001775 | ELEMENT | |
| Repalced by: A 1168001875 | ||
| 005 | A 1168001875 | ELEMENT |
| A 1168000175 | ELEMENT | |
| Repalced by: A 0008000675 | ||
| 009 | A 0008000675 | ELEMENT |
| 013 | A 1168000080 | CONTROL ROD |
| 017 | A 1168000180 | CONTROL ROD |
| 021 | N 006799003202 | LOCK PLATE |
| 025 | N 007981004258 | SHEET METAL SCREW |
| 027 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 027 | N 000433005304 | WASHER |
| 031 | A 0008001175 | ELEMENT |
| 035 | A 1078050374 | ROD |
| N 006799003202 | LOCK PLATE | |
| N 007976005203 | SHEET METAL SCREW | |
| N 000137006204 | SPRING WASHER | |
| 039 | A 0009941960 | LOCK |
| Repalced by: N 918002004000 | ||
| 039 | N 918002004000 | CLAMPING SPRING |
| A 0009942060 | LOCK | |
| Repalced by: N 918002004001 | ||
| N 918002004001 | CLAMPING SPRING | |
| A 1128000173 | SWITCH | |
| Repalced by: A 1168000473 | ||
| A 1168000273 | SWITCH | |
| Repalced by: A 1168000473 | ||
| 043 | A 1168000473 | SWITCH |
| A 0039891585 | ADHESIVE TAPE | |
| 047 | A 1168050232 | CLAMP |
| 051 | A 1168050114 | BRACKET |
| 055 | N 007981004244 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 055 | N 000000000453 | SHEET METAL SCREW |
| 055 | N 007981004208 | SHEET METAL SCREW |
| 057 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 057 | N 000125004319 | WASHER |
| 061 | A 1159940160 | LOCK |
| 065 | A 1168000275 | ELEMENT |
| 069 | A 1158050036 | SPRING |
| 073 | N 007981004322 | SHEET METAL SCREW |
| Repalced by: N 007981004233 | ||
| 073 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 073 | N 000000000460 | SHEET METAL SCREW |
| 075 | N 006799004001 | LOCK PLATE |
| A 1158000219 | TANK | |
| Repalced by: A 1078000819 | ||
| A 1078000019 | TANK | |
| Repalced by: A 1078000819 | ||
| A 1078000519 | TANK | |
| Repalced by: A 1078000819 | ||
| A 1078000619 | TANK | |
| Repalced by: A 1078000819 | ||
| 079 | A 1078000819 | TANK |
| 079 | A 1078000819 | TANK |
| 079 | A 1078000819 | TANK |
| 083 | A 1238001119 | TANK |
| LIGHT RANGE REGULATOR SUPPLY TANK | ||
| 087 | A 1098050098 | SEAL |
| Repalced by: A 1238050298 | ||
| 087 | A 1238050298 | SEAL |
| 089 | A 1078050198 | SEAL |
| 089 | A 1078050198 | SEAL |
| LIGHT RANGE REGULATOR SUPPLY TANK | ||
| 093 | N 007976004205 | SHEET METAL SCREW |
| 095 | N 007976004205 | SHEET METAL SCREW |
| 097 | N 000137005203 | SPRING WASHER |
| A 1168000019 | TANK | |
| Repalced by: A 1168000219 | ||
| 101 | A 1168000219 | TANK |
| 105 | A 1098050098 | SEAL |
| Repalced by: A 1238050298 | ||
| 105 | A 1238050298 | SEAL |
| 109 | A 0029885378 | CLIP |
| 113 | A 1078001275 | ELEMENT |
| 117 | A 1168050014 | BRACKET |
| 121 | N 007981004322 | SHEET METAL SCREW |
| Repalced by: N 007981004233 | ||
| 121 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 121 | N 000000000460 | SHEET METAL SCREW |
| 125 | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 125 | N 000000002062 | SCREW |
| 129 | N 000125004311 | WASHER |
| Repalced by: N 000125004319 | ||
| 129 | N 000125004319 | WASHER |
| 133 | A 1128050036 | SPRING |
| 137 | A 1078050017 | BUSHING |
| A 1078330197 | HOSE | |
| Repalced by: A 1170780581 | ||
| 141 | A 1170780581 | HOSE |
| LINE FROM VACUUM ELEMENT TO FILLER NECK FLAP | ||
| 141 | A 1170780581 | HOSE |
| LINE FROM INTAKE MANIFOLD TO LINE FOR HEATING IN ENGINE COMPARTMENT,LEFT | ||
| A 1158000078 | VALVE | |
| Repalced by: A 1168000378 | ||
| A 1078000778 | VALVE | |
| Repalced by: A 1168000378 | ||
| 145 | A 1168000378 | VALVE |
| LIGHT RANGE ADJUSTER | ||
| A 1238000078 | VALVE | |
| BELOW INSTRUMENT PANEL | ||
| 149 | A 0059973482 | HOSE |
| BLACK | ||
| 149 | A 0059973482 | HOSE |
| BLACK | ||
| 149 | A 0059973482 | HOSE |
| BLACK | ||
| 149 | A 0059973482 | HOSE |
| BLACK | ||
| 149 | A 0059973482 | HOSE |
| BLACK | ||
| 1450 MM | ||
| 149 | A 0059973482 | HOSE |
| BLACK | ||
| 149 | A 0059973482 | HOSE |
| BLACK | ||
| A 0009977152 | HOSE | |
| YELLOW-GREEN | ||
| A 0009977152 | HOSE | |
| YELLOW-GREEN | ||
| A 0009977152 | HOSE | |
| YELLOW-GREEN | ||
| A 0009977152 | HOSE | |
| YELLOW-GREEN | ||
| A 0009977152 | HOSE | |
| YELLOW-GREEN | ||
| 1600 MM | ||
| A 0009977152 | HOSE | |
| YELLOW-GREEN | ||
| A 0009977152 | HOSE | |
| YELLOW-GREEN | ||
| 153 | A 0059975982 | HOSE |
| WHITE | ||
| 153 | A 0059975982 | HOSE |
| WHITE | ||
| 153 | A 0059975982 | HOSE |
| WHITE | ||
| 153 | A 0059975982 | HOSE |
| WHITE | ||
| 153 | A 0059975982 | HOSE |
| WHITE | ||
| 1450 MM | ||
| 153 | A 0059975982 | HOSE |
| WHITE | ||
| 153 | A 0059975982 | HOSE |
| WHITE | ||
| 2150 MM | ||
| 153 | A 0059975982 | HOSE |
| WHITE | ||
| 153 | A 0059975982 | HOSE |
| WHITE | ||
| 153 | A 0059975982 | HOSE |
| WHITE | ||
| 153 | A 0059975982 | HOSE |
| WHITE | ||
| A 0009977052 | HOSE | |
| YELLOW/RED | ||
| A 0009977052 | HOSE | |
| YELLOW/RED | ||
| A 0009977052 | HOSE | |
| YELLOW/RED | ||
| A 0009977052 | HOSE | |
| YELLOW/RED | ||
| A 0009977052 | HOSE | |
| YELLOW/RED | ||
| 1600 MM | ||
| A 0009977052 | HOSE | |
| YELLOW/RED | ||
| A 0009977052 | HOSE | |
| YELLOW/RED | ||
| 2150 MM | ||
| A 0009977052 | HOSE | |
| YELLOW/RED | ||
| A 0009977052 | HOSE | |
| YELLOW/RED | ||
| A 0009976852 | HOSE | |
| GREY | ||
| A 0009976852 | HOSE | |
| GREY | ||
| 157 | A 0059977182 | HOSE |
| Repalced by: A 0001581435 | ||
| 157 | A 0001581435 | PIPE LINE |
| YELLOW | ||
| 157 | A 0001581435 | PIPE LINE |
| YELLOW | ||
| 157 | A 0001581435 | PIPE LINE |
| YELLOW | ||
| 157 | A 0001581435 | PIPE LINE |
| YELLOW | ||
| 161 | A 0119976382 | HOSE |
| Repalced by: A 0059977182 | ||
| A 0009977252 | HOSE | |
| Repalced by: A 0019973952 | ||
| A 0019973952 | HOSE | |
| GREY/YELLOW | ||
| A 0119973982 | HOSE | |
| Repalced by: A 0009970752 | ||
| 165 | A 0009970752 | HOSE |
| Repalced by: A 0009976552 | ||
| 165 | A 0009976552 | HOSE |
| MEDIUM GREEN/YELLOW | ||
| 165 | A 0009976552 | HOSE |
| MEDIUM GREEN/YELLOW | ||
| A 0009976652 | HOSE | |
| GREY/LIGHT BLUE | ||
| A 0119974082 | HOSE | |
| MEDIUM GREEN-RED, 1100 MM | ||
| A 0009977452 | HOSE | |
| DARK RED/GREEN | ||
| 1200 MM | ||
| A 0009976552 | HOSE | |
| MEDIUM GREEN/LIGHT BLUE | ||
| A 0009976452 | HOSE | |
| MEDIUM GREEN/ORANGE | ||
| 173 | A 0089979782 | HOSE |
| Repalced by: A 0009977352 | ||
| 173 | A 0009977352 | HOSE |
| RED | ||
| 173 | A 0009977352 | HOSE |
| RED | ||
| A 0009977352 | HOSE | |
| DARK RED | ||
| A 0009977352 | HOSE | |
| DARK RED | ||
| 177 | A 0039884578 | CLIP |
| 181 | A 0029884978 | CLIP |
| 181 | A 0029884978 | CLIP |
| 185 | A 1169940445 | LOCK |
| 189 | A 1169881278 | CLIP |
| Repalced by: A 1269882078 | ||
| 189 | A 1269882078 | CLIP |
| 191 | A 1149880278 | CLIP |
| 193 | A 1089880878 | CLIP |
| Repalced by: A 1149880178 | ||
| 193 | A 1149880178 | CLIP |
| 195 | A 1169881978 | CLIP |
| A 0029970790 | LOOM TIE | |
| Repalced by: A 0019974190 | ||
| A 0019974190 | LOOM TIE | |
| 199 | A 1149970190 | LOOM TIE |
| 203 | A 1869970681 | GROMMET |
| 203 | A 1869970681 | GROMMET |
| 203 | A 1869970681 | GROMMET |
| 207 | A 1169970181 | GROMMET |
| 211 | A 1169973281 | GROMMET |
| A 1009950001 | CLAMP | |
| Repalced by: A 1169950001 | ||
| A 1169950001 | CLAMP | |
| A 1109950065 | CLAMP | |
| Repalced by: A 0004760436 | ||
| A 0004760436 | BRACKET | |
| A 0009951765 | CLAMP | |
| N 007976005202 | SHEET METAL SCREW | |
| 215 | A 0079976182 | HOSE |
| BETWEEN Y-SHAPE DISTRIBUTOR & CHECK VALVE IN ENGINE COMPARTMENT,LEFT | ||
| 30 MM | ||
| 215 | A 0079976182 | HOSE |
| Y-SHAPE DISTRIBUTOR ON FRONT PANEL PILLAR,LEFT AND RIGHT | ||
| 30 MM | ||
| 215 | A 0079976182 | HOSE |
| FROM T-SHAPE DISTRIBUTOR TO ELEMENT AT RIGHT REAR DOOR | ||
| 30 MM | ||
| 215 | A 0079976182 | HOSE |
| T-SHAPE DISTRIBUTOR AT RIGHT REAR WHEELHOUSE | ||
| 30 MM | ||
| 215 | A 0079976182 | HOSE |
| FRONT DOOR VACUUM SWITCH | ||
| 30 MM | ||
| 215 | A 0079976182 | HOSE |
| 30 MM | ||
| 215 | A 0079976182 | HOSE |
| Y-SHAPE DISTRIBUTOR IN ENGINE COMPARTMENT, LEFT | ||
| 30 MM | ||
| 215 | A 0079976182 | HOSE |
| Y-SHAPE DISTRIBUTOR, VACUUM SWITCH CONNECTION | ||
| 30 MM | ||
| 215 | A 0079976182 | HOSE |
| 30 MM | ||
| 215 | A 0079976182 | HOSE |
| FROM POTENTIOMETER TO DISTRIBUTOR AT CHECK VALVE | ||
| 30 MM | ||
| 215 | A 0079976182 | HOSE |
| BETWEEN Y-SHAPE DISTRIBUTOR AND LEFT LIGHTING UNIT LINE | ||
| 30 MM | ||
| 215 | A 0079976182 | HOSE |
| BETWEEN Y-SHAPE DISTRIBUTOR AND RIGHT LIGHTING UNIT LINE | ||
| 30 MM | ||
| 215 | A 0079976182 | HOSE |
| FROM POTENTIOMETER TO LIGHTING UNIT Y-SHAPE DISTRIBUTOR | ||
| 30 MM | ||
| 219 | A 0079976182 | HOSE |
| VACUUM ELEMENT AT FILLER NECK FLAP | ||
| 50 MM | ||
| 219 | A 0079976182 | HOSE |
| FRONT DOOR VACUUM ELEMENT | ||
| 50 MM | ||
| 219 | A 0079976182 | HOSE |
| OPERATING UNIT VACUUM SWITCH | ||
| 50 MM | ||
| 219 | A 0079976182 | HOSE |
| 50 MM | ||
| A 0079976182 | HOSE | |
| REAR DOOR VACUUM ELEMENT | ||
| 90 MM | ||
| A 0079976182 | HOSE | |
| REAR LID VACUUM ELEMENT | ||
| 90 MM | ||
| A 0079976182 | HOSE | |
| 150 MM | ||
| A 0079976182 | HOSE | |
| OPERATING UNIT VACUUM SWITCH | ||
| 150 MM | ||
| A 0079976182 | HOSE | |
| ENGINE CONNECTION | ||
| 150 MM | ||
| A 0019978552 | HOSE | |
| VIOLET | ||
| A 0019978652 | HOSE | |
| VIOLET/GREY | ||
| 900 MM | ||
| A 0019978752 | HOSE | |
| VIOLET-YELLOW | ||
| A 0019978752 | HOSE | |
| VIOLET-YELLOW | ||
| A 0019978752 | HOSE | |
| VIOLET-YELLOW | ||
| 227 | A 1159971881 | GROMMET |
| Repalced by: A 1109971581 | ||
| 227 | A 1109971581 | GROMMET |
| LIGHTING UNIT SHELL | ||
| 229 | A 1159971981 | GROMMET |
| AT LINE TO VACUUM SUPPLY TANK | ||
| A 0029974890 | LOOM TIE | |
| A 0029974890 | LOOM TIE | |
| FROM ENGINE TO DISTRIBUTOR IN ENGINE COMPARTMENT | ||
| A 1158050322 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| 233 | A 1170780145 | BRANCH-OFF FITTING |
| ENGINE COMPARTMENT,ON THE LEFT | ||
| 233 | A 1170780145 | BRANCH-OFF FITTING |
| FRONT PANEL PILLAR,LEFT AND RIGHT | ||
| 233 | A 1170780145 | BRANCH-OFF FITTING |
| ENGINE COMPARTMENT,ON THE LEFT | ||
| 233 | A 1170780145 | BRANCH-OFF FITTING |
| LIGHTING UNIT | ||
| 233 | A 1170780145 | BRANCH-OFF FITTING |
| LIGHT RANGE REGULATOR CHECK VALVE | ||
| A 1158050422 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| 237 | A 1170780145 | BRANCH-OFF FITTING |
| VACUUM ELEMENT ON RIGHT REAR DOOR | ||
| 237 | A 1170780145 | BRANCH-OFF FITTING |
| WHEELHOUSE, REAR RIGHT | ||
| A 1238050022 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| 237 | A 1170780145 | BRANCH-OFF FITTING |
| 237 | A 1170780145 | BRANCH-OFF FITTING |
| 237 | A 1170780145 | BRANCH-OFF FITTING |
| ENGINE COMPARTMENT,LEFT | ||
| A 1238050122 | DISTRIBUTOR | |
| Repalced by: A 1170780045 | ||
| 237 | A 1170780045 | BRANCH-OFF FITTING |
| 245 | A 0008000473 | SWITCH |
| LIGHT RANGE ADJUSTER | ||
| A 0008000773 | SWITCH | |
| Repalced by: A 0008000473 | ||
| A 0008000473 | SWITCH | |
| LIGHT RANGE ADJUSTER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
