Transporto priemonė: 380 SLC USA; VIN numerio dalis: 107025

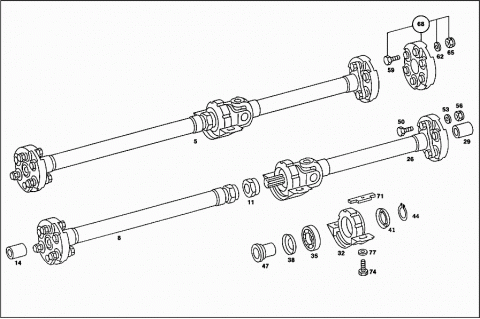

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1074105406 | PROPELLER SHAFT |
| 005 | A 1074106006 | PROPELLER SHAFT |
| 005 | A 1074105306 | PROPELLER SHAFT |
| 005 | A 1074106706 | PROPELLER SHAFT |
| 008 | A 1074105801 | PROPELLER SHAFT |
| FRONT | ||
| 008 | A 1074106301 | PROPELLER SHAFT |
| FRONT | ||
| 008 | A 1074105901 | PROPELLER SHAFT |
| FRONT | ||
| 008 | A 1074106201 | PROPELLER SHAFT |
| FRONT | ||
| 011 | A 1104110072 | NUT |
| Repalced by: A 1104110172 | ||
| 011 | A 1104110172 | NUT |
| 014 | A 1154100032 | CENTERING BUSHING |
| 026 | A 1164109702 | PROPELLER SHAFT |
| REAR | ||
| 026 | A 1074107002 | PROPELLER SHAFT |
| REAR | ||
| 026 | A 1074107502 | PROPELLER SHAFT |
| REAR | ||
| 029 | A 1154100032 | CENTERING BUSHING |
| 032 | A 1234101081 | RUBBER BOOT BEARING |
| 035 | A 0039812325 | BALL BEARING |
| 038 | A 1074110296 | PROTECTIVE CAP |
| 038 | A 1074110296 | PROTECTIVE CAP |
| 041 | A 1234110096 | PROTECTIVE CAP |
| 044 | N 900055030200 | LOCK RING |
| 047 | A 1154110697 | BOOT |
| Repalced by: A 2024110097 | ||
| 047 | A 2024110097 | BOOT |
| Repalced by: A 2024110497 | ||
| 047 | A 2024110497 | BOOT |
| A 1074110215 | FLEXIBLE JOINT DISC | |
| 050 | A 1079900001 | SCREW |
| Repalced by: A 1409903201 | ||
| 050 | A 1409903201 | SCREW |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 053 | N 000125013008 | WASHER |
| 056 | A 1269900151 | NUT |
| Repalced by: A 1409900551 | ||
| 056 | A 1409900551 | HEXAGON NUT |
| FLEXIBLE DISC TO PROPELLER SHAFT | ||
| 059 | A 1079900001 | SCREW |
| Repalced by: A 1409903201 | ||
| 059 | A 1409903201 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 062 | N 000125013008 | WASHER |
| 065 | A 1269900151 | NUT |
| Repalced by: A 1409900551 | ||
| 065 | A 1409900551 | HEXAGON NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 068 | A 1264100415 | FLEXIBLE JOINT DISC |
| PARTS KIT | ||
| A 1244100110 | INTERMEDIATE BEARING | |
| REPAIR KIT | ||
| 071 | A 1164130017 | THREADED UNION |
| INTERMEDIATE BEARING TO FRAME | ||
| 074 | N 914004008005 | COMBINATION BOLT |
| INTERMEDIATE BEARING TO FRAME | ||
| 077 | A 1159905240 | WASHER |
| INTERMEDIATE BEARING TO FRAME | ||
