Transporto priemonė: 300 SEL USA; VIN numerio dalis: 109016

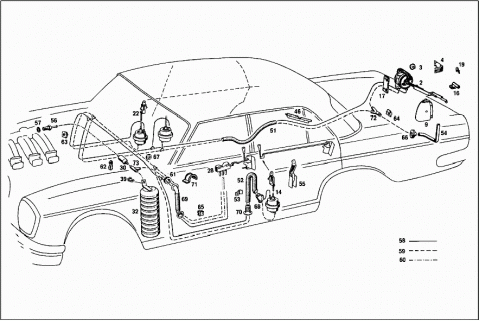

Grupė: 80 VACUUM AND HYDRAULIC SYSTEMS - 001 VACUUM SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1128000475 | ELEMENT | |
| Repalced by: A 1088001375 | ||
| 002 | A 1088001375 | ELEMENT |
| VACUUM | ||
| 003 | A 1128050055 | GUIDE |
| 004 | A 1158050036 | SPRING |
| N 000471005002 | LOCK RING | |
| N 900055005002 | SPRING WASHER | |
| A 1088050414 | BRACKET | |
| N 007981004258 | SHEET METAL SCREW | |
| N 007981004226 | SHEET METAL SCREW | |
| Repalced by: N 007981004233 | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| A 1128000675 | ELEMENT | |
| Repalced by: A 1088001475 | ||
| 009 | A 1088001475 | ELEMENT |
| VACUUM | ||
| N 007985004136 | SCREW | |
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 000934004004 | NUT | |
| A 1088000375 | ELEMENT | |
| Repalced by: A 1088000775 | ||
| 014 | A 1088000775 | ELEMENT |
| Repalced by: A 1088000875 | ||
| 014 | A 1088000875 | ELEMENT |
| VACUUM, REAR DOOR, LEFT | ||
| A 1088000875 | ELEMENT | |
| VACUUM, REAR DOOR, RIGHT | ||
| A 1028050055 | GUIDE | |
| 016 | A 1098050055 | GUIDE |
| 017 | A 1088050011 | PLATE |
| N 007982004222 | SHEET METAL SCREW | |
| N 007976004217 | SHEET METAL SCREW | |
| N 000125005306 | WASHER | |
| N 001434004018 | PIN | |
| Repalced by: A 1159940160 | ||
| N 000094001006 | COTTER PIN | |
| Repalced by: A 1159940160 | ||
| N 900055004001 | SPRING WASHER | |
| Repalced by: A 1159940160 | ||
| N 000125004304 | WASHER | |
| Repalced by: A 1159940160 | ||
| 019 | A 1159940160 | LOCK |
| A 1088000075 | ELEMENT | |
| Repalced by: A 1088001175 | ||
| A 1088001275 | ELEMENT | |
| Repalced by: A 1088001175 | ||
| 022 | A 1088001175 | ELEMENT |
| VACUUM, FRONT DOOR, RIGHT | ||
| A 1128050055 | GUIDE | |
| A 1088050111 | PLATE | |
| N 007981004258 | SHEET METAL SCREW | |
| N 000125005306 | WASHER | |
| N 007981004224 | SHEET METAL SCREW | |
| Repalced by: N 000000000459 | ||
| N 000000000459 | SHEET METAL SCREW | |
| A 1128000173 | SWITCH | |
| Repalced by: A 1168000273 | ||
| 028 | A 1168000273 | SWITCH |
| Repalced by: A 1168000473 | ||
| 028 | A 1168000473 | SWITCH |
| VACUUM | ||
| N 007981004247 | SHEET METAL SCREW | |
| Repalced by: N 007981004208 | ||
| N 007981004208 | SHEET METAL SCREW | |
| VACUUM SWITCH TO FRONT DOOR | ||
| N 000433004303 | WASHER | |
| VACUUM SWITCH TO FRONT DOOR | ||
| N 006797004232 | TOOTHED WASHER | |
| VACUUM SWITCH TO FRONT DOOR | ||
| A 1128000178 | VALVE | |
| Repalced by: A 1168000378 | ||
| A 1158000078 | VALVE | |
| A 1078000778 | VALVE | |
| Repalced by: A 1168000378 | ||
| A 1168000378 | VALVE | |
| 030 | A 1168000378 | VALVE |
| CHECK | ||
| A 1098050219 | TANK | |
| Repalced by: A 1098050319 | ||
| A 1098050319 | TANK | |
| Repalced by: A 1078000219 | ||
| 032 | A 1078000219 | TANK |
| VACUUM | ||
| A 1098050098 | SEAL | |
| Repalced by: A 1238050298 | ||
| A 1238050298 | SEAL | |
| A 1098000032 | CLAMP | |
| Repalced by: A 1098000232 | ||
| A 1098000232 | CLAMP | |
| N 007985006131 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000125006421 | WASHER | |
| N 000934006007 | NUT | |
| 039 | A 0009905991 | NUT RETAINER |
| A 1128050055 | GUIDE | |
| N 072571002015 | CLAMP | |
| FRONT PANEL PILLAR | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| FRONT PANEL PILLAR | ||
| N 072573003006 | CLAMP | |
| HOSE LINES TO CENTRAL PILLAR | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| HOSE LINES TO CENTRAL PILLAR | ||
| N 072571002015 | CLAMP | |
| HOSE LINES TO FIRE WALL | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| HOSE LINES TO FIRE WALL | ||
| 046 | A 1098050088 | ORNAMENTAL COVER |
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| N 072571002015 | CLAMP | |
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| A 0019877625 | PLASTIC SECTION | |
| A 0009870127 | PLASTIC PIPE | |
| Repalced by: A 0009870227 | ||
| 051 | A 0009870227 | PLASTIC PIPE |
| 700 MM | ||
| A 0009870627 | PLASTIC PIPE | |
| Repalced by: A 0009870527 | ||
| 052 | A 0009870527 | PLASTIC PIPE |
| 520 MM LONG BLACK OR NATURAL COLOR | ||
| 053 | A 1099950020 | CLAMP |
| N 007981004242 | SHEET METAL SCREW | |
| Repalced by: N 007981004250 | ||
| N 007981004250 | SHEET METAL SCREW | |
| A 0059974982 | HOSE | |
| Repalced by: A 0079976182 | ||
| 054 | A 0079976182 | HOSE |
| A 1098000018 | FIXTURE | |
| Repalced by: A 1098050114 | ||
| 055 | A 1098050114 | BRACKET |
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| 056 | A 1002700072 | SCREW |
| Repalced by: A 1009900663 | ||
| 056 | A 1009900663 | HOLLOW SCREW |
| 057 | N 007603010100 | SEAL RING |
| 058 | A 0059973482 | HOSE |
| BLACK | ||
| 059 | A 0059975982 | HOSE |
| WHITE | ||
| 060 | A 0059977182 | HOSE |
| Repalced by: A 0001581435 | ||
| 060 | A 0001581435 | PIPE LINE |
| YELLOW | ||
| 061 | A 1009970881 | GROMMET |
| 062 | A 0009972490 | LOOM TIE |
| 063 | A 0009883378 | CLIP |
| 064 | A 0009881878 | CLIP |
| 065 | A 1089880878 | CLIP |
| Repalced by: A 1149880178 | ||
| 065 | A 1149880178 | CLIP |
| 066 | A 1869970681 | GROMMET |
| A 1109971281 | GROMMET | |
| FIRE WALL | ||
| 067 | A 0009972281 | GROMMET |
| FIRE WALL | ||
| 068 | A 1099970181 | GROMMET |
| CENTRAL PILLAR | ||
| 069 | A 1098210097 | HOSE |
| 070 | A 1099970081 | GROMMET |
| 071 | A 1369950137 | CLAMP |
| 072 | A 1008050022 | DISTRIBUTOR |
| Repalced by: A 1158050322 | ||
| A 1158050322 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| A 1170780145 | BRANCH-OFF FITTING | |
| 073 | A 1128050022 | DISTRIBUTOR |
| Repalced by: A 1158050422 | ||
| A 1158050422 | DISTRIBUTOR | |
| Repalced by: A 1170780145 | ||
| A 1170780145 | BRANCH-OFF FITTING | |
| A 1128050103 | CONNECTOR | |
| Repalced by: A 1118065478 | ||
| A 1128050003 | CONNECTOR | |
| Repalced by: A 0079976182 | ||
| A 1118065478 | HOSE | |
| Repalced by: A 0079976182 | ||
| A 1128050203 | CONNECTOR | |
| RIGHT FRONT DOOR, LEFT AND RIGHT REAR DOORS | ||
| A 1128050203 | CONNECTOR | |
| RIGHT FRONT DOOR, LEFT AND RIGHT REAR DOORS | ||
| A 0079976182 | HOSE | |
