Transporto priemonė: 300 SEL; VIN numerio dalis: 109016

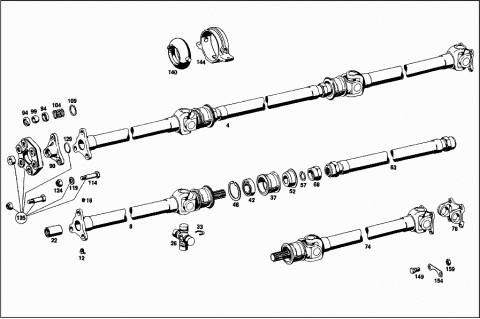

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 1084101003 | PROPELLER SHAFT |
| THREE-PART | ||
| A 1094100403 | PROPELLER SHAFT | |
| Repalced by: A 1094100901 | ||
| A 1094100901 | PROPELLER SHAFT | |
| THREE-PART | ||
| A 1094101203 | PROPELLER SHAFT | |
| Repalced by: A 1094102601 | ||
| A 1094102601 | PROPELLER SHAFT | |
| A 1094100603 | PROPELLER SHAFT | |
| TWO-PART | ||
| A 1084102003 | PROPELLER SHAFT | |
| TWO-PART | ||
| A 1094100803 | PROPELLER SHAFT | |
| Repalced by: A 1094101601 | ||
| A 1094101601 | PROPELLER SHAFT | |
| TWO-PART | ||
| A 1084101603 | PROPELLER SHAFT | |
| TWO-PART | ||
| A 1094100903 | PROPELLER SHAFT | |
| TWO-PART | ||
| A 1094101303 | PROPELLER SHAFT | |
| Repalced by: A 1084101601 | ||
| A 1084101601 | PROPELLER SHAFT | |
| TWO-PART | ||
| 008 | A 1094100501 | PROPELLER SHAFT |
| FRONT | ||
| A 1094100901 | PROPELLER SHAFT | |
| FRONT | ||
| A 1104104001 | PROPELLER SHAFT | |
| FRONT | ||
| A 1084102101 | PROPELLER SHAFT | |
| FRONT | ||
| A 1094101601 | PROPELLER SHAFT | |
| FRONT | ||
| A 1074105601 | PROPELLER SHAFT | |
| FRONT | ||
| A 1094101701 | PROPELLER SHAFT | |
| FRONT | ||
| A 1084101601 | PROPELLER SHAFT | |
| FRONT | ||
| A 1094102601 | PROPELLER SHAFT | |
| FRONT | ||
| 012 | N 071412006200 | GREASE NIPPLE |
| 012 | N 071412006200 | GREASE NIPPLE |
| 016 | A 1229970087 | VALVE |
| 016 | A 1229970087 | VALVE |
| 022 | A 1154100032 | CENTERING BUSHING |
| 022 | A 1154100032 | CENTERING BUSHING |
| 026 | A 1114100031 | UNIVERSAL JOINT CROSS |
| 033 | A 1889940534 | SNAP RING |
| 1.45 MM AS REQUIRED | ||
| A 1889940034 | SNAP RING | |
| 1.50 MM AS REQUIRED | ||
| A 1889940234 | SNAP RING | |
| 1.60 MM AS REQUIRED | ||
| A 1889940334 | SNAP RING | |
| 1.65 MM AS REQUIRED | ||
| A 1889940434 | SNAP RING | |
| 1.70 MM AS REQUIRED | ||
| 037 | A 1104130401 | HOUSING |
| Repalced by: A 1104100422 | ||
| 037 | A 1104100422 | INTERMEDIATE BEARING |
| 037 | A 1104100422 | INTERMEDIATE BEARING |
| 042 | A 0039812325 | BALL BEARING |
| 042 | A 0039812325 | BALL BEARING |
| 046 | N 000472055000 | LOCK RING |
| 046 | N 000472055000 | LOCK RING |
| 052 | A 1154110796 | PROTECTIVE CAP |
| 052 | A 1154110796 | PROTECTIVE CAP |
| 057 | N 900055030200 | LOCK RING |
| 057 | N 900055030200 | LOCK RING |
| A 1104110072 | NUT | |
| Repalced by: A 1104110172 | ||
| A 1104110172 | NUT | |
| 063 | A 1154100305 | INTERMEDIATE SHAFT |
| 063 | A 1154100305 | INTERMEDIATE SHAFT |
| 068 | A 1104110072 | NUT |
| Repalced by: A 1104110172 | ||
| 068 | A 1104110172 | NUT |
| 068 | A 1104110172 | NUT |
| 068 | A 1104110172 | NUT |
| 074 | A 1094100002 | PROPELLER SHAFT |
| REAR | ||
| A 1094100202 | PROPELLER SHAFT | |
| REAR | ||
| A 1094100002 | PROPELLER SHAFT | |
| REAR | ||
| 078 | A 1114110044 | DRIVE FLANGE |
| A 1114100031 | UNIVERSAL JOINT CROSS | |
| A 1889940534 | SNAP RING | |
| 1.45 MM AS REQUIRED | ||
| A 1889940034 | SNAP RING | |
| 1.50 MM AS REQUIRED | ||
| A 1889940234 | SNAP RING | |
| 1.60 MM AS REQUIRED | ||
| A 1889940334 | SNAP RING | |
| 1.65 MM AS REQUIRED | ||
| A 1889940434 | SNAP RING | |
| 1.70 MM AS REQUIRED | ||
| A 1104130401 | HOUSING | |
| Repalced by: A 1104100422 | ||
| A 1104100422 | INTERMEDIATE BEARING | |
| A 1154110796 | PROTECTIVE CAP | |
| N 900055030200 | LOCK RING | |
| A 0039812325 | BALL BEARING | |
| N 000472055000 | LOCK RING | |
| A 1154110697 | BOOT | |
| Repalced by: A 2024110097 | ||
| A 2024110097 | BOOT | |
| Repalced by: A 2024110497 | ||
| A 2024110497 | BOOT | |
| A 2024110497 | BOOT | |
| A 1084110097 | BOOT | |
| A 1084110097 | BOOT | |
| A 1809971040 | SEAL RING | |
| 090 | A 1114100130 | CENTERING FLANGE |
| 090 | A 1114100130 | CENTERING FLANGE |
| 094 | A 1364110118 | BALL SOCKET |
| 094 | A 1364110118 | BALL SOCKET |
| 099 | A 1844110017 | CENTERING BALL |
| 099 | A 1844110017 | CENTERING BALL |
| 104 | A 1109933701 | SPRING |
| 104 | A 1109933701 | SPRING |
| 109 | N 000984030000 | LOCK RING |
| 109 | N 000984030000 | LOCK RING |
| A 1804110615 | FLEXIBLE JOINT DISC | |
| A 1154110915 | FLEXIBLE JOINT DISC | |
| Repalced by: A 1164110115 | ||
| A 1164110115 | FLEXIBLE JOINT DISC | |
| Repalced by: A 1164110215 | ||
| A 1164110215 | FLEXIBLE JOINT DISC | |
| A 1094110215 | FLEXIBLE JOINT DISC | |
| 114 | A 1104110171 | SCREW |
| FLEXIBLE DISC TO TRANSMISSION | ||
| 114 | A 1104110171 | SCREW |
| FLEXIBLE DISC TO TRANSMISSION | ||
| N 070613010024 | SCREW | |
| Repalced by: A 1249903401 | ||
| A 1249903401 | SCREW | |
| Repalced by: A 1249903701 | ||
| A 1249903701 | SCREW W HEXAGON SOCKET | |
| FLEXIBLE DISC TO TRANSMISSION | ||
| A 1249903701 | SCREW W HEXAGON SOCKET | |
| FLEXIBLE DISC TO TRANSMISSION | ||
| 119 | A 1879901440 | WASHER |
| FLEXIBLE DISC TO TRANSMISSION | ||
| 119 | A 1879901440 | WASHER |
| FLEXIBLE DISC TO TRANSMISSION | ||
| N 000125010504 | WASHER | |
| FLEXIBLE DISC TO TRANSMISSION | ||
| N 000125010504 | WASHER | |
| FLEXIBLE DISC TO TRANSMISSION | ||
| 124 | N 000985012005 | NUT |
| FLEXIBLE DISC TO TRANSMISSION | ||
| 124 | N 000985012005 | NUT |
| FLEXIBLE DISC TO TRANSMISSION | ||
| N 000985010005 | NUT | |
| FLEXIBLE DISC TO TRANSMISSION | ||
| N 000985010005 | NUT | |
| FLEXIBLE DISC TO TRANSMISSION | ||
| 129 | A 1204110060 | RUBBER RING |
| 129 | A 1204110060 | RUBBER RING |
| A 1104110071 | SCREW | |
| PROPELLER SHAFT TO FLEXIBLE JOINT DISC | ||
| N 070613010024 | SCREW | |
| Repalced by: A 1249903401 | ||
| A 1249903401 | SCREW | |
| Repalced by: A 1249903701 | ||
| A 1249903701 | SCREW W HEXAGON SOCKET | |
| PROPELLER SHAFT TO FLEXIBLE JOINT DISC | ||
| A 1249903701 | SCREW W HEXAGON SOCKET | |
| PROPELLER SHAFT TO FLEXIBLE JOINT DISC | ||
| A 1004111671 | SCREW | |
| PROPELLER SHAFT TO FLEXIBLE JOINT DISC | ||
| A 1879901440 | WASHER | |
| PROPELLER SHAFT TO FLEXIBLE JOINT DISC | ||
| A 1879901440 | WASHER | |
| PROPELLER SHAFT TO FLEXIBLE JOINT DISC | ||
| N 000125010504 | WASHER | |
| PROPELLER SHAFT TO FLEXIBLE JOINT DISC | ||
| N 000125010504 | WASHER | |
| PROPELLER SHAFT TO FLEXIBLE JOINT DISC | ||
| N 000985012005 | NUT | |
| PROPELLER SHAFT TO FLEXIBLE JOINT DISC | ||
| N 000985012005 | NUT | |
| PROPELLER SHAFT TO FLEXIBLE JOINT DISC | ||
| N 000985010005 | NUT | |
| PROPELLER SHAFT TO FLEXIBLE JOINT DISC | ||
| N 000985010005 | NUT | |
| PROPELLER SHAFT TO FLEXIBLE JOINT DISC | ||
| 135 | A 1084100115 | FLEXIBLE JOINT DISC |
| PARTS KIT | ||
| 135 | A 1084100115 | FLEXIBLE JOINT DISC |
| PARTS KIT | ||
| A 1264100215 | FLEXIBLE JOINT DISC | |
| PARTS KIT | ||
| A 1264100215 | FLEXIBLE JOINT DISC | |
| PARTS KIT | ||
| A 1094100015 | FLEXIBLE JOINT DISC | |
| PARTS KIT | ||
| 140 | A 1084130112 | RUBBER MOUNTING |
| PROPELLER SHAFT INTERMEDIATE BEARING | ||
| 140 | A 1084130112 | RUBBER MOUNTING |
| PROPELLER SHAFT INTERMEDIATE BEARING | ||
| 144 | A 1104130429 | BEARING BRACKET |
| PROPELLER SHAFT INTERMEDIATE BEARING | ||
| 144 | A 1104130429 | BEARING BRACKET |
| PROPELLER SHAFT INTERMEDIATE BEARING | ||
| N 914004008001 | COMBINATION BOLT | |
| INTERMEDIATE BEARING TO FRAME FLOOR UNIT | ||
| N 914004008001 | COMBINATION BOLT | |
| INTERMEDIATE BEARING TO FRAME FLOOR UNIT | ||
| A 1109900052 | NUT | |
| INTERMEDIATE BEARING TO FRAME FLOOR UNIT | ||
| A 1109900052 | NUT | |
| INTERMEDIATE BEARING TO FRAME FLOOR UNIT | ||
| 149 | A 1119900020 | SCREW |
| 154 | A 1119940209 | LOCK |
| 159 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 159 | N 304035010001 | NUT |
