Transporto priemonė: 300 SEL; VIN numerio dalis: 109016

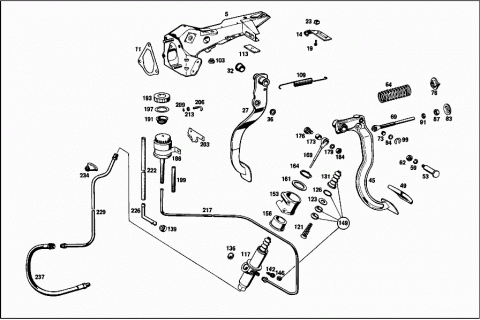

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1082900031 | BEARING |
| 005 | A 1082900031 | BEARING |
| A 1082900331 | BEARING | |
| A 1082900331 | BEARING | |
| A 1082900131 | BEARING | |
| A 1082900131 | BEARING | |
| A 1082900231 | BEARING | |
| A 1082900231 | BEARING | |
| A 1092900031 | BEARING | |
| A 1092900031 | BEARING | |
| A 1092900031 | BEARING | |
| A 1082900533 | BRACKET | |
| A 1082900533 | BRACKET | |
| A 1082900533 | BRACKET | |
| A 1092900031 | BEARING | |
| A 1084310080 | GASKET | |
| A 1084310080 | GASKET | |
| A 1084310080 | GASKET | |
| 011 | A 1084310180 | GASKET |
| 011 | A 1084310180 | GASKET |
| 011 | A 1084310180 | GASKET |
| 014 | A 1082600162 | BRACKET |
| GEAR INDICATOR WIRE CABLE | ||
| 014 | A 1082600162 | BRACKET |
| GEAR INDICATOR WIRE CABLE | ||
| 014 | A 1082600162 | BRACKET |
| GEAR INDICATOR WIRE CABLE | ||
| 019 | N 007981002325 | SHEET METAL SCREW |
| GEAR INDICATOR WIRE CABLE | ||
| 019 | N 007981002325 | SHEET METAL SCREW |
| GEAR INDICATOR WIRE CABLE | ||
| 019 | N 007981002325 | SHEET METAL SCREW |
| GEAR INDICATOR WIRE CABLE | ||
| 023 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 023 | A 0009902291 | NUT RETAINER |
| Repalced by: A 0019906791 | ||
| 023 | A 0019906791 | NUT RETAINER |
| 023 | A 0019906791 | NUT RETAINER |
| 023 | A 0019906791 | NUT RETAINER |
| 027 | A 1102903518 | PEDAL |
| BRAKE | ||
| 027 | A 1102903518 | PEDAL |
| BRAKE | ||
| 027 | A 1102903518 | PEDAL |
| BRAKE | ||
| 027 | A 1102903518 | PEDAL |
| BRAKE | ||
| A 1082900018 | PEDAL | |
| BRAKE | ||
| A 1082900018 | PEDAL | |
| BRAKE | ||
| 032 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 032 | A 1242920050 | BUSHING |
| 036 | A 1102920150 | BUSHING |
| 045 | A 1122900216 | PEDAL |
| CLUTCH | ||
| A 1102905216 | PEDAL | |
| CLUTCH | ||
| A 1082900416 | PEDAL | |
| CLUTCH | ||
| A 1082900416 | PEDAL | |
| CLUTCH | ||
| A 1092900116 | PEDAL | |
| CLUTCH | ||
| A 1082900116 | PEDAL | |
| CLUTCH | ||
| A 1082900716 | PEDAL | |
| CLUTCH | ||
| A 1082900716 | PEDAL | |
| CLUTCH | ||
| A 1102910550 | BUSHING | |
| Repalced by: A 1242920050 | ||
| A 1242920050 | BUSHING | |
| 049 | A 1072910182 | PAD |
| BRAKE PEDAL | ||
| 049 | A 1072910182 | PAD |
| CLUTCH PEDAL | ||
| 053 | A 1102910574 | PIN |
| A 1102910674 | PIN | |
| A 1102910674 | PIN | |
| A 1102910674 | PIN | |
| A 1082910074 | PIN | |
| A 1082910074 | PIN | |
| 059 | N 912004010102 | LOCK WASHER |
| 062 | N 000936010003 | NUT |
| 064 | A 1109930501 | SPRING |
| A 1159937902 | SPRING | |
| A 1089930201 | SPRING | |
| 069 | A 1102901939 | ROD |
| A 1152901339 | ROD | |
| 073 | A 1102910750 | BUSHING |
| 076 | A 1072910091 | SPRING RETAINER |
| 083 | A 1112910491 | SPRING RETAINER |
| 087 | N 070615010004 | NUT |
| 091 | N 007967010001 | NUT |
| 094 | A 1109901740 | WASHER |
| 094 | A 1109901740 | WASHER |
| N 000125008407 | WASHER | |
| N 000125008407 | WASHER | |
| 099 | A 0009940410 | LOCK |
| 099 | A 0009940410 | LOCK |
| N 006799006003 | LOCK PLATE | |
| N 006799006003 | LOCK PLATE | |
| 103 | A 1112910086 | STOP |
| 109 | A 1079930410 | SPRING |
| 113 | A 1114620075 | WASHER |
| N 000931008254 | SCREW | |
| Repalced by: N 304014008002 | ||
| N 304014008002 | SCREW | |
| N 009021008205 | WASHER | |
| Repalced by: N 009021008213 | ||
| N 009021008213 | WASHER | |
| Repalced by: N 000000003250 | ||
| N 000000003250 | WASHER | |
| N 000433008406 | WASHER | |
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| 117 | A 0002952906 | MASTER CYLINDER |
| 15/16" DIA. X 34 MM STROKE | ||
| A 0002955206 | MASTER CYLINDER | |
| 3/4" DIA. X 34 MM STROKE | ||
| A 0002957806 | MASTER CYLINDER | |
| 3/4" DIA. X 34 MM STROKE | ||
| A 0002956206 | MASTER CYLINDER | |
| 13/16" DIA. X 34 MM STROKE | ||
| 121 | A 0009932105 | SPRING |
| 123 | A 0009907040 | WASHER |
| 126 | A 0009943335 | SNAP RING |
| A 0004310935 | CONNECTOR | |
| 131 | A 0002951583 | BOOT |
| 136 | N 000470020000 | EXPANSION PLUG |
| 139 | A 0004310935 | CONNECTOR |
| 142 | A 0004201055 | BLEEDER VALVE |
| 146 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 146 | A 0004210887 | PROTECTIVE CAP |
| 149 | A 0005861129 | REPAIR KIT |
| A 0005861529 | REPAIR KIT | |
| A 0005862529 | REPAIR KIT | |
| 153 | A 1082950040 | BRACKET |
| Repalced by: A 1152950340 | ||
| 153 | A 1152950340 | BRACKET |
| A 1082950140 | BRACKET | |
| Repalced by: A 1152950340 | ||
| A 1152950340 | BRACKET | |
| A 1152950240 | BRACKET | |
| A 1152950340 | BRACKET | |
| 156 | A 1082950050 | BUSHING |
| 161 | A 1082950076 | WASHER |
| 164 | A 0019943241 | LOCK |
| 169 | A 1102901839 | ROD |
| 173 | A 1102950250 | BUSHING |
| N 000931006115 | SCREW | |
| Repalced by: N 000933006151 | ||
| N 000933006151 | SCREW | |
| N 000137006204 | SPRING WASHER | |
| MASTER CYLINDER TO SUPPORT | ||
| N 000934006007 | NUT | |
| MASTER CYLINDER TO SUPPORT | ||
| 176 | A 1102950571 | SCREW |
| Repalced by: A 1152950172 | ||
| 176 | A 1152950172 | NUT |
| 179 | N 000127008203 | LOCK WASHER |
| 184 | N 000936008012 | NUT |
| 186 | A 1112900215 | RESERVOIR |
| A 1152900115 | RESERVOIR | |
| 191 | A 0004314334 | STRAINER |
| 191 | A 0004314334 | STRAINER |
| 193 | A 0002950237 | SCREW PLUG |
| Repalced by: A 0004315433 | ||
| 193 | A 0004315433 | FILLER CAP |
| 197 | A 0009976841 | SEAL RING |
| 199 | A 0059978382 | HOSE |
| 199 | A 0059978382 | HOSE |
| A 0029976782 | HOSE | |
| 203 | A 1152950940 | BRACKET |
| 203 | A 1152950940 | BRACKET |
| N 007976004217 | SHEET METAL SCREW | |
| Repalced by: N 914128004303 | ||
| N 914128004303 | SHEET METAL SCREW | |
| N 914128004303 | SHEET METAL SCREW | |
| N 000125005306 | WASHER | |
| N 000125005306 | WASHER | |
| 206 | A 1082950124 | CLAMPING SCREW |
| 206 | A 1082950124 | CLAMPING SCREW |
| 209 | N 912004006102 | LOCK WASHER |
| 209 | N 912004006102 | LOCK WASHER |
| 213 | N 000934006007 | NUT |
| 213 | N 000934006007 | NUT |
| 217 | A 1082900413 | LINE |
| Repalced by: A 1112901313 | ||
| 217 | A 1112901313 | LINE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| A 1082900913 | LINE | |
| Repalced by: A 1112901313 | ||
| A 1112901313 | LINE | |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| A 1082900713 | LINE | |
| Repalced by: A 1132901713 | ||
| A 1132901713 | LINE | |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| A 1082900513 | LINE | |
| Repalced by: A 1112901313 | ||
| A 1112901313 | LINE | |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| A 1112900913 | LINE | |
| Repalced by: A 1112901313 | ||
| A 1112901313 | LINE | |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| A 1082900813 | LINE | |
| Repalced by: A 1132901713 | ||
| A 1132901713 | LINE | |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 222 | A 0099973882 | HOSE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| A 0099973882 | HOSE | |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 226 | A 0002950236 | INTERMEDIATE PIECE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 226 | A 0002950236 | INTERMEDIATE PIECE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| A 0039880378 | CLIP | |
| CONNECTING HOSE TO BRAKE MOOSTER | ||
| 229 | A 1102903013 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CONNECTING HOSE | ||
| 229 | A 1102903013 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CONNECTING HOSE | ||
| A 1082901013 | LINE | |
| Repalced by: A 1123205753 | ||
| A 1123205753 | LINE | |
| FROM CLUTCH MASTER CYLINDER TO CONNECTING HOSE | ||
| A 1102903313 | LINE | |
| Repalced by: A 1093207653 | ||
| A 1093207653 | LINE | |
| FROM CLUTCH MASTER CYLINDER TO CONNECTING HOSE | ||
| A 0029884978 | CLIP | |
| PIPE LINE TO BRAKE BOOSTER | ||
| A 0029887778 | CLIP | |
| PIPE LINE TO BRAKE BOOSTER | ||
| N 072571001034 | CLAMP | |
| PIPE LINE TO TOEBOARD | ||
| N 072571001034 | CLAMP | |
| PIPE LINE TO TOEBOARD | ||
| N 007976004216 | SHEET METAL SCREW | |
| PIPE LINE TO TOEBOARD | ||
| N 007976004216 | SHEET METAL SCREW | |
| PIPE LINE TO TOEBOARD | ||
| N 073379006101 | HOSE | |
| PIPE LINE TO TOEBOARD | ||
| N 073379006101 | HOSE | |
| PIPE LINE TO TOEBOARD | ||
| 234 | A 1109971431 | SCREW PLUG |
| A 1139870044 | EXPANSION PLUG | |
| A 1109870044 | EXPANSION PLUG | |
| Repalced by: A 1139870044 | ||
| A 1139870044 | EXPANSION PLUG | |
| 237 | A 0002950535 | HOSE |
| FROM PIPE LINE TO CLUTCH SLAVE CYLINDER | ||
| 237 | A 0002950535 | HOSE |
| FROM PIPE LINE TO CLUTCH SLAVE CYLINDER | ||
| A 0002950735 | HOSE | |
| A 0002950735 | HOSE | |
| A 0002952235 | HOSE | |
| A 0002952235 | HOSE | |
| N 073379006101 | HOSE | |
| SLAVE CYLINDER | ||
| 30 MM | ||
| N 073379006101 | HOSE | |
| SLAVE CYLINDER | ||
| 30 MM | ||
| N 072571001025 | CLAMP | |
| CONNECTING HOSE | ||
| N 072571001025 | CLAMP | |
| CONNECTING HOSE | ||
| N 007976004205 | SHEET METAL SCREW | |
| CONNECTING HOSE | ||
| N 007976004205 | SHEET METAL SCREW | |
| CONNECTING HOSE | ||
| A 1122950160 | SEAL RING | |
| CONNECTING HOSE | ||
| A 1122950160 | SEAL RING | |
| CONNECTING HOSE | ||
