Transporto priemonė: 280 SL USA; VIN numerio dalis: 113044

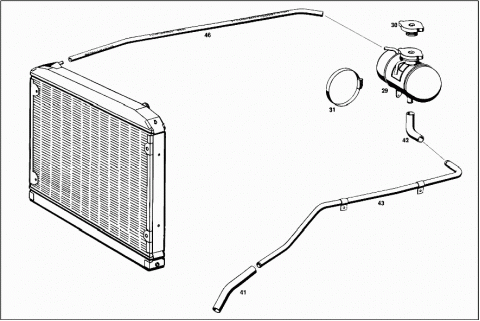

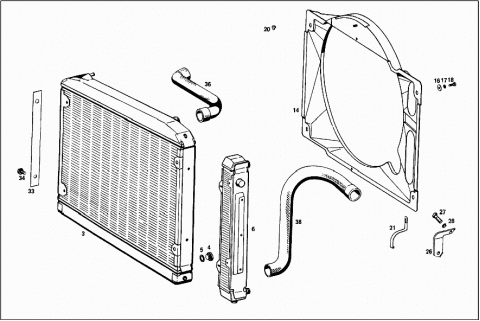

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1135001103 | RADIATOR | |
| 003 | A 1135010001 | RADIATOR |
| 004 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 004 | N 007604014110 | SCREW PLUG |
| 005 | N 007603014405 | SEAL RING |
| 006 | A 1081800165 | OIL COOLER |
| Repalced by: A 1081800265 | ||
| 006 | A 1081800265 | OIL COOLER |
| AIR-COOLED | ||
| A 1081800265 | OIL COOLER | |
| AIR-COOLED | ||
| N 007603012308 | SEAL RING | |
| Repalced by: N 007603012111 | ||
| N 007603012111 | SEAL RING | |
| N 007604012102 | SCREW PLUG | |
| N 000603005012 | SCREW | |
| AIR-COOLED OIL COOLER TO RADIATOR | ||
| N 000125005306 | WASHER | |
| AIR-COOLED OIL COOLER TO RADIATOR | ||
| N 000127005100 | LOCK WASHER | |
| AIR-COOLED OIL COOLER TO RADIATOR | ||
| N 000934005008 | NUT | |
| AIR-COOLED OIL COOLER TO RADIATOR | ||
| 014 | A 1135050555 | FAN SHROUD |
| A 1135050655 | FAN SHROUD | |
| 016 | A 0019901840 | WASHER |
| Repalced by: A 1269901440 | ||
| 016 | A 1269901440 | WASHER |
| 017 | N 912004005100 | LOCK WASHER |
| 018 | N 000933005037 | SCREW |
| N 914006005000 | COMBINATION BOLT | |
| 020 | A 1119871215 | PLUG |
| Repalced by: A 0009871840 | ||
| 020 | A 0009871840 | RUBBER BUFFER |
| 021 | A 1135010146 | CLAMP |
| N 000603005011 | SCREW | |
| N 912004005100 | LOCK WASHER | |
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| N 000934005008 | NUT | |
| 026 | A 1135400573 | BRACKET |
| 027 | N 000931010211 | SCREW |
| 028 | N 000127010202 | LOCK WASHER |
| 029 | A 1095000049 | TANK |
| 030 | A 0005010015 | RADIATOR CAP |
| WITH PRESSURE RELIEF VALVE | ||
| 031 | N 900288122101 | CLAMP |
| 033 | A 1135020030 | DAMPING STRIP |
| 034 | A 0029902801 | SCREW |
| A 1105040084 | SHIM | |
| 036 | A 1135010482 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| A 0019971990 | LOOM TIE | |
| 038 | A 1135011082 | HOSE |
| AT WATER PUMP | ||
| N 916001046100 | CLAMP | |
| N 900269038100 | CLAMP | |
| 041 | N 900271018036 | HOSE |
| FROM WATER PIPE TO RADIATOR 215 MM | ||
| N 916026020001 | CLAMP | |
| 042 | A 1135010982 | HOSE |
| FROM TANK TO RADIATOR | ||
| 043 | A 1135000172 | LINE |
| FROM TANK TO RADIATOR | ||
| N 007976005202 | SHEET METAL SCREW | |
| WATER PIPE TO SIDE MEMBER | ||
| N 007976005203 | SHEET METAL SCREW | |
| WATER PIPE TO SIDE MEMBER | ||
| N 912004006102 | LOCK WASHER | |
| WATER PIPE TO SIDE MEMBER | ||
| 046 | N 900271008019 | HOSE |
| Repalced by: N 000000000734 | ||
| 046 | N 000000000734 | HOSE |
| 780 MM FROM RADIATOR TO TANK | ||
| N 900269015100 | CLAMP | |
| FROM RADIATOR TO TANK | ||
| A 0019974190 | LOOM TIE | |
| BREATHER HOSE TO INJECTION LINE | ||
