Transporto priemonė: 280 SL USA; VIN numerio dalis: 113044
Grupė: 91 FRONT SEATS - 001 PASSENGER SEATS
| # | Kodas | Pavadinimas |
|---|---|---|

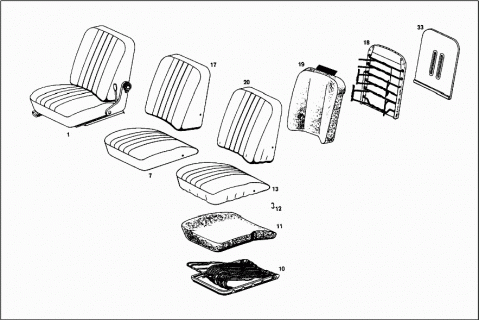

| 001 | A 1139100901 | FRONT SEAT |
| Repalced by: A 1139101301 | ||
| A 1139101301 | FRONT SEAT | |
| LEFT IMITATION LEATHER TRIM | ||
| A 1139102101 | FRONT SEAT | |
| LEFT IMITATION LEATHER TRIM | ||
| A 1139101001 | FRONT SEAT | |
| Repalced by: A 1139101401 | ||
| A 1139101401 | FRONT SEAT | |
| RIGHT IMITATION LEATHER TRIM | ||
| A 1139102201 | FRONT SEAT | |
| RIGHT IMITATION LEATHER TRIM | ||
| 007 | A 1139100330 | SEAT CUSHION |
| LEFT IMITATION LEATHER TRIM | ||
| A 1139100730 | SEAT CUSHION | |
| LEFT IMITATION LEATHER TRIM | ||
| A 1139100430 | SEAT CUSHION | |
| RIGHT IMITATION LEATHER TRIM | ||
| A 1139100830 | SEAT CUSHION | |
| RIGHT IMITATION LEATHER TRIM | ||
| 010 | A 1139101122 | CUSHION FRAME |
| LEFT WITH SPRING CORE | ||
| A 1139101222 | CUSHION FRAME | |
| RIGHT WITH SPRING CORE | ||
| 011 | A 1139140314 | PAD |
| LEFT | ||
| A 1139140414 | PAD | |
| RIGHT | ||
| 012 | A 0009842061 | CLIP |
| 013 | A 1139100746 | COVER |
| LEFT IMITATION LEATHER, COMPLETELY SEWN | ||
| A 1139101746 | COVER | |
| LEFT IMITATION LEATHER, COMPLETELY SEWN | ||
| A 1139100846 | COVER | |
| RIGHT IMITATION LEATHER, COMPLETELY SEWN | ||
| A 1139101846 | COVER | |
| RIGHT IMITATION LEATHER, COMPLETELY SEWN | ||

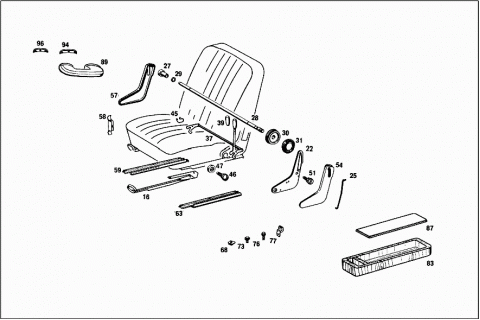

| 016 | A 1139100105 | ADJUSTER |
| FOR LEFT SEAT | ||
| A 1139100205 | ADJUSTER | |
| FOR RIGHT SEAT | ||
| 017 | A 1139100632 | BACKREST |
| IMITATION LEATHER TRIM | ||
| A 1139201232 | BACKREST FRAME | |
| IMITATION LEATHER TRIM | ||
| 018 | A 1139100634 | BACKREST FRAME |
| WITH SPRING CORE | ||
| 019 | A 1139140116 | PAD |
| FOR BACKRESTS | ||
| A 0009842061 | CLIP | |
| RUBBER FIBER PADS TO BACKREST FRAMES | ||
| 020 | A 1139100647 | COVER |
| IMITATION LEATHER, COMPLETELY SEWN | ||
| A 1139101047 | COVER | |
| IMITATION LEATHER, COMPLETELY SEWN | ||
| A 1139100956 | BACKREST BRACKET | |
| Repalced by: A 1139101756 | ||
| 022 | A 1139101756 | BACKREST BRACKET |
| LEFT FOR ADJUSTABLE BACKRESTS | ||
| A 1139101056 | BACKREST BRACKET | |
| Repalced by: A 1139101856 | ||
| A 1139101856 | BACKREST BRACKET | |
| RIGHT FOR ADJUSTABLE BACKRESTS | ||
| 025 | A 1139130537 | SPRING |
| LEFT | ||
| A 1139130637 | SPRING | |
| RIGHT | ||
| A 1139100173 | ROLLER | |
| Repalced by: A 1139100273 | ||
| 027 | A 1139100273 | ROLLER |
| BACKREST ADJUSTMENT | ||
| 028 | A 1139100198 | SHAFT |
| BACKREST ADJUSTMENT | ||
| 029 | N 006799009001 | LOCK PLATE |
| 030 | A 1109100188 | HANDWHEEL |
| 031 | A 1109100018 | COVERING |
| N 007987004120 | SCREW | |
| HANDWHEEL TO SHAFT | ||
| N 006797004333 | TOOTHED WASHER | |
| HANDWHEEL TO SHAFT | ||
| 033 | A 1139100039 | PANELLING |
| A 1139100239 | PANELLING | |
| A 1139140059 | ESCUTCHEON | |
| A 1139880378 | CLIP | |
| Repalced by: A 0009882378 | ||
| A 0009882378 | CLIP | |
| N 007983003248 | SHEET METAL SCREW | |
| COVERING TO BACKREST | ||
| A 0009850662 | WASHER | |
| COVERING TO BACKREST | ||
| 037 | A 1139100176 | HOOK |
| FOR LEFT SEAT | ||
| A 1139100276 | HOOK | |
| LEATHER, LEFT | ||
| A 1805450437 | BUTTON | |
| Repalced by: A 0005451737 | ||
| 039 | A 0005451737 | BUTTON |
| N 900055008002 | SPRING WASHER | |
| HOOKS TO BACKREST BRACKETS, BOTTOM | ||
| N 000125008418 | WASHER | |
| HOOKS TO BACKREST BRACKETS, BOTTOM | ||
| N 000471008001 | LOCK RING | |
| Repalced by: N 000471008002 | ||
| N 000471008002 | LOCK RING | |
| HOOKS TO BACKREST BRACKETS, BOTTOM | ||
| A 1139130337 | SPRING | |
| LEFT | ||
| 045 | A 1139130437 | SPRING |
| RIGHT | ||
| 046 | A 1139842231 | SCREW |
| Repalced by: A 1149840032 | ||
| 046 | A 1149840032 | SCREW |
| FOR ADJUSTABLE BACKREST FULCRUM POINTS AT SEAT CUSHIONS | ||
| A 1119840332 | SCREW | |
| Repalced by: A 1149840032 | ||
| A 1149840032 | SCREW | |
| FOR ADJUSTABLE BACKREST FULCRUM POINTS AT SEAT CUSHIONS | ||
| 047 | A 1139910235 | SPACER RING |
| FOR ADJUSTABLE BACKREST FULCRUM POINTS AT SEAT CUSHIONS | ||
| A 1139910435 | SPACER RING | |
| FOR ADJUSTABLE BACKREST FULCRUM POINTS AT SEAT CUSHIONS | ||
| N 900055016002 | SPRING WASHER | |
| FOR ADJUSTABLE BACKREST FULCRUM POINTS AT SEAT CUSHIONS | ||
| N 000439010210 | NUT | |
| FOR ADJUSTABLE BACKREST FULCRUM POINTS AT SEAT CUSHIONS | ||
| 051 | A 1139840132 | SCREW |
| BACKREST BRACKETS TO BACKRESTS | ||
| A 1139180096 | UNDERLAYER | |
| BACKREST BRACKETS TO BACKRESTS | ||
| N 000439008211 | NUT | |
| Repalced by: N 304035008001 | ||
| N 304035008001 | NUT | |
| BACKREST BRACKETS TO BACKRESTS | ||
| 054 | A 1139100554 | ORNAMENTAL COVER |
| OUTSIDE LEFT | ||
| A 1139100654 | ORNAMENTAL COVER | |
| OUTSIDE RIGHT | ||
| A 1139100754 | ORNAMENTAL COVER | |
| INSIDE LEFT | ||
| 057 | A 1139100854 | ORNAMENTAL COVER |
| INSIDE RIGHT | ||
| 058 | A 1109881178 | CLIP |
| 059 | A 1139100305 | SEAT GUIDE |
| INSIDE LEFT | ||
| A 1139100405 | SEAT GUIDE | |
| INSIDE RIGHT | ||
| A 1139100505 | ADJUSTER | |
| Repalced by: A 1159100905 | ||
| 063 | A 1159100905 | SEAT GUIDE |
| OUTSIDE LEFT AND RIGHT | ||
| N 914028006100 | COMBINATION BOLT | |
| SLIDING SEAT GUIDES TO SEATS | ||
| 068 | A 0009904291 | NUT RETAINER |
| SEATS TO BRACKETS | ||
| 073 | A 0009903822 | SCREW |
| SELF-LOCKING SEATS TO BRACKETS | ||
| N 900170008009 | SCREW | |
| Repalced by: A 1089900322 | ||
| N 000127008205 | LOCK WASHER | |
| Repalced by: A 1089900322 | ||
| 076 | A 1089900322 | SCREW |
| Repalced by: A 1169900122 | ||
| 076 | A 1169900122 | SCREW |
| Repalced by: A 1409901122 | ||
| 076 | A 1409901122 | SCREW |
| SELF-LOCKING SEATS TO CROSS MEMBER | ||
| 077 | A 1139190021 | STOP |
| AT LEFT CROSS MEMBER | ||
| N 007981004224 | SHEET METAL SCREW | |
| Repalced by: N 000000000459 | ||
| N 000000000459 | SHEET METAL SCREW | |
| STOP TO CROSS MEMBER | ||
| A 1139100306 | SEAT CUSHION LESS COVER | |
| LEFT | ||
| A 1139100406 | SEAT CUSHION LESS COVER | |
| RIGHT | ||
| A 1139100607 | BACKREST | |
| LEFT AND RIGHT | ||
| 083 | A 1138400274 | SHELL |
| N 007983004332 | SHEET METAL SCREW | |
| TRAY WITH ASHTRAY TO TUNNEL | ||
| A 1138400175 | LINING | |
| Repalced by: A 1138400675 | ||
| A 1138410590 | COVER | |
| Repalced by: A 1138400675 | ||
| 087 | A 1138400675 | LINING |
| TRAY | ||
| A 1159700301 | ARMREST | |
| LEFT IMITATION LEATHER TRIM | ||
| 089 | A 1159700401 | ARMREST |
| RIGHT IMITATION LEATHER TRIM | ||
| N 006797006145 | TOOTHED WASHER | |
| ARMRESTS TO COVERING | ||
| N 007981006304 | SHEET METAL SCREW | |
| ARMRESTS TO COVERING | ||
| N 007985006128 | SCREW | |
| A 1159710051 | PART NAME MISSING | |
| Repalced by: A 1159710043 | ||
| 094 | A 1159710043 | ORNAMENTAL COVER |
| ARMREST, REAR | ||
| A 1159710151 | PART NAME MISSING | |
| Repalced by: A 1159710143 | ||
| 096 | A 1159710143 | ORNAMENTAL COVER |
| ARMREST, FRONT | ||

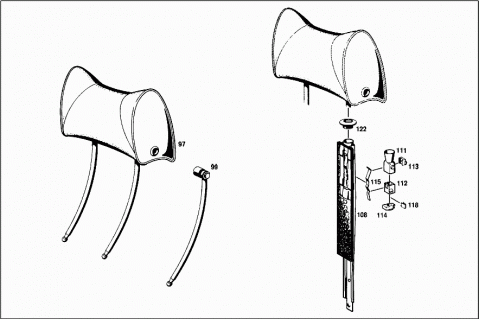

| 097 | A 1139700150 | HEADREST |
| IMITATION LEATHER TRIM | ||
| 099 | A 1139700573 | CLAMP |
| LEFT | ||
| A 1139700673 | CLAMP | |
| RIGHT | ||
| A 1139700750 | HEADREST | |
| COMPLETE,BUT LESS COVER | ||
| A 1139700350 | MOUNTING MATERIAL | |
| Repalced by: A 1139700550 | ||
| A 1139700550 | MOUNTING MATERIAL | |
| HEAD RESTRAINT | ||
| A 1139700015 | RAIL | |
| Repalced by: A 1139700215 | ||
| A 1139700215 | RAIL | |
| Repalced by: A 1139700515 | ||
| 108 | A 1139700515 | RAIL |
| LEFT | ||
| A 1139700615 | RAIL | |
| RIGHT | ||
| A 1159750122 | GUIDE | |
| 111 | A 1159750422 | GUIDE |
| 112 | A 1159750522 | GUIDE |
| 113 | A 1159750023 | FRICTION PIECE |
| 114 | A 1159750024 | SLIDE |
| 115 | A 1159750137 | SPRING |
| Repalced by: A 1249750137 | ||
| 115 | A 1249750137 | SPRING |
| LEFT | ||
| A 1159750237 | SPRING | |
| Repalced by: A 1249750137 | ||
| A 1249750137 | SPRING | |
| RIGHT | ||
| A 1159880378 | CLIP | |
| 118 | A 1159880478 | CLIP |
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| N 000934004004 | NUT | |
| N 006797004132 | TOOTHED WASHER | |
| 122 | A 1159880482 | EYE |
| Repalced by: A 1269880182 | ||
| 122 | A 1269880182 | EYE |
| A 1139880182 | EYE | |
| Repalced by: A 1239880382 | ||
| A 1239880382 | EYE | |
