Transporto priemonė: 280 SL USA; VIN numerio dalis: 113044

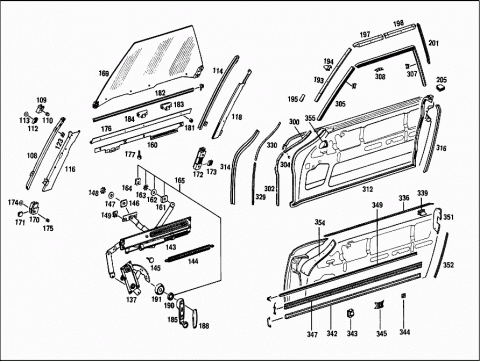

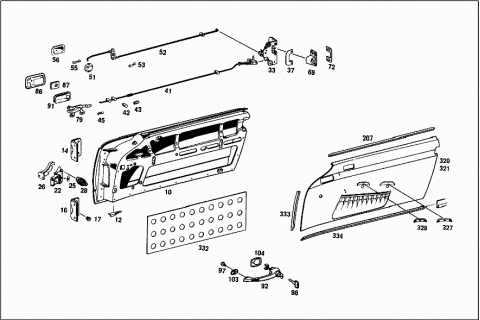

Grupė: 72 DOORS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1137200305 | DOOR SHELL | |
| Repalced by: A 1137200705 | ||
| A 1137200705 | DOOR SHELL | |
| Repalced by: A 1137200905 | ||
| A 1137200905 | DOOR SHELL | |
| LEFT | ||
| A 1137200405 | DOOR SHELL | |
| Repalced by: A 1137200805 | ||
| A 1137200805 | DOOR SHELL | |
| Repalced by: A 1137201005 | ||
| 010 | A 1137201005 | DOOR SHELL |
| RIGHT | ||
| A 1137220545 | RETAINING RAIL | |
| BOTTOM LEFT DOOR SEAL | ||
| 012 | A 1137220645 | RETAINING RAIL |
| BOTTOM RIGHT DOOR SEAL | ||
| A 0009900497 | RIVET | |
| RETAINING RAIL TO FRAMEWORK | ||
| A 1137200937 | HINGE | |
| TOP LEFT | ||
| 014 | A 1137201037 | HINGE |
| Repalced by: A 1137200937 | ||
| 014 | A 1137200937 | HINGE |
| TOP RIGHT | ||
| A 1137200938 | HINGE | |
| BOTTOM LEFT | ||
| 016 | A 1137201038 | HINGE |
| Repalced by: A 1137200938 | ||
| 016 | A 1137200938 | HINGE |
| BOTTOM RIGHT | ||
| 017 | A 0009970488 | GREASE NIPPLE |
| N 000933008114 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| HINGES TO DOORS | ||
| N 000137008204 | SPRING WASHER | |
| HINGES TO DOORS | ||
| N 000933008108 | SCREW | |
| DOORS TO BODY | ||
| N 000127008203 | LOCK WASHER | |
| DOORS TO BODY | ||
| A 1369903940 | WASHER | |
| Repalced by: A 1809900640 | ||
| A 1809900640 | WASHER | |
| DOORS TO BODY | ||
| 022 | A 1137200116 | DOOR CHECK |
| N 000933010130 | SCREW | |
| DOOR CHECK TO DOOR | ||
| N 000127010202 | LOCK WASHER | |
| DOOR CHECK TO DOOR | ||
| 025 | A 0009840755 | WASHER |
| DOOR CHECK TO DOOR | ||
| 026 | A 1137230286 | CAM |
| N 000933008114 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| CAMS TO FRONT PANEL PILLAR | ||
| N 000127008203 | LOCK WASHER | |
| CAMS TO FRONT PANEL PILLAR | ||
| 028 | A 1137230134 | SPRING |
| A 1107201535 | LOCK | |
| WITH INTERIOR LOCKING MECHANISM, LEFT | ||
| A 1157200135 | LOCK | |
| WITH INTERIOR LOCKING MECHANISM, LEFT | ||
| A 1107301235 | DOOR LOCK | |
| LESS INTERIOR LOCKING MECHANISM, RIGHT | ||
| 033 | A 1157200435 | LOCK |
| LESS INTERIOR LOCKING MECHANISM, RIGHT | ||
| N 007987006130 | SCREW | |
| Repalced by: A 0009903330 | ||
| A 0009903330 | SCREW | |
| DOOR LOCK TO DOOR FRAMEWORK | ||
| A 1117235124 | EDGING | |
| LEFT COVER PLATE BETWEEN LOCK AND DOOR LINING | ||
| 037 | A 1117235224 | EDGING |
| RIGHT COVER PLATE BETWEEN LOCK AND DOOR LINING | ||
| N 007988004105 | SCREW | |
| EDGING TO DOOR | ||
| A 1137200192 | ROD | |
| WITH ADDITIONAL LOCKING MECHANISM, LEFT | ||
| A 1137200292 | ROD | |
| WITH ADDITIONAL LOCKING MECHANISM, RIGHT | ||
| 041 | A 1137200392 | ROD |
| 042 | A 1219870237 | MOLDED PIECE |
| 043 | A 1119920025 | SLEEVE |
| N 001434004009 | PIN | |
| PULL RODS WITH ADDITIONAL LOCKING MECHANISM TO DOOR LOCKS | ||
| N 000094001006 | COTTER PIN | |
| PULL RODS WITH ADDITIONAL LOCKING MECHANISM TO DOOR LOCKS | ||
| 045 | A 1009940160 | LOCK |
| 045 | A 1009940160 | LOCK |
| A 1137200393 | DOOR LOCKING DEVICE | |
| LEFT | ||
| A 1137200493 | DOOR LOCKING DEVICE | |
| RIGHT | ||
| A 1219870237 | MOLDED PIECE | |
| A 1119920025 | SLEEVE | |
| A 1009940160 | LOCK | |
| INTERIOR LOCKING DEVICE TO LOCKING ROD | ||
| 051 | A 1137200693 | DOOR LOCKING DEVICE |
| A 1137200993 | DOOR LOCKING DEVICE | |
| LEFT | ||
| 052 | A 1137201093 | DOOR LOCKING DEVICE |
| RIGHT | ||
| 053 | A 1009940160 | LOCK |
| A 1219870237 | MOLDED PIECE | |
| A 1119920025 | SLEEVE | |
| 055 | A 1139940160 | LOCK |
| LOCKING LINKAGE TO INTERIOR LOCKING DEVICE | ||
| A 1009940160 | LOCK | |
| LOCKING LINKAGE TO DOOR LOCK | ||
| 056 | A 1137660011 | ESCUTCHEON |
| INTERIOR LOCKING DEVICE | ||
| N 007987003107 | SCREW | |
| WELL PLATE TO DOOR | ||
| H 301807230161 | ESCUTCHEON | |
| Repalced by: A 1807230161 | ||
| A 1807230161 | ESCUTCHEON | |
| H 301807230224 | EDGING | |
| Repalced by: A 1807230224 | ||
| A 1807230524 | EDGING | |
| ESCUTCHEON TO INTERIOR LOCKING DEVICE | ||
| N 007987003108 | SCREW | |
| ESCUTCHEONS TO SHELLS | ||
| A 1009940160 | LOCK | |
| N 007981003246 | SHEET METAL SCREW | |
| INTERIOR LOCKING DEVICES TO DOORS | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| INTERIOR LOCKING DEVICES TO DOORS | ||
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| INTERIOR LOCKING DEVICES TO DOORS | ||
| A 1107201104 | LOCKING EYE | |
| LEFT WITH RUBBER-CUSHIONED CATCH SLEEVE | ||
| A 1107201504 | LOCKING EYE | |
| LEFT WITH RUBBER-CUSHIONED CATCH SLEEVE | ||
| A 1157200504 | LOCKING EYE | |
| LEFT WITH RUBBER-CUSHIONED CATCH SLEEVE | ||
| A 1107201204 | LOCKING EYE | |
| RIGHT WITH RUBBER-CUSHIONED CATCH SLEEVE | ||
| 069 | A 1107201604 | LOCKING EYE |
| RIGHT | ||
| A 1157200604 | LOCKING EYE | |
| 072 | A 1107230211 | PLATE |
| Repalced by: A 1007230211 | ||
| 072 | A 1007230211 | PLATE |
| 2.0 MM | ||
| 2.0 MM | ||
| A 1157230511 | PLATE | |
| 2.0 MM | ||
| A 1107230311 | PLATE | |
| 2.6 MM | ||
| A 1157230611 | PLATE | |
| 2.6 MM | ||
| N 007988006124 | SCREW | |
| A 1107600961 | INTERIOR HANDLE ASSEMBLY | |
| LEFT FRONT DOOR | ||
| A 1087600561 | INTERIOR HANDLE ASSEMBLY | |
| LEFT FRONT DOOR | ||
| A 1107601061 | INTERIOR HANDLE ASSEMBLY | |
| RIGHT FRONT DOOR | ||
| 079 | A 1087600661 | INTERIOR HANDLE ASSEMBLY |
| RIGHT FRONT DOOR | ||
| N 007985006132 | SCREW | |
| INTERIOR HANDLE ASSEMBLIES TO DOOR INSIDE PANELS | ||
| A 0009841755 | WASHER | |
| INTERIOR HANDLE ASSEMBLIES TO DOOR INSIDE PANELS | ||
| N 006797006145 | TOOTHED WASHER | |
| INTERIOR HANDLE ASSEMBLIES TO DOOR INSIDE PANELS | ||
| A 1107660511 | ESCUTCHEON | |
| LEFT INTERIOR HANDLE ASSEMBLY | ||
| A 1087660511 | ESCUTCHEON | |
| LEFT INTERIOR HANDLE ASSEMBLY | ||
| A 1107660611 | ESCUTCHEON | |
| RIGHT INTERIOR HANDLE ASSEMBLY | ||
| 086 | A 1087660611 | ESCUTCHEON |
| RIGHT INTERIOR HANDLE ASSEMBLY | ||
| 087 | A 1157660098 | SEAL |
| INTERIOR HANDLE ASSEMBLY | ||
| N 007987004119 | SCREW | |
| WELL PLATES TO INTERIOR HANDLE MOUNTING PLATES | ||
| N 006797004333 | TOOTHED WASHER | |
| A 1107660690 | INSERT | |
| WELL PLATE | ||
| A 1087660390 | INSERT | |
| LEFT WELL PLATE | ||
| 091 | A 1087660490 | INSERT |
| RIGHT WELL PLATE | ||
| A 1137660301 | DOOR HANDLE | |
| OUTSIDE LEFT | ||
| 092 | A 1137660501 | DOOR HANDLE |
| OUTSIDE LEFT | ||
| A 1137660401 | DOOR HANDLE | |
| OUTSIDE RIGHT | ||
| A 1137660601 | DOOR HANDLE | |
| OUTSIDE RIGHT | ||
| A 1137600359 | DOOR HANDLE | |
| LEFT;WORKSHOP VERSION,WITH KEY;ANY LOCK | ||
| A 1137600459 | DOOR HANDLE | |
| RIGHT;WORKSHOP VERSION,WITH KEY; ANY LOCK | ||
| A 1137600159 | DOOR HANDLE | |
| LESS KEY,LEFT | ||
| A 1137600259 | DOOR HANDLE | |
| LESS KEY,RIGHT | ||
| 097 | A 1207660015 | PIN |
| 098 | A 0007661106 | KEY |
| MARKED WITH THE LETTER "T", SAME LOCK AS OF FILLER CAP | ||
| A 0007663506 | KEY | |
| Repalced by: A 0007600206 | ||
| A 0007600206 | KEY | |
| MASTER KEY | ||
| A 0007663806 | KEY | |
| A 0007663606 | KEY | |
| Repalced by: A 0007600306 | ||
| A 0007600306 | KEY | |
| SECONDARY KEY | ||
| A 0007664006 | KEY | |
| A 0007664406 | KEY HEAD | |
| FOR MASTER KEY | ||
| A 0007664506 | KEY HEAD | |
| FOR SECONDARY KEY | ||
| A 0007661906 | KEY | |
| BLANK DOOR HANDLE AND FOR FILLER CAP, WHEN ORDERING, STATE LETTER OF KEY BITTING | ||
| 103 | A 1117665405 | PAD |
| LEFT FRONT | ||
| A 1117665305 | PAD | |
| RIGHT FRONT | ||
| 104 | A 1117665205 | PAD |
| LEFT REAR | ||
| A 1117665105 | PAD | |
| RIGHT REAR | ||
| N 007985006157 | SCREW | |
| N 006797006145 | TOOTHED WASHER | |
| A 1137201317 | WINDOW RUN | |
| Repalced by: A 1137251332 | ||
| A 1137251332 | GUIDE JAW | |
| LEFT FRONT | ||
| 108 | A 1137201417 | WINDOW RUN |
| RIGHT FRONT | ||
| A 1137251332 | GUIDE JAW | |
| FRONT TOP LEFT | ||
| 109 | A 1137251432 | GUIDE JAW |
| FRONT TOP RIGHT | ||
| 110 | A 1139900377 | SCREW |
| A 1137250934 | SLIDE | |
| FRONT TOP LEFT | ||
| 112 | A 1137251034 | SLIDE |
| FRONT TOP RIGHT | ||
| 113 | A 1137250099 | RING |
| A 1137201117 | WINDOW RUN | |
| LEFT REAR | ||
| 114 | A 1137201217 | WINDOW RUN |
| RIGHT REAR | ||
| A 1137250568 | WATER DEFLECTOR RAIL | |
| LEFT FRONT | ||
| 116 | A 1137250668 | WATER DEFLECTOR RAIL |
| RIGHT FRONT | ||
| A 1137250768 | WATER DEFLECTOR RAIL | |
| LEFT REAR | ||
| 118 | A 1137250868 | WATER DEFLECTOR RAIL |
| RIGHT REAR | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 006797006145 | TOOTHED WASHER | |
| WINDOW RUNS AND DRIP MOULDINGS TO TOP OF DOORS | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| WINDOW RUNS AND DRIP MOULDINGS TO TOP OF DOORS | ||
| A 1205450176 | WASHER | |
| Repalced by: A 1205450076 | ||
| A 1205450076 | WASHER | |
| WINDOW RUNS AND DRIP MOULDINGS TO TOP OF DOORS | ||
| 123 | A 1117255247 | ADAPTER |
| 1 MM WINDOW RUNS AND DRIP MOULDINGS TO TOP OF DOORS | ||
| A 1117255147 | ADAPTER | |
| 0.5 MM WINDOW RUNS AND DRIP MOULDINGS TO TOP OF DOORS | ||
| N 000933008135 | SCREW | |
| WINDOW RUNS AND DRIP MOULDINGS TO BOTTOM OF DOORS | ||
| N 912004008102 | LOCK WASHER | |
| WINDOW RUNS AND DRIP MOULDINGS TO BOTTOM OF DOORS | ||
| N 000125008418 | WASHER | |
| WINDOW RUNS AND DRIP MOULDINGS TO BOTTOM OF DOORS | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| WINDOW RUNS AND DRIP MOULDINGS TO BOTTOM OF DOORS | ||
| N 000933006086 | SCREW | |
| DRIP MOULDING TO WINDOW RUN, REAR BOTTOM | ||
| N 000137006204 | SPRING WASHER | |
| DRIP MOULDING TO WINDOW RUN, REAR BOTTOM | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| DRIP MOULDING TO WINDOW RUN, REAR BOTTOM | ||
| A 1137250302 | WINDOW REGULATOR | |
| Repalced by: A 1137250502 | ||
| A 1137250502 | WINDOW REGULATOR | |
| Repalced by: A 1137250702 | ||
| A 1137250702 | WINDOW REGULATOR | |
| LEFT | ||
| A 1137250402 | WINDOW REGULATOR | |
| Repalced by: A 1137250602 | ||
| A 1137250602 | WINDOW REGULATOR | |
| Repalced by: A 1137250802 | ||
| 137 | A 1137250802 | WINDOW REGULATOR |
| RIGHT | ||
| N 000933006026 | SCREW | |
| WINDOW REGULATOR TO DOOR FRAMEWORK | ||
| N 006797006145 | TOOTHED WASHER | |
| WINDOW REGULATOR TO DOOR FRAMEWORK | ||
| N 000125006421 | WASHER | |
| WINDOW REGULATOR TO DOOR FRAMEWORK | ||
| A 1137250560 | LEVER | |
| Repalced by: A 1137250960 | ||
| A 1137250960 | LEVER | |
| LEFT WINDOW | ||
| A 1137250660 | LEVER | |
| Repalced by: A 1137251060 | ||
| 143 | A 1137251060 | LEVER |
| RIGHT WINDOW | ||
| 144 | A 0007680605 | SPRING |
| 145 | A 0009879440 | RUBBER BUFFER |
| 146 | A 1139840037 | SLIDE |
| Repalced by: A 1155860072 | ||
| 146 | A 1155860072 | REPAIR KIT |
| MOUNTING PLATE TO REGULATOR ARM, FRONT; AND GUIDE TO LEVER, REAR | ||
| 147 | A 0009842456 | WASHER |
| MOUNTING PLATE TO REGULATOR ARM, FRONT; AND GUIDE TO LEVER, REAR | ||
| 148 | A 0009900548 | WASHER |
| MOUNTING PLATE TO REGULATOR ARM, FRONT; AND GUIDE TO LEVER, REAR | ||
| A 0009940360 | LOCK | |
| Repalced by: N 912002010000 | ||
| 149 | N 912002010001 | LOCK |
| MOUNTING PLATE TO REGULATOR ARM, FRONT; AND GUIDE TO LEVER, REAR | ||
| N 000933006026 | SCREW | |
| LEVER TO DOOR FRAMEWORK | ||
| N 006797006145 | TOOTHED WASHER | |
| LEVER TO DOOR FRAMEWORK | ||
| N 000125006421 | WASHER | |
| LEVER TO DOOR FRAMEWORK | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| LEVER TO DOOR FRAMEWORK | ||
| N 006797008141 | TOOTHED WASHER | |
| Repalced by: N 006797008120 | ||
| N 006797008120 | TOOTHED WASHER | |
| LEVER TO DOOR FRAMEWORK | ||
| N 000125008418 | WASHER | |
| LEVER TO DOOR FRAMEWORK | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| WINDOW REGULATOR TO LEVER | ||
| N 000137010205 | PART NAME MISSING | |
| WINDOW REGULATOR TO LEVER | ||
| A 0009940360 | LOCK | |
| Repalced by: N 912002010000 | ||
| N 912002010001 | LOCK | |
| WINDOW REGULATOR TO LEVER | ||
| A 1137250301 | WINDOW REGULATOR RAIL | |
| LEFT | ||
| 160 | A 1137250401 | WINDOW REGULATOR RAIL |
| RIGHT | ||
| 161 | A 1139840037 | SLIDE |
| Repalced by: A 1155860072 | ||
| 161 | A 1155860072 | REPAIR KIT |
| LEVER TO WINDOW REGULATOR RAIL, REAR | ||
| 162 | A 0009842456 | WASHER |
| LEVER TO WINDOW REGULATOR RAIL, REAR | ||
| 163 | A 0009900548 | WASHER |
| LEVER TO WINDOW REGULATOR RAIL, REAR | ||
| A 0009940360 | LOCK | |
| Repalced by: N 912002010000 | ||
| 164 | N 912002010001 | LOCK |
| LEVER TO WINDOW REGULATOR RAIL, REAR | ||
| 165 | A 1155860072 | REPAIR KIT |
| Repalced by: A 1237200114 | ||
| 165 | A 1237200114 | REPAIR KIT |
| WINDOW REGULATOR | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| LEVER TO WINDOW REGULATOR RAIL, FRONT | ||
| N 000137006204 | SPRING WASHER | |
| LEVER TO WINDOW REGULATOR RAIL, FRONT | ||
| N 000125006421 | WASHER | |
| LEVER TO WINDOW REGULATOR RAIL, FRONT | ||
| A 1137200118 | CRANK OPERATED WINDOW | |
| LEFT | ||
| 169 | A 1137200218 | CRANK OPERATED WINDOW |
| RIGHT | ||
| A 1137250932 | GUIDE JAW | |
| FRONT BOTTOM LEFT | ||
| 170 | A 1137251032 | GUIDE JAW |
| FRONT BOTTOM RIGHT | ||
| A 1137250534 | SLIDE | |
| FRONT BOTTOM LEFT | ||
| 171 | A 1137250634 | SLIDE |
| FRONT BOTTOM RIGHT | ||
| A 1137251132 | GUIDE JAW | |
| REAR LEFT | ||
| 172 | A 1137251232 | GUIDE JAW |
| REAR RIGHT | ||
| A 1137250734 | SLIDE | |
| REAR LEFT | ||
| 173 | A 1137250834 | SLIDE |
| REAR RIGHT | ||
| 174 | A 1137250099 | RING |
| 175 | A 1139900377 | SCREW |
| FRONT AND REAR GUIDE JAWS TO GLASS PAN5 | ||
| A 1137200147 | RETAINING RAIL | |
| LEFT CRANK OPERATED WINDOW | ||
| 176 | A 1137200247 | RETAINING RAIL |
| RIGHT CRANK OPERATED WINDOW | ||
| 177 | A 1108800017 | STOP SCREW |
| Repalced by: A 1269900015 | ||
| 177 | A 1269900015 | SCREW |
| Repalced by: A 2019880211 | ||
| 177 | A 2019880211 | BUFFER |
| Repalced by: A 2019880511 | ||
| 177 | A 2019880511 | BUFFER |
| CRANK OPERATED WINDOW | ||
| N 000934006007 | NUT | |
| N 000933005071 | SCREW | |
| WINDOW REGULATOR RAILS AND RETAINING RAILS TO GLASS PANES | ||
| N 006797005132 | TOOTHED WASHER | |
| WINDOW REGULATOR RAILS AND RETAINING RAILS TO GLASS PANES | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| WINDOW REGULATOR RAILS AND RETAINING RAILS TO GLASS PANES | ||
| 181 | A 0009870842 | SPACER |
| WINDOW REGULATOR RAILS AND RETAINING RAILS TO GLASS PANES | ||
| A 0009850330 | SEALING SECTION | |
| Repalced by: A 1157250965 | ||
| A 1217250166 | SEAL | |
| Repalced by: A 1157250965 | ||
| 182 | A 1157250965 | SEALING RAIL |
| 2200 MM OUTSIDE AND INSIDE, AT DOOR CRANK OPERATED WINDOWS | ||
| 183 | A 0019889278 | CLIP |
| INSIDE SEALING RAILS TO DOORS | ||
| 184 | A 0019889378 | CLIP |
| OUTSIDE SEALING RAILS TO DOORS | ||
| A 1107600402 | CRANK | |
| A 1087600102 | CRANK | |
| Repalced by: A 1237600102 | ||
| 185 | A 1237600102 | CRANK |
| N 007987004135 | SCREW | |
| CRANK TO WINDOW REGULATOR | ||
| N 006797004333 | TOOTHED WASHER | |
| CRANK TO WINDOW REGULATOR | ||
| 188 | A 1107680195 | PAD |
| CRANK | ||
| A 1087680095 | PAD | |
| Repalced by: A 1237600020 | ||
| A 1237600020 | COVERING | |
| Repalced by: A 1237600120 | ||
| A 1237600120 | COVERING | |
| CRANK | ||
| A 1107680013 | WASHER | |
| Repalced by: A 1087680113 | ||
| 190 | A 1087680113 | WASHER |
| CRANK PAD | ||
| 191 | A 1137680003 | ESCUTCHEON |
| Repalced by: A 1077680003 | ||
| 191 | A 1077680003 | ESCUTCHEON |
| CRANK PAD | ||
| A 1137250365 | SEALING RAIL | |
| LEFT AT WINDSHIELD PILLAR | ||
| 193 | A 1137250465 | SEALING RAIL |
| RIGHT AT WINDSHIELD PILLAR | ||
| 194 | A 1137250141 | BRACKET |
| AT SEALING RAIL | ||
| A 1137250197 | PAD | |
| LEFT WEATHERSTRIP TO WINDSHIELD PILLAR, BOTTOM | ||
| 195 | A 1137250297 | PAD |
| RIGHT SEALING RAIL TO WINDSHIELD PILLAR, BOTTOM | ||
| N 007982003215 | SHEET METAL SCREW | |
| SEALING RAIL TO WINDSHIELD PILLAR | ||
| A 1137250565 | SEALING RAIL | |
| LEFT FRONT LATERAL AT FOLDING TOP FRAME | ||
| 197 | A 1137250665 | SEALING RAIL |
| RIGHT FRONT LATERAL AT FOLDING TOP FRAME | ||
| A 1137250765 | SEALING RAIL | |
| LEFT REAR AT FOLDING TOP FRAME | ||
| 198 | A 1137250865 | SEALING RAIL |
| RIGHT REAR AT FOLDING TOP FRAME | ||
| N 000965004009 | SCREW | |
| SEALING RAIL TO FOLDING TOP FRAME | ||
| A 1137250965 | SEALING RAIL | |
| LEFT AT FOLDING TOP PILLAR | ||
| 201 | A 1137251065 | SEALING RAIL |
| RIGHT AT FOLDING TOP PILLAR | ||
| N 007982003315 | SHEET METAL SCREW | |
| SEALING RAILS TO FOLDING TOP PILLARS | ||
| A 0009903336 | SCREW | |
| A 1137720198 | SEAL | |
| LEFT AT FOLDING TOP PILLAR | ||
| 205 | A 1137720298 | SEAL |
| RIGHT AT FOLDING TOP PILLAR | ||
| N 007982002212 | SHEET METAL SCREW | |
| SEAL TO FABRIC RETAINING RAIL | ||
| A 1137250382 | GARNISH MOULDING | |
| AT WINDOW MOULDING, LEFT | ||
| 207 | A 1137250482 | GARNISH MOULDING |
| AT WINDOW MOULDING, RIGHT | ||
| A 0009882678 | CLIP | |
| GARNISH MOULDINGS TO WINDOW MOULDINGS | ||
| A 1137220145 | RETAINING RAIL | |
| TOP LEFT DOOR SEAL, HINGE SIDE | ||
| 300 | A 1137220245 | RETAINING RAIL |
| TOP RIGHT DOOR SEAL, HINGE SIDE | ||
| A 1137220345 | RETAINING RAIL | |
| LEFT DOOR SEAL, HINGE SIDE | ||
| 302 | A 1137220445 | RETAINING RAIL |
| RIGHT DOOR SEAL, HINGE SIDE | ||
| N 007983003335 | SHEET METAL SCREW | |
| RETAINING RAILS-HINGE SIDE-TO FRAMEWORK | ||
| 304 | A 1137270017 | BUSHING |
| RETAINING RAILS-HINGE SIDE-TO FRAMEWORK | ||
| 305 | A 1137251766 | SEAL |
| LEFT AND RIGHT, AT FRONT PANEL PILLARS | ||
| A 1137251966 | SEAL | |
| LEFT AT FOLDING TOP FRAME AND FOLDING TOP PILLAR | ||
| 307 | A 1137252066 | SEAL |
| RIGHT AT FOLDING TOP FRAME AND FOLDING TOP PILLAR | ||
| 308 | A 1139880278 | CLIP |
| 308 | A 1139880278 | CLIP |
| 308 | A 1139880278 | CLIP |
| 308 | A 1139880278 | CLIP |
| 308 | A 1139880278 | CLIP |
| A 1137200778 | WEATHERSTRIP | |
| LEFT | ||
| 312 | A 1137200878 | WEATHERSTRIP |
| RIGHT | ||
| A 1077270087 | COVERING | |
| AT DOOR INTERIOR PLATE | ||
| 314 | A 1137200085 | WELT |
| FOR FRONT PANEL PILLARS | ||
| 316 | A 1137200185 | WELT |
| FOR BOX PILLARS | ||
| A 1137201370 | PANELLING | |
| LEFT, IMITATION LEATHER TRIM | ||
| A 1137203370 | PANELLING | |
| LEFT, IMITATION LEATHER TRIM | ||
| A 1137201570 | PANELLING | |
| LEFT, LEATHER TRIM | ||
| 320 | A 1137201470 | PANELLING |
| RIGHT, IMITATION LEATHER TRIM | ||
| 321 | A 1137203470 | PANELLING |
| RIGHT, IMITATION LEATHER TRIM | ||
| A 1137201670 | PANELLING | |
| RIGHT, LEATHER TRIM | ||
| N 000439004201 | NUT | |
| POCKET TO DOOR LINING | ||
| N 009021004108 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| POCKET TO DOOR LINING | ||
| N 007981006304 | SHEET METAL SCREW | |
| DOOR LINING TO RETAINING PLATE | ||
| N 007985006128 | SCREW | |
| DOOR LINING TO RETAINING PLATE | ||
| N 006797006145 | TOOTHED WASHER | |
| DOOR LINING TO RETAINING PLATE | ||
| 327 | A 1159710043 | ORNAMENTAL COVER |
| REAR FOR ARMREST | ||
| 328 | A 1159710143 | ORNAMENTAL COVER |
| FRONT FOR ARMREST | ||
| A 1137270172 | RAIL | |
| BOTTOM LEFT WEATHERSTRIPS TO FRONT PANEL PILLARS | ||
| 329 | A 1137270272 | RAIL |
| BOTTOM RIGHT WEATHERSTRIPS TO FRONT PANEL PILLARS | ||
| A 1137270372 | RAIL | |
| TOP LEFT WEATHERSTRIPS TO FRONT PANEL PILLARS | ||
| 330 | A 1137270472 | RAIL |
| TOP RIGHT WEATHERSTRIPS TO FRONT PANEL PILLARS | ||
| N 007983002303 | SHEET METAL SCREW | |
| RAILS TO FRONT PANEL PILLARS | ||
| 332 | A 1117275290 | INSULATION |
| Repalced by: A 1237270090 | ||
| 332 | A 1237270090 | INSULATION |
| Repalced by: A 1107270390 | ||
| 332 | A 1107270390 | INSULATION |
| Repalced by: A 2106820008 | ||
| 332 | A 2106820008 | INSULATION |
| ON DOOR OUTSIDE PANELS | ||
| A 1137280124 | COVER RAIL | |
| LEFT, HINGE SIDE FOR DOOR LINING | ||
| 333 | A 1137280224 | COVER RAIL |
| RIGHT, HINGE SIDE FOR DOOR LINING | ||
| A 1137280324 | COVER RAIL | |
| LEFT BOTTOM FOR DOOR LINING | ||
| 334 | A 1137280424 | COVER RAIL |
| RIGHT BOTTOM FOR DOOR LINING | ||
| N 007982002219 | SHEET METAL SCREW | |
| Repalced by: N 007982002212 | ||
| N 007982002212 | SHEET METAL SCREW | |
| BINDING RAILS TO DOORS | ||
| A 1137280230 | GARNISH MOULDING | |
| Repalced by: A 1137280130 | ||
| 336 | A 1137280130 | GARNISH MOULDING |
| FOR DOOR EDGES | ||
| A 1137280097 | PAD | |
| UNDER DOOR EDGE GARNISH MOULDINGS | ||
| 339 | A 0019889678 | CLIP |
| EDGE GARNISH MOULDINGS TO DOORS | ||
| A 1137280135 | GARNISH MOULDING | |
| LEFT ON DOORS, BOTTOM | ||
| 342 | A 1137280235 | GARNISH MOULDING |
| RIGHT ON DOORS, BOTTOM | ||
| 343 | A 0029881178 | CLIP |
| GARNISH MOULDINGS TO BOTTOM OF DOORS | ||
| 344 | A 0009870915 | PLUG |
| GARNISH MOULDINGS TO BOTTOM OF DOORS | ||
| 345 | A 0009940048 | LOCK |
| GARNISH MOULDINGS TO BOTTOM OF DOORS | ||
| A 1137280131 | GARNISH MOULDING | |
| LEFT AT DOOR BOTTOM BEADED EDGES | ||
| 347 | A 1137280231 | GARNISH MOULDING |
| RIGHT AT DOOR BOTTOM BEADED EDGES | ||
| N 007982003316 | SHEET METAL SCREW | |
| GARNISH MOULDINGS TO DOORS | ||
| 349 | A 0019872125 | PLASTIC SECTION |
| 1121 MM FOR GARNISH MOULDINGS AT DOOR BOTTOM BEADED EDGES | ||
| A 1137280121 | ORNAMENTAL COVER | |
| LEFT LOCK SIDE | ||
| 351 | A 1137280221 | ORNAMENTAL COVER |
| RIGHT LOCK SIDE | ||
| A 1137280524 | COVER RAIL | |
| LEFT FOR DOOR LINING LOCK SIDE | ||
| 352 | A 1137280624 | COVER RAIL |
| RIGHT FOR DOOR LINING LOCK SIDE | ||
| N 007983002203 | SHEET METAL SCREW | |
| ORNAMENTAL COVERS AND COVER RAILS TO DOORS | ||
| A 1137280321 | ORNAMENTAL COVER | |
| LEFT HINGE SIDE | ||
| 354 | A 1137280421 | ORNAMENTAL COVER |
| RIGHT HINGE SIDE | ||
| N 007983002203 | SHEET METAL SCREW | |
| COVERING TO DOOR | ||
| 355 | A 1137270140 | FILLER |
| DOOR FOLDING, HINGE SIDE, TOP; TO PLUG WINDOW RUN MOUNTING HOLES | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
