Transporto priemonė: 280 SE/C USA; VIN numerio dalis: 111025

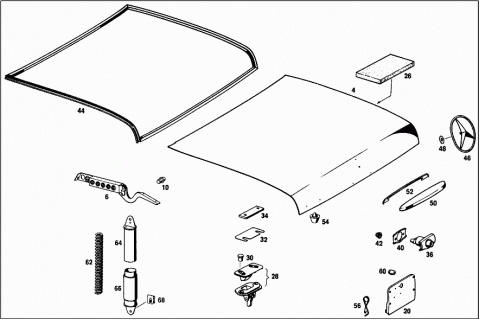

Grupė: 75 TRUNK LID - 001 OUTSIDE FLAPS
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 1117505075 | REAR LID |
| A 1117508075 | REAR LID | |
| 006 | A 1117505187 | HINGE |
| LEFT | ||
| A 1117508387 | HINGE | |
| LEFT | ||
| A 1117505287 | HINGE | |
| RIGHT | ||
| A 1117508487 | HINGE | |
| RIGHT | ||
| 010 | A 1119840435 | CLINCH-BOLT |
| N 000933006026 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000125006421 | WASHER | |
| N 000933006026 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000125006421 | WASHER | |
| A 1117505206 | FLAP | |
| Repalced by: A 1117505606 | ||
| 020 | A 1117505606 | FLAP |
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000125006421 | WASHER | |
| A 1117575059 | BRACE | |
| Repalced by: A 1157580897 | ||
| A 1107570059 | BRACE | |
| Repalced by: A 1157580997 | ||
| 026 | A 1157580897 | INTERMEDIATE LAYER |
| 11 MM CELLULAR RUBBER | ||
| A 1157580997 | INTERMEDIATE LAYER | |
| Repalced by: A 1237580397 | ||
| A 1237580397 | INTERMEDIATE LAYER | |
| 6 MM CELLULAR RUBBER | ||
| 028 | A 1117505085 | LOCK |
| 030 | A 0019870640 | RUBBER BUFFER |
| Repalced by: A 1239870040 | ||
| 030 | A 1239870040 | RUBBER BUFFER |
| 032 | A 1117585010 | BASE PLATE |
| A 1117585111 | PLATE | |
| Repalced by: A 1167500011 | ||
| 034 | A 1167500011 | PLATE |
| N 007987006153 | SCREW | |
| 036 | A 1117505184 | FASTENER |
| 036 | A 1117505184 | FASTENER |
| A 1117505385 | LOCK | |
| WORKSHOP VERSION WITH KEY; ONLY W/CODE 466 (CENTRAL LOCKING MECHANISM) | ||
| A 1117505385 | LOCK | |
| WORKSHOP VERSION WITH KEY; ONLY W/CODE 466 (CENTRAL LOCKING MECHANISM) | ||
| A 1117505384 | FASTENER | |
| LESS KEY | ||
| A 1117505384 | FASTENER | |
| LESS KEY | ||
| 040 | A 1117585105 | PAD |
| 042 | A 0009900550 | NUT |
| 044 | A 1117505077 | SEAL |
| A 1117508077 | SEAL | |
| A 0009899271 | CLEANER | |
| 046 | A 1117585158 | MERCEDES STAR |
| 048 | A 1109870741 | RUBBER RING |
| N 000125008418 | WASHER | |
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| 050 | A 1117585002 | HANDLE |
| A 1117585090 | SHIM | |
| Repalced by: A 1087580105 | ||
| 052 | A 1087580105 | PAD |
| N 007985005125 | SCREW | |
| Repalced by: N 007985005157 | ||
| N 007985005157 | SCREW | |
| N 912004005100 | LOCK WASHER | |
| 054 | A 1119871540 | RUBBER BUFFER |
| A 1117580127 | SPRING | |
| Repalced by: A 1087580336 | ||
| 056 | A 1087580336 | SPRING |
| LEFT | ||
| A 1117580227 | SPRING | |
| Repalced by: A 1087580436 | ||
| A 1087580436 | SPRING | |
| RIGHT | ||
| A 1119870140 | RUBBER BUFFER | |
| Repalced by: A 1119871740 | ||
| 060 | A 1119871740 | RUBBER BUFFER |
| 062 | A 1117588026 | SPRING |
| 064 | A 1117508247 | SPRING SLEEVE |
| TOP | ||
| 066 | A 1117508347 | SPRING SLEEVE |
| BOTTOM | ||
| A 0009940360 | LOCK | |
| Repalced by: N 912002010000 | ||
| 068 | N 912002010001 | LOCK |
