Transporto priemonė: 280 SEL USA; VIN numerio dalis: 108019

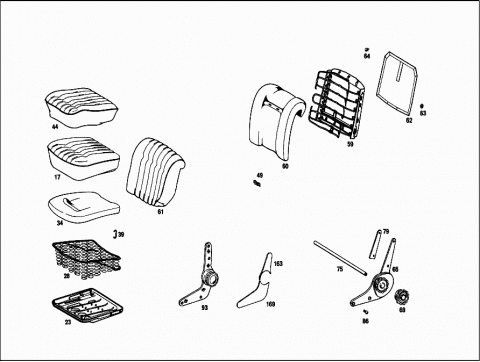

Grupė: 91 FRONT SEATS - 001 PASSENGER SEATS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 1089100101 | FRONT SEAT | |
| Repalced by: A 1089109701 | ||
| A 1089109701 | FRONT SEAT | |
| LEFT | ||
| A 1089100401 | FRONT SEAT | |
| RIGHT | ||
| A 1089102109 | FRONT SEAT | |
| LEFT | ||
| A 1089102009 | FRONT SEAT | |
| RIGHT | ||
| A 1089108312 | FRONT SEAT | |
| LEFT | ||
| A 1089108612 | FRONT SEAT | |
| RIGHT | ||
| A 1089103348 | FRONT SEAT | |
| LEFT | ||
| A 1089103648 | FRONT SEAT | |
| RIGHT | ||
| A 1089108309 | FRONT SEAT | |
| LEFT | ||
| A 1089108609 | FRONT SEAT | |
| RIGHT | ||
| A 1089107912 | FRONT SEAT | |
| LEFT | ||
| A 1089108212 | FRONT SEAT | |
| RIGHT | ||
| A 1089103948 | FRONT SEAT | |
| LEFT | ||
| A 1089104248 | FRONT SEAT | |
| RIGHT | ||
| 005 | A 1089108153 | FRONT SEAT |
| LEFT | ||
| 011 | A 1089108453 | FRONT SEAT |
| RIGHT | ||
| A 1089102003 | FRONT SEAT | |
| WITH SWITCH | ||
| A 1089105630 | SEAT CUSHION | |
| WITH SWITCH | ||
| A 1089101803 | FRONT SEAT | |
| WITH SWITCH | ||
| A 1089105530 | SEAT CUSHION | |
| WITH SWITCH | ||
| A 1089102803 | FRONT SEAT | |
| WITH SWITCH | ||
| A 1089102603 | FRONT SEAT | |
| WITH SWITCH | ||
| A 1089100030 | SEAT CUSHION | |
| A 1109101930 | SEAT CUSHION | |
| 017 | A 1089104530 | SEAT CUSHION |
| A 1109102022 | CUSHION FRAME | |
| Repalced by: A 1159104322 | ||
| 023 | A 1159104322 | CUSHION FRAME |
| 028 | A 1089100040 | SPRING CORE |
| A 1089140014 | PAD | |
| Repalced by: A 1089142214 | ||
| A 1089142214 | PAD | |
| A 1159141080 | PAD | |
| Repalced by: A 1159141214 | ||
| A 1159141214 | PAD | |
| Repalced by: A 1089142214 | ||
| A 1089142214 | PAD | |
| 034 | A 1089141714 | PAD |
| 039 | A 0009842061 | CLIP |
| A 1089100046 | COVER | |
| 044 | A 1089103246 | COVER |
| 049 | A 0039880178 | CLIP |
| A 1089100132 | BACKREST | |
| Repalced by: A 1089106332 | ||
| A 1089102532 | BACKREST | |
| Repalced by: A 1089106332 | ||
| A 1089106332 | BACKREST | |
| LEFT | ||
| A 1089100232 | BACKREST | |
| Repalced by: A 1089106432 | ||
| A 1089102632 | BACKREST | |
| Repalced by: A 1089106432 | ||
| A 1089106432 | BACKREST | |
| RIGHT | ||
| A 1089108332 | BACKREST | |
| A 1089101333 | BACKREST | |
| A 1109101434 | BACKREST FRAME | |
| Repalced by: A 1109102134 | ||
| A 1109101934 | BACKREST FRAME | |
| Repalced by: A 1109102134 | ||
| 059 | A 1109102134 | BACKREST FRAME |
| WITH SPRING CORE | ||
| A 1089140116 | PAD | |
| Repalced by: A 1089141116 | ||
| A 1089141116 | PAD | |
| Repalced by: A 1159140216 | ||
| A 1089140216 | PAD | |
| Repalced by: A 1089141216 | ||
| A 1089141216 | PAD | |
| Repalced by: A 1159140216 | ||
| A 1159140216 | PAD | |
| RIGHT | ||
| A 1159141780 | PAD | |
| Repalced by: A 1089144816 | ||
| A 1089144816 | PAD | |
| 060 | A 1089144116 | PAD |
| A 0009842061 | CLIP | |
| A 1089100147 | COVER | |
| Repalced by: A 1089101747 | ||
| A 1089101747 | COVER | |
| LEFT | ||
| A 1089100247 | COVER | |
| Repalced by: A 1089101847 | ||
| A 1089101847 | COVER | |
| RIGHT | ||
| 061 | A 1089103247 | COVER |
| A 0039880178 | CLIP | |
| A 1089100039 | PANELLING | |
| 062 | A 1089102639 | PANELLING |
| N 007983003216 | SHEET METAL SCREW | |
| PANELLING TO FRONT SEAT BACKREST | ||
| 063 | A 0009850662 | WASHER |
| PANELLING TO FRONT SEAT BACKREST | ||
| 064 | A 1109870739 | RUBBER BUFFER |
| 065 | A 0009104385 | BACKREST ADJUSTER |
| OUTSIDE LEFT | ||
| A 0009104485 | BACKREST ADJUSTER | |
| OUTSIDE RIGHT | ||
| 069 | A 0009180326 | HANDWHEEL |
| A 0009104386 | BACKREST ADJUSTER | |
| INSIDE LEFT,RIGHT FRONT SEAT | ||
| A 0009104486 | BACKREST ADJUSTER | |
| INSIDE RIGHT,LEFT FRONT SEAT | ||
| 075 | A 1089180027 | LINK |
| 079 | A 0009180696 | UNDERLAYER |
| N 000966006042 | SCREW | |
| RECLINING SEAT FITTING TO FRONT SEAT BACKREST | ||
| 086 | A 1129900131 | SCREW |
| BACKREST WITH RECLINING SEAT FITTING TO FRONT SEAT CUSHION | ||
| A 0009105385 | BACKREST ADJUSTER | |
| OUTSIDE LEFT | ||
| A 0009105485 | BACKREST ADJUSTER | |
| OUTSIDE RIGHT | ||
| A 0009105985 | BACKREST ADJUSTER | |
| Repalced by: A 0009106385 | ||
| 093 | A 0009106385 | BACKREST ADJUSTER |
| OUTSIDE LEFT | ||
| A 0009106085 | BACKREST ADJUSTER | |
| Repalced by: A 0009106485 | ||
| A 0009106485 | BACKREST ADJUSTER | |
| OUTSIDE RIGHT | ||
| A 0009180426 | HANDWHEEL | |
| A 0009180236 | COVERING | |
| A 0009941260 | LOCK | |
| A 0009941360 | LOCK | |
| A 0009105386 | BACKREST ADJUSTER | |
| INSIDE LEFT | ||
| A 0009105486 | BACKREST ADJUSTER | |
| INSIDE RIGHT | ||
| A 0009106186 | BACKREST ADJUSTER | |
| Repalced by: A 0009106586 | ||
| A 0009106586 | BACKREST ADJUSTER | |
| INSIDE LEFT | ||
| A 0009106286 | BACKREST ADJUSTER | |
| Repalced by: A 0009106686 | ||
| A 0009106686 | BACKREST ADJUSTER | |
| INSIDE RIGHT | ||
| A 0009180136 | COVERING | |
| A 0009941260 | LOCK | |
| A 0009941360 | LOCK | |
| A 1119185127 | LINK | |
| A 0009903130 | SCREW | |
| A 0009902730 | SCREW | |
| A 0009902930 | SCREW | |
| A 1089900030 | SCREW | |
| WITH LOCK | ||
| 103 | A 1089100205 | SEAT GUIDE |
| INSIDE RIGHT | ||
| A 1089102005 | SEAT GUIDE | |
| OUTSIDE RIGHT | ||
| 109 | A 1139100105 | ADJUSTER |
| LEFT | ||
| A 1139100205 | ADJUSTER | |
| RIGHT | ||
| A 1089100336 | SEAT ADJUSTER | |
| Repalced by: A 1089100736 | ||
| A 1089100736 | SEAT ADJUSTER | |
| Repalced by: A 1089101136 | ||
| A 1089100536 | SEAT ADJUSTER | |
| Repalced by: A 1089101136 | ||
| A 1089100936 | SEAT ADJUSTER | |
| Repalced by: A 1089101136 | ||
| 116 | A 1089101136 | SEAT ADJUSTER |
| LEFT FRONT SEAT | ||
| A 1239100305 | ADJUSTER | |
| LEFT FRONT SEAT | ||
| 123 | A 1089101305 | SEAT GUIDE |
| TOP LEFT | ||
| A 1089101405 | SEAT GUIDE | |
| TOP RIGHT | ||
| A 0009902821 | SCREW | |
| Repalced by: N 914028006100 | ||
| N 914028006100 | COMBINATION BOLT | |
| SLIDING SEAT GUIDE AND REINFORCEMENT TO CONNECTION | ||
| A 0009908891 | NUT RETAINER | |
| SLIDING SEAT GUIDE AND REINFORCEMENT TO CONNECTION | ||
| A 1089100114 | BRACKET | |
| Repalced by: A 1169101514 | ||
| A 1089100714 | BRACKET | |
| Repalced by: A 1169101514 | ||
| 131 | A 1169101514 | BRACKET |
| LEFT | ||
| A 1089100171 | LEVER | |
| Repalced by: A 1089100371 | ||
| 137 | A 1089100371 | LEVER |
| FRONT SEAT HEIGHT ADJUSTMENT,LEFT | ||
| N 000934006007 | NUT | |
| LEVER TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| LEVER TO BRACKET | ||
| A 1089190033 | SPACER TUBE | |
| Repalced by: A 1169190033 | ||
| 144 | A 1169190033 | SPACER TUBE |
| LEVER TO BRACKET | ||
| A 0009973181 | GROMMET | |
| ADJUSTER | ||
| A 1089100118 | COVERING | |
| LEFT | ||
| 149 | A 1089191520 | COVERING |
| A 1089101105 | ADJUSTER | |
| Repalced by: A 1169100589 | ||
| A 1089103505 | SEAT GUIDE | |
| Repalced by: A 1169100589 | ||
| A 1169100589 | GUIDE RAIL | |
| OUTSIDE LEFT | ||
| A 1089100905 | ADJUSTER | |
| Repalced by: A 1089103305 | ||
| 156 | A 1089103305 | SEAT GUIDE |
| Repalced by: A 1169100805 | ||
| 156 | A 1169100805 | SEAT GUIDE |
| INSIDE BOTTOM RIGHT,LEFT FRONT SEAT | ||
| N 007988006159 | SCREW | |
| SLIDING SEAT GUIDE TO FRONT SEAT | ||
| A 0009902821 | SCREW | |
| Repalced by: N 914028006100 | ||
| N 914028006100 | COMBINATION BOLT | |
| SLIDING SEAT GUIDE TO FRONT SEAT | ||
| 163 | A 1089130128 | COVERING |
| Repalced by: A 1159132728 | ||
| 163 | A 1159132728 | COVERING |
| AT UPPER PART,LEFT | ||
| A 1089130228 | COVERING | |
| Repalced by: A 1159132828 | ||
| A 1159132828 | COVERING | |
| AT UPPER PART RIGHT | ||
| 169 | A 1089130328 | COVERING |
| Repalced by: A 1159132928 | ||
| A 1159132928 | COVERING | |
| AT LOWER PART,LEFT | ||
| A 1089130428 | COVERING | |
| Repalced by: A 1159133028 | ||
| A 1159133028 | COVERING | |
| AT LOWER PART,RIGHT | ||
| A 1089130528 | COVERING | |
| AT UPPER PART,LEFT | ||
| A 1089130628 | COVERING | |
| AT UPPER PART,RIGHT | ||
| A 1089130728 | COVERING | |
| Repalced by: A 1149130328 | ||
| A 1149130328 | COVERING | |
| AT LOWER PART,LEFT | ||
| A 1089130828 | COVERING | |
| Repalced by: A 1149130428 | ||
| A 1149130428 | COVERING | |
| AT LOWER PART,RIGHT | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| A 0009833598 | FOAM PLASTICS | |
| A 1089190411 | PLATE | |
| N 007985006135 | SCREW | |
| N 006797006145 | TOOTHED WASHER | |
| 182 | A 1089100727 | RAIL |
| HARD FOIL,FRONT SEAT BACKREST,LEFT | ||
| A 1089100127 | RAIL | |
| HARD FOIL,FRONT SEAT BACKREST,LEFT | ||
| A 1089100827 | RAIL | |
| HARD FOIL,FRONT SEAT BACKREST,RIGHT | ||
| A 1089100227 | RAIL | |
| HARD FOIL,FRONT SEAT BACKREST,RIGHT | ||
| A 1089100327 | RAIL | |
| LEATHER,FRONT SEAT BACKREST,LEFT | ||
| A 1089100427 | RAIL | |
| LEATHER,FRONT SEAT BACKREST,RIGHT | ||
| A 1109101506 | SEAT CUSHION LESS COVER | |
| A 1089100706 | SEAT CUSHION LESS COVER | |
| A 1089101406 | SEAT CUSHION LESS COVER | |
| A 1089100707 | BACKREST | |
| A 1089100807 | BACKREST | |
| A 1089103607 | BACKREST | |
| A 1089104307 | BACKREST | |
| A 1089190337 | SPRING | |
| HEIGHT ADJUSTMENT | ||
| N 000127008205 | LOCK WASHER | |
| Repalced by: A 1089900322 | ||
| A 1089900322 | SCREW | |
| Repalced by: A 1169900122 | ||
| A 1169900122 | SCREW | |
| Repalced by: A 1409901122 | ||
| A 1409901122 | SCREW | |
| FRONT SEAT TO CROSS MEMBER | ||
| A 1089900422 | SCREW | |
| Repalced by: A 1239901022 | ||
| A 1239901022 | SCREW | |
| Repalced by: A 0009909622 | ||
| A 0009909622 | SCREW | |
| Repalced by: A 0009909822 | ||
| A 0009909822 | SCREW | |
| Repalced by: A 1249900222 | ||
| A 1249900222 | SCREW | |
| Repalced by: A 1409901122 | ||
| A 1409901122 | SCREW | |
| FRONT SEAT TO CROSS MEMBER | ||
| A 0009907091 | NUT RETAINER | |
| FRONT SEAT TO CROSS MEMBER | ||
| A 0009904891 | NUT RETAINER | |
| Repalced by: A 0009909991 | ||
| A 0009909991 | NUT RETAINER | |
| FRONT SEAT TO CONSOLE | ||
| N 009021006103 | WASHER | |
| Repalced by: A 0009903822 | ||
| A 0009903822 | SCREW | |
| FRONT SEAT TO CONSOLE | ||
| A 1089190133 | SPACER TUBE | |
| Repalced by: A 1089190017 | ||
| 196 | A 1089190017 | SPACER |
| Repalced by: A 1169190017 | ||
| A 1169190017 | SPACER | |
| FRONT SEAT TO SIDE MEMBER | ||
| N 000931006095 | SCREW | |
| FRONT SEAT TO SIDE MEMBER | ||
| N 912004006102 | LOCK WASHER | |
| FRONT SEAT TO SIDE MEMBER | ||
| A 0009908791 | NUT RETAINER | |
| Repalced by: A 0009907191 | ||
| A 0009907191 | NUT RETAINER | |
| FRONT SEAT TO SIDE MEMBER | ||
| 206 | A 1089191120 | COVERING |
| LEFT FRONT SEAT,OUTSIDE LEFT | ||
| A 1089191320 | COVERING | |
| Repalced by: A 1089191820 | ||
| A 1089191820 | COVERING | |
| LEFT FRONT SEAT,INSIDE RIGHT | ||
| A 1089191220 | COVERING | |
| RIGHT FRONT SEAT,OUTSIDE RIGHT | ||
| A 1089191420 | COVERING | |
| Repalced by: A 1089191720 | ||
| A 1089191720 | COVERING | |
| RIGHT FRONT SEAT,INSIDE LEFT | ||
| A 0009830284 | LEATHER | |
| LEATHER | ||
| 120X150 MM | ||
| A 0009830186 | IMITATION LEATHER | |
| IMITATION LEATHER | ||
| 120X150 MM | ||
| A 1089190320 | COVERING | |
| Repalced by: A 1089191020 | ||
| A 1089190420 | COVERING | |
| Repalced by: A 1089191020 | ||
| A 1089190720 | COVERING | |
| Repalced by: A 1089192020 | ||
| 217 | A 1089192020 | COVERING |
| RIGHT FRONT SEAT,INSIDE | ||
| A 1089191020 | COVERING | |
| RIGHT FRONT SEAT,OUTSIDE | ||
| A 1089191120 | COVERING | |
| OUTSIDE,LEFT CONSOLE | ||
| A 1089191820 | COVERING | |
| INSIDE,RIGHT CONSOLE | ||
| A 1089100322 | CUSHION FRAME | |
| WITH SPRING CORE | ||
| A 1089101146 | COVER | |
| 226 | A 1088410174 | SHELL |
| WITH STEERING COLUMN SHIFT | ||
| A 1088410474 | SHELL | |
| Repalced by: A 1098400674 | ||
| A 1098400674 | SHELL | |
| A 1098400674 | SHELL | |
| WITH STEERING COLUMN SHIFT | ||
| A 1098400674 | SHELL | |
| A 1098400774 | SHELL | |
| WITH FLOOR SHIFT | ||
| A 1108410790 | COVER | |
| Repalced by: A 1088400075 | ||
| 230 | A 1088400075 | LINING |
| A 1088400175 | LINING | |
| N 007983004261 | SHEET METAL SCREW | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
