Transporto priemonė: 250 SE/C; VIN numerio dalis: 111021

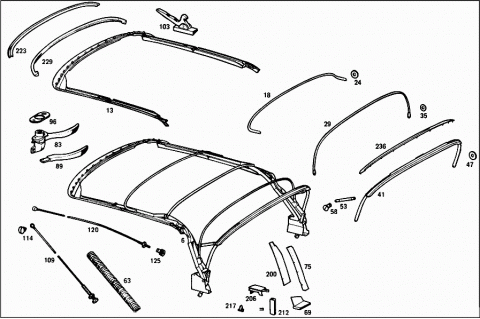

Grupė: 77 FOLDING TOP
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 1117705002 | FOLDING TOP FRAME ASSY |
| LESS COVER | ||
| 013 | A 1117705012 | FOLDING TOP FRAME |
| 018 | A 1117705038 | BOW |
| N 000660008004 | RIVET | |
| 024 | A 0009840155 | WASHER |
| 029 | A 1117705036 | BOW |
| N 000660006008 | RIVET | |
| 035 | A 1809902540 | WASHER |
| 041 | A 1117705037 | BOW |
| N 000660008006 | RIVET | |
| 047 | A 0009840155 | WASHER |
| 053 | A 1117745735 | LEVER |
| 058 | A 1119840431 | SCREW |
| 063 | A 1117795036 | SPRING |
| IN GUIDE TUBE | ||
| 069 | A 1117725198 | SEAL |
| FOLDING TOP PILLAR, LEFT | ||
| A 1117725298 | SEAL | |
| FOLDING TOP PILLAR, RIGHT | ||
| 075 | A 1117725180 | WOOD FILLER |
| FOLDING TOP PILLAR, LEFT | ||
| A 1117725280 | WOOD FILLER | |
| FOLDING TOP PILLAR, RIGHT | ||
| N 007988006139 | SCREW | |
| A 1117705126 | FASTENER | |
| Repalced by: A 1137700963 | ||
| A 1117705126 | FASTENER | |
| A 1117705526 | FASTENER | |
| Repalced by: A 1137700963 | ||
| A 1137700963 | FASTENER | |
| Repalced by: A 1077700163 | ||
| A 1077700163 | FASTENER | |
| Repalced by: A 1077700563 | ||
| A 1077700563 | FASTENER | |
| LEFT | ||
| A 1077700563 | FASTENER | |
| LEFT | ||
| A 1117205226 | GUSSET PLATE | |
| Repalced by: A 1137701063 | ||
| A 1117205226 | GUSSET PLATE | |
| A 1117705626 | FASTENER | |
| Repalced by: A 1137701063 | ||
| A 1137701063 | FASTENER | |
| Repalced by: A 1077700263 | ||
| 083 | A 1077700263 | FASTENER |
| Repalced by: A 1077700663 | ||
| 083 | A 1077700663 | FASTENER |
| RIGHT | ||
| 083 | A 1077700663 | FASTENER |
| RIGHT | ||
| A 1137760617 | LOCKING HANDLE | |
| 089 | A 1137760917 | LOCKING HANDLE |
| Repalced by: A 1077760017 | ||
| 089 | A 1077760017 | LOCKING HANDLE |
| 089 | A 1077760017 | LOCKING HANDLE |
| A 1117705564 | BEARING | |
| LEFT | ||
| A 1117705564 | BEARING | |
| LEFT | ||
| A 1117705664 | BEARING | |
| RIGHT | ||
| A 1117705664 | BEARING | |
| RIGHT | ||
| N 000964006003 | SCREW | |
| N 000964006003 | SCREW | |
| N 000966006018 | SCREW | |
| GUIDE BEARING AND FOLDING TOP LOCK | ||
| N 007988006122 | SCREW | |
| GUIDE BEARING AND FOLDING TOP LOCK | ||
| 096 | A 1137760382 | WASHER |
| 1 MM AS REQUIRED | ||
| A 1137760482 | WASHER | |
| 1.5 MM AS REQUIRED | ||
| A 1117705329 | FOLDING TOP CATCH | |
| LEFT | ||
| 103 | A 1117705429 | FOLDING TOP CATCH |
| RIGHT | ||
| 109 | A 1117705366 | PULL |
| 114 | A 1119840731 | SCREW |
| 120 | A 1117705066 | PULL |
| 125 | A 1119900157 | NUT |
| PULL TO CORNER BOW | ||
| N 000471010001 | LOCK RING | |
| PULL TO CORNER BOW | ||
| N 900055010002 | SPRING WASHER | |
| Repalced by: N 000137010205 | ||
| N 000137010205 | SPRING WASHER | |
| PULL TO CORNER BOW | ||
| N 007982003228 | SHEET METAL SCREW | |
| Repalced by: N 007982003203 | ||
| N 007982003203 | SHEET METAL SCREW | |
| Repalced by: N 007982003238 | ||
| N 007982003238 | SHEET METAL SCREW | |
| MOUNTING STRIP TO FOLDING TOP FRAME, FRONT | ||
| N 900056003204 | COUNTERSUNK WASHER | |
| MOUNTING STRIP TO FOLDING TOP FRAME, FRONT | ||
| A 0009833182 | FABRIC | |
| FOLDING TOP FRONT RAIL | ||
| A 0009833182 | FABRIC | |
| TRICOT | ||
| A 0009830188 | FOLDING TOP FABRIC | |
| OUTSIDE, FOLDING TOP PILLAR (FABRIC, 150 MM WIDE) | ||

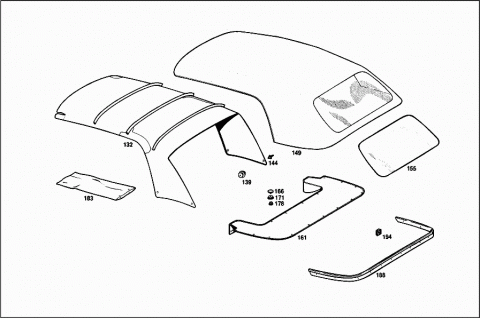

| 132 | A 1117705080 | HEADLINER |
| 139 | A 0009883879 | FASTENER BUTTON |
| 144 | A 0009883579 | FASTENER BUTTON |
| Repalced by: A 0009883979 | ||
| 144 | A 0009883979 | FASTENER BUTTON |
| N 007985004136 | SCREW | |
| HEADLINER TO FOLDING TOP FRAME,FRONT LATERAL | ||
| A 0009830188 | FOLDING TOP FABRIC | |
| OUTSIDE (FABRIC, 150 MM WIDE) | ||
| 149 | A 1117705082 | COVER |
| OUTSIDE | ||
| 155 | A 1117775010 | GLASS PANE |
| A 0019897185 | ADHESIVE TAPE | |
| Repalced by: A 0019875646 | ||
| A 0019875646 | SEALING CORD | |
| FOLDING TOP LINING | ||
| 8X1.5X1200 MM | ||
| N 007982003215 | SHEET METAL SCREW | |
| FOLDING TOP LINING | ||
| 161 | A 1117705483 | FOLDING TOP CASING |
| A 0009883879 | FASTENER BUTTON | |
| 166 | A 0009880881 | FASTENER BUTTON |
| 171 | A 0009880781 | FASTENER BUTTON |
| 178 | A 1369880781 | FASTENER BUTTON |
| FOLDING TOP CASING TO FOLDING TOP CASE | ||
| N 007981003205 | SHEET METAL SCREW | |
| FOLDING TOP CASING TO FOLDING TOP CASE | ||
| 183 | A 1117705184 | |
| FOR FOLDING TOP CASING | ||
| 188 | A 1117785329 | RAIL |
| 194 | A 0009907191 | NUT RETAINER |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| FABRIC RETAINING RAIL TO BODY | ||
| N 000137006204 | SPRING WASHER | |
| FABRIC RETAINING RAIL TO BODY | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| FABRIC RETAINING RAIL TO BODY | ||
| 200 | A 1117795120 | EDGE GUARD SECTION |
| LEFT | ||
| A 1117795220 | EDGE GUARD SECTION | |
| RIGHT | ||
| N 007997004009 | WOOD SCREW | |
| A 0009897085 | ADHESIVE TAPE | |
| Repalced by: A 0019875646 | ||
| A 0019875646 | SEALING CORD | |
| FOLDING TOP FRONT RAIL | ||
| 206 | A 1117795119 | CAP |
| LEFT | ||
| A 1117795219 | CAP | |
| RIGHT | ||
| A 0009830284 | LEATHER | |
| LEATHER | ||
| A 0009830284 | LEATHER | |
| LEATHER | ||
| 212 | A 1117790095 | SEAL |
| 217 | A 0019883178 | CLIP |
| Repalced by: A 0029884578 | ||
| 217 | A 0029884578 | CLIP |
| N 007983004202 | SHEET METAL SCREW | |
| CAP OVER FOLDING TOP CASE TO BODY | ||
| N 900056004504 | COUNTERSUNK WASHER | |
| CAP OVER FOLDING TOP CASE TO BODY | ||
| 223 | A 1117795021 | SEALING RAIL |
| 229 | A 1117795122 | SEAL |
| MOSS-TYPE RUBBER, BLACK | ||
| N 007982003218 | SHEET METAL SCREW | |
| 236 | A 1117795064 | LEDGE |
