X XXXXXXXXXXXX |
PART NAME MISSING |
|
|

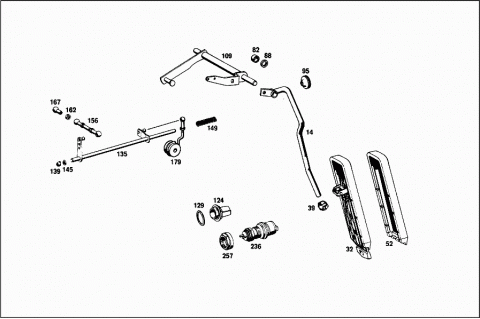

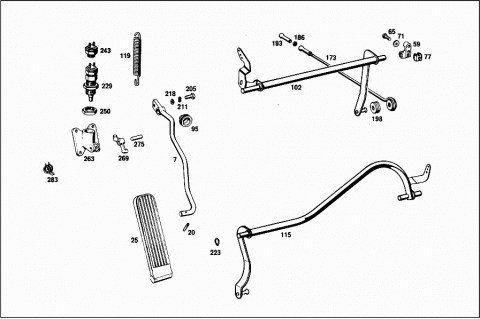

ACCELERATOR PEDAL ASSEMBLY |
| 007 |
A 1103000304 |
ACCELERATOR PEDAL |
| 007 |
A 1103000304 |
ACCELERATOR PEDAL |
| 014 |
A 1083010001 |
LEVER |
| 014 |
A 1083010001 |
LEVER |
|
A 1113000204 |
ACCELERATOR PEDAL |
| 020 |
A 1109970010 |
PIN |
| 020 |
A 1109970010 |
PIN |
| 020 |
A 1109970010 |
PIN |
| 025 |
A 1103010102 |
PEDAL PLATE |
|
Repalced by: A 1103000002
|
| 025 |
A 1103000002 |
PLATE |
| 025 |
A 1103000002 |
PLATE |
| 025 |
A 1103000002 |
PLATE |
|
A 1103000002 |
PLATE |
|
A 1103000002 |
PLATE |
|
A 1103010183 |
INSERT |
|
Repalced by: A 1103010083
|
|
A 1103010083 |
INSERT |
|
A 1103010083 |
INSERT |
|
A 1103010083 |
INSERT |
|
A 1103010083 |
INSERT |
|
A 1103010083 |
INSERT |
|
A 1103010582 |
PAD |
|
Repalced by: A 1103000002
|
|
A 1103000002 |
PLATE |
|
A 1103000002 |
PLATE |
|
A 1103000002 |
PLATE |
|
A 1103010482 |
PAD |
|
A 1103010482 |
PAD |
| 032 |
A 1233000204 |
ACCELERATOR PEDAL |
| 032 |
A 1233000204 |
ACCELERATOR PEDAL |
| 039 |
A 1233010022 |
JOINT |
| 039 |
A 1233010022 |
JOINT |
| 039 |
A 1233010022 |
JOINT |
| 052 |
A 1163010182 |
PAD |
| 052 |
A 1163010182 |
PAD |
| 059 |
A 1103010018 |
BEARING |
| 059 |
A 1103010018 |
BEARING |
| 059 |
A 1103010018 |
BEARING |
| 059 |
A 1103010018 |
BEARING |
|
A 1213010018 |
BEARING |
|
A 1213010018 |
BEARING |
|
A 1213010018 |
BEARING |
|
A 1213010018 |
BEARING |
| 065 |
N 000931006082 |
SCREW |
| 065 |
N 000931006082 |
SCREW |
| 065 |
N 000931006082 |
SCREW |
|
N 007985006131 |
SCREW |
|
N 007985006131 |
SCREW |
| 071 |
N 000125006407 |
WASHER |
|
N 000137006204 |
SPRING WASHER |
| 077 |
A 0009902791 |
NUT RETAINER |
|
Repalced by: A 0009902291
|
| 077 |
A 0009902291 |
NUT RETAINER |
|
Repalced by: A 0019906791
|
| 077 |
A 0019906791 |
NUT RETAINER |
| 082 |
A 1083010053 |
SPACER TUBE |
| 088 |
A 1143010051 |
SPACER RING |
| 088 |
A 1143010051 |
SPACER RING |
| 095 |
A 1839970081 |
GROMMET |
| 102 |
A 1113002320 |
SHAFT |
|
Repalced by: A 1113002820
|
| 102 |
A 1113002320 |
SHAFT |
|
A 1113002820 |
SHAFT |
|
A 1113002820 |
SHAFT |
| 109 |
A 1093001620 |
SHAFT |
| 115 |
A 1083000920 |
SHAFT |
|
A 1093001720 |
SHAFT |
|
A 1213010018 |
BEARING |
| 119 |
A 1169930610 |
SPRING |
|
A 1869931810 |
SPRING |
| 124 |
A 1153010241 |
STOP |
| 124 |
A 1153010241 |
STOP |
| 129 |
A 1159970640 |
SEAL RING |
| 129 |
A 1159970640 |
SEAL RING |
| 135 |
A 1093001520 |
SHAFT |
| 139 |
A 1263000085 |
JOINT BALL |
|
Repalced by: A 1263010485
|
|
A 1263010485 |
RUBBER BUFFER |
|
A 1163010150 |
BUSHING |
| 145 |
A 1093010051 |
SPACER RING |
| 149 |
A 1169935001 |
SPRING |
| 156 |
A 1093000615 |
ROD |
| 162 |
N 000934005008 |
NUT |
| 167 |
A 0009911622 |
BALL SOCKET |
|
Repalced by: A 0009918922
|
| 167 |
A 0009918922 |
BALL SOCKET |
| 173 |
A 1113001215 |
ROD |
| 179 |
A 1093000315 |
ROD |
| 186 |
N 000934005008 |
NUT |
| 193 |
A 0009911622 |
BALL SOCKET |
|
Repalced by: A 0009918922
|
| 193 |
A 0009918922 |
BALL SOCKET |
| 198 |
A 1213010097 |
BOOT |
|
Repalced by: A 1803010097
|
| 198 |
A 1803010097 |
BOOT |
| 205 |
N 000933008131 |
SCREW |
|
Repalced by: N 304017008016
|
| 205 |
N 304017008016 |
SCREW |
| 211 |
N 000137008204 |
SPRING WASHER |
|
Repalced by: N 000137008212
|
| 211 |
N 000137008212 |
SPRING WASHER |
| 218 |
N 000125008407 |
WASHER |
| 223 |
N 900055012402 |
LOCK RING |
| 229 |
A 1123000241 |
STOP |
| 229 |
A 1123000241 |
STOP |
| 236 |
A 1153000241 |
STOP |
| 236 |
A 1153000241 |
STOP |
|
A 1123000341 |
STOP |
| 243 |
A 0005451706 |
SWITCH |
|
|
KICK-DOWN |
| 250 |
A 1129900151 |
NUT |
| 250 |
A 1129900151 |
NUT |
| 250 |
A 1129900151 |
NUT |
| 257 |
A 1153040151 |
NUT |
| 257 |
A 1153040151 |
NUT |
| 263 |
A 1123040027 |
HOUSING |
| 269 |
A 1123040120 |
LEVER |
| 275 |
A 1129970010 |
PIN |
| 283 |
A 1129930020 |
SPRING |
|
N 912004006102 |
LOCK WASHER |
|
|
STOP TO TOEBOARD |
|
N 007985006131 |
SCREW |
|
|
STOP TO TOEBOARD |
