Transporto priemonė: 250 C USA; VIN numerio dalis: 114023

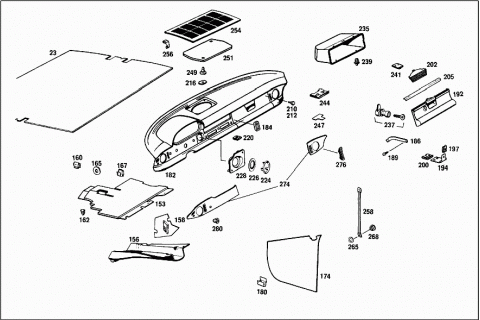

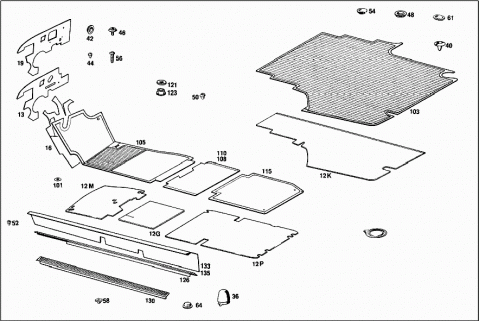

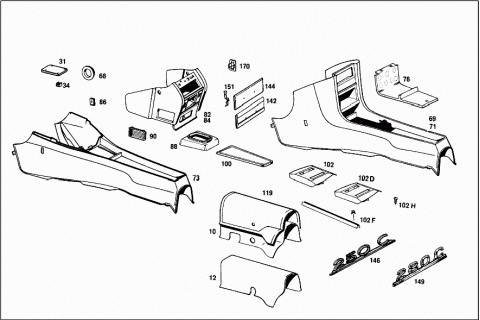

Grupė: 68 COVERING AND LINING - 001 BOW
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0009833691 | CARDBOARD | |
| REAR END PILLAR | ||
| 375X730 MM | ||
| A 0009833691 | CARDBOARD | |
| REAR ROOF RAIL | ||
| 126X928 MM | ||
| A 0009833691 | CARDBOARD | |
| SIDE ROOF RAIL | ||
| 110X1027 MM | ||
| A 0009833691 | CARDBOARD | |
| FRONT ROOF RAIL | ||
| 184X1224 MM | ||
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| TUNNEL,IN THE REAR | ||
| 466X428 MM | ||
| A 0009832991 | CARDBOARD | |
| BELOW REAR SEAT | ||
| 105X287 MM | ||
| A 0009832991 | CARDBOARD | |
| BELOW REAR SEAT | ||
| 1170X457 MM | ||
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| BELOW REAR SEAT | ||
| 210X400 MM | ||
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| TOEBOARD;RIGHT | ||
| 359X547 MM | ||
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| ENGINE COMPARTMENT,CENTER | ||
| 30X180 MM | ||
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| FRONT FLOOR,LEFT | ||
| 676X574 MM | ||
| A 0009832991 | CARDBOARD | |
| RIGHT FRONT FLOOR | ||
| 692X577 MM | ||
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| A 0009832991 | CARDBOARD | |
| MOUNTING HOLE UNDER HAT TRAY | ||
| A 0009832991 | CARDBOARD | |
| IM LUGGAGE COMPARTMENT | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| A 0009833598 | FOAM PLASTICS | |
| REAR ROOF RAIL | ||
| 126X928 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| SIDE ROOF RAIL | ||
| 110X1027 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| FRONT ROOF RAIL | ||
| 184X1224 MM | ||
| 010 | A 1146820007 | INSULATION |
| 012 | A 1146820207 | INSULATION |
| Repalced by: A 0009831298 | ||
| 012 | A 0009831298 | FOAM PLASTICS |
| A 1166821110 | INSULATION | |
| Repalced by: A 0009891810 | ||
| 012G | A 0009891810 | FIBREGLAS MAT |
| REAR SEAT BENCH,LEFT | ||
| 012K | A 1146820041 | INSULATION |
| LUGGAGE COMPARTMENT FLOOR, LEFT | ||
| 012M | A 1156820901 | INSULATION |
| RIGHT | ||
| 012P | A 1156821002 | INSULATION |
| RIGHT | ||
| A 0009891380 | INSULATION | |
| A 1156821520 | INSULATION | |
| Repalced by: A 1156822520 | ||
| 013 | A 1156822520 | INSULATION |
| LEFT | ||
| A 1156821420 | INSULATION | |
| RIGHT | ||
| A 1156822220 | INSULATION | |
| A 1156820104 | INSULATION | |
| Repalced by: A 1156821704 | ||
| 016 | A 1156821704 | INSULATION |
| LEFT | ||
| A 1156820204 | INSULATION | |
| RIGHT | ||
| A 1156821904 | INSULATION | |
| RIGHT | ||
| 019 | A 1146820326 | INSULATION |
| Repalced by: A 1156822520 | ||
| 019 | A 1156822520 | INSULATION |
| LEFT | ||
| A 1146820426 | INSULATION | |
| Repalced by: A 1156822220 | ||
| A 1156822220 | INSULATION | |
| RIGHT | ||
| A 1146821626 | INSULATION | |
| RIGHT | ||
| A 1146820026 | INSULATION | |
| Repalced by: A 1146821426 | ||
| A 1146821326 | INSULATION | |
| Repalced by: A 1146821426 | ||
| 023 | A 1146821426 | INSULATION |
| A 1146821126 | INSULATION | |
| Repalced by: A 1146821526 | ||
| A 1146821226 | INSULATION | |
| Repalced by: A 1146821526 | ||
| A 1146821526 | INSULATION | |
| A 0019887678 | CLIP | |
| Repalced by: A 1146820085 | ||
| A 1146820085 | CLIP | |
| Repalced by: A 0019887678 | ||
| A 0019887678 | CLIP | |
| A 1156820052 | INSULATION | |
| Repalced by: A 0009830198 | ||
| A 0009834192 | FELT | |
| Repalced by: A 0009830198 | ||
| A 1086820551 | INSULATION | |
| Repalced by: A 0009830198 | ||
| A 0009830198 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| 031 | A 1156830098 | SEAL |
| N 007985006128 | SCREW | |
| 034 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| 034 | A 0009902291 | NUT RETAINER |
| 036 | A 1156830036 | COVERING |
| A 1106830110 | COVER | |
| Repalced by: A 1236830010 | ||
| A 1236830010 | COVER | |
| A 0009895120 | SEALANT | |
| Repalced by: A 0019893320 | ||
| A 0019893320 | SEALANT | |
| COVERING TO TUNNEL | ||
| 040 | A 1119971281 | GROMMET |
| 042 | A 1109870844 | EXPANSION PLUG |
| 044 | A 1119871215 | PLUG |
| Repalced by: A 0009871840 | ||
| 044 | A 0009871840 | RUBBER BUFFER |
| 046 | A 0009901322 | SCREW |
| 048 | A 1109871444 | EXPANSION PLUG |
| 050 | A 1109870039 | RUBBER BUFFER |
| Repalced by: A 0009973320 | ||
| 050 | A 0009973320 | EXPANSION PLUG |
| 052 | A 1159970286 | PLUG |
| 054 | A 1109870544 | EXPANSION PLUG |
| A 0009871115 | PLUG | |
| Repalced by: A 0009974886 | ||
| 056 | A 0009974886 | PLUG |
| 058 | A 0009870415 | PLUG |
| A 1158990108 | COVERING | |
| Repalced by: A 1159870444 | ||
| 061 | A 1159870444 | EXPANSION PLUG |
| A 1109871044 | EXPANSION PLUG | |
| 064 | A 1139870044 | EXPANSION PLUG |
| 066 | A 1109870044 | EXPANSION PLUG |
| Repalced by: A 1139870044 | ||
| 066 | A 1139870044 | EXPANSION PLUG |
| A 0009971986 | PLUG | |
| 069 | A 1146800050 | PANELLING |
| 071 | A 1146800750 | PANELLING |
| 073 | A 1156800850 | PANELLING |
| 073 | A 1156800850 | PANELLING |
| 076 | A 1156800839 | ORNAMENTAL COVER |
| 076 | A 1156800839 | ORNAMENTAL COVER |
| A 1156800639 | ORNAMENTAL COVER | |
| FOR FLOOR SHIFT | ||
| A 1156803079 | HOUSING | |
| 082 | A 1156803179 | HOUSING |
| 084 | A 1156803279 | HOUSING |
| N 007981003275 | SHEET METAL SCREW | |
| N 000125004314 | WASHER | |
| 086 | A 0009944945 | LOCK |
| Repalced by: A 0009948245 | ||
| 086 | A 0009948245 | LOCK |
| 088 | A 1156830136 | COVERING |
| 090 | A 1156870279 | HOUSING |
| N 007983003216 | SHEET METAL SCREW | |
| N 007982004227 | SHEET METAL SCREW | |
| Repalced by: N 007982004203 | ||
| N 007982004203 | SHEET METAL SCREW | |
| N 007982004203 | SHEET METAL SCREW | |
| N 914032004200 | COMBINATION BOLT | |
| A 1146830051 | LINING | |
| Repalced by: A 1156830151 | ||
| A 1146830151 | LINING | |
| Repalced by: A 1156830151 | ||
| A 1146800168 | LINING | |
| Repalced by: A 1156830151 | ||
| 100 | A 1156830151 | LINING |
| STEERING COLUMN SHIFT | ||
| A 1146800068 | LINING | |
| Repalced by: A 1156830651 | ||
| A 1156830651 | LINING | |
| FLOOR SHIFT | ||
| 101 | A 1129900042 | WASHER |
| Repalced by: A 3019900042 | ||
| 101 | A 3019900042 | WASHER |
| A 1156830473 | FRAME | |
| STEERING COLUMN SHIFT | ||
| 102 | A 1156832273 | FRAME |
| STEERING COLUMN SHIFT | ||
| A 1156831273 | FRAME | |
| FLOOR SHIFT | ||
| 102D | A 1156832373 | FRAME |
| FLOOR SHIFT | ||
| 102F | A 0019875051 | RUBBER SEAL |
| FLOOR SHIFT | ||
| 170 MM | ||
| 102H | N 007983004322 | SHEET METAL SCREW |
| A 1156840005 | LINING | |
| Repalced by: A 1156840205 | ||
| 103 | A 1156840205 | LINING |
| 105 | A 1146802366 | CARPET |
| LEFT | ||
| A 1146802466 | CARPET | |
| RIGHT | ||
| 108 | A 1146802166 | CARPET |
| LEFT | ||
| A 1156841902 | LINING | |
| Repalced by: A 1156842302 | ||
| 110 | A 1156842302 | LINING |
| LEFT | ||
| A 1146802266 | CARPET | |
| RIGHT | ||
| A 1156842002 | LINING | |
| Repalced by: A 1156842302 | ||
| A 1156842302 | LINING | |
| RIGHT | ||
| 115 | A 1146800966 | CARPET |
| LEFT | ||
| A 1146801066 | CARPET | |
| RIGHT | ||
| A 1146800066 | CARPET | |
| Repalced by: A 1146801745 | ||
| 119 | A 1146801745 | LINING |
| 121 | A 1119901040 | WASHER |
| 123 | A 1369880981 | FASTENER BUTTON |
| Repalced by: A 0009888481 | ||
| 123 | A 0009888481 | FASTENER BUTTON |
| N 007981003226 | SHEET METAL SCREW | |
| 126 | A 1156860936 | RAIL |
| LEFT | ||
| A 1156861036 | RAIL | |
| RIGHT | ||
| N 007983003248 | SHEET METAL SCREW | |
| 130 | A 1156861380 | LINING |
| LEFT | ||
| A 1156861480 | LINING | |
| RIGHT | ||
| 133 | A 1146860580 | LINING |
| LEFT | ||
| 135 | A 1146862380 | LINING |
| LEFT | ||
| A 1146860680 | LINING | |
| RIGHT | ||
| A 1146862480 | LINING | |
| RIGHT | ||
| A 1146800096 | COVER | |
| Repalced by: A 1146870139 | ||
| 142 | A 1146870139 | COVER |
| Repalced by: A 1146800096 | ||
| 142 | A 1146800096 | COVER |
| 144 | A 1146800196 | COVER |
| 146 | A 1148170214 | TYPE DESIGNATION |
| Repalced by: A 1148171014 | ||
| 146 | A 1148171014 | TYPE DESIGNATION |
| "250 C" | ||
| A 1148170614 | TYPE DESIGNATION | |
| Repalced by: A 1148171414 | ||
| A 1148171414 | TYPE DESIGNATION | |
| "280 C" | ||
| 149 | A 1148171414 | TYPE DESIGNATION |
| "280 C" | ||
| 151 | A 1159940345 | LOCK |
| 153 | A 1156870709 | COVERING |
| LEFT | ||
| A 1156871009 | COVERING | |
| RIGHT | ||
| 156 | A 1146800117 | COVERING |
| 158 | A 1146870009 | COVERING |
| A 1146870909 | COVERING | |
| 160 | A 0029883878 | CLIP |
| 162 | A 0009882378 | CLIP |
| N 007983004331 | SHEET METAL SCREW | |
| 165 | A 1129900042 | WASHER |
| Repalced by: A 3019900042 | ||
| 165 | A 3019900042 | WASHER |
| 167 | A 0029883878 | CLIP |
| A 0019886678 | CLIP | |
| A 0009882378 | CLIP | |
| 170 | A 1156870610 | COVERING |
| A 1156881106 | PANELLING | |
| Repalced by: A 1156882306 | ||
| A 1156880906 | PANELLING | |
| Repalced by: A 1156882306 | ||
| 174 | A 1156882306 | PANELLING |
| LEFT | ||
| A 1156882706 | PANELLING | |
| LEFT | ||
| A 1156881206 | PANELLING | |
| Repalced by: A 1156882406 | ||
| A 1156881006 | PANELLING | |
| Repalced by: A 1156882406 | ||
| A 1156882406 | PANELLING | |
| RIGHT | ||
| A 1156882806 | PANELLING | |
| RIGHT | ||
| 180 | A 1106880013 | CLIP |
| 182 | A 1146801987 | INSTRUMENT PANEL |
| 184 | A 1159970381 | GROMMET |
| 186 | A 1156891387 | STOP |
| LEFT | ||
| A 1156892487 | STOP | |
| RIGHT | ||
| 189 | A 1159840029 | SCREW |
| N 006797004333 | TOOTHED WASHER | |
| A 1146800398 | GLOVE COMPARTMENT LID | |
| Repalced by: A 1146800798 | ||
| 192 | A 1146800798 | GLOVE COMPARTMENT LID |
| 194 | A 1156890052 | HINGE |
| A 0009941445 | LOCK | |
| Repalced by: A 0009947145 | ||
| 197 | A 0009947145 | LOCK |
| N 007981004225 | SHEET METAL SCREW | |
| 200 | A 1159940145 | LOCK |
| 202 | A 1156890101 | LOCK |
| N 000966004005 | SCREW | |
| 205 | A 1156890072 | GARNISH MOULDING |
| N 007981004219 | SHEET METAL SCREW | |
| Repalced by: N 000000000453 | ||
| N 000000000453 | TAPPING SCREW | |
| N 000125004311 | WASHER | |
| Repalced by: N 000125004319 | ||
| N 000125004319 | WASHER | |
| 210 | A 1159870240 | RUBBER BUFFER |
| 212 | A 0009879740 | RUBBER BUFFER |
| N 913002005000 | NUT | |
| A 1159840056 | WASHER | |
| Repalced by: A 1114620175 | ||
| 216 | A 1114620175 | WASHER |
| N 914032004200 | COMBINATION BOLT | |
| 220 | A 0009943345 | LOCK |
| Repalced by: A 1409941045 | ||
| 220 | A 1409941045 | LOCK |
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| N 000933006130 | SCREW | |
| 224 | A 1156890080 | ESCUTCHEON |
| 226 | A 1156890097 | PAD |
| A 1146890130 | CAP | |
| Repalced by: A 1146890330 | ||
| A 1146890330 | CAP | |
| 228 | A 1146890330 | CAP |
| N 912003004000 | DUO CLIP | |
| N 912003005000 | DUO CLIP | |
| Repalced by: N 912010005001 | ||
| N 912010005001 | LOCK PLATE | |
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| A 1156890091 | GLOVE COMPARTMENT | |
| Repalced by: A 1156890291 | ||
| 235 | A 1156890291 | GLOVE COMPARTMENT |
| A 1156800184 | FASTENER | |
| WITH KEY | ||
| 237 | A 1156800084 | FASTENER |
| LESS KEY | ||
| 239 | A 0009900192 | RIVET |
| Repalced by: A 1239900092 | ||
| 239 | A 1239900092 | RIVET |
| 241 | A 1156890225 | STRIKER |
| 244 | A 1159940145 | LOCK |
| N 007983004237 | SHEET METAL SCREW | |
| 247 | A 1156890297 | PAD |
| 249 | A 0009879440 | RUBBER BUFFER |
| A 1156800039 | ORNAMENTAL COVER | |
| Repalced by: A 1156803539 | ||
| 251 | A 1156803539 | ORNAMENTAL COVER |
| A 1146800039 | ORNAMENTAL COVER | |
| Repalced by: A 1146800339 | ||
| 254 | A 1146800339 | ORNAMENTAL COVER |
| 256 | A 1149880278 | CLIP |
| 258 | A 1156890042 | STAY |
| N 000933008108 | SCREW | |
| N 000137008204 | SPRING WASHER | |
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| N 000137008204 | SPRING WASHER | |
| 265 | A 1159902740 | WASHER |
| Repalced by: A 1109900940 | ||
| 265 | A 1109900940 | WASHER |
| A 1159902840 | WASHER | |
| 268 | A 1159900065 | NUT |
| 274 | A 1146802383 | PANELLING |
| 276 | A 1156890018 | ORNAMENTAL FRAME |
| 280 | A 0009900750 | NUT |
| N 009021004108 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| N 000934004004 | NUT | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
