Transporto priemonė: 250 C USA; VIN numerio dalis: 114023

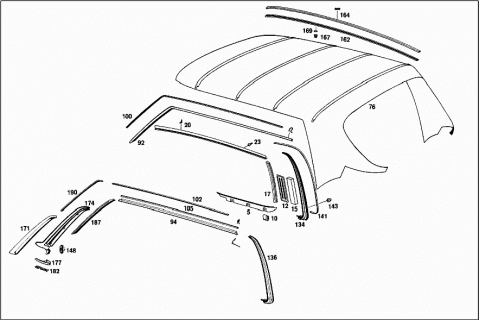

Grupė: 69 COVERING - 001 PANELLING AND LINING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1156901130 | COVERING |
| LEFT | ||
| A 1156901230 | COVERING | |
| RIGHT | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| A 0009904191 | NUT RETAINER | |
| Repalced by: A 0009908391 | ||
| A 0009908391 | NUT RETAINER | |
| Repalced by: A 0009907191 | ||
| 010 | A 0009907191 | NUT RETAINER |
| 012 | A 1156910930 | COVERING |
| N 007976004205 | SHEET METAL SCREW | |
| 015 | A 1156911030 | COVERING |
| 017 | A 1156900335 | COVERING |
| LEFT | ||
| A 1156900435 | COVERING | |
| RIGHT | ||
| 020 | A 1156900135 | COVERING |
| LEFT | ||
| A 1156900235 | COVERING | |
| RIGHT | ||
| 023 | A 0009901936 | SCREW |
| Repalced by: A 0009905836 | ||
| 023 | A 0009905836 | SCREW |
| A 1156900957 | PANELLING | |
| LEFT | ||
| A 1146900125 | PANELLING | |
| LEFT | ||
| A 1146900525 | PANELLING | |
| LEFT | ||
| A 1156901057 | PANELLING | |
| RIGHT | ||
| A 1146900225 | PANELLING | |
| RIGHT | ||
| 028 | A 1146900625 | PANELLING |
| RIGHT | ||
| N 007981004258 | SHEET METAL SCREW | |
| N 006797005210 | TOOTHED WASHER | |
| 032 | A 0009940645 | LOCK |
| N 007983002205 | SHEET METAL SCREW | |
| A 1169900136 | SCREW | |
| Repalced by: A 0009908636 | ||
| A 0009908636 | SCREW | |
| 035 | A 0009850562 | WASHER |
| N 007981003246 | SHEET METAL SCREW | |
| 038 | A 1156921189 | PANELLING |
| A 0009832991 | CARDBOARD | |
| 70X300 MM | ||
| 041 | A 1156900093 | WEATHERSTRIP |
| 043 | A 1156900930 | COVERING |
| 044 | A 1156901330 | COVERING |
| LEFT | ||
| A 1156901430 | COVERING | |
| RIGHT | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| 046 | A 1156930130 | COVERING |
| 048 | A 1156930030 | COVERING |
| A 1156902330 | COVERING | |
| LEFT | ||
| A 1156902330 | COVERING | |
| LEFT | ||
| 051 | A 1156903130 | COVERING |
| LEFT | ||
| 052 | A 0009882378 | CLIP |
| A 1156902230 | COVERING | |
| RIGHT | ||
| 054 | A 1106940485 | EDGE GUARD SECTION |
| Repalced by: A 0009873272 | ||
| 054 | A 0009873272 | EDGE GUARD SECTION |
| 056 | A 1156940298 | SEAL |
| 058 | A 1156940295 | COVERING |
| N 007981002306 | SHEET METAL SCREW | |
| Repalced by: N 007981002322 | ||
| N 007981002322 | SHEET METAL SCREW | |
| 061 | A 1156940398 | SEAL |
| LEFT | ||
| 062 | A 1156940498 | SEAL |
| RIGHT | ||
| 064 | A 1156940495 | COVERING |
| N 007981002306 | SHEET METAL SCREW | |
| Repalced by: N 007981002322 | ||
| N 007981002322 | SHEET METAL SCREW | |
| 067 | A 1156900769 | LINING |
| 069 | A 1156900744 | STIFFENING |
| 071 | A 0009900650 | NUT |
| Repalced by: A 0009900550 | ||
| 071 | A 0009900550 | NUT |
| 073 | A 1159900233 | SCREW |
| A 0009832282 | FABRIC | |
| 150X500 MM | ||
| 076 | A 1156900250 | HEADLINER |
| 078 | A 1156960301 | BOW |
| 080 | A 1156960401 | BOW |
| 082 | A 1156960501 | BOW |
| 084 | A 1156960020 | BEARING |
| 086 | A 1156950644 | STIFFENING |
| A 0009834110 | STRIP | |
| Repalced by: A 0009838910 | ||
| A 0009838910 | STRIP | |
| 72X1130 MM | ||
| N 000125006407 | WASHER | |
| N 007976006204 | SHEET METAL SCREW | |
| A 1156980301 | DRIP MOULDING | |
| Repalced by: A 1156981901 | ||
| 092 | A 1156981901 | DRIP MOULDING |
| 094 | A 1156982301 | DRIP MOULDING |
| A 1156980401 | DRIP MOULDING | |
| Repalced by: A 1156982001 | ||
| A 1156982001 | DRIP MOULDING | |
| A 1156982401 | DRIP MOULDING | |
| A 1156980721 | PAD | |
| 100 | A 1156980021 | PAD |
| 102 | A 1156980921 | PAD |
| N 007982002219 | SHEET METAL SCREW | |
| Repalced by: N 007982002212 | ||
| N 007982002212 | SHEET METAL SCREW | |
| 105 | A 1156980330 | COVERING |
| 107 | A 1156980180 | GARNISH MOULDING |
| LEFT | ||
| A 1156980280 | GARNISH MOULDING | |
| RIGHT | ||
| A 0009886681 | FASTENER BUTTON | |
| Repalced by: A 0009881581 | ||
| 110 | A 0009881581 | GROMMET |
| Repalced by: A 0019882081 | ||
| 110 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0089970381 | ||
| 110 | A 0089970381 | GROMMET |
| Repalced by: A 0019882081 | ||
| 110 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0019887681 | ||
| 110 | A 0019887681 | FASTENER BUTTON |
| 112 | A 0009885681 | FASTENER BUTTON |
| N 007981003319 | SHEET METAL SCREW | |
| 115 | A 1156980121 | PAD |
| LEFT | ||
| A 1156980221 | PAD | |
| RIGHT | ||
| 118 | A 1146900180 | GARNISH MOULDING |
| LEFT | ||
| A 1146900280 | GARNISH MOULDING | |
| RIGHT | ||
| 121 | A 0009884481 | FASTENER BUTTON |
| 123 | A 1086900071 | SCREW |
| 125 | A 1146980021 | PAD |
| 127 | A 0009881581 | GROMMET |
| Repalced by: A 0019882081 | ||
| 127 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0089970381 | ||
| 127 | A 0089970381 | GROMMET |
| Repalced by: A 0019882081 | ||
| 127 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0019887681 | ||
| 127 | A 0019887681 | FASTENER BUTTON |
| 129 | A 0009907051 | NUT |
| 131 | A 1159971340 | SEAL RING |
| A 1156980589 | ORNAMENTAL COVER | |
| Repalced by: A 1156981189 | ||
| 134 | A 1156981189 | ORNAMENTAL COVER |
| LEFT | ||
| 136 | A 1156901389 | ORNAMENTAL COVER |
| LEFT | ||
| A 1156980689 | ORNAMENTAL COVER | |
| Repalced by: A 1156981289 | ||
| A 1156981289 | ORNAMENTAL COVER | |
| RIGHT | ||
| A 1156901489 | ORNAMENTAL COVER | |
| RIGHT | ||
| 141 | A 1156980821 | PAD |
| 143 | A 0009871342 | SPACER |
| A 1159870026 | PLASTIC PAD | |
| N 007982002219 | SHEET METAL SCREW | |
| Repalced by: N 007982002212 | ||
| N 007982002212 | SHEET METAL SCREW | |
| N 007981002206 | SHEET METAL SCREW | |
| Repalced by: N 007981002306 | ||
| N 007981002306 | SHEET METAL SCREW | |
| 148 | A 1166900018 | TREENAIL |
| N 007983003202 | SHEET METAL SCREW | |
| Repalced by: A 1269900436 | ||
| A 1269900436 | SCREW | |
| 151 | A 1156900380 | GARNISH MOULDING |
| LEFT | ||
| A 1156900480 | GARNISH MOULDING | |
| RIGHT | ||
| 154 | A 1156900391 | EDGING |
| LEFT | ||
| A 1156900491 | EDGING | |
| RIGHT | ||
| 157 | A 0009886081 | FASTENER BUTTON |
| 159 | A 0009881581 | GROMMET |
| Repalced by: A 0019882081 | ||
| 159 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0089970381 | ||
| 159 | A 0089970381 | GROMMET |
| Repalced by: A 0019882081 | ||
| 159 | A 0019882081 | FASTENER BUTTON |
| Repalced by: A 0019887681 | ||
| 159 | A 0019887681 | FASTENER BUTTON |
| A 1156985392 | GARNISH MOULDING | |
| LEFT | ||
| 162 | A 1156985492 | GARNISH MOULDING |
| RIGHT | ||
| 164 | A 1156980090 | WELT |
| A 0019901697 | RIVET | |
| Repalced by: N 910001004202 | ||
| 167 | N 910001004202 | RIVET |
| 169 | A 0009971141 | SEAL RING |
| 171 | A 1156981589 | ORNAMENTAL COVER |
| OUTSIDE LEFT | ||
| A 1156981689 | ORNAMENTAL COVER | |
| OUTSIDE RIGHT | ||
| 174 | A 1156901189 | ORNAMENTAL COVER |
| INSIDE LEFT | ||
| A 1156901289 | ORNAMENTAL COVER | |
| INSIDE RIGHT | ||
| A 1156982389 | ORNAMENTAL COVER | |
| Repalced by: A 1156901589 | ||
| 177 | A 1156901589 | ORNAMENTAL COVER |
| LEFT | ||
| A 1156982489 | ORNAMENTAL COVER | |
| Repalced by: A 1156901689 | ||
| A 1156901689 | ORNAMENTAL COVER | |
| RIGHT | ||
| N 007976004203 | SHEET METAL SCREW | |
| N 009021004108 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| 182 | A 1156980398 | SEAL |
| A 1156980498 | SEAL | |
| N 007981003335 | SHEET METAL SCREW | |
| Repalced by: N 007981003203 | ||
| N 007981003203 | SHEET METAL SCREW | |
| 187 | A 1156980138 | ADAPTER |
| LEFT | ||
| A 1156980238 | ADAPTER | |
| RIGHT | ||
| 190 | A 1156981021 | PAD |
| N 007982002219 | SHEET METAL SCREW | |
| Repalced by: N 007982002212 | ||
| N 007982002212 | SHEET METAL SCREW | |
