Transporto priemonė: 230 S; VIN numerio dalis: 111010

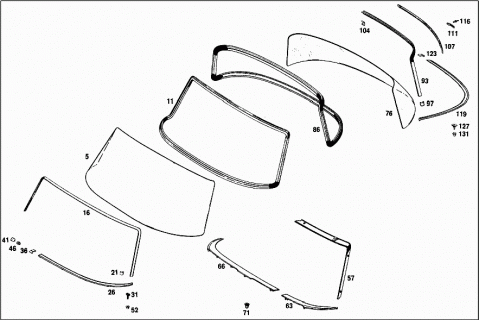

Grupė: 67 WINDOWS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1106710210 | WINDSHIELD |
| A 1106710010 | WINDSHIELD | |
| Repalced by: A 1106710510 | ||
| A 1106710310 | WINDSHIELD | |
| Repalced by: A 1106710510 | ||
| A 1106710510 | WINDSHIELD | |
| 011 | A 1106700639 | SEALING FRAME |
| 016 | A 1106710030 | OUTER MOULDING |
| 021 | A 1116710136 | COVERING |
| Repalced by: A 1116780137 | ||
| 021 | A 1116780137 | JOINT COVER |
| WINDSHIELD,BOTTOM LEFT | ||
| A 1116710236 | COVERING | |
| Repalced by: A 1116780237 | ||
| A 1116780237 | JOINT COVER | |
| WINDSHIELD,BOTTOM RIGHT | ||
| 026 | A 1106700516 | OUTER MOULDING |
| WINDSHIELD,BOTTOM LEFT | ||
| A 1106700616 | OUTER MOULDING | |
| WINDSHIELD,BOTTOM RIGHT | ||
| 031 | A 1106710271 | SCREW |
| 036 | A 1106780037 | JOINT COVER |
| 041 | A 0009880981 | FASTENER BUTTON |
| UPPER PART | ||
| 046 | A 0009881081 | FASTENER BUTTON |
| LOWER PART | ||
| N 009021004108 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| GARNISH MOULDING TO FRONT FENDER | ||
| N 000934004006 | NUT | |
| GARNISH MOULDING TO FRONT FENDER | ||
| 052 | A 0009880327 | GROMMET |
| GARNISH MOULDING TO FRONT FENDER | ||
| 057 | A 1106700351 | INNER MOULDING |
| TOP LEFT | ||
| A 1106700451 | INNER MOULDING | |
| TOP RIGHT | ||
| N 007981003307 | SHEET METAL SCREW | |
| A 0009872941 | RUBBER RING | |
| Repalced by: A 1269970540 | ||
| A 1269970540 | SEAL RING | |
| Repalced by: A 2019870241 | ||
| A 2019870241 | RUBBER RING | |
| 063 | A 1106700151 | INNER MOULDING |
| BOTTOM LEFT | ||
| 066 | A 1106700251 | INNER MOULDING |
| BOTTOM RIGHT | ||
| A 1106700651 | INNER MOULDING | |
| BOTTOM; TWO-PART | ||
| N 000551005011 | HEADLESS SETSCREW | |
| A 1119900033 | SCREW | |
| WINDSHIELD INNER MOULDING | ||
| 071 | A 0009900650 | NUT |
| WINDSHIELD INNER MOULDING | ||
| 071 | A 0009900650 | NUT |
| WINDSHIELD INNER MOULDING | ||
| 076 | A 1106780010 | GLASS PANE |
| A 1106780110 | GLASS PANE | |
| A 1106700680 | REAR WINDOW PANE | |
| Repalced by: A 1106780210 | ||
| A 1106780210 | GLASS PANE | |
| Repalced by: A 1106780010 | ||
| A 1106780010 | GLASS PANE | |
| ELECTRICALLY HEATED | ||
| A 1106780210 | GLASS PANE | |
| Repalced by: A 1106780010 | ||
| A 1106780010 | GLASS PANE | |
| A 0005454128 | PLUG | |
| Repalced by: A 0005454228 | ||
| A 0005454228 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| 3-POLE | ||
| A 1109971281 | GROMMET | |
| IN FIRE WALL | ||
| A 0019887778 | CLIP | |
| Repalced by: A 0009881778 | ||
| A 0009881778 | CLIP | |
| HEATED REAR WINDOW PANE CABLE | ||
| A 1105421640 | BRACKET | |
| A 0005453001 | FUSE BOX | |
| Repalced by: A 0005456301 | ||
| A 0005456301 | FUSE BOX | |
| Repalced by: A 0005456201 | ||
| A 0005456201 | FUSE BOX | |
| Repalced by: A 0005459901 | ||
| A 0005459901 | FUSE BOX | |
| AT FIRE WALL | ||
| N 007981003240 | SHEET METAL SCREW | |
| Repalced by: N 007981003207 | ||
| N 007981003207 | SHEET METAL SCREW | |
| N 007981004337 | SHEET METAL SCREW | |
| FUSE BOX | ||
| A 0005461841 | CABLE CONNECTOR | |
| REAR PANEL | ||
| A 0005458334 | FUSE | |
| N 007981004325 | SHEET METAL SCREW | |
| CABLE CONNECTOR | ||
| A 0009976581 | GROMMET | |
| IN REAR END PILLAR | ||
| A 0009880227 | GROMMET | |
| Repalced by: A 1089880027 | ||
| A 1089880027 | GROMMET | |
| A 1008210051 | SWITCH | |
| Repalced by: A 0018216151 | ||
| A 0018216151 | SWITCH | |
| HEATED REAR WINDOW PANE | ||
| N 072601012800 | BULB | |
| A 1108200392 | KNOB | |
| SWITCH | ||
| A 1108210059 | ESCUTCHEON | |
| Repalced by: A 1108210459 | ||
| A 1108210459 | ESCUTCHEON | |
| SWITCH | ||
| A 1106700880 | REAR WINDOW PANE | |
| Repalced by: A 1106780310 | ||
| A 1106780310 | GLASS PANE | |
| Repalced by: A 1106780110 | ||
| A 1106780110 | GLASS PANE | |
| A 1106780310 | GLASS PANE | |
| Repalced by: A 1106780110 | ||
| A 1106780110 | GLASS PANE | |
| A 0005454128 | PLUG | |
| Repalced by: A 0005454228 | ||
| A 0005454228 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| 3-POLE | ||
| A 1008210051 | SWITCH | |
| Repalced by: A 0018216151 | ||
| A 0018216151 | SWITCH | |
| AT INSTRUMENT PANEL | ||
| N 072601012800 | BULB | |
| AT INSTRUMENT PANEL | ||
| A 1108200392 | KNOB | |
| AT INSTRUMENT PANEL | ||
| A 1108210059 | ESCUTCHEON | |
| Repalced by: A 1108210459 | ||
| A 1108210459 | ESCUTCHEON | |
| AT INSTRUMENT PANEL | ||
| A 1105421640 | BRACKET | |
| AT FIRE WALL | ||
| A 0005453001 | FUSE BOX | |
| Repalced by: A 0005456301 | ||
| A 0005456301 | FUSE BOX | |
| Repalced by: A 0005456201 | ||
| A 0005456201 | FUSE BOX | |
| Repalced by: A 0005459901 | ||
| A 0005459901 | FUSE BOX | |
| AT FIRE WALL | ||
| N 007981003240 | SHEET METAL SCREW | |
| Repalced by: N 007981003207 | ||
| N 007981003207 | SHEET METAL SCREW | |
| AT FIRE WALL | ||
| A 0005461841 | CABLE CONNECTOR | |
| AT REAR PANEL | ||
| N 007981004325 | SHEET METAL SCREW | |
| AT REAR PANEL | ||
| A 0009880227 | GROMMET | |
| Repalced by: A 1089880027 | ||
| A 1089880027 | GROMMET | |
| A 1109971281 | GROMMET | |
| A 0019887778 | CLIP | |
| Repalced by: A 0009881778 | ||
| A 0009881778 | CLIP | |
| A 0005458334 | FUSE | |
| 086 | A 1106700139 | SEALING FRAME |
| A 1106780130 | FRAME | |
| Repalced by: A 1106780330 | ||
| 093 | A 1106780330 | FRAME |
| LEFT | ||
| A 1106780230 | FRAME | |
| Repalced by: A 1106780430 | ||
| A 1106780430 | FRAME | |
| RIGHT | ||
| 097 | A 1116780137 | JOINT COVER |
| LEFT | ||
| A 1116780237 | JOINT COVER | |
| RIGHT | ||
| 104 | A 1106780437 | JOINT COVER |
| CENTRAL | ||
| 107 | A 1106780583 | GARNISH MOULDING |
| LEFT TOP | ||
| A 1106700622 | GARNISH MOULDING | |
| RIGHT TOP | ||
| 111 | A 0019885478 | CLIP |
| GARNISH MOULDING TO BODY | ||
| 116 | N 910001003100 | RIVET |
| GARNISH MOULDING TO BODY | ||
| 119 | A 1106700322 | GARNISH MOULDING |
| BOTTOM LEFT | ||
| A 1106700422 | GARNISH MOULDING | |
| BOTTOM RIGHT | ||
| 123 | A 1106780037 | JOINT COVER |
| 127 | A 0009880981 | FASTENER BUTTON |
| UPPER PART | ||
| 131 | A 0009881081 | FASTENER BUTTON |
| LOWER PART | ||
| N 007983003003 | SHEET METAL SCREW | |
