Transporto priemonė: 230 S; VIN numerio dalis: 111010

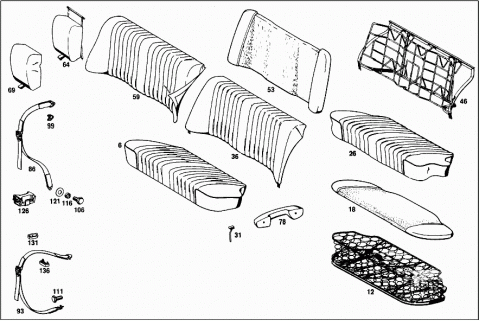

Grupė: 92 REAR SEAT BENCH - 001 REAR SEATS
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 1109202720 | REAR SEAT CUSHION |
| FABRIC | ||
| A 1109202920 | REAR SEAT CUSHION | |
| LEATHER | ||
| A 1109202820 | REAR SEAT CUSHION | |
| IMITATION LEATHER | ||
| 012 | A 1089200122 | CUSHION FRAME |
| Repalced by: A 1089200322 | ||
| 012 | A 1089200322 | CUSHION FRAME |
| 018 | A 1109240514 | PAD |
| FABRIC | ||
| A 1109241014 | PAD | |
| LEATHER | ||
| A 1109240914 | PAD | |
| Repalced by: A 1089240514 | ||
| A 1089240514 | PAD | |
| Repalced by: A 1089240614 | ||
| A 1089240614 | PAD | |
| IMITATION LEATHER | ||
| A 0009842061 | CLIP | |
| 026 | A 1109202746 | COVER |
| FABRIC | ||
| A 1109203146 | COVER | |
| LEATHER | ||
| A 1109202846 | COVER | |
| IMITATION LEATHER | ||
| 031 | A 1109200114 | BRACKET |
| REAR SEAT CUSHION TO FLOOR | ||
| A 1089200014 | BRACKET | |
| A 1109200102 | SEAT CUSHION LESS COVER | |
| A 1109200302 | SEAT CUSHION LESS COVER | |
| A 1109200402 | SEAT CUSHION LESS COVER | |
| A 1109202330 | BACKREST | |
| Repalced by: A 1109202930 | ||
| 036 | A 1109202930 | BACKREST |
| FABRIC | ||
| A 1109202830 | BACKREST | |
| Repalced by: A 1109203030 | ||
| A 1109203030 | BACKREST | |
| LEATHER | ||
| A 1109202630 | BACKREST | |
| Repalced by: A 1109203130 | ||
| A 1109203130 | BACKREST | |
| IMITATION LEATHER | ||
| A 1109200304 | BACKREST LESS COVER | |
| Repalced by: A 1109200804 | ||
| A 1109200804 | BACKREST LESS COVER | |
| WITH CENTRAL FOLDING ARMREST | ||
| A 1109200904 | BACKREST LESS COVER | |
| Repalced by: A 1109201004 | ||
| A 1109201004 | BACKREST LESS COVER | |
| LEATHER | ||
| A 1109201004 | BACKREST LESS COVER | |
| 046 | A 1119200034 | BACKREST FRAME |
| FABRIC | ||
| A 1109200534 | BACKREST FRAME | |
| 053 | A 1109240516 | PAD |
| FOR FABRIC TRIM | ||
| A 1109241016 | PAD | |
| Repalced by: A 1109240816 | ||
| A 1109240816 | PAD | |
| IMITATION LEATHER | ||
| A 0009842061 | CLIP | |
| 059 | A 1109201647 | COVER |
| Repalced by: A 1109203047 | ||
| A 1109203047 | COVER | |
| FABRIC | ||
| A 1109202247 | COVER | |
| LEATHER | ||
| A 1109202047 | COVER | |
| IMITATION LEATHER | ||
| 064 | A 1119703630 | FOLDING ARMREST |
| FABRIC | ||
| A 1109703030 | FOLDING ARMREST | |
| A 1109702530 | FOLDING ARMREST | |
| LEATHER | ||
| A 1109702630 | FOLDING ARMREST | |
| IMITATION LEATHER | ||
| A 1109702930 | FOLDING ARMREST | |
| Repalced by: A 1119703830 | ||
| A 1119703830 | FOLDING ARMREST | |
| CENTRAL | ||
| A 0009875172 | EDGE GUARD SECTION | |
| 860 MM | ||
| 069 | A 1119702047 | COVER |
| FABRIC | ||
| A 1109703747 | COVER | |
| A 1109702047 | COVER | |
| LEATHER | ||
| A 1109701347 | COVER | |
| IMITATION LEATHER | ||
| N 006799004001 | LOCK PLATE | |
| N 000433006405 | WASHER | |
| N 000137006204 | PART NAME MISSING | |
| A 0009900148 | WASHER | |
| REAR BACKREST TO REAR BODY PANEL | ||
| N 000934006007 | NUT | |
| REAR BACKREST TO REAR BODY PANEL | ||
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| REAR BACKREST TO WHEELHOUSE PANEL | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| REAR BACKREST TO WHEELHOUSE PANEL | ||
| N 000137006204 | SPRING WASHER | |
| REAR BACKREST TO WHEELHOUSE PANEL | ||
| A 0009871541 | RUBBER RING | |
| Repalced by: A 0009873841 | ||
| A 0009873841 | RUBBER RING | |
| REAR BACKREST TO WHEELHOUSE PANEL | ||
| A 0009900148 | WASHER | |
| REAR BACKREST TO WHEELHOUSE PANEL | ||
| N 000934006007 | NUT | |
| REAR BACKREST TO WHEELHOUSE PANEL | ||
| 078 | A 1129700301 | ARMREST |
| Repalced by: A 1109700701 | ||
| A 1129700301 | ARMREST | |
| Repalced by: A 1109700701 | ||
| A 1109700701 | ARMREST | |
| LEFT | ||
| A 1129700401 | ARMREST | |
| Repalced by: A 1109700801 | ||
| A 1129700401 | ARMREST | |
| Repalced by: A 1109700801 | ||
| A 1109700801 | ARMREST | |
| RIGHT | ||
| N 007987006134 | SCREW | |
| ARMRESTS | ||
| A 0009905391 | NUT RETAINER | |
| Repalced by: A 0009908391 | ||
| A 0009908391 | NUT RETAINER | |
| Repalced by: A 0009907191 | ||
| A 0009907191 | NUT RETAINER | |
| ARMRESTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SAFETY BELTS | ||
| 086 | A 1108601285 | SAFETY BELT |
| FRONT SEAT | ||
| 093 | A 1108601385 | SAFETY BELT |
| REAR SEAT | ||
| 099 | A 1138680030 | CAP |
| 106 | A 0009840733 | SCREW |
| Repalced by: A 0009840833 | ||
| A 0009840833 | SCREW | |
| Repalced by: A 0009841033 | ||
| A 0009841033 | SCREW | |
| FRONT SEAT | ||
| 7/16" | ||
| 111 | A 0019908701 | SCREW |
| REAR SEAT | ||
| 7/16" | ||
| 116 | A 0009910035 | SPACER RING |
| 121 | A 0019900240 | WASHER |
| 126 | A 1108600214 | BRACKET |
| 131 | A 0008680032 | CLAMP |
| 136 | A 0008680132 | CLAMP |
| A 0008680232 | CLAMP | |
| A 0008680134 | SPRING | |
| A 0009840933 | SCREW | |
| N 000933010028 | SCREW | |
| A 0008680332 | CLAMP | |
