Transporto priemonė: 230 S; VIN numerio dalis: 111010

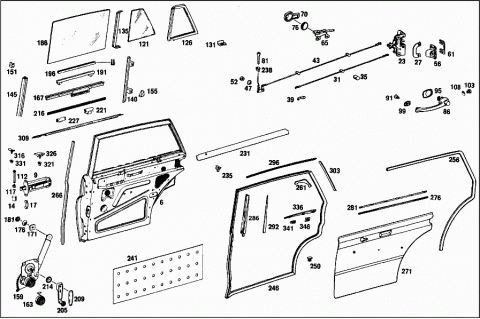

Grupė: 73 REAR DOORS - 001 DOORS
101991
# Kodas Pavadinimas
A 1107301305 DOOR SHELL
SHELL,LEFT
006 A 1107301405 DOOR SHELL
SHELL,RIGHT
009 A 1107300316 DOOR CHECK
Repalced by: A 1107300516
A 1107300516 DOOR CHECK
Repalced by: A 1107301016
A 1107301016 DOOR CHECK
014 A 1107230024 CAP
Repalced by: A 1107230824
A 1107230824 EDGING
017 A 1107230096 BUFFER
A 0009880027 GROMMET
Repalced by: A 0009881427
A 0009881427 GROMMET
N 000933006102 SCREW
Repalced by: N 304017006016
N 304017006016 SCREW
DOOR CHECK TO REAR DOOR
A 0009905391 NUT RETAINER
Repalced by: A 0009908391
A 0009908391 NUT RETAINER
Repalced by: A 0009907191
A 0009907191 NUT RETAINER
DOOR CHECK TO REAR DOOR
N 006797006145 TOOTHED WASHER
DOOR CHECK TO REAR DOOR
N 000934006007 NUT
DOOR CHECK TO REAR DOOR
N 009021006103 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
DOOR CHECK TO REAR DOOR
N 000965008008 SCREW
REAR DOORS TO CENTRAL PILLAR HINGES
A 1107301135 DOOR LOCK
LEFT,LESS INTERIOR LOCKING MECHANISM
023 A 1107301235 DOOR LOCK
RIGHT,LESS INTERIOR LOCKING MECHANISM
A 1107230524 EDGING
Repalced by: A 1087230124
A 1087230124 EDGING
LEFT
027 A 1107230624 EDGING
Repalced by: A 1087230224
A 1087230224 EDGING
RIGHT
A 0009905391 NUT RETAINER
Repalced by: A 0009908391
A 0009908391 NUT RETAINER
Repalced by: A 0009907191
A 0009907191 NUT RETAINER
DOOR LOCK TO INTERIOR PLATE
A 0009903330 SCREW
DOOR LOCK TO INTERIOR PLATE
N 007988006124 SCREW
DOOR LOCK TO INTERIOR PLATE
N 007988004103 SCREW
EDGING TO DOOR
031 A 1107300092 PULL ROD
A 1107300192 PULL ROD
LEFT REAR DOOR;WITH ADDITIONAL LOCKING MECHANISM
A 1107300292 PULL ROD
REGHT REAR DOOR;WITH ADDITIONAL LOCKING MECHANISM
035 A 1209870137 MOLDED PIECE
Repalced by: A 0029888378
A 0029888378 CLIP
Repalced by: A 0069886378
A 0069886378 CLIP
039 A 1009940160 LOCK
A 1107300193 DOOR LOCKING DEVICE
Repalced by: A 1107300393
A 1107300393 DOOR LOCKING DEVICE
043 A 1107300293 DOOR LOCKING DEVICE
Repalced by: A 1107300493
A 1107300493 DOOR LOCKING DEVICE
A 1209870137 MOLDED PIECE
Repalced by: A 0029888378
A 0029888378 CLIP
Repalced by: A 0069886378
A 0069886378 CLIP
A 1009940160 LOCK
N 000923006005 SCREW
047 N 900055008002 SPRING WASHER
052 A 1209910435 SPACER RING
A 0009903991 NUT RETAINER
DOOR LOCKING DEVICE
A 1107201104 LOCKING EYE
LEFT
056 A 1107201204 LOCKING EYE
RIGHT
061 A 1107230211 PLATE
Repalced by: A 1007230211
061 A 1007230211 PLATE
2,0 MM
A 1107230311 PLATE
2,6 MM
N 007987006130 SCREW
A 1107600961 INTERIOR HANDLE ASSEMBLY
LEFT DOOR
A 1087600561 INTERIOR HANDLE ASSEMBLY
LEFT DOOR
065 A 1107601061 INTERIOR HANDLE ASSEMBLY
RIGHT DOOR
A 1087600661 INTERIOR HANDLE ASSEMBLY
RIGHT DOOR
N 007985006132 SCREW
INTERIOR HANDLE ASSEMBLY TO DOOR
A 0009905391 NUT RETAINER
Repalced by: A 0009908391
A 0009908391 NUT RETAINER
Repalced by: A 0009907191
A 0009907191 NUT RETAINER
INTERIOR HANDLE ASSEMBLY TO DOOR
A 0009841755 WASHER
INTERIOR HANDLE ASSEMBLY TO DOOR
A 1107660511 ESCUTCHEON
LEFT
A 1087660511 ESCUTCHEON
LEFT
070 A 1107660611 ESCUTCHEON
RIGHT
A 1087660611 ESCUTCHEON
RIGHT
N 007987004119 SCREW
076 A 1107660690 INSERT
A 1087660390 INSERT
LEFT
A 1087660490 INSERT
RIGHT
081 A 1107600565 KNOB
DOOR INNER LOCK
086 A 1107660302 DOOR HANDLE
OUTSIDE
091 A 1207660015 PIN
095 A 1107660005 PAD
DOOR HANDLES REAR
099 A 1107660105 PAD
Repalced by: A 1207660005
099 A 1207660005 PAD
DOOR HANDLES FRONT
103 N 007985006150 SCREW
DOOR HANDLE TO DOOR
108 A 1119930026 DISC SPRING
DOOR HANDLE TO DOOR
112 A 1109910307 PIN
DOOR CHECK
117 A 0009940051 LOCK
Repalced by: N 912001005000
N 912001005000 LOCK
DOOR CHECK
121 A 1107350109 GLASS PANE
A 1107350309 GLASS PANE
A 1107350124 SEAL
LEFT
126 A 1107350224 SEAL
RIGHT
131 A 0009883978 CLIP
FIXED WINDOW;AT INTERIOR PLATE
A 0009894585 ADHESIVE TAPE
Repalced by: A 0019875646
A 0029894185 ADHESIVE TAPE
Repalced by: A 0019875646
A 0019875646 SEALING CORD
2X20X10 MM
A 1107300319 WINDOW STAYBAR
LEFT DOOR
135 A 1107300419 WINDOW STAYBAR
RIGHT DOOR
N 007981004318 SHEET METAL SCREW
WINDOW STAYBAR TO REAR DOOR,TOP
A 0009942345 LOCK
WINDOW STAYBAR TO REAR DOOR,TOP
N 007981004318 SHEET METAL SCREW
WINDOW STAYBAR TO REAR DOOR,BOTTOM
N 009021004108 WASHER
Repalced by: N 009021004207
N 009021004207 WASHER
WINDOW STAYBAR TO REAR DOOR,BOTTOM
A 1107300515 WINDOW RUN
RIGHT
140 A 1107300615 WINDOW RUN
LEFT
A 0029882378 CLIP
N 007985006149 SCREW
Repalced by: N 007985006580
N 007985006580 SCREW
WINDOW RUN TO INTERIOR PLATE
N 912004006102 LOCK WASHER
WINDOW RUN TO INTERIOR PLATE
A 0009940510 LOCK
WINDOW RUN TO INTERIOR PLATE
145 A 0009851830 SEALING SECTION
2110 MM
151 A 0029882378 CLIP
WINDOW RUN TO WINDOW FRAME
155 A 1107250293 CAP
WINDOW RUN
A 1087250098 SEAL
Repalced by: A 1157251298
A 1157251298 SEAL
Repalced by: A 1167250198
A 1167250198 SEAL
A 1107350102 WINDOW REGULATOR
LEFT DOOR
159 A 1107350202 WINDOW REGULATOR
RIGHT DOOR
163 A 0007680105 SPRING
Repalced by: A 0007680905
163 A 0007680905 SPRING
Repalced by: A 0007680734
163 A 0007680734 SPRING
N 007985006149 SCREW
Repalced by: N 007985006580
N 007985006580 SCREW
WINDOW REGULATOR TO MOUNTING PLATE
N 912004006102 LOCK WASHER
WINDOW REGULATOR TO MOUNTING PLATE
A 1107300145 WINDOW REGULATOR RAIL
LEFT DOOR
167 A 1107300245 WINDOW REGULATOR RAIL
RIGHT DOOR
171 A 1209840137 SLIDE
Repalced by: A 1155860072
176 A 0009842456 WASHER
Repalced by: A 1155860072
181 A 0009900548 WASHER
Repalced by: A 1155860072
A 0009940360 LOCK
Repalced by: A 1155860072
N 912002010000 LOCK
Repalced by: A 1155860072
A 1155860072 REPAIR KIT
Repalced by: A 1237200114
A 1237200114 REPAIR KIT
WINDOW REGULATOR
186 A 1107350010 GLASS PANE
A 1107350210 GLASS PANE
ON SPECIAL REQUEST
191 A 1107200047 RETAINING RAIL
196 A 0009876657 RUBBER MOULDING
340 MM
N 007985006149 SCREW
Repalced by: N 007985006580
N 007985006580 SCREW
CRANK OPERATED WINDOW TO WINDOW REGULATOR RAIL
N 006797006145 TOOTHED WASHER
CRANK OPERATED WINDOW TO WINDOW REGULATOR RAIL
205 A 1107600402 CRANK
A 1087600102 CRANK
Repalced by: A 1237600102
A 1237600102 CRANK
N 007987004135 SCREW
WINDOW CRANK TO WINDOW REGULATOR
N 006797004333 TOOTHED WASHER
WINDOW CRANK TO WINDOW REGULATOR
209 A 1107680195 PAD
WINDOW CRANK
214 A 1107680013 WASHER
Repalced by: A 1087680113
214 A 1087680113 WASHER
WINDOW CRANK
216 A 0009850330 SEALING SECTION
Repalced by: A 1217250166
A 1217250166 SEAL
Repalced by: A 1157250965
A 1157250965 SEALING RAIL
524 MM
221 A 0019881778 CLIP
AT DOOR
227 A 0019882378 CLIP
AT DOOR
A 1117301551 PANELLING
LEFT DOOR,BOTTOM
231 A 1117301651 PANELLING
RIGHT DOOR,BOTTOM
235 A 0019882878 CLIP
Repalced by: A 0029884578
235 A 0029884578 CLIP
WINDOW INNER MOULDING
238 A 1127250170 ESCUTCHEON
Repalced by: A 1087250070
A 1087250070 ESCUTCHEON
241 A 1117275290 INSULATION
Repalced by: A 1237270090
241 A 1237270090 INSULATION
Repalced by: A 1107270390
241 A 1107270390 INSULATION
Repalced by: A 2106820008
241 A 2106820008 INSULATION
Repalced by: A 1686820308
241 A 1686820308 INSULATION
A 1107300578 WEATHERSTRIP
LEFT REAR DOOR
246 A 1107300678 WEATHERSTRIP
RIGHT REAR DOOR
250 A 0019882478 CLIP
WEATHERSTRIP
A 0009899271 CLEANER
WEATHERSTRIP
A 1107300197 EDGE GUARD SECTION
RIGHT
256 A 1107300297 EDGE GUARD SECTION
LEFT
261 A 1107370188 COVERING
Repalced by: A 1107370288
A 1107370288 COVERING
A 1107370131 SEAL
Repalced by: A 1107370531
A 1107370531 SEAL
266 A 1107370231 SEAL
Repalced by: A 1107370631
A 1107370631 SEAL
A 0009899271 CLEANER
WEATHERSTRIP
A 1107303570 PANELLING
FABRIC; LEFT
A 1107307570 PANELLING
FABRIC; LEFT
271 A 1107303670 PANELLING
FABRIC; RIGHT
A 1107307670 PANELLING
FABRIC; RIGHT
A 1107303970 PANELLING
LEFT; LEATHER
A 1107304070 PANELLING
RIGHT; LEATHER
A 0019882878 CLIP
Repalced by: A 0029884578
A 0029884578 CLIP
DOOR LININGS
276 A 1107370082 GARNISH MOULDING
DOOR LININGS
281 A 1107370172 RAIL
Repalced by: A 1107370072
281 A 1107370072 RAIL
A 0009942245 LOCK
A 0009850562 WASHER
DOOR LININGS
N 007983002205 SHEET METAL SCREW
DOOR LININGS
A 1107300181 GARNISH MOULDING
WINDOW FRAME,FRONT LEFT
286 A 1107300281 GARNISH MOULDING
WINDOW FRAME,FRONT RIGHT
A 0009942345 LOCK
GARNISH MOULDING TO WINDOW FRAME
N 007981004243 SHEET METAL SCREW
Repalced by: N 000000002062
N 000000002062 SCREW
GARNISH MOULDING TO WINDOW FRAME
292 A 1107380080 SEAL
GARNISH MOULDING TO WINDOW FRAME
A 1107380331 GARNISH MOULDING
WINDOW FRAME,TOP LEFT
296 A 1107380431 GARNISH MOULDING
WINDOW FRAME,TOP RIGHT
A 1107380531 GARNISH MOULDING
WINDOW FRAME,REAR LEFT
303 A 1107380631 GARNISH MOULDING
WINDOW FRAME,REAR RIGHT
A 1107380130 GARNISH MOULDING
LEFT REAR DOOR
309 A 1107380230 GARNISH MOULDING
RIGHT REAR DOOR
316 A 1107300094 SCREW
321 A 0009881581 FASTENER BUTTON
Repalced by: A 0019882081
321 A 0019882081 FASTENER BUTTON
Repalced by: A 0089970381
321 A 0089970381 GROMMET
Repalced by: A 0019882081
321 A 0019882081 FASTENER BUTTON
Repalced by: A 0019887681
321 A 0019887681 FASTENER BUTTON
LOWER PART
326 A 0009884281 FASTENER BUTTON
UPPER PART
331 A 0009880327 GROMMET
GARNISH MOULDING TO SIDE WINDOW EDGE
N 000137004202 SPRING WASHER
GARNISH MOULDING TO SIDE WINDOW EDGE
N 000934004006 NUT
GARNISH MOULDING TO SIDE WINDOW EDGE
A 1117380322 GARNISH MOULDING
TOP LEFT
336 A 1117380422 GARNISH MOULDING
TOP RIGHT
341 A 1119870226 PLASTIC PAD
GARNISH MOULDING TO COVERING
346 A 1119870326 PLASTIC PAD
GARNISH MOULDING TO COVERING
N 007987004134 SCREW
GARNISH MOULDING TO COVERING
A 0009851062 WASHER
GARNISH MOULDING TO COVERING
