Transporto priemonė: 230 S; VIN numerio dalis: 111010

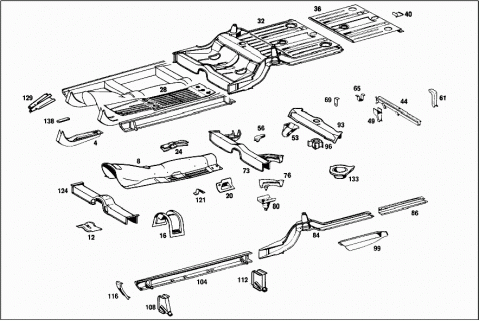

Grupė: 61 FRAME FLOOR UNIT - 001 SUBSTRUCTURE

#	Kodas	Pavadinimas
004	A 1106100713	SIDE MEMBER
	Repalced by: A 1086100113
	A 1086100113	SIDE MEMBER
		LEFT FRONT CONNECTOR
	A 1106100813	SIDE MEMBER
		RIGHT FRONT CONNECTOR
008	A 1106160466	TUNNEL
	Repalced by: A 1106160966
	A 1106160966	TUNNEL
012	A 1106100254	BRIDGE
016	A 1106100352	TAKE-UP DEVICE
		PROPELLER SHAFT BEARING
020	A 1106160220	MOUNTING
	Repalced by: A 1086100053
	A 1086100053	MOUNTING
024	A 1106160128	GUIDE
	A 1106100311	PLATE
	Repalced by: A 1269840125
	A 1269840125	THREADED CHUCK
	Repalced by: A 1269840025
	A 1269840025	THREADED CHUCK
028	A 1106160367	FLOOR
	Repalced by: A 1106160767
	A 1106160767	FLOOR
	Repalced by: A 1086160167
	A 1086160167	FLOOR
		LEFT
	A 1106160467	FLOOR
	Repalced by: A 1106160867
	A 1106160867	FLOOR
		RIGHT
032	A 1106100661	FLOOR
	A 1106100861	FLOOR
		REAR END
	A 1106101261	FLOOR
	Repalced by: A 1106101061
	A 1106101061	FLOOR
	Repalced by: A 1106101461
	A 1106101461	FLOOR
	Repalced by: A 1106101661
	A 1106101661	FLOOR
		REAR END
	A 1106160062	FLOOR
	Repalced by: A 1106160462
	A 1106160462	FLOOR
		REAR
036	A 1106160162	FLOOR
		REAR,REAR END CONNECTION
040	A 1106100025	REINFORCEMENT
	Repalced by: A 1106100725
	A 1106100725	REINFORCEMENT
044	A 1106100016	CROSS MEMBER
	Repalced by: A 1106100216
	A 1106100216	CROSS MEMBER
049	A 1106120324	BRACKET
053	A 1106100131	CONSOLE
056	A 1104271041	BRACKET
061	A 1106160022	BRACKET
		REAR
065	A 1104200686	BRACKET
069	A 1104280340	BRACKET
073	A 1106100014	CROSS MEMBER
	A 1106100114	CROSS MEMBER
076	A 1106100127	DIAGONAL GIRDER
		LEFT
	A 1106100227	DIAGONAL GIRDER
		RIGHT
080	A 1103500633	BELL HUB
084	A 1106100510	SIDE MEMBER
	Repalced by: A 1106101110
	A 1106101110	SIDE MEMBER
	Repalced by: A 1106101510
	A 1106101510	SIDE MEMBER
		REAR LEFT
086	A 1106110321	TUBE
		SEMI-FINISHED,REAR LEFT
	A 1106100610	SIDE MEMBER
	Repalced by: A 1106101010
	A 1106101010	SIDE MEMBER
	Repalced by: A 1106101210
	A 1106101210	SIDE MEMBER
	Repalced by: A 1106101610
	A 1106101610	SIDE MEMBER
		REAR RIGHT
	A 1109871044	EXPANSION PLUG
	A 1106110421	TUBE
	Repalced by: A 1106110821
	A 1106110821	TUBE
		SEMI-FINISHED,REAR RIGHT
	A 1106100311	PLATE
	Repalced by: A 1269840125
	A 1269840125	THREADED CHUCK
	Repalced by: A 1269840025
	A 1269840025	THREADED CHUCK
093	A 1106100117	CROSS MEMBER
	Repalced by: A 1106100217
	A 1106100217	CROSS MEMBER
096	A 1106100158	CUP
099	A 1106110140	END PIECE
		LEFT
	A 1106110240	END PIECE
	Repalced by: A 1106110640
	A 1106110640	END PIECE
		RIGHT
104	A 1106100109	SUPPORT
	Repalced by: A 1106100309
	A 1106100309	SUPPORT
	A 1106100209	SUPPORT
	Repalced by: A 1106100409
	A 1106100409	SUPPORT
108	A 1116108052	TAKE-UP DEVICE
	Repalced by: A 1106100052
	A 1106100052	TAKE-UP DEVICE
112	A 1116108152	TAKE-UP DEVICE
	Repalced by: A 1106100452
	A 1106100452	TAKE-UP DEVICE
116	A 1106110340	END PIECE
		LEFT
	A 1106110440	END PIECE
		RIGHT
121	A 1106160631	CONSOLE
		FRONT SEAT
124	A 1106100220	CROSS MEMBER
		FRONT SEAT
	A 1084200186	BRACKET
	A 1086100153	MOUNTING
		LEFT
	A 1086100253	MOUNTING
		RIGHT
	A 0019895985	ADHESIVE TAPE
	Repalced by: A 0009899885
	A 0009899885	ADHESIVE TAPE
		REAR END CONNECTION
129	A 1116110227	MOUNTING
133	A 1103250915	SPRING CASE
		REAR SPRING
138	A 1106110411	PLATE
	Repalced by: A 1082420140
	A 1082420140	BRACKET
		ENGINE FRONT SUSPENSION
