Transporto priemonė: 230 S; VIN numerio dalis: 111010

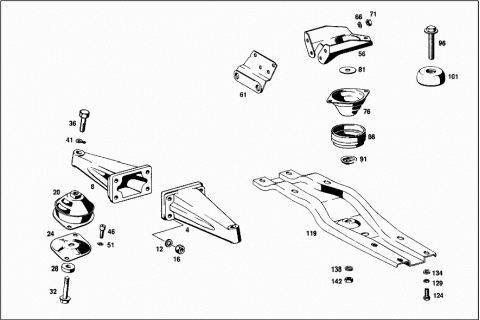

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| ENGINE FRONT SUSPENSION | ||
| 004 | A 1802232404 | ENGINE SUPPORT |
| LEFT | ||
| 008 | A 1802232504 | ENGINE SUPPORT |
| RIGHT | ||
| 012 | N 000125010504 | WASHER |
| 016 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 016 | N 304032010002 | NUT |
| A 1802230912 | RUBBER MOUNTING | |
| LEFT | ||
| 020 | A 1802231012 | RUBBER MOUNTING |
| RIGHT | ||
| A 1802231112 | RUBBER MOUNTING | |
| LEFT | ||
| A 1802231212 | RUBBER MOUNTING | |
| RIGHT | ||
| 024 | A 1212230331 | PLATE |
| 028 | A 1169870641 | RUBBER RING |
| A 1112200117 | REPAIR KIT | |
| A 1105860322 | REPAIR KIT | |
| 032 | A 1212200471 | SCREW |
| 036 | N 000931012120 | SCREW |
| 041 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 041 | N 000137012206 | SPRING WASHER |
| 046 | N 000912008006 | SCREW |
| Repalced by: N 007984008003 | ||
| 046 | N 007984008003 | SCREW |
| 051 | N 000127008203 | LOCK WASHER |
| A 1082410002 | SUPPORT | |
| N 000912010069 | SCREW | |
| N 912004010102 | LOCK WASHER | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| ENGINE FRONT SUSPENSION | ||
| 056 | A 1112400402 | ENGINE SUPPORT |
| REAR | ||
| A 1082420401 | ENGINE SUPPORT | |
| REAR | ||
| 061 | A 1104900444 | PLATE |
| A 1104900644 | PLATE | |
| 066 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 066 | N 000137008212 | SPRING WASHER |
| 071 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 071 | N 304032008006 | NUT |
| 076 | A 1202230412 | RUBBER MOUNTING |
| A 1202230612 | RUBBER MOUNTING | |
| A 1292240012 | RUBBER MOUNTING | |
| A 1292240112 | RUBBER MOUNTING | |
| 081 | A 1119900640 | WASHER |
| 086 | A 1112240082 | BOOT |
| 091 | A 1212240084 | RETAINER |
| 096 | A 1112400071 | SCREW |
| 101 | A 0002240082 | BOOT |
| A 1212240282 | BOOT | |
| Repalced by: A 1212240382 | ||
| A 1212240382 | BOOT | |
| A 1212240382 | BOOT | |
| N 000933012039 | SCREW | |
| A 1112400118 | REPAIR KIT | |
| A 1105860324 | REPAIR KIT | |
| Repalced by: A 1292240012 | ||
| A 1292240012 | RUBBER MOUNTING | |
| N 000912008089 | SCREW | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000127008203 | LOCK WASHER | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| A 1109870939 | RUBBER BUFFER | |
| N 000125006407 | WASHER | |
| N 007981006302 | SHEET METAL SCREW | |
| 119 | A 1102400402 | ENGINE SUPPORT |
| A 1102420213 | RUBBER MOUNTING | |
| A 1109870939 | RUBBER BUFFER | |
| N 000125006407 | WASHER | |
| N 007981006302 | SHEET METAL SCREW | |
| 119 | A 1082400502 | ENGINE SUPPORT |
| Repalced by: A 1102400402 | ||
| 119 | A 1102400402 | ENGINE SUPPORT |
| 124 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 124 | N 304017008021 | SCREW |
| 129 | N 000127008203 | LOCK WASHER |
| 134 | N 000125008407 | WASHER |
| 138 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 138 | N 000137012206 | SPRING WASHER |
| 142 | N 000936012011 | NUT |
| Repalced by: N 304035012002 | ||
| 142 | N 304035012002 | NUT |
| A 1082410102 | SUPPORT | |
| A 0002400648 | ENGINE VIBRATION ABSORBER | |
| N 000933008145 | SCREW | |
| N 000127008203 | LOCK WASHER | |
| A 1072410065 | RUBBER BUFFER | |
| A 1082410012 | RETAINER | |
| N 913002006005 | NUT | |
| Repalced by: N 913002006009 | ||
| N 913002006009 | NUT | |
| A 1072400117 | REPAIR KIT | |
| ENINE SHOCK ABSORBER MOUNTING PARTS | ||
