Transporto priemonė: 230 S; VIN numerio dalis: 111010

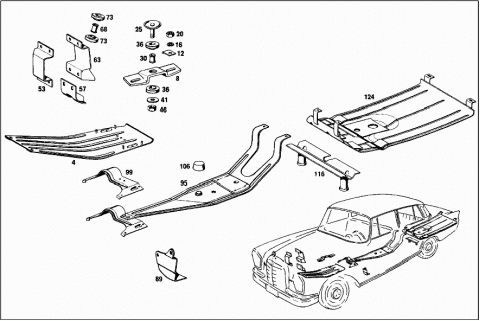

Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		UNDERSHIELDS, ON SPECIAL REQUEST
004	A 1115200342	PROTECTIVE PLATE
		OIL PAN
008	A 1115241540	BRACKET
012	A 1115240018	SHIM
		UNDERSHIELD TO RETAINING PLATE
016	N 000127010200	LOCK WASHER
		UNDERSHIELD TO RETAINING PLATE
020	N 000934010014	NUT
		UNDERSHIELD TO RETAINING PLATE
025	A 1115200274	PIN
030	A 1115240253	SPACER TUBE
036	A 0019870840	RUBBER BUFFER
041	N 009021010100	WASHER
046	N 000937010000	NUT
	N 000094002007	COTTER PIN
053	A 1115240240	BRACKET
		RIGHT OIL PAN UNDERSHIELD TO BODY FRONT CROSS MEMBER
	A 1115241440	BRACKET
		LEFT OIL PAN UNDERSHIELD TO BODY FRONT CROSS MEMBER
057	A 1115240010	MOUNTING ANGLE
		OIL PAN UNDERSHIELD TO BODY FRONT CROSS MEMBER
063	A 1115200041	BRACKET
		OIL PAN UNDERSHIELD TO BODY FRONT CROSS MEMBER
068	A 1115240253	SPACER TUBE
		OIL PAN UNDERSHIELD TO BODY FRONT CROSS MEMBER
073	A 0019870840	RUBBER BUFFER
		OIL PAN UNDERSHIELD TO BODY FRONT CROSS MEMBER
	N 000933010062	SCREW
		OIL PAN UNDERSHIELD TO BODY FRONT CROSS MEMBER
	N 000127010200	LOCK WASHER
		OIL PAN UNDERSHIELD TO BODY FRONT CROSS MEMBER
	N 000934010014	NUT
		OIL PAN UNDERSHIELD TO BODY FRONT CROSS MEMBER
	N 000933008154	SCREW
	Repalced by: N 304017008021
	N 304017008021	SCREW
	N 000127008200	LOCK WASHER
		OIL PAN UNDERSHIELD TO BODY FRONT CROSS MEMBER
	N 000934008010	NUT
	Repalced by: N 304032008006
	N 304032008006	NUT
		OIL PAN UNDERSHIELD TO BODY FRONT CROSS MEMBER
089	A 1105240333	COVERING
		SLAVE CYLINDER
	N 000933010128	SCREW
		CLUTCH SLAVE CYLINDER UNDERSHIELD TO INTERMEDIATE FLANGE AT BELL HOUSING
	N 000933010074	SCREW
		CLUTCH SLAVE CYLINDER UNDERSHIELD TO INTERMEDIATE FLANGE AT BELL HOUSING
	N 000127010200	LOCK WASHER
		CLUTCH SLAVE CYLINDER UNDERSHIELD TO INTERMEDIATE FLANGE AT BELL HOUSING
095	A 1115200373	THREADED UNION
	Repalced by: A 1125200275
	A 1125200275	PANELLING
099	A 1115241240	BRACKET
106	A 1115240081	RUBBER BUFFER
	N 000933010164	SCREW
	N 000127010200	LOCK WASHER
	N 000934010014	NUT
	A 1125240240	BRACKET
	N 000933008145	SCREW
		REAR AXLE UNDERSHIELD TO FRAME FLOOR UNIT
	N 000126011500	WASHER
		REAR AXLE UNDERSHIELD TO FRAME FLOOR UNIT
	N 000933008131	SCREW
	Repalced by: N 304017008016
	N 304017008016	SCREW
		REAR AXLE UNDERSHIELD TO FRAME FLOOR UNIT
	N 000127008000	LOCK WASHER
		REAR AXLE UNDERSHIELD TO FRAME FLOOR UNIT
	N 000934008010	NUT
	Repalced by: N 304032008006
	N 304032008006	NUT
		REAR AXLE UNDERSHIELD TO FRAME FLOOR UNIT
	N 000933006024	SCREW
		REAR AXLE UNDERSHIELD TO FRAME FLOOR UNIT
	N 912004006102	LOCK WASHER
		REAR AXLE UNDERSHIELD TO FRAME FLOOR UNIT
116	A 1115200441	BRACKET
		REAR AXLE UNDERSHIELD TO CROSS MEMBER IN FRONT OF FUEL TANK
	A 1123100068	RAIL
		REAR AXLE UNDERSHIELD TO CROSS MEMBER IN FRONT OF FUEL TANK
	N 000912010006	SCREW
		REAR AXLE UNDERSHIELD TO CROSS MEMBER IN FRONT OF FUEL TANK
	N 000127010200	LOCK WASHER
		REAR AXLE UNDERSHIELD TO CROSS MEMBER IN FRONT OF FUEL TANK
124	A 1115200875	PANELLING
		FUEL TANK
	A 1809900640	WASHER
	A 1105240233	COVERING
		FOR PIPE LINES
	A 1109870741	RUBBER RING
		PROTECTIVE PLATE TO FRAME FLOOR UNIT
	N 000933008145	SCREW
		PROTECTIVE PLATE TO FRAME FLOOR UNIT
	N 000127008203	LOCK WASHER
		PROTECTIVE PLATE TO FRAME FLOOR UNIT
	N 000934008010	NUT
	Repalced by: N 304032008006
	N 304032008006	NUT
		PROTECTIVE PLATE TO FRAME FLOOR UNIT
	N 007976006203	SHEET METAL SCREW
