Transporto priemonė: 220 SEB; VIN numerio dalis: 111023

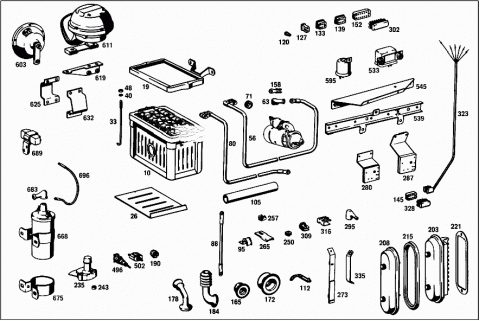

Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| BATTERY,STARTING CABLE | ||
| 010 | A 0035413301 | BATTERY |
| 12V/55 AH | ||
| A 0009890515 | BATTERY ACID BOTTLE SET | |
| Repalced by: A 0009891315 | ||
| A 0009891315 | BATTERY ACID BOTTLE SET | |
| A 0025419901 | BATTERY | |
| CABLE HARNESS MOUNTING | ||
| 12V/70AH | ||
| A 0009890415 | BATTERY ACID BOTTLE SET | |
| Repalced by: A 0009891315 | ||
| A 0009891315 | BATTERY ACID BOTTLE SET | |
| A 1115400023 | MOUNTING FRAME | |
| A 1115400123 | MOUNTING FRAME | |
| 019 | A 1085400123 | MOUNTING FRAME |
| A 1105400223 | MOUNTING FRAME | |
| A 1105400823 | MOUNTING FRAME | |
| 026 | A 1105410635 | BOTTOM |
| A 1105410135 | BOTTOM | |
| A 1205410124 | CLAMPING SCREW | |
| A 1205410124 | CLAMPING SCREW | |
| 033 | A 1865410124 | CLAMPING SCREW |
| 033 | A 1865410124 | CLAMPING SCREW |
| 040 | N 912004006102 | LOCK WASHER |
| 048 | N 000934006013 | NUT |
| Repalced by: N 304032006008 | ||
| 048 | N 304032006008 | NUT |
| A 1115400530 | POSITIVE CABLE | |
| 056 | A 1105400230 | POSITIVE CABLE |
| A 1125400230 | POSITIVE CABLE | |
| 063 | A 1115460035 | BOOT |
| Repalced by: A 1165460135 | ||
| 063 | A 1165460135 | BOOT |
| 071 | A 0009972881 | GROMMET |
| A 0019888478 | CLIP | |
| STARTING CABLE TO BATTERY FRAME BRACKET | ||
| A 0029880078 | CLIP | |
| STARTING CABLE TO BATTERY FRAME BRACKET | ||
| A 1115400031 | NEG. CABLE | |
| FROM BATTERY TO ENGINE | ||
| A 1115400031 | NEG. CABLE | |
| FROM BATTERY TO ENGINE | ||
| A 1215400141 | GROUND STRAP | |
| FROM ENGINE TO FRAME | ||
| A 1215400141 | GROUND STRAP | |
| FROM ENGINE TO FRAME | ||
| A 1204200227 | SCREW | |
| GROUND CABLE TO FIRE WALL | ||
| A 1204200227 | SCREW | |
| GROUND CABLE TO FIRE WALL | ||
| N 912004006102 | LOCK WASHER | |
| GROUND CABLE TO FIRE WALL | ||
| N 912004006102 | LOCK WASHER | |
| GROUND CABLE TO FIRE WALL | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| GROUND CABLE TO FIRE WALL | ||
| N 304032006008 | NUT | |
| GROUND CABLE TO FIRE WALL | ||
| 080 | A 1105400631 | NEG. CABLE |
| FROM BATTERY TO GROUND AT SIDE MEMBER | ||
| 080 | A 1105400631 | NEG. CABLE |
| FROM BATTERY TO GROUND AT SIDE MEMBER | ||
| 080 | A 1105400631 | NEG. CABLE |
| FROM BATTERY TO GROUND AT SIDE MEMBER | ||
| 088 | A 1165400531 | NEG. CABLE |
| FROM SIDE MEMBER TO ENGINE | ||
| 088 | A 1165400531 | NEG. CABLE |
| FROM SIDE MEMBER TO ENGINE | ||
| 088 | A 1165400531 | NEG. CABLE |
| FROM SIDE MEMBER TO ENGINE | ||
| N 000933008131 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| NEGATIVE CABLE TO SIDE MEMBER | ||
| N 912004008102 | LOCK WASHER | |
| NEGATIVE CABLE TO SIDE MEMBER | ||
| N 000934008013 | NUT | |
| NEGATIVE CABLE TO SIDE MEMBER | ||
| 095 | A 1879950037 | CLAMP |
| STARTING CABLE TO WHEEL ARCH PANEL | ||
| A 1119950222 | CLAMP | |
| STARTING CABLE TO WHEEL ARCH PANEL | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| STARTING CABLE TO WHEEL ARCH PANEL | ||
| 105 | A 0005462930 | INSULATING HOSE |
| STARTING CABLE AND CABLE HARNESS | ||
| A 0019974190 | LOOM TIE | |
| STARTING CABLE AND CABLE HARNESS | ||
| A 1805400441 | GROUND STRAP | |
| FROM ENGINE HOOD TO COWL | ||
| N 007981004258 | SHEET METAL SCREW | |
| GROUND STRAP TO COWL | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| GROUND STRAP TO COWL | ||
| 112 | A 1115400041 | GROUND STRAP |
| Repalced by: A 0005460720 | ||
| 112 | A 0005460720 | GROUND STRAP |
| FROM ENGINE BLOCK TO RADIATOR | ||
| A 1115400105 | CABLE HARNESS | |
| A 1115402205 | CABLE HARNESS | |
| Repalced by: A 1115403405 | ||
| A 1115403405 | CABLE HARNESS | |
| A 1115403405 | CABLE HARNESS | |
| A 1115406305 | CABLE HARNESS | |
| A 1115407405 | CABLE HARNESS | |
| A 1115403805 | CABLE HARNESS | |
| A 1115405405 | CABLE HARNESS | |
| A 1115407005 | CABLE HARNESS | |
| A 1115400905 | CABLE HARNESS | |
| A 1115402405 | CABLE HARNESS | |
| A 1115404005 | CABLE HARNESS | |
| Repalced by: A 1115405005 | ||
| A 1115405005 | CABLE HARNESS | |
| A 1115406705 | CABLE HARNESS | |
| A 1115407705 | CABLE HARNESS | |
| A 1115404105 | CABLE HARNESS | |
| A 1115405705 | CABLE HARNESS | |
| A 1115408005 | CABLE HARNESS | |
| A 1115402805 | CABLE HARNESS | |
| A 1115402805 | CABLE HARNESS | |
| A 1115406405 | CABLE HARNESS | |
| A 1115408105 | CABLE HARNESS | |
| A 1115402905 | CABLE HARNESS | |
| A 1115405505 | CABLE HARNESS | |
| A 1115408305 | CABLE HARNESS | |
| A 1115403205 | CABLE HARNESS | |
| A 1115406805 | CABLE HARNESS | |
| A 1115408205 | CABLE HARNESS | |
| A 1115404205 | CABLE HARNESS | |
| A 1115405805 | CABLE HARNESS | |
| A 1115408405 | CABLE HARNESS | |
| 120 | A 0005454728 | PLUG |
| 120 | A 0045458528 | PLUG |
| Repalced by: A 0085452028 | ||
| 120 | A 0085452028 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 127 | A 0025454928 | PLUG |
| Repalced by: A 0085453728 | ||
| 127 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 133 | A 0005453228 | PLUG |
| 4-POLE | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| 139 | A 0065458028 | PIN BUSHING HOUSING |
| 6-POLE | ||
| A 0005453328 | PLUG | |
| 6-POLE | ||
| A 0025454028 | PLUG | |
| Repalced by: A 0065458128 | ||
| 145 | A 0065458128 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 145 | A 0065458128 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 152 | A 0005453628 | PLUG |
| 12-POLE | ||
| 158 | A 0005463540 | CABLE SHOE |
| STARTING MOTOR | ||
| A 1809971281 | GROMMET | |
| A 1119970981 | GROMMET | |
| A 1119970681 | GROMMET | |
| A 1119970181 | GROMMET | |
| BACK-UP LAMP CABLE | ||
| TO 111 540 40 05 | ||
| A 1119970181 | GROMMET | |
| BACK-UP LAMP CABLE | ||
| TO 111 540 40 05 | ||
| A 1119970181 | GROMMET | |
| BACK-UP LAMP CABLE | ||
| TO 111 540 40 05 | ||
| 165 | A 1119971581 | GROMMET |
| BACK-UP LAMP CABLE | ||
| TO 111 540 50 05 | ||
| A 1119971681 | GROMMET | |
| A 1119971681 | GROMMET | |
| 172 | A 1119971381 | GROMMET |
| 178 | A 1105460085 | PROTECTIVE TUBE |
| 178 | A 1105460085 | PROTECTIVE TUBE |
| 184 | A 1155460085 | PROTECTIVE TUBE |
| 190 | A 0005440486 | PLUG |
| HEADLAMP | ||
| A 0025459528 | PIN BUSHING HOUSING | |
| A 0005464040 | CABLE SHOE | |
| A 0005464640 | CABLE SHOE | |
| 196 | A 1115450019 | SOCKET |
| GEAR DISPLAY | ||
| 203 | A 1115400050 | FUSE BOX |
| 208 | A 0005451003 | CAP |
| 215 | A 0005450180 | GASKET |
| 221 | A 0005450280 | GASKET |
| 228 | A 1105400258 | LIGHT SWITCH |
| Repalced by: A 0005452004 | ||
| A 1105400358 | LIGHT SWITCH | |
| Repalced by: A 0005452604 | ||
| A 0005452004 | SWITCH | |
| HEADLAMPS,FOGLAMPS,AND CLEARANCE LAMPS | ||
| A 0005452604 | SWITCH | |
| HEADLAMPS,FOGLAMPS,AND CLEARANCE LAMPS | ||
| N 000084004174 | SCREW | |
| N 006797004232 | TOOTHED WASHER | |
| A 0005450812 | SWITCH | |
| Repalced by: A 0005451212 | ||
| A 0005450412 | SWITCH | |
| Repalced by: A 0005451212 | ||
| 235 | A 0005451112 | SWITCH |
| (FOOT DIMMER SWITCH) | ||
| A 0005451212 | SWITCH | |
| (FOOT DIMMER SWITCH) | ||
| A 0005458234 | FUSE | |
| Repalced by: N 072581008101 | ||
| N 072581008101 | FUSE | |
| FUSE BOX | ||
| N 072581025100 | FUSE | |
| FUSE BOX | ||
| N 007985004136 | SCREW | |
| FUSE BOX TO FIRE WALL | ||
| N 000137004202 | SPRING WASHER | |
| FUSE BOX TO FIRE WALL | ||
| A 1365450158 | INSULATION | |
| FOOT DIMMER SWITCH TO TOEBOARD | ||
| TO 000 545 04 12,000 545 08 12 | ||
| N 000966004007 | SCREW | |
| FOOT DIMMER SWITCH TO TOEBOARD | ||
| N 000966004007 | SCREW | |
| FOOT DIMMER SWITCH TO TOEBOARD | ||
| A 0009902591 | NUT RETAINER | |
| FOOT DIMMER SWITCH TO TOEBOARD | ||
| A 0009905891 | NUT RETAINER | |
| FOOT DIMMER SWITCH TO TOEBOARD | ||
| 243 | A 1109870641 | RUBBER RING |
| FOOT DIMMER SWITCH TO TOEBOARD | ||
| N 007983004213 | SHEET METAL SCREW | |
| FOOT DIMMER SWITCH TO TOEBOARD | ||
| A 0009883478 | CLIP | |
| ELECTRIC CABLE TO TOEBOARD | ||
| 250 | A 0029880178 | CLIP |
| BACK-UP LIGHT SWITCH CABLE TO TOEBOARD | ||
| A 0019882078 | CLIP | |
| MAIN CABLE HARNESS TO RIGHT WHEEL ARCH PANEL | ||
| A 0019882078 | CLIP | |
| MAIN CABLE HARNESS TO RIGHT WHEEL ARCH PANEL | ||
| A 0009883478 | CLIP | |
| MAIN CABLE HARNESS TO RIGHT WHEEL ARCH PANEL | ||
| A 1119880178 | CLIP | |
| MAIN CABLE HARNESS TO RIGHT WHEEL ARCH PANEL | ||
| A 0009885378 | CLIP | |
| MAIN CABLE HARNESS TO RIGHT WHEEL ARCH PANEL | ||
| A 1869950242 | CLAMP | |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| A 1879950037 | CLAMP | |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| A 1879950037 | CLAMP | |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| A 1879950037 | CLAMP | |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| A 1369950135 | CLAMP | |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| A 1369950137 | CLAMP | |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| N 007976005207 | SHEET METAL SCREW | |
| Repalced by: N 914031005208 | ||
| N 914031005208 | COMBINATION BOLT | |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| N 007985006193 | SCREW | |
| Repalced by: N 000000001146 | ||
| N 000000001146 | SCREW | |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| M 6X16 | ||
| N 912004006102 | LOCK WASHER | |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| 257 | A 0009902791 | NUT RETAINER |
| Repalced by: A 0009902291 | ||
| A 0009902291 | NUT RETAINER | |
| Repalced by: A 0019906791 | ||
| A 0019906791 | NUT RETAINER | |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| 265 | A 1119880054 | CLAMPING PLATE |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| A 1809950042 | CLAMP | |
| Repalced by: A 1239950222 | ||
| A 1239950222 | CLAMP | |
| MAIN CABLE HARNESS TO FIRE WALL | ||
| A 0019882078 | CLIP | |
| MAIN CABLE HARNESS TO FRONT CROSS MEMBER | ||
| A 1369950135 | CLAMP | |
| MAIN CABLE HARNESS TO LEFT INSIDE FRONT PANEL PILLAR | ||
| N 007981004322 | SHEET METAL SCREW | |
| Repalced by: N 007981004233 | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS TO LEFT INSIDE FRONT PANEL PILLAR | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS TO LEFT INSIDE FRONT PANEL PILLAR | ||
| A 0019882178 | CLIP | |
| MAIN CABLE HARNESS TO CROSS MEMBER AT INSTRUMENT PANEL | ||
| A 1109880478 | CLIP | |
| MAIN CABLE HARNESS TO CROSS MEMBER AT INSTRUMENT PANEL | ||
| A 1125401173 | BRACKET | |
| MAIN CABLE HARNESS TO CROSS MEMBER AT INSTRUMENT PANEL | ||
| A 1125401173 | BRACKET | |
| MAIN CABLE HARNESS TO CROSS MEMBER AT INSTRUMENT PANEL | ||
| N 040621014200 | INSULATING HOSE | |
| MAIN CABLE HARNESS TO CROSS MEMBER AT INSTRUMENT PANEL | ||
| 85 MM | ||
| N 040621014200 | INSULATING HOSE | |
| MAIN CABLE HARNESS TO CROSS MEMBER AT INSTRUMENT PANEL | ||
| 85 MM | ||
| N 007981003214 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS TO CROSS MEMBER AT INSTRUMENT PANEL | ||
| N 007981003214 | SHEET METAL SCREW | |
| MAIN CABLE HARNESS TO CROSS MEMBER AT INSTRUMENT PANEL | ||
| A 0009883478 | CLIP | |
| MAIN CABLE HARNESS TO CROSS MEMBER | ||
| A 0009883478 | CLIP | |
| MAIN CABLE HARNESS TO RIGHT WHEEL ARCH PANEL | ||
| A 0009881878 | CLIP | |
| MAIN CABLE HARNESS TO STEERING COLUMN JACKET TUBE | ||
| A 0009885378 | CLIP | |
| MAIN CABLE HARNESS TO PEDAL ASSEMBLY | ||
| A 1125450540 | BRACKET | |
| MAIN CABLE HARNESS TO REGULATOR BRACKET | ||
| A 0009972981 | GROMMET | |
| MAIN CABLE HARNESS TO REGULATOR BRACKET | ||
| A 1119971581 | GROMMET | |
| DOUBLE SOLENOID ELECTRIC CABLE THROUGH FIRE WALL | ||
| A 1125401173 | BRACKET | |
| MAIN CABLE HARNESS TO STEERING COLUMN JACKET TUBE | ||
| N 040621014200 | INSULATING HOSE | |
| 85 MM | ||
| 273 | A 1125400973 | BRACKET |
| MAIN CABLE HARNESS TO BRAKE BOOSTER | ||
| A 0009883478 | CLIP | |
| 280 | A 1105400373 | BRACKET |
| PLUG CONNECTION | ||
| 287 | A 1105400473 | BRACKET |
| PLUG CONNECTION | ||
| N 007981004339 | SHEET METAL SCREW | |
| Repalced by: N 000000000459 | ||
| N 000000000459 | SHEET METAL SCREW | |
| BRACKET TO INSTRUMENT PANEL | ||
| N 007981002240 | SHEET METAL SCREW | |
| PLUG TO BRACKET | ||
| N 007981002241 | SHEET METAL SCREW | |
| TAIL LAMP CABLE HARNESS | ||
| N 000933004030 | SCREW | |
| GROUND CONNECTION | ||
| N 912004004102 | LOCK WASHER | |
| GROUND CONNECTION | ||
| N 000934004006 | NUT | |
| GROUND CONNECTION | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| GROUND CABLE TO THE INSIDE OF COWL | ||
| N 912004006102 | LOCK WASHER | |
| GROUND CABLE TO THE INSIDE OF COWL | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| GROUND CABLE TO THE INSIDE OF COWL | ||
| 295 | A 0005450745 | BOOT |
| THERMOSWITCH CABLE | ||
| A 0005463335 | BOOT | |
| THERMOSWITCH CABLE | ||
| A 0009883478 | CLIP | |
| A 1115400207 | CABLE HARNESS | |
| TAIL LAMP CABLE HARNESS | ||
| A 0005453228 | PLUG | |
| 4-POLE | ||
| A 0055451328 | PLUG | |
| Repalced by: A 0065458028 | ||
| A 0065458028 | PIN BUSHING HOUSING | |
| 6-POLE | ||
| 302 | A 0005453728 | PLUG |
| 12-POLE | ||
| A 0009885378 | CLIP | |
| TAIL LAM CABLE HARNESS TO FIRE WALL | ||
| 309 | A 0029880878 | CLIP |
| TAIL LAM CABLE HARNESS TO FIRE WALL | ||
| A 0009883478 | CLIP | |
| TAIL LAM CABLE HARNESS TO FIRE WALL | ||
| A 1115400138 | ELECTRIC CABLE | |
| FROM CABLE CONNECTOR TO BLACK-UP LIGHT SWITCH | ||
| A 1869970681 | GROMMET | |
| ELECTRIC CABLE THRU FIRE WALL | ||
| 316 | A 0029884878 | CLIP |
| PLUG CONNECTION TO FIRE WALL | ||
| A 1105400009 | CABLE HARNESS | |
| STEERING COLUMN JACKET TUBE | ||
| 323 | A 1115400009 | CABLE HARNESS |
| STEERING COLUMN JACKET TUBE | ||
| A 0005453528 | PLUG | |
| 6-POLE | ||
| 328 | A 0005455328 | PLUG |
| 7-POLE | ||
| A 0005463335 | BOOT | |
| CABLE HARNESS TO ALTERNATOR, TERMINALS D+ AND DF | ||
| A 0009972281 | GROMMET | |
| CABLE HARNESS TO ALTERNATOR, TERMINALS D+ AND DF | ||
| 335 | A 1125450240 | BRACKET |
| CABLE TO ALTERNATOR | ||
| A 0009972881 | GROMMET | |
| CABLE TO ALTERNATOR | ||
| A 0009881878 | CLIP | |
| MAIN CABLE HARNESS TO PEDAL ASSEMBLY | ||
| A 0009883478 | CLIP | |
| ELECTRIC CABLE TO STEERING COLUMN BRACKET | ||
| A 0009970781 | GROMMET | |
| ALTERNATOR-TO-REGULATOR CABLE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| INSTRUMENTS AND SWITCHES | ||
| 343 | A 1115423801 | INSTRUMENT CLUSTER |
| Repalced by: A 0045423906 | ||
| 343 | A 0045423906 | SPEEDOMETER |
| READING IN KILOMETRES | ||
| A 1125423201 | INSTRUMENT CLUSTER | |
| Repalced by: A 0045424006 | ||
| A 0045424006 | SPEEDOMETER | |
| READING IN MILES | ||
| A 1115424101 | INSTRUMENT CLUSTER | |
| Repalced by: A 0045424106 | ||
| A 0045424106 | SPEEDOMETER | |
| READING IN KILOMETRES | ||
| A 1115424701 | INSTRUMENT CLUSTER | |
| Repalced by: A 0045424206 | ||
| A 0045424206 | SPEEDOMETER | |
| READING IN MILES | ||
| 358 | A 0045423906 | SPEEDOMETER |
| READING IN KILOMETRES | ||
| A 0045424006 | SPEEDOMETER | |
| READING IN MILES | ||
| A 0045424106 | SPEEDOMETER | |
| IN ENGLISH,READING IN MILES | ||
| A 0045424206 | SPEEDOMETER | |
| READING IN MILES | ||
| 372 | A 0015420702 | OIL PRESSURE GAUGE |
| GRADUATION IN KG/CM2 | ||
| A 0015420802 | OIL PRESSURE GAUGE | |
| GRADUATION IN LBS/SQ. IN. | ||
| 385 | A 0025421505 | TEMPERATURE GAUGE |
| CENTIGRADE SCALE;CAPILLARY TUBE LENGHT: | ||
| 1550 MM | ||
| 393 | A 0025424105 | TEMPERATURE GAUGE |
| GRADUATION IN DEGS. F.; LENGTH OF CAPILLARY TUBE: | ||
| 1550 MM | ||
| 399 | A 0005426803 | FUEL GAUGE DASH UNIT |
| 405 | A 0005420325 | POTENTIOMETER |
| N 000084003100 | SCREW | |
| OIL PRESSURE GAUGE AND TEMPERATURE GAUGE | ||
| N 000084003101 | SCREW | |
| FUEL GAUGE | ||
| N 000084003122 | SCREW | |
| POTENTIOMETER | ||
| A 0005453728 | PLUG | |
| 12-POLE | ||
| N 072601012800 | BULB | |
| INSTRUMENT CLUSTER | ||
| A 1115422201 | INSTRUMENT CLUSTER | |
| Repalced by: A 0005421556 | ||
| A 1115422401 | INSTRUMENT CLUSTER | |
| Repalced by: A 0005421556 | ||
| A 0005421556 | HOUSING | |
| 413 | A 0005421556 | HOUSING |
| WITH INSCRIPTION IN GERMAN | ||
| A 1115422501 | INSTRUMENT CLUSTER | |
| Repalced by: A 0005420156 | ||
| A 0005420156 | HOUSING | |
| A 0005420156 | HOUSING | |
| IN ENGLISH | ||
| 415 | A 0005420078 | CONNECTION PLATE |
| Repalced by: A 0005422578 | ||
| 415 | A 0005422578 | CONNECTION PLATE |
| A 0005422578 | CONNECTION PLATE | |
| TO 111 542 22 01,24 01,25 01 | ||
| 417 | A 0015425702 | OIL PRESSURE GAUGE |
| GRADUATION IN KG/CM2 | ||
| TO 111 542 22 01/24 01 | ||
| A 0015425802 | OIL PRESSURE GAUGE | |
| GRADUATION IN LBS/SQ. IN. | ||
| TO 111 542 25 01 | ||
| A 0025429405 | TEMPERATURE GAUGE | |
| CENTIGRADE SCALE;CAPILLARY TUBE LENGHT: | ||
| 1400 MM | ||
| A 0025429705 | TEMPERATURE GAUGE | |
| GRADUATION IN DEGS.F. | ||
| 419 | A 0005428003 | FUEL GAUGE DASH UNIT |
| A 0005428803 | FUEL GAUGE DASH UNIT | |
| 421 | A 0005420725 | POTENTIOMETER |
| 423 | A 0005420472 | NUT |
| INSTRUMENT CLUSTER | ||
| 425 | A 0005420672 | NUT |
| 431 | A 0009972481 | GROMMET |
| N 009021008205 | WASHER | |
| Repalced by: N 009021008213 | ||
| N 009021008213 | WASHER | |
| INSTRUMENT CLUSTER | ||
| 437 | N 000315008006 | NUT |
| INSTRUMENT CLUSTER | ||
| A 1209930225 | SPRING | |
| CAPILLARY TUBE | ||
| A 1119971481 | GROMMET | |
| TEMPERATURE GAUGE CAPILLARY TUBE THRU WINDOW LEVEL GIRDER | ||
| 443 | A 0035429206 | SPEEDOMETER |
| READING IN KILOMETRES | ||
| A 0045425506 | SPEEDOMETER | |
| READING IN KILOMETRES | ||
| A 0045420506 | SPEEDOMETER | |
| READING IN MILES | ||
| A 0045425706 | SPEEDOMETER | |
| READING IN MILES | ||
| A 0045421306 | SPEEDOMETER | |
| READING IN KILOMETRES | ||
| A 0055420006 | SPEEDOMETER | |
| Repalced by: A 0045425506 | ||
| A 0045425506 | SPEEDOMETER | |
| READING IN KILOMETRES | ||
| A 0045420406 | SPEEDOMETER | |
| A 0055420106 | SPEEDOMETER | |
| READING IN MILES | ||
| A 0005442593 | LAMP SOCKET | |
| N 072601012800 | BULB | |
| A 0005420472 | NUT | |
| 450 | A 0005423516 | TACHOMETER |
| A 0005423616 | TACHOMETER | |
| 456 | A 0005442593 | LAMP SOCKET |
| N 072601012800 | BULB | |
| A 0005420472 | NUT | |
| A 1005420038 | SHIM | |
| 463 | A 1215400159 | HOSE |
| OIL PRESSURE GAUGE LINE | ||
| A 1105400060 | ELECTRIC CABLE | |
| 469 | A 1105400260 | ELECTRIC CABLE |
| A 1105400160 | ELECTRIC CABLE | |
| A 1105400360 | ELECTRIC CABLE | |
| A 1115400060 | ELECTRIC CABLE | |
| A 1115400260 | ELECTRIC CABLE | |
| A 1115400360 | ELECTRIC CABLE | |
| A 1115400360 | ELECTRIC CABLE | |
| A 1115400573 | BRACKET | |
| OIL PRESSURE GAUGE LINE | ||
| A 1115400573 | BRACKET | |
| OIL PRESSURE GAUGE LINE | ||
| 475 | A 1119970581 | GROMMET |
| OIL PRESSURE GAUGE LINE THRU FIRE WALL | ||
| A 1109971781 | GROMMET | |
| OIL PRESSURE GAUGE LINE THRU FIRE WALL | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| OIL PRESSURE GAUGE LINE TO BRACKET | ||
| N 000439008211 | NUT | |
| Repalced by: N 304035008001 | ||
| N 304035008001 | NUT | |
| OIL PRESSURE GAUGE LINE TO BRACKET | ||
| 482 | A 1115420411 | CLOCK |
| N 072601012800 | BULB | |
| 489 | A 1105420138 | SHIM |
| N 072601012800 | BULB | |
| GEAR DISPLAY | ||
| 496 | A 0005451525 | PLUG SOCKET |
| HAND LAMP | ||
| 502 | A 0015450211 | SWITCH |
| HAND BRAKE TELL-TALE LAMP | ||
| A 0005452909 | SWITCH | |
| Repalced by: A 0005458109 | ||
| A 0005458109 | SWITCH | |
| STOP LIGHT | ||
| 507 | A 0005453509 | SWITCH |
| STOP LIGHT | ||
| 514 | A 1119900940 | WASHER |
| 0.5 MM | ||
| A 1119900840 | WASHER | |
| 1.0 MM | ||
| 520 | N 006797012251 | TOOTHED WASHER |
| STOP LIGHT SWITCH TO BRACKET | ||
| 526 | A 0009909251 | NUT |
| STOP LIGHT SWITCH TO BRACKET | ||
| A 0005446032 | SENDER UNIT | |
| HIGH BEAM | ||
| A 0005445732 | SENDER UNIT | |
| HIGH BEAM | ||
| A 0005420623 | BUZZER | |
| BLINKER LAMP | ||
| A 1105400209 | CABLE HARNESS | |
| BUZZER | ||
| A 0000711338 | NOZZLE | |
| (STARTING VALVE),ADDITIONAL COLD STARTING SYSTEM | ||
| A 0019977840 | SEAL RING | |
| A 1270710195 | BRACKET | |
| STARTING VALVE | ||
| 533 | A 0005425819 | RELAY |
| STARTING VALVE | ||
| 533 | A 0005425819 | RELAY |
| MIXTURE CONTROL | ||
| 539 | A 1115450040 | BRACKET |
| N 007985004136 | SCREW | |
| BRACKET TO FIRE WALL | ||
| N 912004004102 | LOCK WASHER | |
| BRACKET TO FIRE WALL | ||
| N 009021004202 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| BRACKET TO FIRE WALL | ||
| A 0009902591 | NUT RETAINER | |
| BRACKET TO FIRE WALL | ||
| 545 | A 1115450640 | BRACKET |
| N 007976005203 | SHEET METAL SCREW | |
| BRACKET TO FIRE WALL | ||
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| BRACKET TO FIRE WALL | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO FIRE WALL | ||
| A 0009902791 | NUT RETAINER | |
| Repalced by: A 0009902291 | ||
| A 0009902291 | NUT RETAINER | |
| Repalced by: A 0019906791 | ||
| A 0019906791 | NUT RETAINER | |
| BRACKET TO FIRE WALL | ||
| N 007985004117 | SCREW | |
| RELAY TO BRACKET | ||
| N 912004004102 | LOCK WASHER | |
| RELAY TO BRACKET | ||
| N 009021004202 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| RELAY TO BRACKET | ||
| N 007981003265 | SHEET METAL SCREW | |
| RELAY TO FIRE WALL | ||
| A 0005425819 | RELAY | |
| A 0035452626 | ROUND PIN BUSHING | |
| N 072551001200 | ELECTRIC CABLE | |
| FROM RELAY TERMINAL 30 TO RELAY TERMINAL 86 | ||
| 25 MM | ||
| A 0005423419 | RELAY | |
| A 1115400209 | CABLE HARNESS | |
| A 1115402409 | CABLE HARNESS | |
| A 1115401109 | CABLE HARNESS | |
| N 072586001200 | CABLE CONNECTOR | |
| A 1115450440 | BRACKET | |
| RELAY | ||
| N 007985004159 | SCREW | |
| RELAY | ||
| N 912004004102 | LOCK WASHER | |
| RELAY | ||
| N 000934004006 | NUT | |
| RELAY | ||
| A 1109971281 | GROMMET | |
| ELECTRIC CABLE THRU FIRE WALL | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOG LAMP WIRING ON SPECIAL REQUEST FOR CARS EXPORTED TO FRANCE | ||
| A 1115403109 | CABLE HARNESS | |
| A 0005459901 | FUSE BOX | |
| BIPOLAR | ||
| N 007985004136 | SCREW | |
| N 912004004102 | LOCK WASHER | |
| N 000934004006 | NUT | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FLEXIBLE SHAFT | ||
| A 1115420007 | FLEXIBLE SHAFT | |
| SPEEDOMETER | ||
| 1580 MM | ||
| A 1115421607 | FLEXIBLE SHAFT | |
| SPEEDOMETER | ||
| 1250 MM | ||
| A 1115420207 | FLEXIBLE SHAFT | |
| SPEEDOMETER | ||
| 1980 MM | ||
| A 1115421707 | FLEXIBLE SHAFT | |
| SPEEDOMETER | ||
| 1700 MM | ||
| 552 | A 1105421007 | FLEXIBLE SHAFT |
| SPEEDOMETER | ||
| 1580 MM | ||
| A 1105420807 | FLEXIBLE SHAFT | |
| SPEEDOMETER | ||
| 1250 MM | ||
| A 1105421107 | FLEXIBLE SHAFT | |
| SPEEDOMETER | ||
| 1980 MM | ||
| A 1105420907 | FLEXIBLE SHAFT | |
| SPEEDOMETER | ||
| 1700 MM | ||
| 560 | A 1135420507 | FLEXIBLE SHAFT |
| SPEEDOMETER | ||
| 1500 MM | ||
| A 1115423007 | FLEXIBLE SHAFT | |
| SPEEDOMETER | ||
| 1670 MM | ||
| A 1135420907 | FLEXIBLE SHAFT | |
| SPEEDOMETER | ||
| 1350 MM | ||
| A 1135421007 | FLEXIBLE SHAFT | |
| SPEEDOMETER | ||
| 1700 MM | ||
| 570 | A 1135420707 | FLEXIBLE SHAFT |
| TACHOMETER | ||
| 1300 MM | ||
| A 1125421007 | FLEXIBLE SHAFT | |
| TACHOMETER | ||
| 170 MM | ||
| A 0009881878 | CLIP | |
| FLEXIBLE SHAFT | ||
| A 1109880878 | CLIP | |
| FLEXIBLE SHAFT | ||
| A 0009883378 | CLIP | |
| FLEXIBLE SHAFT | ||
| A 1105420240 | BRACKET | |
| FLEXIBLE SHAFT | ||
| 578 | A 1115420740 | BRACKET |
| FLEXIBLE SHAFT | ||
| A 1109970781 | GROMMET | |
| FLEXIBLE SHAFT THRU FIRE WALL | ||
| 585 | A 1369970081 | GROMMET |
| Repalced by: A 1839970081 | ||
| 585 | A 1839970081 | GROMMET |
| FLEXIBLE SHAFT THRU FIRE WALL | ||
| A 1109970381 | GROMMET | |
| FLEXIBLE SHAFT THRU FIRE WALL | ||
| A 1109970781 | GROMMET | |
| FLEXIBLE SHAFT THRU FIRE WALL | ||
| A 1115420540 | BRACKET | |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| FLEXIBLE SHAFT TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| FLEXIBLE SHAFT TO BRACKET | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| FLEXIBLE SHAFT TO BRACKET | ||
| A 0009881878 | CLIP | |
| FLEXIBLE SHAFT TO BRACKET | ||
| A 1209930225 | SPRING | |
| ELECTRIC CABLE USED FOR INCREASE IN SPEED TO AIR PIPE | ||
| A 0009883478 | CLIP | |
| IGNITION STARTING SWITCH CABLE TO FIRE WALL | ||
| A 0009972881 | GROMMET | |
| ELECTRIC CABLE FOR TRANSMISSION THRU BRACKET AT FIRE WALL | ||
| A 1116255014 | BRACKET | |
| ELECTRIC CABLE FROM IDLING SWITCH TO MAIN CABLE HARNESS | ||
| A 0005467041 | CABLE CONNECTOR | |
| ELECTRIC CABLE FROM IDLING SWITCH TO MAIN CABLE HARNESS | ||
| N 072571001030 | CLAMP | |
| ELECTRIC CABLE FROM IDLING SWITCH TO MAIN CABLE HARNESS | ||
| N 007981003016 | SHEET METAL SCREW | |
| ELECTRIC CABLE FROM IDLING SWITCH TO MAIN CABLE HARNESS | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TIME-LAG SWITCH | ||
| 595 | A 0015451624 | SWITCH,AUTOMATIC |
| ADDITIONAL COLD STARTING SYSTEM | ||
| N 007981003246 | SHEET METAL SCREW | |
| SWITCH TO FIRE WALL | ||
| N 007985004125 | SCREW | |
| Repalced by: N 007985004107 | ||
| N 007985004107 | SCREW | |
| SWITCH TO FIRE WALL | ||
| N 912004004102 | LOCK WASHER | |
| SWITCH TO FIRE WALL | ||
| N 009021004202 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| SWITCH TO FIRE WALL | ||
| N 006797004132 | TOOTHED WASHER | |
| SWITCH TO FIRE WALL | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SUPERTONE HORN | ||
| A 0005423320 | HORN | |
| Repalced by: A 0035421920 | ||
| A 0015420920 | HORN | |
| Repalced by: A 0035421920 | ||
| 603 | A 0015423820 | HORN |
| Repalced by: A 0035421920 | ||
| A 0025420020 | HORN | |
| Repalced by: A 0035421920 | ||
| A 0035421920 | HORN | |
| LOW NOTE | ||
| A 0005423420 | HORN | |
| Repalced by: A 0035422020 | ||
| A 0015421020 | HORN | |
| Repalced by: A 0035422020 | ||
| A 0015423920 | HORN | |
| Repalced by: A 0035422020 | ||
| A 0025420120 | HORN | |
| Repalced by: A 0035422020 | ||
| A 0035422020 | HORN | |
| MEDIUM NOTE | ||
| A 0015425420 | HORN | |
| LOW NOTE | ||
| A 0015425320 | HORN | |
| HIGH NOTE | ||
| 611 | A 0015425420 | HORN |
| Repalced by: A 0015427820 | ||
| A 0015427820 | HORN | |
| LOW NOTE | ||
| A 0015425320 | HORN | |
| Repalced by: A 0015427720 | ||
| A 0015427720 | HORN | |
| HIGH NOTE | ||
| N 900161010102 | SCREW | |
| HORN TO BRACKET | ||
| N 912004010102 | LOCK WASHER | |
| HORN TO BRACKET | ||
| N 000084004156 | SCREW | |
| CABLE CONNECTION TO HORN | ||
| N 912004004102 | LOCK WASHER | |
| CABLE CONNECTION TO HORN | ||
| 619 | A 1115400073 | BRACKET |
| TWO-TONE HORN | ||
| A 1115400173 | BRACKET | |
| TWO-TONE HORN | ||
| N 000933010145 | SCREW | |
| TRUMPET HORN TO BRACKET | ||
| N 912004010102 | LOCK WASHER | |
| TRUMPET HORN TO BRACKET | ||
| A 1105400873 | BRACKET | |
| TWO-TONE HORN | ||
| 625 | A 1115240240 | BRACKET |
| TWO-TONE HORN | ||
| A 1115241440 | BRACKET | |
| TWO-TONE HORN | ||
| 632 | A 1105420740 | BRACKET |
| TWO-TONE HORN | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO CROSS MEMBER | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO CROSS MEMBER | ||
| N 000934008013 | NUT | |
| BRACKET TO CROSS MEMBER | ||
| N 000933010009 | SCREW | |
| TRUMPET HORN TO BRACKET | ||
| N 000933010094 | SCREW | |
| TRUMPET HORN TO BRACKET | ||
| A 3199910840 | SPACER TUBE | |
| TRUMPET HORN TO BRACKET | ||
| N 912004010102 | LOCK WASHER | |
| A 1115404209 | CABLE HARNESS | |
| A 1115402709 | CABLE HARNESS | |
| TWO-TONE HORN | ||
| A 1109971281 | GROMMET | |
| TWO-TONE HORN | ||
| 640 | A 0015450011 | SWITCH |
| TWO-TONE HORN | ||
| 647 | A 1105400983 | HANDLE |
| 654 | A 1115450340 | BRACKET |
| N 007981004244 | SHEET METAL SCREW | |
| Repalced by: N 000000000453 | ||
| N 000000000453 | SHEET METAL SCREW | |
| BRACKET TO FRONT PANEL | ||
| 661 | N 072586001200 | CABLE CONNECTOR |
| TWO-TONE HORN | ||
| A 0009881678 | CLIP | |
| ELECTRIC CABLE TO FANFARE | ||
| A 1119880078 | CLIP | |
| ELECTRIC CABLE TO FANFARE | ||
| A 0009972281 | GROMMET | |
| CABLE HARNESS THRU AIR BAFFLE | ||
| 668 | A 0001584903 | IGNITION COIL |
| 675 | A 0001580240 | BRACKET |
| N 000084005175 | SCREW | |
| N 000562005001 | NUT | |
| 683 | A 0005463335 | BOOT |
| N 000933006130 | SCREW | |
| IGNITION COIL TO LEFT WHEEL ARCH PANEL | ||
| A 0009900848 | WASHER | |
| IGNITION COIL TO WHEELHOUSE PANEL | ||
| N 000934006013 | NUT | |
| Repalced by: N 304032006008 | ||
| N 304032006008 | NUT | |
| IGNITION COIL TO WHEELHOUSE PANEL | ||
| A 0009905991 | NUT RETAINER | |
| IGNITION COIL TO WHEELHOUSE PANEL | ||
| 689 | A 0001580845 | SERIES RESISTOR |
| SERIES RESISTOR | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| SERIES RESISTOR TO WHEELHOUSE PANEL | ||
| A 1805460002 | ELECTRIC CABLE | |
| FROM SERIES RESISTOR TO IGNITION COIL | ||
| 696 | A 1115460003 | ELECTRIC CABLE |
| Repalced by: A 1075460103 | ||
| 696 | A 1075460103 | ELECTRIC CABLE |
| FROM SERIES RESISTOR TO IGNITION COIL | ||
| A 1085460003 | ELECTRIC CABLE | |
| FROM SERIES RESISTOR TO IGNITION COIL | ||
| N 000934005008 | NUT | |
| CABLES TO IGNITION COIL | ||
| N 912004005100 | LOCK WASHER | |
| CABLES TO IGNITION COIL | ||
| N 007985004149 | SCREW | |
| Repalced by: N 000000001933 | ||
| N 000000001933 | SCREW | |
| CABLE TO SERIES RESISTOR | ||
| N 000127004203 | LOCK WASHER | |
| Repalced by: N 912004004102 | ||
| N 912004004102 | LOCK WASHER | |
| CABLE TO SERIES RESISTOR | ||
| A 0001567701 | CONDENSER | |
| Repalced by: A 0001569801 | ||
| A 0001569801 | CONDENSER | |
| A 0001563101 | CONDENSER | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| BOSCH SUCCESSIVE TONE UNIT FOR POLICE RADIO CAR | ||
| A 0001563101 | CONDENSER | |
| A 0025420020 | HORN | |
| Repalced by: A 0035421920 | ||
| A 0035421920 | HORN | |
| MEDIUM NOTE | ||
| A 0005429120 | HORN | |
| Repalced by: A 0035422020 | ||
| A 0025420120 | HORN | |
| Repalced by: A 0035422020 | ||
| A 0035422020 | HORN | |
| HIGH NOTE | ||
| A 0005451134 | FUSE | |
| (OVERLOAD PROTECTOR) | ||
| A 1215450340 | BRACKET | |
| OVERLOAD PROTECTOR | ||
| N 007981003246 | SHEET METAL SCREW | |
| OVERLOAD PROTECTOR TO BRACKET | ||
| A 1865450089 | SHIM | |
| OVERLOAD PROTECTOR TO BRACKET | ||
| N 007985004136 | SCREW | |
| OVERLOAD PROTECTOR TO BRACKET | ||
| N 912004004102 | LOCK WASHER | |
| OVERLOAD PROTECTOR TO BRACKET | ||
| N 000934004006 | NUT | |
| OVERLOAD PROTECTOR TO BRACKET | ||
| A 0015454324 | SWITCH,AUTOMATIC | |
| SUCCESSIVE TONE SWITCH | ||
| A 0015453924 | SWITCH,AUTOMATIC | |
| ALARM SWITCH | ||
| N 007985006193 | SCREW | |
| Repalced by: N 000000001146 | ||
| N 000000001146 | SCREW | |
| SUCCESSIVE TONE SWITCH TO FIRE WALL | ||
| M 6X16 | ||
| N 000125006421 | WASHER | |
| SUCCESSIVE TONE SWITCH TO FIRE WALL | ||
| N 912004006102 | LOCK WASHER | |
| SUCCESSIVE TONE SWITCH TO FIRE WALL | ||
| A 0005459901 | FUSE BOX | |
| 4-POLE | ||
| A 0005458234 | FUSE | |
| Repalced by: N 072581008101 | ||
| N 072581008101 | FUSE | |
| N 072581025100 | FUSE | |
| N 000084004425 | SCREW | |
| FUSE BOX | ||
| N 912004004102 | LOCK WASHER | |
| FUSE BOX | ||
| N 000934004006 | NUT | |
| FUSE BOX | ||
| A 0005425019 | RELAY | |
| HORN | ||
| A 0005451905 | RELAY | |
| REVOLVING BEAM SIGNAL | ||
| A 1105401009 | CABLE HARNESS | |
| FROM STARTING MOTOR TO ADDITIONAL FUSE BOX | ||
| A 1105401109 | CABLE HARNESS | |
| SUCCESSIVE TONE SWITCH | ||
| A 1105401209 | CABLE HARNESS | |
| FOR 4 SUPERTONE HORNS | ||
| A 1105401709 | CABLE HARNESS | |
| FOR 2 SUPERTONE HORNS | ||
| A 1369950037 | CLAMP | |
| A 1369950420 | CLAMP | |
| A 1119970681 | GROMMET | |
| A 1869970681 | GROMMET | |
| ELECTRIC CABLE TO HORN | ||
| A 0005467041 | CABLE CONNECTOR | |
| ELECTRIC CABLE TO REVOLVING BEAM SIGNAL LAMP | ||
| N 007981003216 | SHEET METAL SCREW | |
| ELECTRIC CABLE TO REVOLVING BEAM SIGNAL LAMP | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CITY HORN FOR FRANCE,ON SPECIAL REQUEST | ||
| A 0015426220 | HORN | |
| Repalced by: A 0025420920 | ||
| A 0025420920 | HORN | |
| A 1115400473 | BRACKET | |
| HORN | ||
| N 000933010128 | SCREW | |
| HORN TO BRACKET | ||
| N 912004010102 | LOCK WASHER | |
| HORN TO BRACKET | ||
| A 1115402909 | CABLE HARNESS | |
| A 1115402809 | CABLE HARNESS | |
| A 0005450610 | SWITCH | |
| A 1365450672 | NUT | |
| PUSH-PULL SWITCH | ||
| A 1105400983 | HANDLE | |
| PUSH-PULL SWITCH | ||
| A 1115450340 | BRACKET | |
| PUSH-PULL SWITCH | ||
| N 007981003246 | SHEET METAL SCREW | |
| PUSH-PULL SWITCH | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| 300 WATT GENERATOR,SPECIAL REQUEST | ||
| A 1801501050 | ALTERNATOR | |
| 300 W | ||
| A 0001542114 | CARBON BRUSH SET | |
| SET = 4 PIECES | ||
| A 0001540193 | SPRING | |
| N 000137005100 | SPRING WASHER | |
| CABLE TO TERMINAL D POS. | ||
| N 000934005008 | NUT | |
| CABLE TO TERMINAL D POS. | ||
| A 1891550015 | PULLEY | |
| N 006888004002 | WOODRUFF KEY | |
| PULLEY TO ALTERNATOR | ||
| A 1279900240 | WASHER | |
| PULLEY TO ALTERNATOR | ||
| N 912004014100 | LOCK WASHER | |
| PULLEY TO ALTERNATOR | ||
| N 000936014010 | NUT | |
| Repalced by: N 308675014000 | ||
| N 308675014000 | NUT | |
| Repalced by: N 308675014002 | ||
| N 308675014002 | NUT | |
| PULLEY TO ALTERNATOR | ||
| A 1801551135 | SUPPORT | |
| ALTERNATOR | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| ALTERNATOR TO SUPPORT | ||
| N 912004010102 | LOCK WASHER | |
| ALTERNATOR TO SUPPORT | ||
| N 000934010009 | NUT | |
| Repalced by: N 304032010002 | ||
| N 304032010002 | NUT | |
| ALTERNATOR TO SUPPORT | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| CLAMPING BOLT | ||
| A 1801550533 | STOP | |
| N 000931008046 | SCREW | |
| Repalced by: N 304017008018 | ||
| N 304017008018 | SCREW | |
| A 0079977892 | V-BELT | |
| A 0011564601 | CONDENSER | |
| ALTERNATOR TERMINAL D POS. | ||
| A 0001564510 | SUPPRESSOR PLUG | |
| IGNITION DISTRIBUTOR | ||
| A 0001564910 | SUPPRESSOR PLUG | |
| SPARK PLUG | ||
| A 0011544706 | REGULATOR AND CUT-OUT | |
| 300 W | ||
| A 0011564601 | CONDENSER | |
| TERMINAL | ||
| 61 | ||
| A 0001567401 | CONDENSER | |
| TERMINAL | ||
| DF | ||
| A 0001567601 | CONDENSER | |
| Repalced by: A 0011566801 | ||
| A 0011566801 | CONDENSER | |
| TERMINAL | ||
| 51 | ||
| A 0035410001 | BATTERY | |
| 12 V 88 AH | ||
| A 0005420524 | AMMETER | |
| A 0005442593 | LAMP SOCKET | |
| N 072601012800 | BULB | |
| A 0005422419 | RELAY | |
| A 1115402109 | CABLE HARNESS | |
| FROM REGULATOR TO RELAY AND TO ANMETER | ||
| N 072331000000 | SCREW TERMINAL | |
| FROM BATTERY POS.POLE | ||
| A 0005467041 | CABLE CONNECTOR | |
| BIPOLAR | ||
| N 007981003246 | SHEET METAL SCREW | |
| CABLE CONNECTOR TO FIRE WALL | ||
| A 0001567701 | CONDENSER | |
| Repalced by: A 0001569801 | ||
| A 0001569801 | CONDENSER | |
| IGNITION COIL;TERMINAL: | ||
| 15 | ||
| A 1805400141 | GROUND STRAP | |
| FROM CYLINDER BLOCK TO SUPPRESSOR CONDENSER | ||
| A 1115400041 | GROUND STRAP | |
| Repalced by: A 0005460720 | ||
| A 0005460720 | GROUND STRAP | |
| FROM ENGINE BLOCK TO RADIATOR | ||
| A 1205400831 | NEG. CABLE | |
| FROM BATTERY NEG. POLE TO GROUND | ||
| N 072331000003 | SCREW TERMINAL | |
| BATTERY NEG. POLE | ||
| N 000933008145 | SCREW | |
| GROUND CABLE TO SUBSTRUCTURE | ||
| N 912004008102 | LOCK WASHER | |
| GROUND CABLE TO SUBSTRUCTURE | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| GROUND CABLE TO SUBSTRUCTURE | ||
| N 900073008000 | NUT | |
| GROUND CABLE TO SUBSTRUCTURE | ||
| A 1115400039 | ELECTRIC CABLE | |
| FROM BATTERY POS. POLE TO ANMETER | ||
| A 1869970781 | GROMMET | |
| ELECTRIC CABLE THRU REAR PANEL | ||
| A 1879950037 | CLAMP | |
| ELECTRIC CABLE TO CROSS MEMBER AT REAR AXLE | ||
| N 007981004245 | SHEET METAL SCREW | |
| Repalced by: N 007981004339 | ||
| N 007981004339 | SHEET METAL SCREW | |
| Repalced by: N 000000000459 | ||
| N 000000000459 | SHEET METAL SCREW | |
| ELECTRIC CABLE TO CROSS MEMBER AT REAR AXLE | ||
| A 1805400041 | GROUND STRAP | |
| AT FIRE WALL REINFORCEMENT | ||
| A 1115400141 | GROUND STRAP | |
| CAPILLARY TUBE | ||
| A 1805400441 | GROUND STRAP | |
| ENGINE HOOD | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
