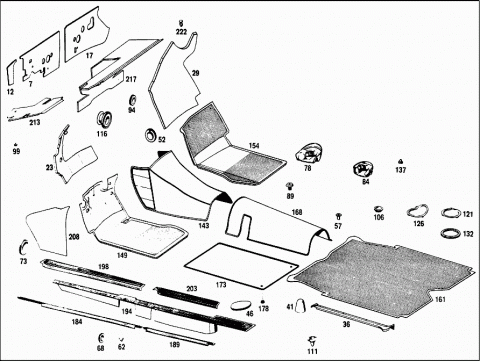

Transporto priemonė: 220 SEB; VIN numerio dalis: 111023
Grupė: 68 COVERING - 001 BOW
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0009833091 | CARDBOARD | |
| FRONT FLOOR,LEFT | ||
| 547 X 560 MM | ||
| A 0009833091 | CARDBOARD | |
| RIGHT FRONT FLOOR | ||
| 540 X 555 MM | ||
| A 0009833091 | CARDBOARD | |
| AT TUNNEL,FRONT FLOOR | ||
| 702 X 740 MM | ||
| A 0009833091 | CARDBOARD | |
| AT TUNNEL,FRONT FLOOR | ||
| 742 X 745 MM | ||
| A 0009833091 | CARDBOARD | |
| TUNNEL BETWEEN HEATING DUCT | ||
| 137X192 MM | ||
| A 0009833091 | CARDBOARD | |
| AT FIRE WALL | ||
| 129 X 224 MM | ||
| A 0009833091 | CARDBOARD | |
| AT FIRE WALL | ||
| 730 X 737 MM | ||
| A 0009833091 | CARDBOARD | |
| AT FIRE WALL | ||
| 700 X 743 MM | ||
| A 0009833091 | CARDBOARD | |
| FIRE WALL, BOTTOM LEFT | ||
| 493 X 510 MM | ||
| A 0009833091 | CARDBOARD | |
| FIRE WALL,BOTTOM RIGHT | ||
| 562 X 640 MM | ||
| A 0009833091 | CARDBOARD | |
| FIRE WALL,TOP LEFT | ||
| 370 X 496 MM | ||
| A 0009833091 | CARDBOARD | |
| FIRE WALL,TOP RIGHT | ||
| 395 X 571 MM | ||
| A 0009833091 | CARDBOARD | |
| WATER TANK | ||
| 110 X 294 MM | ||
| A 0009833091 | CARDBOARD | |
| WATER TANK | ||
| 205 X 703 MM | ||
| A 1106820513 | INSULATION | |
| Repalced by: A 1106821913 | ||
| A 1106821913 | INSULATION | |
| FRONT TUNNEL,LEFT TOP | ||
| 20 MM | ||
| A 1106820613 | INSULATION | |
| Repalced by: A 1106822013 | ||
| A 1106822013 | INSULATION | |
| FRONT TUNNEL,RIGHT TOP | ||
| 279X610 MM | ||
| A 1106820813 | INSULATION | |
| Repalced by: A 1106821313 | ||
| A 1106821313 | INSULATION | |
| TUNNEL,FRONT | ||
| 110 X 154 MM | ||
| A 1106820713 | INSULATION | |
| Repalced by: A 1086821113 | ||
| A 1106821813 | INSULATION | |
| Repalced by: A 1086821113 | ||
| A 1086821113 | INSULATION | |
| TUNNEL BETWEEN HEATING DUCT | ||
| 190 X 290 MM | ||
| A 0009833092 | FELT | |
| BLACK | ||
| 2 MM | ||
| A 0009832991 | CARDBOARD | |
| AT FRONT PANEL,LATERAL LEFT AND RIGHT | ||
| 425 X 520 MM | ||
| A 0009832991 | CARDBOARD | |
| REAR FLOOR,BOTTOM | ||
| 560 X 740 MM | ||
| A 0009832991 | CARDBOARD | |
| BELOW REAR SEAT | ||
| 635 X 665 MM | ||
| A 0009832991 | CARDBOARD | |
| CENTRAL TUNNEL,BOTTOM | ||
| 490X750 MM | ||
| A 0009832991 | CARDBOARD | |
| LUGGAGE COMPARTMENT FLOOR | ||
| 85 X 640 MM | ||
| A 0009832991 | CARDBOARD | |
| LUGGAGE COMPARTMENT FLOOR | ||
| 192 X 595 MM | ||
| A 0009832991 | CARDBOARD | |
| REAR END PANEL | ||
| 483 X 713 MM | ||
| A 0009832991 | CARDBOARD | |
| REAR END PILLAR | ||
| 302 X 700 MM | ||
| A 0009832991 | CARDBOARD | |
| Repalced by: A 0009839691 | ||
| A 0009839691 | CARDBOARD | |
| AT ROOF RAIL,LATERAL | ||
| 160 X 670 MM | ||
| A 0009839691 | CARDBOARD | |
| AT ROOF REAR RAIL | ||
| 170 X 1070 MM | ||
| A 0009832192 | FELT | |
| REAR FLOOR,TOP | ||
| 545 X 735 MM | ||
| A 0009832192 | FELT | |
| CENTRAL TUNNEL,REAR,REAR PART | ||
| 171X408 | ||
| A 0009832192 | FELT | |
| CENTRAL TUNNEL,REAR,FRONT PART | ||
| 160X571 | ||
| A 0009832292 | FELT | |
| LEFT AND RIGHT FRONT FLOOR,TOP | ||
| 550 X 560 MM | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| AT REAR PILLAR | ||
| 340 X 700 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| REAR WINDOW,BOTTOM | ||
| 84X1800 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| AT ROOF REAR RAIL | ||
| 187 X 984 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| AT ROOF REAR RAIL | ||
| 100 X 1000 MM | ||
| A 0009834392 | FELT | |
| Repalced by: A 0009834192 | ||
| A 0009834192 | FELT | |
| Repalced by: A 0009830198 | ||
| A 0009830198 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| FOR BOWS NOS.1,3,4 VIEWED FROM FRONT | ||
| 70X1120 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| FOR BOWS NOS.2 AND 5 VIEWED FROM FRONT | ||
| 70X1160 MM | ||
| A 0009833391 | CARDBOARD | |
| Repalced by: A 1106821920 | ||
| A 1106820020 | INSULATION | |
| Repalced by: A 1106821920 | ||
| 007 | A 1106821920 | INSULATION |
| COWL, ENGINE COMPARTMENT, LEFT | ||
| 3X542X277 MM | ||
| A 1106820320 | INSULATION | |
| Repalced by: A 1126800925 | ||
| A 1106821620 | INSULATION | |
| Repalced by: A 1126800925 | ||
| A 1126800925 | INSULATION | |
| COWL, ENGINE COMPARTMENT, LEFT | ||
| 3X563X313 MM | ||
| A 1106820120 | INSULATION | |
| Repalced by: A 1106822320 | ||
| 012 | A 1106820720 | INSULATION |
| Repalced by: A 1106822320 | ||
| A 1106822320 | INSULATION | |
| Repalced by: A 1156820204 | ||
| A 1156820204 | INSULATION | |
| COWL, ENGINE COMPARTMENT, LEFT | ||
| 3X125X175 MM | ||
| A 1106820220 | INSULATION | |
| Repalced by: A 1106822020 | ||
| A 1106820820 | INSULATION | |
| Repalced by: A 1106822020 | ||
| 017 | A 1106822020 | INSULATION |
| COWL, ENGINE COMPARTMENT, RIGHT | ||
| 3X320X630 MM | ||
| A 1106820420 | INSULATION | |
| Repalced by: A 1126801025 | ||
| A 1106821820 | INSULATION | |
| Repalced by: A 1126801025 | ||
| A 1126801025 | INSULATION | |
| Repalced by: A 0009832291 | ||
| A 0009832291 | CARDBOARD | |
| COWL, ENGINE COMPARTMENT, RIGHT | ||
| 3X551X286 MM | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| 90X60;5 MM | ||
| A 1106800125 | INSULATION | |
| Repalced by: A 0009832291 | ||
| A 0009832291 | CARDBOARD | |
| FIRE WALL,LEFT,IN FRONT LEGROOM | ||
| 023 | A 1106800925 | INSULATION |
| Repalced by: A 0009832291 | ||
| 023 | A 0009832291 | CARDBOARD |
| FIRE WALL,LEFT,IN FRONT LEGROOM | ||
| A 1106800325 | INSULATION | |
| Repalced by: A 0009832291 | ||
| A 0009832291 | CARDBOARD | |
| FIRE WALL,LEFT,IN FRONT LEGROOM | ||
| A 1106800625 | INSULATION | |
| FIRE WALL,LEFT,IN FRONT LEGROOM | ||
| 029 | A 1106800225 | INSULATION |
| FIRE WALL,RIGHT,IN FRONT LEGROOM | ||
| A 1106800725 | INSULATION | |
| FIRE WALL,RIGHT,IN FRONT LEGROOM | ||
| A 1106800425 | INSULATION | |
| Repalced by: A 0009832291 | ||
| A 0009832291 | CARDBOARD | |
| FIRE WALL,RIGHT,IN FRONT LEGROOM | ||
| A 1106800825 | INSULATION | |
| FIRE WALL,RIGHT,IN FRONT LEGROOM | ||
| A 1106800025 | INSULATION | |
| Repalced by: A 0009832291 | ||
| A 0009832291 | CARDBOARD | |
| FIRE WALL,CENTRAL,IN FRONT LEGROOM | ||
| 2 MM | ||
| A 0009830198 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| FIRE WALL,CENTRAL,IN FRONT LEGROOM | ||
| 1000X1000 MM | ||
| A 1106800525 | INSULATION | |
| FIRE WALL,CENTRAL,IN FRONT LEGROOM | ||
| N 007982005205 | SHEET METAL SCREW | |
| INSULATION IN FIRE WALL | ||
| N 007982005205 | SHEET METAL SCREW | |
| INSULATION IN FIRE WALL | ||
| A 0009901742 | WASHER | |
| INSULATION IN FIRE WALL | ||
| A 0009901742 | WASHER | |
| INSULATION IN FIRE WALL | ||
| N 007983004245 | SHEET METAL SCREW | |
| INSULATION IN FIRE WALL | ||
| N 007983004245 | SHEET METAL SCREW | |
| INSULATION IN FIRE WALL | ||
| N 900056004506 | COUNTERSUNK WASHER | |
| INSULATION IN FIRE WALL | ||
| N 900056004506 | COUNTERSUNK WASHER | |
| INSULATION IN FIRE WALL | ||
| A 1106870045 | CAP | |
| KICK-DOWN SWITCH | ||
| A 1106830310 | COVER | |
| TUNNEL,KICK-DOWN LINKAGE | ||
| A 1106830098 | SEAL | |
| Repalced by: A 1106830298 | ||
| A 1106830298 | SEAL | |
| Repalced by: A 0039895485 | ||
| A 0039895485 | ADHESIVE TAPE | |
| TUNNEL,KICK-DOWN LINKAGE | ||
| A 0009942345 | LOCK | |
| COVER TO TUNNEL | ||
| N 007981004318 | SHEET METAL SCREW | |
| COVER TO TUNNEL | ||
| A 1116835136 | COVERING | |
| FLOOR SHIFT | ||
| A 1116835398 | SEAL | |
| COVER PLATE | ||
| A 1116805036 | COVERING | |
| FLOOR SHIFT | ||
| A 1116805073 | SEAL | |
| 036 | A 1106830124 | LEDGE |
| IN LUGGAGE COMPARTMENT,LEFT | ||
| A 1106830224 | LEDGE | |
| IN LUGGAGE COMPARTMENT,RIGHT | ||
| N 007983004322 | SHEET METAL SCREW | |
| LEDGE TO LUGGAGE COMPARTMENT | ||
| A 0019886678 | CLIP | |
| LEDGE TO LUGGAGE COMPARTMENT | ||
| A 1106830036 | COVERING | |
| Repalced by: A 1106830336 | ||
| 041 | A 1106830336 | COVERING |
| REAR BUMPER | ||
| 046 | A 1106830010 | COVER |
| 046 | A 1106830010 | COVER |
| A 0019884478 | CLIP | |
| A 0019884478 | CLIP | |
| A 1369840252 | CUP | |
| Repalced by: A 1109870045 | ||
| 052 | A 1109870045 | LOCKING CAP |
| TRANSMISSION OIL LEVEL CHECK | ||
| A 1106830028 | SLIDING PLATE | |
| ACCELERATOR PEDAL | ||
| A 0019877625 | PLASTIC SECTION | |
| 85 MM | ||
| N 007981003237 | SHEET METAL SCREW | |
| SLIDING PLATE | ||
| A 1106830008 | COVERING | |
| TO PLUG WATER DRAIN HOLES IN FLOOR, REAR SEAT BENCH CUSHION MOUNTING | ||
| 057 | A 0009976581 | GROMMET |
| TO PLUG WATER DRAIN HOLES IN FLOOR, REAR SEAT BENCH CUSHION MOUNTING | ||
| 062 | A 1109870039 | RUBBER BUFFER |
| Repalced by: A 0009973320 | ||
| 062 | A 0009973320 | EXPANSION PLUG |
| TO PLUG WATER DRAIN HOLES BELOW FRONT & REAR SEATS | ||
| A 1109870139 | RUBBER BUFFER | |
| TO PLUG WATER DRAIN HOLES ON THE RIGHT BELOW FRONT SEAT | ||
| A 1109870044 | EXPANSION PLUG | |
| Repalced by: A 1139870044 | ||
| A 1109870344 | EXPANSION PLUG | |
| Repalced by: A 1139870044 | ||
| A 1109870444 | EXPANSION PLUG | |
| Repalced by: A 1139870044 | ||
| 068 | A 1139870044 | EXPANSION PLUG |
| TO PLUG WATER DRAIN HOLES ON THE LEFT & RIGHT BELOW REAR SEAT | ||
| A 0009871944 | EXPANSION PLUG | |
| Repalced by: A 1109870744 | ||
| 073 | A 1109870744 | EXPANSION PLUG |
| BLINKER LAMP CABLE PASSAGE THRU FRONT PANEL PILLAR | ||
| A 1119870015 | PLUG | |
| Repalced by: A 1108990308 | ||
| A 1119870015 | PLUG | |
| Repalced by: A 1108990408 | ||
| 078 | A 1108990408 | COVERING |
| Repalced by: A 1088990108 | ||
| 078 | A 1088990108 | COVERING |
| JACKING SOCKET,FRONT | ||
| 084 | A 1108990308 | COVERING |
| Repalced by: A 1088990008 | ||
| 084 | A 1088990008 | COVERING |
| JACKING SOCKET,REAR | ||
| A 1119871015 | PLUG | |
| Repalced by: A 0009901222 | ||
| A 0009901222 | SCREW | |
| Repalced by: A 1269900722 | ||
| A 1269900722 | SCREW | |
| WITH METRIC THREAD | ||
| M 10 | ||
| 089 | A 0009901322 | SCREW |
| WITH INCH THREAD | ||
| 7/16" | ||
| 094 | A 0009870244 | EXPANSION PLUG |
| Repalced by: A 1109870844 | ||
| A 1109870844 | EXPANSION PLUG | |
| HOLE IN FRONT PANEL,RIGHT | ||
| A 0009870415 | PLUG | |
| HOLE IN OUTSIDE CENTRAL PIECE | ||
| 099 | A 1119871215 | PLUG |
| Repalced by: A 0009871840 | ||
| 099 | A 0009871840 | RUBBER BUFFER |
| SPARE WHEEL WELL WATER DRAIN | ||
| A 1109870244 | EXPANSION PLUG | |
| HOLE IN FRONT PANEL PILLAR | ||
| A 1109870544 | EXPANSION PLUG | |
| Repalced by: A 0009974020 | ||
| A 0009974020 | EXPANSION PLUG | |
| HOLE IN FRONT PANEL PILLAR | ||
| A 0009974020 | EXPANSION PLUG | |
| AT REAR PILLAR,INSIDE TOP | ||
| A 0009974020 | EXPANSION PLUG | |
| AT SIDE MEMBER, REAR | ||
| 106 | A 1109870644 | EXPANSION PLUG |
| AT REAR PILLAR,INSIDE TOP | ||
| 106 | A 1109870644 | EXPANSION PLUG |
| AT SIDE MEMBER, REAR | ||
| 111 | A 1119971281 | GROMMET |
| WATER DRAIN, AT SPARE WHEEL RECESS | ||
| 116 | A 1109971281 | GROMMET |
| A 1119972381 | GROMMET | |
| Repalced by: A 0089971781 | ||
| A 0089971781 | GROMMET | |
| TO PLUG HOLE IN FIRE WALL | ||
| A 0009871840 | RUBBER BUFFER | |
| WHEELHOUSE, FRONT RIGHT | ||
| 121 | A 1106830110 | COVER |
| Repalced by: A 1236830010 | ||
| 121 | A 1236830010 | COVER |
| LUGGAGE COMPARTMENT FLOOR | ||
| 126 | A 1106830210 | COVER |
| Repalced by: A 1236830010 | ||
| 126 | A 1236830010 | COVER |
| REAR FLOOR | ||
| A 1109970941 | SEAL RING | |
| Repalced by: A 1106830198 | ||
| 132 | A 1106830198 | SEAL |
| Repalced by: A 0039895485 | ||
| 132 | A 0039895485 | ADHESIVE TAPE |
| COVER TO REAR FLOOR AND TO LUGGAGE COMPARTMENT FLOOR | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| COVER TO REAR FLOOR AND TO LUGGAGE COMPARTMENT FLOOR | ||
| 137 | A 0009879240 | RUBBER BUFFER |
| HOLES IN REAR LID | ||
| A 1106840013 | LINING | |
| Repalced by: A 1116800345 | ||
| A 1116800145 | LINING | |
| Repalced by: A 1116800345 | ||
| 143 | A 1116800345 | LINING |
| TUNNEL,FRONT FLOOR | ||
| A 1116800845 | LINING | |
| TUNNEL,FRONT FLOOR | ||
| A 1116801045 | LINING | |
| TUNNEL,FRONT FLOOR | ||
| A 1116801145 | LINING | |
| A 1119971081 | GROMMET | |
| SHIFT LEVER | ||
| A 1106840102 | LINING | |
| Repalced by: A 1106841302 | ||
| A 1106840502 | LINING | |
| Repalced by: A 1106841302 | ||
| A 1106840902 | LINING | |
| Repalced by: A 1106841302 | ||
| A 1106841302 | LINING | |
| FRONT FLOOR,LEFT | ||
| 149 | A 1106841702 | LINING |
| Repalced by: A 1086840102 | ||
| 149 | A 1086840102 | LINING |
| FRONT FLOOR,LEFT | ||
| A 1106840202 | LINING | |
| Repalced by: A 1106841002 | ||
| A 1106840602 | LINING | |
| Repalced by: A 1106841002 | ||
| A 1106841002 | LINING | |
| RIGHT FRONT FLOOR | ||
| 154 | A 1106841802 | LINING |
| Repalced by: A 1086840202 | ||
| 154 | A 1086840202 | LINING |
| RIGHT FRONT FLOOR | ||
| A 1106840302 | LINING | |
| Repalced by: A 1106840702 | ||
| A 1106840702 | LINING | |
| Repalced by: A 1086840302 | ||
| A 1086840302 | LINING | |
| FRONT FLOOR,LEFT | ||
| A 1106840402 | LINING | |
| Repalced by: A 1106841602 | ||
| A 1106840802 | LINING | |
| Repalced by: A 1106841602 | ||
| A 1106841602 | LINING | |
| RIGHT FRONT FLOOR | ||
| A 0009882380 | FASTENER BUTTON | |
| MAT TO FLOOR | ||
| N 007983004245 | SHEET METAL SCREW | |
| MAT TO FLOOR | ||
| A 0009882280 | FASTENER BUTTON | |
| Repalced by: A 0009881480 | ||
| A 0009881480 | FASTENER BUTTON | |
| MAT TO FLOOR | ||
| N 007983004236 | SHEET METAL SCREW | |
| MAT TO FLOOR | ||
| N 000125005306 | WASHER | |
| Repalced by: A 1369901140 | ||
| A 1369901140 | WASHER | |
| Repalced by: A 1268850010 | ||
| A 1268850010 | WASHER | |
| MAT TO FLOOR | ||
| A 1106840005 | LINING | |
| Repalced by: A 1106840105 | ||
| 161 | A 1106840105 | LINING |
| Repalced by: A 1086840105 | ||
| 161 | A 1086840105 | LINING |
| LUGGAGE COMPARTMENT FLOOR | ||
| A 1106840106 | LINING | |
| Repalced by: A 1106840506 | ||
| A 1106840506 | LINING | |
| RECESS IN LUGGAGE COMPARTMENT | ||
| A 1116800045 | LINING | |
| TUNNEL,IN THE REAR | ||
| 168 | A 1116800545 | LINING |
| TUNNEL,IN THE REAR | ||
| A 1116800241 | LINING | |
| Repalced by: A 1116800141 | ||
| 173 | A 1116800141 | LINING |
| LEFT AND RIGHT | ||
| 178 | A 1369880981 | FASTENER BUTTON |
| Repalced by: A 0009888481 | ||
| 178 | A 0009888481 | FASTENER BUTTON |
| CARPET TO REAR FLOOR | ||
| N 007981003257 | SHEET METAL SCREW | |
| CARPET TO REAR FLOOR | ||
| A 1119901040 | WASHER | |
| CARPET TO REAR FLOOR | ||
| A 1106860136 | RAIL | |
| Repalced by: A 1106860536 | ||
| 184 | A 1106860536 | RAIL |
| Repalced by: A 1106860936 | ||
| 184 | A 1106860936 | RAIL |
| FRONT DOOR,LEFT BOTTOM | ||
| A 1106860236 | RAIL | |
| Repalced by: A 1106860636 | ||
| A 1106860636 | RAIL | |
| Repalced by: A 1106861036 | ||
| A 1106861036 | RAIL | |
| FRONT DOOR,RIGHT BOTTOM | ||
| N 007983004327 | SHEET METAL SCREW | |
| A 1106860336 | RAIL | |
| Repalced by: A 1106860736 | ||
| 189 | A 1106860736 | RAIL |
| Repalced by: A 1106860936 | ||
| 189 | A 1106860936 | RAIL |
| REAR DOOR,LEFT BOTTOM | ||
| A 1106860436 | RAIL | |
| Repalced by: A 1106860836 | ||
| A 1106860836 | RAIL | |
| Repalced by: A 1106861036 | ||
| A 1106861036 | RAIL | |
| REAR DOOR,RIGHT BOTTOM | ||
| N 007983004327 | SHEET METAL SCREW | |
| A 1106860780 | LINING | |
| Repalced by: A 1106861780 | ||
| A 1106860980 | LINING | |
| Repalced by: A 1106861780 | ||
| A 1106861180 | LINING | |
| Repalced by: A 1106861780 | ||
| 194 | A 1106861780 | LINING |
| Repalced by: A 1086860980 | ||
| 194 | A 1086860980 | LINING |
| ENTRANCE,INSIDE LEFT | ||
| A 1106860880 | LINING | |
| Repalced by: A 1106861880 | ||
| A 1106861080 | LINING | |
| Repalced by: A 1106861880 | ||
| A 1106861280 | LINING | |
| Repalced by: A 1106861880 | ||
| A 1106861880 | LINING | |
| Repalced by: A 1086861080 | ||
| A 1086861080 | LINING | |
| ENTRANCE,INSIDE RIGHT | ||
| A 1106860380 | LINING | |
| Repalced by: A 1106861380 | ||
| 198 | A 1106861380 | LINING |
| Repalced by: A 1106862380 | ||
| 198 | A 1106862380 | LINING |
| LEFT FRONT ENTRANCE,BELOW FRONT DOOR | ||
| A 1106860480 | LINING | |
| Repalced by: A 1106861480 | ||
| A 1106861480 | LINING | |
| Repalced by: A 1106862480 | ||
| A 1106862480 | LINING | |
| RIGHT FRONT ENTRANCE,BELOW FRONT ENTRANCE | ||
| A 1106860580 | LINING | |
| Repalced by: A 1106861580 | ||
| 203 | A 1106861580 | LINING |
| Repalced by: A 1106862580 | ||
| 203 | A 1106862580 | LINING |
| LEFT REAR ENTRANCE,BELOW REAR DOOR | ||
| A 1106860680 | LINING | |
| Repalced by: A 1106861680 | ||
| A 1106861680 | LINING | |
| Repalced by: A 1106862680 | ||
| A 1106862680 | LINING | |
| RIGHT REAR ENTRANCE,BELOW REAR DOOR | ||
| A 1106880106 | PANELLING | |
| Repalced by: A 1106880306 | ||
| 208 | A 1106880306 | PANELLING |
| FRONT PANEL, LATERAL LEFT | ||
| A 1106880206 | PANELLING | |
| Repalced by: A 1106880406 | ||
| A 1106880406 | PANELLING | |
| FRONT PANEL,LATERAL RIGHT | ||
| A 1106880013 | CLIP | |
| PANELLING TO FRONT PANEL | ||
| A 1106800117 | COVERING | |
| Repalced by: A 1106802317 | ||
| A 1106802317 | COVERING | |
| Repalced by: A 1126800717 | ||
| A 1126800717 | COVERING | |
| BELOW INSTRUMENT PANEL,LEFT | ||
| 213 | A 1126800717 | COVERING |
| BELOW INSTRUMENT PANEL,LEFT | ||
| A 1106800317 | COVERING | |
| Repalced by: A 1106802217 | ||
| A 1106802217 | COVERING | |
| BELOW INSTRUMENT PANEL,LEFT | ||
| A 1106801017 | COVERING | |
| BELOW INSTRUMENT PANEL,LEFT | ||
| A 1106801117 | COVERING | |
| Repalced by: A 1106802417 | ||
| A 1106802417 | COVERING | |
| BELOW INSTRUMENT PANEL,LEFT | ||
| A 1106800217 | COVERING | |
| Repalced by: A 1106802617 | ||
| 217 | A 1106802617 | COVERING |
| BELOW INSTRUMENT PANEL, RIGHT | ||
| A 1106800817 | COVERING | |
| Repalced by: A 1106803117 | ||
| A 1106803117 | COVERING | |
| BELOW INSTRUMENT PANEL, RIGHT | ||
| A 1106800717 | COVERING | |
| BELOW INSTRUMENT PANEL, RIGHT | ||
| A 1106800417 | COVERING | |
| Repalced by: A 0009832291 | ||
| A 0009832291 | CARDBOARD | |
| BELOW INSTRUMENT PANEL, RIGHT | ||
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| LEFT COVERING TO FIRE WALL | ||
| N 007983004245 | SHEET METAL SCREW | |
| RIGHT COVERING TO FIRE WALL | ||
| A 1129900042 | WASHER | |
| Repalced by: A 3019900042 | ||
| A 3019900042 | WASHER | |
| RIGHT COVERING TO FIRE WALL | ||
| 222 | A 0009882378 | CLIP |
| A 0009971840 | SEAL RING | |
| TO PLUG COLD-START-SYSTEM MOUNTING HOLES IN FIRE WALL REINFORCEMENT | ||
| A 0009971840 | SEAL RING | |
| TO PLUG THE HOLES USED FOR AUTOMATIC ANTENNA IN LEFT FRONT PANEL PILLAR | ||
| A 0009871036 | RUBBER SECTION | |
| Repalced by: A 0009870772 | ||
| A 0009870772 | EDGE GUARD SECTION | |
| ENGINE HOOD | ||
| 28 MM | ||

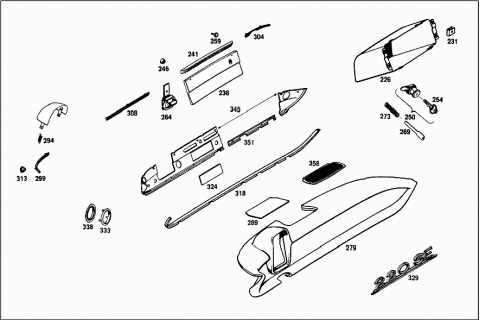

| A 1106800191 | GLOVE COMPARTMENT | |
| Repalced by: A 1106800391 | ||
| A 1106800391 | GLOVE COMPARTMENT | |
| Repalced by: A 1106890391 | ||
| 226 | A 1106890391 | GLOVE COMPARTMENT |
| A 1106800291 | GLOVE COMPARTMENT | |
| Repalced by: A 1106800491 | ||
| A 1106800491 | GLOVE COMPARTMENT | |
| Repalced by: A 1106890491 | ||
| A 1106890491 | GLOVE COMPARTMENT | |
| 231 | A 0009942545 | LOCK |
| GLOVE COMPARTMENT TO INSTRUMENT PANEL | ||
| 231 | A 0009942545 | LOCK |
| GLOVE COMPARTMENT TO INSTRUMENT PANEL | ||
| N 007981004325 | SHEET METAL SCREW | |
| GLOVE COMPARTMENT TO INSTRUMENT PANEL | ||
| N 007981004325 | SHEET METAL SCREW | |
| GLOVE COMPARTMENT TO INSTRUMENT PANEL | ||
| A 1116890183 | COVER | |
| Repalced by: A 1116890383 | ||
| A 1116890383 | COVER | |
| A 1116890283 | COVER | |
| Repalced by: A 1116890483 | ||
| A 1116890483 | COVER | |
| A 1116890983 | COVER | |
| Repalced by: A 1126890183 | ||
| 236 | A 1126890183 | COVER |
| A 1116891083 | COVER | |
| Repalced by: A 1126890283 | ||
| A 1126890283 | COVER | |
| A 0009871270 | RUBBER SECTION | |
| 11.5 MM | ||
| A 0009870340 | RUBBER BUFFER | |
| A 0009850562 | WASHER | |
| GLOVE COMPARTMENT TO INSTRUMENT PANEL | ||
| N 007997003003 | WOOD SCREW | |
| A 1116800151 | HINGE | |
| Repalced by: A 1116800351 | ||
| A 1116800351 | HINGE | |
| GLOVE COMPARTMENT LID,LEFT | ||
| A 1116800451 | HINGE | |
| Repalced by: A 1116800251 | ||
| A 1116800251 | HINGE | |
| GLOVE COMPARTMENT LID,RIGHT | ||
| 241 | A 1106890170 | HANDLE |
| GLOVE COMPARTMENT LID | ||
| A 1106890270 | HANDLE | |
| GLOVE COMPARTMENT LID | ||
| N 007988004110 | SCREW | |
| HANDLE TO LID | ||
| 246 | A 1119870840 | RUBBER BUFFER |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| N 007981004254 | SHEET METAL SCREW | |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| N 007981004261 | SHEET METAL SCREW | |
| Repalced by: N 000000000454 | ||
| N 000000000454 | SHEET METAL SCREW | |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| 250 | A 1106890001 | LOCK |
| SAME LOCK AS OF REAR LID | ||
| 254 | A 0007661006 | KEY |
| MARKED WITH LETTER "K" | ||
| A 0007662006 | KEY | |
| GLOVE COMPARTMENT | ||
| A 1109870339 | RUBBER BUFFER | |
| Repalced by: A 0009879740 | ||
| 259 | A 0009879740 | RUBBER BUFFER |
| GLOVE COMPARTMENT LID | ||
| 264 | A 1116800551 | HINGE |
| GLOVE COMPARTMENT LID | ||
| N 007995003501 | WOOD SCREW | |
| HINGE TO GLOVE COMPARTMENT LID | ||
| N 007985004110 | SCREW | |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| N 007985004149 | SCREW | |
| Repalced by: N 000000001933 | ||
| N 000000001933 | SCREW | |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| N 000137004202 | SPRING WASHER | |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| N 009021004108 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| 269 | A 1116890032 | CLAMP |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| A 1109930601 | SPRING | |
| Repalced by: A 1109930901 | ||
| 273 | A 1109930901 | SPRING |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| A 1116800106 | PANELLING | |
| Repalced by: A 1116801106 | ||
| A 1116800206 | PANELLING | |
| Repalced by: A 1116801106 | ||
| A 1116800006 | PANELLING | |
| Repalced by: A 1116801106 | ||
| A 1106800006 | PANELLING | |
| Repalced by: A 1116801106 | ||
| 279 | A 1116801106 | PANELLING |
| TOP AND BOTTOM | ||
| A 1116800406 | PANELLING | |
| Repalced by: A 1116801206 | ||
| A 1116800506 | PANELLING | |
| Repalced by: A 1116801206 | ||
| A 1116800306 | PANELLING | |
| Repalced by: A 1116801206 | ||
| A 1106800206 | PANELLING | |
| Repalced by: A 1116801206 | ||
| A 1116801206 | PANELLING | |
| TOP AND BOTTOM | ||
| N 007983004223 | SHEET METAL SCREW | |
| TOP PAD | ||
| A 0009943345 | LOCK | |
| Repalced by: A 1409941045 | ||
| A 1409941045 | LOCK | |
| TOP PAD | ||
| A 0009850162 | WASHER | |
| TOP PAD | ||
| N 007982003215 | SHEET METAL SCREW | |
| TOP PAD | ||
| A 0009851262 | WASHER | |
| Repalced by: A 0009851262 | ||
| A 0009850562 | WASHER | |
| COVERING TO INSTRUMENT PANEL,TOP | ||
| N 007981004263 | SHEET METAL SCREW | |
| COVERING TO INSTRUMENT PANEL,BOTTOM | ||
| A 0009841155 | WASHER | |
| Repalced by: N 009021005102 | ||
| A 0009941845 | LOCK | |
| BOTTOM PAD | ||
| N 000934005008 | NUT | |
| BOTTOM PAD | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| BOTTOM PAD | ||
| N 000127005203 | LOCK WASHER | |
| BOTTOM PAD | ||
| N 007981004252 | SHEET METAL SCREW | |
| COVERING TO INSTRUMENT PANEL,BOTTOM | ||
| A 0009872031 | WELT | |
| BETWEEN PAD AND STEERING COLUMN | ||
| 120 MM | ||
| A 1106800067 | END PIECE | |
| Repalced by: A 1156803539 | ||
| 289 | A 1156803539 | ORNAMENTAL COVER |
| LOUDSPEAKER OPENING | ||
| A 0009879440 | RUBBER BUFFER | |
| COVERING TO INSTRUMENT PANEL | ||
| A 1106800179 | HOUSING | |
| Repalced by: A 1106800379 | ||
| A 1106800279 | HOUSING | |
| Repalced by: A 1106800379 | ||
| A 1106800179 | HOUSING | |
| Repalced by: A 1106800479 | ||
| A 1106800279 | HOUSING | |
| Repalced by: A 1106800479 | ||
| A 1106800379 | HOUSING | |
| INSTRUMENT CLUSTER | ||
| A 1116801106 | PANELLING | |
| INSTRUMENT CLUSTER | ||
| A 1106800479 | HOUSING | |
| INSTRUMENT CLUSTER | ||
| A 1116801206 | PANELLING | |
| 294 | A 1109930310 | SPRING |
| CAP TO INSTRUMENT CLUSTER | ||
| 299 | A 1106890172 | GARNISH MOULDING |
| Repalced by: A 1106890772 | ||
| 299 | A 1106890772 | GARNISH MOULDING |
| ABOVE HEATER NOZZLE,TOP LEFT | ||
| A 1106890472 | GARNISH MOULDING | |
| ABOVE HEATER NOZZLE,TOP RIGHT | ||
| 304 | A 1106890272 | GARNISH MOULDING |
| ABOVE HEATER NOZZLE,TOP RIGHT | ||
| A 1106890572 | GARNISH MOULDING | |
| ABOVE HEATER NOZZLE,TOP LEFT | ||
| 308 | A 1106890072 | GARNISH MOULDING |
| ABOVE HEATER NOZZLE,TOP CENTRAL | ||
| A 1106890372 | GARNISH MOULDING | |
| ABOVE HEATER NOZZLE,TOP CENTRAL | ||
| N 000125004300 | WASHER | |
| Repalced by: A 0009900750 | ||
| N 000127004200 | LOCK WASHER | |
| Repalced by: A 0009900750 | ||
| A 1209900150 | NUT | |
| Repalced by: A 0009900750 | ||
| 313 | A 0009900750 | NUT |
| GARNISH MOULDING TO INSTRUMENT PANEL | ||
| A 1106890071 | GARNISH MOULDING | |
| Repalced by: A 1106800371 | ||
| 318 | A 1106800371 | GARNISH MOULDING |
| Repalced by: A 1106891171 | ||
| A 1106891171 | GARNISH MOULDING | |
| INSTRUMENT PANEL | ||
| A 1106800471 | GARNISH MOULDING | |
| Repalced by: A 1106891071 | ||
| A 1106891071 | GARNISH MOULDING | |
| INSTRUMENT PANEL LOWER PART | ||
| N 007983002216 | SHEET METAL SCREW | |
| GARNISH MOULDING TO INSTRUMENT PANEL | ||
| A 0019882978 | CLIP | |
| A 1106800164 | FRAME | |
| INSTRUMENT CLUSTER | ||
| A 1106800264 | FRAME | |
| INSTRUMENT CLUSTER | ||
| 324 | A 1116800596 | COVER |
| Repalced by: A 1116890139 | ||
| A 1116890139 | COVER | |
| INSTRUMENT PANEL,CENTER | ||
| 329 | A 1288170014 | TYPE DESIGNATION |
| "220 SE" | ||
| A 0009940045 | LOCK | |
| TYPE DESIGNATION TO COVER AT INSTRUMENT PANEL | ||
| A 0009942445 | LOCK | |
| Repalced by: A 1119940345 | ||
| A 1119940345 | LOCK | |
| COVER TO INSTRUMENT PANEL | ||
| A 1106890080 | ESCUTCHEON | |
| Repalced by: A 1106890180 | ||
| 333 | A 1106890180 | ESCUTCHEON |
| STEERING LOCK OPENING | ||
| 338 | A 1106890098 | SEAL |
| A 1116800583 | PANELLING | |
| LEFT OUTSIDE | ||
| A 1116800683 | PANELLING | |
| RIGHT OUTSIDE | ||
| A 1116800283 | PANELLING | |
| RIGHT OUTSIDE | ||
| A 1116800183 | PANELLING | |
| LEFT OUTSIDE | ||
| A 1116800983 | PANELLING | |
| LEFT INSIDE | ||
| A 1116801083 | PANELLING | |
| RIGHT INSIDE | ||
| A 1116800483 | PANELLING | |
| RIGHT INSIDE | ||
| A 1116800383 | PANELLING | |
| LEFT INSIDE | ||
| A 1116801783 | PANELLING | |
| Repalced by: A 1116800187 | ||
| A 1116804383 | PANELLING | |
| Repalced by: A 1116800187 | ||
| A 1116803683 | PANELLING | |
| Repalced by: A 1116800187 | ||
| 345 | A 1116800187 | INSTRUMENT PANEL |
| TWO-PART | ||
| A 1116801883 | PANELLING | |
| Repalced by: A 1116800287 | ||
| A 1116804483 | PANELLING | |
| Repalced by: A 1116800287 | ||
| A 1116803583 | PANELLING | |
| Repalced by: A 1116800287 | ||
| A 1116800287 | INSTRUMENT PANEL | |
| TWO-PART | ||
| A 1116802383 | PANELLING | |
| Repalced by: A 1116803383 | ||
| 351 | A 1116803383 | PANELLING |
| INSTRUMENT PANEL,CENTER | ||
| A 1116802483 | PANELLING | |
| Repalced by: A 1116803483 | ||
| A 1116803483 | PANELLING | |
| INSTRUMENT PANEL,CENTER | ||
| N 007983002216 | SHEET METAL SCREW | |
| PANELLING TO INSTRUMENT PANEL | ||
| 358 | A 1106800017 | COVERING |
| Repalced by: A 1106804517 | ||
| A 1106804517 | COVERING | |
| LOUDSPEAKER | ||
| A 0019885378 | CLIP | |
| COVERING TO INSTRUMENT PANEL | ||
| A 0009833091 | CARDBOARD | |
| FRONT FLOOR,LEFT | ||
| 5 MM | ||
| A 0009833091 | CARDBOARD | |
| RIGHT FRONT FLOOR | ||
| 540X555 MM | ||
| A 0009833091 | CARDBOARD | |
| TUNNEL,FRONT | ||
| 662X740 MM | ||
| A 0009833091 | CARDBOARD | |
| FIRE WALL, TOP LEFT | ||
| 346X500 MM | ||
| A 0009833091 | CARDBOARD | |
| FIRE WALL, TOP LEFT | ||
| 112X223 MM | ||
| A 0009833091 | CARDBOARD | |
| FIRE WALL, TOP LEFT | ||
| 162X318 MM | ||
| A 0009833091 | CARDBOARD | |
| FIRE WALL, TOP LEFT | ||
| 252X281 MM | ||
| A 0009833091 | CARDBOARD | |
| FIRE WALL,RIGHT | ||
| 717X732 MM | ||
| A 0009833091 | CARDBOARD | |
| FIRE WALL,RIGHT | ||
| 481X574 MM | ||
| A 0009833091 | CARDBOARD | |
| FIRE WALL,LEFT | ||
| 570X617 MM | ||
| A 0009833091 | CARDBOARD | |
| FIRE WALL,TOP RIGHT | ||
| 110X267 MM | ||
| A 0009833091 | CARDBOARD | |
| WATER TANK | ||
| 110X267 MM | ||
| A 0009833091 | CARDBOARD | |
| WATER TANK | ||
| 312X653 MM | ||
| A 0009833091 | CARDBOARD | |
| FIRE WALL, BOTTOM LEFT | ||
| 493X510 MM | ||
| A 1116825313 | INSULATION | |
| Repalced by: A 1116825007 | ||
| A 1116825413 | INSULATION | |
| Repalced by: A 1116825007 | ||
| A 1116825513 | INSULATION | |
| Repalced by: A 1116825007 | ||
| A 1116825913 | INSULATION | |
| Repalced by: A 1116825007 | ||
| A 1116825613 | INSULATION | |
| Repalced by: A 1116825007 | ||
| A 1116825713 | INSULATION | |
| Repalced by: A 1116825007 | ||
| A 1116825813 | INSULATION | |
| Repalced by: A 1116825007 | ||
| 365 | A 1116825007 | INSULATION |
| Repalced by: A 1086820107 | ||
| 365 | A 1086820107 | INSULATION |
| TUNNEL,FRONT | ||
| 365 | A 1086820107 | INSULATION |
| TUNNEL,FRONT | ||
| A 1126825013 | INSULATION | |
| Repalced by: A 1116825007 | ||
| 370 | A 1126825107 | INSULATION |
| Repalced by: A 1086820107 | ||
| 370 | A 1086820107 | INSULATION |
| TUNNEL,FRONT | ||
| A 0009833092 | FELT | |
| 2 MM 100X130 MM | ||
| A 0009832192 | FELT | |
| CENTRAL TUNNEL,REAR,FRONT PART | ||
| 6 MM | ||
| A 0009832192 | FELT | |
| CENTRAL TUNNEL,REAR,REAR PART | ||
| 6 MM | ||
| A 1116805625 | INSULATION | |
| Repalced by: A 0009832291 | ||
| A 1116805725 | INSULATION | |
| Repalced by: A 0009832291 | ||
| A 0009832291 | CARDBOARD | |
| 2X800X1200 MM | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| BETWEEN FRONT PANEL & HEATER CASE | ||
| 5X1000X1000 MM | ||
| A 1116825020 | INSULATION | |
| Repalced by: A 1116826120 | ||
| 376 | A 1116826120 | INSULATION |
| Repalced by: A 0009832991 | ||
| 376 | A 0009832991 | CARDBOARD |
| LEFT INSULATION,FOR COWL IN ENGINE COMPARTMENT | ||
| 265X571 MM | ||
| 381 | A 1116825120 | INSULATION |
| Repalced by: A 0009832991 | ||
| 381 | A 0009832991 | CARDBOARD |
| LEFT INSULATION,FOR COWL IN ENGINE COMPARTMENT | ||
| 122.5X217 MM | ||
| A 1116825220 | INSULATION | |
| Repalced by: A 1116826220 | ||
| A 1116826220 | INSULATION | |
| Repalced by: A 0009832991 | ||
| A 0009832991 | CARDBOARD | |
| INSULATION ON THE RIGHT,FOR COWL IN ENGINE COMPARTMENT | ||
| 249X566 MM | ||
| A 1116805125 | INSULATION | |
| Repalced by: A 1106800125 | ||
| A 1106800125 | INSULATION | |
| Repalced by: A 0009832291 | ||
| A 0009832291 | CARDBOARD | |
| FIRE WALL,LEFT,IN FRONT LEGROOM | ||
| 386 | A 1106800925 | INSULATION |
| Repalced by: A 0009832291 | ||
| 386 | A 0009832291 | CARDBOARD |
| FIRE WALL,LEFT,IN FRONT LEGROOM | ||
| A 1106800425 | INSULATION | |
| Repalced by: A 0009832291 | ||
| A 0009832291 | CARDBOARD | |
| FIRE WALL,RIGHT | ||
| A 1106800825 | INSULATION | |
| FIRE WALL,RIGHT | ||
| N 007982005202 | SHEET METAL SCREW | |
| INSULATION IN FIRE WALL | ||
| A 0009901742 | WASHER | |
| INSULATION IN FIRE WALL | ||
| N 007983004245 | SHEET METAL SCREW | |
| INSULATION IN FIRE WALL | ||
| N 900056004506 | COUNTERSUNK WASHER | |
| INSULATION IN FIRE WALL | ||
| A 0009832991 | CARDBOARD | |
| AT FRONT PANEL,LATERAL LEFT AND RIGHT | ||
| 410X472 MM | ||
| A 0009832991 | CARDBOARD | |
| COWL, ENGINE COMPARTMENT, LEFT | ||
| 264X530 MM | ||
| A 0009832991 | CARDBOARD | |
| COWL, ENGINE COMPARTMENT, RIGHT | ||
| 3 MM | ||
| A 0009832991 | CARDBOARD | |
| REAR END PANEL | ||
| 465X708 MM | ||
| A 0009832991 | CARDBOARD | |
| REAR END PANEL | ||
| 585X466 MM | ||
| A 0009832991 | CARDBOARD | |
| AT REAR PILLAR | ||
| 430X460 MM | ||
| A 0009832991 | CARDBOARD | |
| AT REAR PILLAR | ||
| 75X125 MM | ||
| A 0009832991 | CARDBOARD | |
| TUNNEL,FRONT | ||
| 188X420 MM | ||
| A 0009832991 | CARDBOARD | |
| CENTRAL TUNNEL,BOTTOM | ||
| 490X750 MM | ||
| A 0009832991 | CARDBOARD | |
| CENTRAL TUNNEL,BOTTOM | ||
| 490X614 MM | ||
| A 0009832991 | CARDBOARD | |
| RECESS IN LUGGAGE COMPARTMENT | ||
| 85X640 MM | ||
| A 0009832991 | CARDBOARD | |
| RECESS IN LUGGAGE COMPARTMENT | ||
| 192X595 MM | ||
| A 0009832991 | CARDBOARD | |
| IN LUGGAGE COMPARTMENT FLOOR | ||
| 505X740 MM | ||
| A 0009832991 | CARDBOARD | |
| IN LUGGAGE COMPARTMENT FLOOR | ||
| 200X240 MM | ||
| A 1116825103 | INSULATION | |
| Repalced by: A 0009834291 | ||
| A 1116825203 | INSULATION | |
| Repalced by: A 0009834291 | ||
| A 1116828303 | INSULATION | |
| Repalced by: A 0009834291 | ||
| A 1116828403 | INSULATION | |
| Repalced by: A 0009834291 | ||
| A 1116825013 | INSULATION | |
| Repalced by: A 0009834291 | ||
| A 0009834291 | CARDBOARD | |
| BELOW REAR SEAT | ||
| 635X665 MM | ||
| A 0009834291 | CARDBOARD | |
| BELOW REAR SEAT | ||
| 666X740 MM | ||
| A 0009834291 | CARDBOARD | |
| HAT TRAY | ||
| 5X1000X1200 MM | ||
| A 0009871036 | RUBBER SECTION | |
| Repalced by: A 0009870772 | ||
| A 0009870772 | EDGE GUARD SECTION | |
| 520 MM | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| AT ROOF RAIL,LATERAL | ||
| 133X1072 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| REAR END PILLAR | ||
| 320X625 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| REAR WINDOW,BOTTOM | ||
| 75X1150 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| 5 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| AT ROOF FRONT RAIL | ||
| 193X1225 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| AT ROOF REAR RAIL | ||
| 130X990 MM | ||
| A 0009833598 | FOAM PLASTICS | |
| BETWEEN ROOF RAIL AND ROOF,REAR | ||
| 30X1000 MM | ||
| A 0009832310 | STRIP | |
| Repalced by: A 0019832310 | ||
| A 0019832310 | STRIP | |
| AT REAR PANEL | ||
| 4 MM 50X130 MM | ||
| A 0009834192 | FELT | |
| Repalced by: A 0009830198 | ||
| A 0009830198 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| 8 MM | ||
| A 1106830028 | SLIDING PLATE | |
| ACCELERATOR PEDAL | ||
| N 007981003246 | SHEET METAL SCREW | |

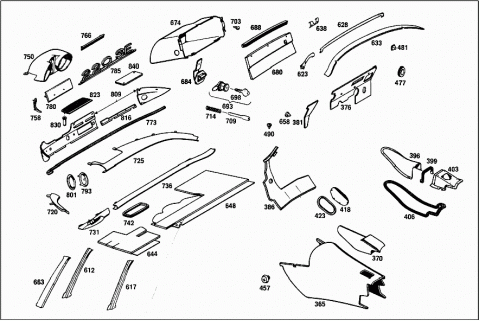

| 396 | A 1116835136 | COVERING |
| FRONT | ||
| A 0009870114 | RUBBER STRIP | |
| Repalced by: A 1116835398 | ||
| 399 | A 1116835398 | SEAL |
| 403 | A 1116805036 | COVERING |
| REAR | ||
| 406 | A 1116805073 | SEAL |
| COVER PLATE | ||
| N 007981004244 | SHEET METAL SCREW | |
| Repalced by: N 000000000453 | ||
| N 000000000453 | SHEET METAL SCREW | |
| N 007513005109 | TAPPING SCREW | |
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| 411 | A 1106830010 | COVER |
| FRONT SUBFRAME CUP | ||
| 414 | A 0019884478 | CLIP |
| A 1369840252 | CUP | |
| Repalced by: A 1109870045 | ||
| A 1109870045 | LOCKING CAP | |
| AUTOMATIC CLUTCH OIL LEVEL CHECK | ||
| 418 | A 1106830310 | COVER |
| TUNNEL,KICK-DOWN LINKAGE | ||
| 423 | A 1106830298 | SEAL |
| Repalced by: A 0039895485 | ||
| 423 | A 0039895485 | ADHESIVE TAPE |
| TUNNEL,KICK-DOWN LINKAGE | ||
| A 0009942345 | LOCK | |
| COVER TO TUNNEL | ||
| N 007981004318 | SHEET METAL SCREW | |
| COVER TO TUNNEL | ||
| N 007516004107 | TAPPING SCREW | |
| COVER TO TUNNEL | ||
| 428 | A 1106830336 | COVERING |
| ABOVE REAR SHOCK ABSORBER IN LUGGAGE COMPARTMENT | ||
| 433 | A 1116838036 | COVERING |
| ABOVE REAR SHOCK ABSORBER AT FOLDING TOP CASE BOTTOM | ||
| A 0009830284 | LEATHER | |
| 125X125 MM | ||
| 438 | A 1116830124 | LEDGE |
| Repalced by: A 1086830124 | ||
| A 1086830124 | LEDGE | |
| IN LUGGAGE COMPARTMENT,LEFT | ||
| A 1106830224 | LEDGE | |
| Repalced by: A 1086830224 | ||
| A 1116835224 | LEDGE | |
| Repalced by: A 1086830224 | ||
| A 1086830224 | LEDGE | |
| IN LUGGAGE COMPARTMENT,RIGHT | ||
| N 007983004322 | SHEET METAL SCREW | |
| LEDGE TO LUGGAGE COMPARTMENT | ||
| N 007981004325 | SHEET METAL SCREW | |
| LEDGE TO LUGGAGE COMPARTMENT | ||
| 443 | A 1109870039 | RUBBER BUFFER |
| Repalced by: A 0009973320 | ||
| 443 | A 0009973320 | EXPANSION PLUG |
| FLOOR WATER DRAIN,LATERAL LEFT & RIGHT | ||
| A 1109870139 | RUBBER BUFFER | |
| FLOOR WATER DRAIN,LATERAL LEFT & RIGHT | ||
| A 1109870344 | EXPANSION PLUG | |
| Repalced by: A 1139870044 | ||
| A 1139870044 | EXPANSION PLUG | |
| FLOOR WATER DRAIN,LATERAL LEFT & RIGHT | ||
| A 1119870015 | PLUG | |
| JACKING SOCKET,FRONT | ||
| 448 | A 1118995008 | COVERING |
| JACKING SOCKET,FRONT | ||
| 452 | A 1118995108 | COVERING |
| JACKING SOCKET,REAR | ||
| A 1119871015 | PLUG | |
| Repalced by: A 0009901222 | ||
| A 0009901222 | SCREW | |
| Repalced by: A 1269900722 | ||
| A 1269900722 | SCREW | |
| WITH METRIC THREAD | ||
| M 10 | ||
| 457 | A 0009901322 | SCREW |
| WITH INCH THREAD | ||
| 7/16" | ||
| 462 | A 1109870544 | EXPANSION PLUG |
| Repalced by: A 0009974020 | ||
| 462 | A 0009974020 | EXPANSION PLUG |
| HOLE IN FRONT PANEL PILLAR | ||
| 462 | A 0009974020 | EXPANSION PLUG |
| AT SIDE MEMBER, REAR | ||
| 464 | A 1109870644 | EXPANSION PLUG |
| AT SIDE MEMBER, REAR | ||
| 469 | A 1119971281 | GROMMET |
| WATER DRAIN, AT SPARE WHEEL RECESS | ||
| 473 | A 1139870044 | EXPANSION PLUG |
| HOLE IN REAR PILLAR; ON CARS HAVING NO SLIDING ROOF | ||
| 477 | A 0009870244 | EXPANSION PLUG |
| Repalced by: A 1109870844 | ||
| A 1109870844 | EXPANSION PLUG | |
| TO PLUG HOLE IN FIRE WALL | ||
| A 1109871244 | EXPANSION PLUG | |
| Repalced by: A 1169871144 | ||
| A 1169871144 | EXPANSION PLUG | |
| TO PLUG THE PAINT RUN-OFF HOLES IN REAR END FLOOR | ||
| 481 | A 0009870415 | PLUG |
| TO PLUG THE HOLE IN WINDSHIELD WIPER MOTOR CUP | ||
| 485 | A 1109870114 | RUBBER STRIP |
| ANTENNA CABLE TO FRONT PANEL PILLAR | ||
| 490 | A 1119871215 | PLUG |
| Repalced by: A 0009871840 | ||
| 490 | A 0009871840 | RUBBER BUFFER |
| WATER DRAIN HOLES IN COWL,IN WATER TANK,AND IN LUGGAGE COMPARTMENT | ||
| A 1109971281 | GROMMET | |
| Repalced by: A 1119972381 | ||
| A 1119972381 | GROMMET | |
| Repalced by: A 0089971781 | ||
| A 0089971781 | GROMMET | |
| FROM CABLE HARNESS TO RADIO SET | ||
| 495 | A 0009870444 | EXPANSION PLUG |
| DOOR CONTACT SWITCH HOLE IN FRONT PANEL PILLAR | ||
| 500 | A 1106830110 | COVER |
| Repalced by: A 1236830010 | ||
| 500 | A 1236830010 | COVER |
| 504 | A 1106830210 | COVER |
| Repalced by: A 1236830010 | ||
| 504 | A 1236830010 | COVER |
| AT REAR FLOOR | ||
| A 1109970941 | SEAL RING | |
| Repalced by: A 1106830198 | ||
| 508 | A 1106830198 | SEAL |
| Repalced by: A 0039895485 | ||
| 508 | A 0039895485 | ADHESIVE TAPE |
| N 007981004243 | SHEET METAL SCREW | |
| Repalced by: N 000000002062 | ||
| N 000000002062 | SCREW | |
| COVER TO REAR FLOOR AND TO LUGGAGE COMPARTMENT FLOOR | ||
| A 1116805140 | LINING | |
| Repalced by: A 1116806140 | ||

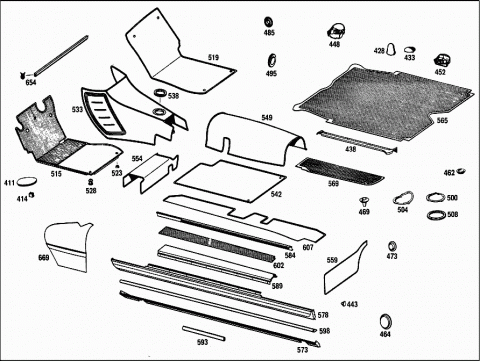

| 515 | A 1116806140 | LINING |
| FRONT FLOOR,LEFT | ||
| A 1116805540 | LINING | |
| FRONT FLOOR,LEFT | ||
| A 1116806340 | LINING | |
| FRONT FLOOR,LEFT | ||
| 519 | A 1116805240 | LINING |
| RIGHT FRONT FLOOR | ||
| A 1116805640 | LINING | |
| Repalced by: A 1116806040 | ||
| A 1116806040 | LINING | |
| RIGHT FRONT FLOOR | ||
| A 1116805940 | LINING | |
| RIGHT FRONT FLOOR | ||
| 523 | A 0009881480 | FASTENER BUTTON |
| CARPET TO FRONT FLOOR | ||
| 528 | A 1369880981 | FASTENER BUTTON |
| Repalced by: A 0009888481 | ||
| 528 | A 0009888481 | FASTENER BUTTON |
| CARPET TO FRONT FLOOR | ||
| N 007981003270 | SHEET METAL SCREW | |
| CARPET TO FRONT FLOOR | ||
| 533 | A 1116805045 | LINING |
| AT TUNNEL,FRONT FLOOR | ||
| A 1126805145 | LINING | |
| AT TUNNEL,FRONT FLOOR | ||
| A 1116805545 | LINING | |
| AT TUNNEL,FRONT FLOOR | ||
| A 1126805245 | LINING | |
| AT TUNNEL,FRONT FLOOR | ||
| 538 | A 1119971081 | GROMMET |
| FLOOR SHIFT OPENING | ||
| 542 | A 1116805144 | LINING |
| REAR FLOOR,LEFT | ||
| A 1116805244 | LINING | |
| REAR FLOOR,RIGHT | ||
| A 1116808344 | LINING | |
| REAR FLOOR,LEFT | ||
| A 1116808444 | LINING | |
| REAR FLOOR,RIGHT | ||
| A 0009882280 | FASTENER BUTTON | |
| Repalced by: A 0009881480 | ||
| A 0009881480 | FASTENER BUTTON | |
| CARPET TO REAR FLOOR | ||
| A 1119901040 | WASHER | |
| CARPET TO REAR FLOOR | ||
| A 1369880981 | FASTENER BUTTON | |
| Repalced by: A 0009888481 | ||
| A 0009888481 | FASTENER BUTTON | |
| CARPET TO REAR FLOOR | ||
| N 007981003257 | SHEET METAL SCREW | |
| CARPET TO REAR FLOOR | ||
| 549 | A 1116805445 | LINING |
| AT TUNNEL,IN THE REAR | ||
| A 1116808045 | LINING | |
| AT TUNNEL,IN THE REAR | ||
| 554 | A 1116805147 | LINING |
| LEFT;BELOW FRONT SEATS | ||
| A 1116805247 | LINING | |
| RIGHT,BELOW FRONT SEAT | ||
| 559 | A 1116808145 | LINING |
| REAR VERTICAL PLATE,LEFT | ||
| A 1116806345 | LINING | |
| REAR VERTICAL PLATE,LEFT | ||
| A 1116808245 | LINING | |
| REAR VERTICAL PLATE,RIGHT | ||
| A 1116806445 | LINING | |
| REAR VERTICAL PLATE,RIGHT | ||
| 565 | A 1106840105 | LINING |
| Repalced by: A 1086840105 | ||
| 565 | A 1086840105 | LINING |
| LUGGAGE COMPARTMENT FLOOR | ||
| 569 | A 1106840406 | LINING |
| Repalced by: A 1106840506 | ||
| A 1106840506 | LINING | |
| RECESS IN LUGGAGE COMPARTMENT | ||
| A 1116865145 | ORNAMENTAL COVER | |
| Repalced by: A 1116865345 | ||
| 573 | A 1116865345 | ORNAMENTAL COVER |
| LEFT SIDE MEMBER,OUTSIDE | ||
| A 1116865245 | ORNAMENTAL COVER | |
| Repalced by: A 1116865445 | ||
| A 1116865445 | ORNAMENTAL COVER | |
| RIGHT SIDE MEMBER,OUTSIDE | ||
| N 007981003248 | SHEET METAL SCREW | |
| COVERING TO SIDE MEMBER | ||
| 578 | A 1116865120 | RAIL |
| LEFT SIDE MEMBER, BOTTOM | ||
| A 1116865220 | RAIL | |
| RIGHT SIDE MEMBER,BOTTOM | ||
| N 007983003249 | SHEET METAL SCREW | |
| RAIL TO SIDE MEMBER | ||
| N 007981003248 | SHEET METAL SCREW | |
| RAIL TO SIDE MEMBER | ||
| 584 | A 1116865136 | RAIL |
| ENTRANCE,INSIDE LEFT | ||
| A 1116865236 | RAIL | |
| ENTRANCE,INSIDE RIGHT | ||
| N 007983003256 | SHEET METAL SCREW | |
| COVERING TO SIDE MEMBER | ||
| N 007981002216 | SHEET METAL SCREW | |
| COVERING TO SIDE MEMBER | ||
| 589 | A 1116865128 | PANELLING |
| UNDER RUBBER LINING,LEFT | ||
| A 1116865228 | PANELLING | |
| UNDER RUBBER LINING,RIGHT | ||
| N 007981003246 | SHEET METAL SCREW | |
| ENTRANCE COVERING TO SIDE MEMBER | ||
| 593 | A 0009875070 | RUBBER SECTION |
| BETWEEN SIDE MEMBER AND ORNAMENTAL COVER BELOW FRONT DOOR | ||
| 360 MM | ||
| 593 | A 0009875070 | RUBBER SECTION |
| BETWEEN SIDE MEMBER AND ORNAMENTAL COVER BELOW FRONT DOOR | ||
| 60 MM | ||
| 598 | A 0009876851 | RUBBER SEAL |
| 1867 MM | ||
| 602 | A 0009832487 | CARPET |
| CENTRAL ENTRANCE | ||
| 607 | A 1116805143 | LINING |
| LEFT ENTRANCE | ||
| A 1116805243 | LINING | |
| RIGHT ENTRANCE | ||
| A 1116808143 | LINING | |
| LEFT ENTRANCE | ||
| A 1116808243 | LINING | |
| RIGHT ENTRANCE | ||
| 612 | A 1116885139 | PANELLING |
| WINDSHIELD PILLAR,INSIDE LEFT | ||
| A 1116885239 | PANELLING | |
| WINDSHIELD PILLAR,INSIDE RIGHT | ||
| A 0009831292 | FELT | |
| 10X2X150 MM | ||
| 617 | A 1116888339 | PANELLING |
| LATERAL INSIDE LEFT | ||
| A 1116888439 | PANELLING | |
| LATERAL INSIDE RIGHT | ||
| N 007982002212 | SHEET METAL SCREW | |
| N 007983002203 | SHEET METAL SCREW | |
| 623 | A 1116888139 | PANELLING |
| INSIDE LEFT | ||
| 628 | A 1116888039 | PANELLING |
| INSIDE CENTRAL | ||
| A 1116888239 | PANELLING | |
| INSIDE RIGHT | ||
| 633 | A 1116888040 | PANELLING |
| OUTSIDE | ||
| A 0009899885 | ADHESIVE TAPE | |
| WINDSHIELD COVERING,OUTSIDE | ||
| 638 | A 1116888539 | PANELLING |
| UNDER GUIDE BEARING | ||
| N 007982002212 | SHEET METAL SCREW | |
| WINDSHIELD COVERING TO FRONT PANEL FRAME | ||
| A 0009830098 | FOAM PLASTICS | |
| Repalced by: A 0009833598 | ||
| A 0009833598 | FOAM PLASTICS | |
| FRONT PANEL,TOP | ||
| 5X35X1260 MM | ||
| A 0009830284 | LEATHER | |
| FRONT PANEL,TOP | ||
| 70X1260 MM | ||
| A 0009830998 | FOAM PLASTICS | |
| FRONT PANEL,TOP | ||
| 7X40X140 MM | ||
| A 1116805117 | COVERING | |
| Repalced by: A 1116806417 | ||
| 644 | A 1116806417 | COVERING |
| BELOW INSTRUMENT PANEL,LEFT | ||
| A 1116805517 | COVERING | |
| Repalced by: A 1116806517 | ||
| A 1116806517 | COVERING | |
| Repalced by: A 0009832291 | ||
| A 0009832291 | CARDBOARD | |
| BELOW INSTRUMENT PANEL,LEFT | ||
| 648 | A 1116805217 | COVERING |
| BELOW INSTRUMENT PANEL, RIGHT | ||
| A 1116805617 | COVERING | |
| Repalced by: A 0009832291 | ||
| A 0009832291 | CARDBOARD | |
| 10 MM | ||
| N 007981003227 | SHEET METAL SCREW | |
| Repalced by: N 007981003207 | ||
| N 007981003207 | SHEET METAL SCREW | |
| COVERING TO INSTRUMENT PANEL | ||
| N 009021003105 | WASHER | |
| COVERING TO INSTRUMENT PANEL | ||
| A 0009878952 | RUBBER SEAL | |
| Repalced by: A 1116875011 | ||
| A 0009879252 | RUBBER SEAL | |
| Repalced by: A 1116875011 | ||
| 654 | A 1116875011 | PLATE |
| 790 MM | ||
| 658 | A 0009871840 | RUBBER BUFFER |
| FIRE WALL REINFORCEMENT | ||
| N 007981004200 | SHEET METAL SCREW | |
| TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D. | ||
| 663 | A 1116885141 | PANELLING |
| LATERAL OUTSIDE LEFT | ||
| A 1116885241 | PANELLING | |
| LATERAL OUTSIDE RIGHT | ||
| A 1116888141 | PANELLING | |
| LATERAL OUTSIDE LEFT | ||
| A 1116888241 | PANELLING | |
| LATERAL OUTSIDE RIGHT | ||
| N 007982002212 | SHEET METAL SCREW | |
| WINDSHIELD COVERING TO WINDSHIELD PILLAR | ||
| A 0009899885 | ADHESIVE TAPE | |
| WINDSHIELD COVERING TO WINDSHIELD PILLAR | ||
| 669 | A 1116805580 | PANELLING |
| WITH POCKET,LATERAL LEFT | ||
| A 1116805680 | PANELLING | |
| WITH POCKET,LATERAL RIGHT | ||
| A 1116806080 | PANELLING | |
| LESS POCKET,LATERAL RIGHT | ||
| N 007983003260 | SHEET METAL SCREW | |
| PANELLING TO FRONT PANEL | ||
| A 0009850662 | WASHER | |
| PANELLING TO FRONT PANEL | ||
| 674 | A 1116805391 | GLOVE COMPARTMENT |
| A 1116805491 | GLOVE COMPARTMENT | |
| A 0009835291 | CARDBOARD | |
| 2X200X285 MM | ||
| A 0009830284 | LEATHER | |
| GLOVE COMPARTMENT | ||
| A 0009942545 | LOCK | |
| N 007983004331 | SHEET METAL SCREW | |
| GLOVE COMPARTMENT TO INSTRUMENT PANEL | ||
| N 007981004338 | SHEET METAL SCREW | |
| GLOVE COMPARTMENT TO INSTRUMENT PANEL | ||
| 680 | A 1116805198 | GLOVE COMPARTMENT LID |
| A 1116805298 | GLOVE COMPARTMENT LID | |
| A 1116808198 | GLOVE COMPARTMENT LID | |
| A 1116808298 | GLOVE COMPARTMENT LID | |
| 684 | A 1116805051 | HINGE |
| GLOVE COMPARTMENT LID | ||
| N 007995003501 | WOOD SCREW | |
| HINGE TO GLOVE COMPARTMENT LID | ||
| 688 | A 1116895170 | HANDLE |
| GLOVE COMPARTMENT LID | ||
| A 1116895270 | HANDLE | |
| Repalced by: A 1116895170 | ||
| A 1116895170 | HANDLE | |
| GLOVE COMPARTMENT LID | ||
| N 007988004110 | SCREW | |
| HANDLE TO LID | ||
| 693 | A 1106890001 | LOCK |
| GLOVE COMPARTMENT | ||
| 698 | A 0007661006 | KEY |
| MARKED WITH LETTER "K" | ||
| A 1109870339 | RUBBER BUFFER | |
| Repalced by: A 0009879740 | ||
| 703 | A 0009879740 | RUBBER BUFFER |
| GLOVE COMPARTMENT LID STOP | ||
| N 007985004136 | SCREW | |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| N 000137004202 | SPRING WASHER | |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| N 009021004108 | WASHER | |
| Repalced by: N 009021004207 | ||
| N 009021004207 | WASHER | |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| 709 | A 1116890032 | CLAMP |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| 714 | A 1109930901 | SPRING |
| GLOVE COMPARTMENT LID TO INSTRUMENT PANEL | ||
| A 1116895565 | STIFFENING | |
| Repalced by: A 1116805906 | ||
| 720 | A 1116805906 | PANELLING |
| INSTRUMENT PANEL,TOP LEFT | ||
| A 1116895965 | STIFFENING | |
| Repalced by: A 1116806906 | ||
| A 1116806906 | PANELLING | |
| A 1116806906 | PANELLING | |
| INSTRUMENT PANEL,TOP LEFT | ||
| A 1116895665 | STIFFENING | |
| Repalced by: A 1116806006 | ||
| A 1116806006 | PANELLING | |
| 725 | A 1116806006 | PANELLING |
| INSTRUMENT PANEL,TOP RIGHT | ||
| A 1116896065 | STIFFENING | |
| Repalced by: A 1116807006 | ||
| A 1116807006 | PANELLING | |
| INSTRUMENT PANEL,TOP RIGHT | ||
| A 0009875633 | RUBBER SECTION | |
| LEFT | ||
| 250 MM | ||
| A 0009875633 | RUBBER SECTION | |
| RIGHT | ||
| 950 MM | ||
| A 0009830998 | FOAM PLASTICS | |
| TOP PAD | ||
| 7 MM | ||
| A 0009830284 | LEATHER | |
| TOP PAD | ||
| A 0009943345 | LOCK | |
| Repalced by: A 1409941045 | ||
| A 1409941045 | LOCK | |
| TOP PAD | ||
| N 007983004326 | SHEET METAL SCREW | |
| TOP PAD | ||
| A 1116805706 | PANELLING | |
| Repalced by: A 1116806106 | ||
| 731 | A 1116806106 | PANELLING |
| BOTTOM LEFT | ||
| A 1116805806 | PANELLING | |
| Repalced by: A 1116806206 | ||
| A 1116808006 | PANELLING | |
| Repalced by: A 1116806206 | ||
| 736 | A 1116806206 | PANELLING |
| BOTTOM RIGHT | ||
| A 1116807106 | PANELLING | |
| Repalced by: A 1116806706 | ||
| A 1116808106 | PANELLING | |
| Repalced by: A 1116806706 | ||
| A 1116806706 | PANELLING | |
| BOTTOM LEFT | ||
| A 1116807206 | PANELLING | |
| Repalced by: A 1116806606 | ||
| A 1116806606 | PANELLING | |
| BOTTOM RIGHT | ||
| 742 | A 1136890080 | ESCUTCHEON |
| ENTRANCE LAMP | ||
| A 0009875633 | RUBBER SECTION | |
| A 0009830998 | FOAM PLASTICS | |
| BOTTOM PAD | ||
| 7 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| LEFT | ||
| 200X400 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| RIGHT | ||
| 200X1100 MM | ||
| A 0009830284 | LEATHER | |
| BOTTOM PAD | ||
| A 0009940845 | LOCK | |
| UNDER PAD ON INSTRUMENT PANEL | ||
| N 007976006204 | SHEET METAL SCREW | |
| UNDER PAD ON INSTRUMENT PANEL | ||
| N 007981003326 | SHEET METAL SCREW | |
| UNDER PAD ON INSTRUMENT PANEL | ||
| N 007981004270 | SHEET METAL SCREW | |
| UNDER PAD ON INSTRUMENT PANEL | ||
| N 009021006103 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| UNDER PAD ON INSTRUMENT PANEL | ||
| N 912004006102 | LOCK WASHER | |
| UNDER PAD ON INSTRUMENT PANEL | ||
| N 000934006007 | NUT | |
| UNDER PAD ON INSTRUMENT PANEL | ||
| A 0009872344 | EXPANSION PLUG | |
| TO PLUG THE THREADED HOLES OF BOTTOM PAD | ||
| A 1116805179 | HOUSING | |
| Repalced by: A 1116805379 | ||
| 750 | A 1116805379 | HOUSING |
| A 1116805279 | HOUSING | |
| Repalced by: A 1116805479 | ||
| A 1116805479 | HOUSING | |
| HOUSING TO INSTRUMENT PANEL | ||
| N 000125005306 | WASHER | |
| HOUSING TO INSTRUMENT PANEL | ||
| N 000127005203 | LOCK WASHER | |
| HOUSING TO INSTRUMENT PANEL | ||
| N 000934005008 | NUT | |
| HOUSING TO INSTRUMENT PANEL | ||
| A 0009940845 | LOCK | |
| Repalced by: A 0009940445 | ||
| A 0009943345 | LOCK | |
| Repalced by: A 1409941045 | ||
| A 1409941045 | LOCK | |
| HOUSING TO INSTRUMENT PANEL | ||
| N 900056004506 | COUNTERSUNK WASHER | |
| HOUSING TO INSTRUMENT PANEL | ||
| N 007982004213 | SHEET METAL SCREW | |
| HOUSING TO INSTRUMENT PANEL | ||
| A 0009871541 | RUBBER RING | |
| Repalced by: A 0009873841 | ||
| A 0009873841 | RUBBER RING | |
| HOUSING TO INSTRUMENT PANEL | ||
| 758 | A 1116895272 | GARNISH MOULDING |
| INSTRUMENT PANEL,TOP LEFT | ||
| A 1116895372 | GARNISH MOULDING | |
| Repalced by: A 1116895272 | ||
| A 1116895272 | GARNISH MOULDING | |
| INSTRUMENT PANEL,TOP RIGHT | ||
| A 1116895472 | GARNISH MOULDING | |
| INSTRUMENT PANEL,TOP RIGHT | ||
| A 1116895572 | GARNISH MOULDING | |
| Repalced by: A 1116895472 | ||
| A 1116895472 | GARNISH MOULDING | |
| INSTRUMENT PANEL,TOP LEFT | ||
| 766 | A 1116895072 | GARNISH MOULDING |
| INSTRUMENT PANEL,TOP CENTRAL | ||
| A 1116895172 | GARNISH MOULDING | |
| Repalced by: A 1116895072 | ||
| A 1116895072 | GARNISH MOULDING | |
| INSTRUMENT PANEL,TOP CENTRAL | ||
| A 1209900150 | NUT | |
| Repalced by: A 0009900750 | ||
| A 0009900750 | NUT | |
| GARNISH MOULDING TO INSTRUMENT PANEL | ||
| 773 | A 1116805171 | GARNISH MOULDING |
| Repalced by: A 1116895171 | ||
| 773 | A 1116895171 | GARNISH MOULDING |
| INSTRUMENT PANEL LOWER PART | ||
| A 1116805271 | GARNISH MOULDING | |
| Repalced by: A 1116895271 | ||
| A 1116895271 | GARNISH MOULDING | |
| INSTRUMENT PANEL LOWER PART | ||
| 780 | A 1126800296 | COVER |
| Repalced by: A 1126800596 | ||
| 780 | A 1126800596 | COVER |
| INSTRUMENT PANEL,CENTER | ||
| 785 | A 1288170014 | TYPE DESIGNATION |
| INSTRUMENT PANEL | ||
| "220 SE" | ||
| A 0009940045 | LOCK | |
| A 0009942445 | LOCK | |
| COVER TO INSTRUMENT PANEL | ||
| A 1106890080 | ESCUTCHEON | |
| Repalced by: A 1106890180 | ||
| 793 | A 1106890180 | ESCUTCHEON |
| 801 | A 1106890098 | SEAL |
| A 1116805183 | PANELLING | |
| Repalced by: A 1116805187 | ||
| 809 | A 1116805187 | INSTRUMENT PANEL |
| TWO-PART | ||
| A 1116805283 | PANELLING | |
| Repalced by: A 1116805287 | ||
| A 1116805287 | INSTRUMENT PANEL | |
| TWO-PART | ||
| N 007982003215 | SHEET METAL SCREW | |
| PANELLING TO INSTRUMENT PANEL | ||
| 816 | A 1116805583 | PANELLING |
| INSTRUMENT PANEL,CENTER | ||
| A 1116805683 | PANELLING | |
| INSTRUMENT PANEL,CENTER | ||
| N 007982002219 | SHEET METAL SCREW | |
| Repalced by: N 007982002212 | ||
| N 007982002212 | SHEET METAL SCREW | |
| PANELLING TO INSTRUMENT PANEL | ||
| A 1116705108 | COVERING | |
| LOUDSPEAKER | ||
| A 1116705208 | COVERING | |
| Repalced by: A 1116806017 | ||
| 823 | A 1116806017 | COVERING |
| LOUDSPEAKER | ||
| 830 | A 0019885378 | CLIP |
| COVERING TO INSTRUMENT PANEL | ||
| A 0009879440 | RUBBER BUFFER | |
| COVERING TO INSTRUMENT PANEL | ||
| 840 | A 1116805067 | END PIECE |
| LOUDSPEAKER OPENING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
