Transporto priemonė: 220 SEB; VIN numerio dalis: 111014

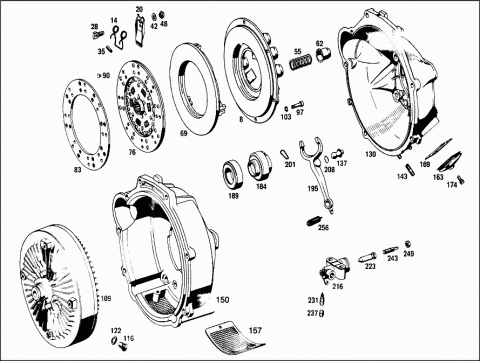

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 0002509604 | CLUTCH PRESSURE PLATE |
| 014 | A 0002520427 | SPRING |
| 020 | A 0002524213 | RELEASE LEVER |
| 028 | A 0002520374 | PIN |
| 035 | N 001481006002 | CLAMPING SLEEVE |
| 042 | A 0002520151 | SPACER RING |
| 048 | A 0002521472 | NUT |
| Repalced by: A 0002522772 | ||
| 048 | A 0002522772 | NUT |
| 055 | A 0002521820 | PRESSURE SPRING |
| 55 MM | ||
| 062 | A 0002520335 | SLEEVE |
| 069 | A 0002522106 | CLUTCH PRESSURE PLATE |
| A 0042501703 | CLUTCH DISC | |
| Repalced by: A 0102502603 | ||
| 076 | A 0102502603 | CLUTCH DISC |
| 083 | A 0002521610 | CLUTCH LINING |
| A 1085860025 | REPAIR KIT | |
| A 0002521910 | CLUTCH LINING | |
| Repalced by: A 1085860025 | ||
| A 1085860025 | REPAIR KIT | |
| ON CLUTCH END | ||
| A 0002522110 | CLUTCH LINING | |
| ON FLYWHEEL END | ||
| 090 | A 0002521275 | RIVET |
| A 0002521075 | RIVET | |
| 097 | N 000912008012 | SCREW |
| 103 | N 007980008002 | LOCK WASHER |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| HYDRAULIC CLUTCH USED FOR AUTOMATIC TRANSMISSION | ||
| 109 | A 1112501602 | HYDRAULIC CLUTCH |
| 116 | A 1809970530 | SCREW PLUG |
| 122 | N 007603012104 | SEAL RING |
| N 007603010100 | SEAL RING | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| BELL HOUSING | ||
| A 1112501205 | HOUSING | |
| Repalced by: A 1112502005 | ||
| A 1112500505 | HOUSING | |
| Repalced by: A 1112502005 | ||
| A 1112501605 | HOUSING | |
| Repalced by: A 1112502005 | ||
| 130 | A 1112502005 | HOUSING |
| 137 | A 1119910120 | BALL PIVOT |
| N 000835008008 | STUD | |
| 143 | N 000835008062 | STUD |
| 150 | A 1112502205 | HOUSING |
| HYDRAULIC CLUTCH | ||
| 157 | A 1122570590 | COVER PLATE |
| N 000933006102 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| COVER PLATE TO BELL HOUSING | ||
| N 000137006204 | SPRING WASHER | |
| COVER PLATE TO BELL HOUSING | ||
| 163 | A 1202540097 | BOOT |
| 169 | A 1202540058 | SEAL HOLDER |
| 174 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 174 | N 304017006018 | SCREW |
| A 1202510071 | SCREW | |
| N 000931012132 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000125013003 | WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 912004012100 | LOCK WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000934012021 | NUT | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000933012050 | SCREW | |
| Repalced by: N 304017012002 | ||
| N 304017012002 | SCREW | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000137012203 | SPRING WASHER | |
| Repalced by: N 000137012206 | ||
| N 000137012206 | SPRING WASHER | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| N 000934012021 | NUT | |
| BELL HOUSING TO TRANSMISSION CASE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| RELEASE PARTS | ||
| 184 | A 1112500115 | RELEASE BEARING |
| A 1112500215 | RELEASE BEARING | |
| A 1272540120 | RELEASE BEARING | |
| Repalced by: A 1112500115 | ||
| A 1112500115 | RELEASE BEARING | |
| 189 | A 0009814325 | BALL BEARING |
| A 0019815225 | BALL BEARING | |
| 195 | A 1112930211 | RELEASE YOKE |
| 201 | A 3199930025 | SPRING |
| 208 | N 071805016300 | SNAP RING |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SLAVE CYLINDER | ||
| A 0002950307 | SLAVE CYLINDER | |
| Repalced by: A 0002950807 | ||
| A 0002950807 | SLAVE CYLINDER | |
| 216 | A 0002951907 | SLAVE CYLINDER |
| A 0002950130 | PISTON | |
| A 0002950330 | PISTON | |
| A 0002950074 | PIN | |
| Repalced by: A 0002950174 | ||
| A 0002950174 | PIN | |
| 223 | A 0002950374 | PIN |
| A 0002950183 | BOOT | |
| Repalced by: A 0002950883 | ||
| A 0002950883 | BOOT | |
| A 0002950583 | BOOT | |
| 231 | A 0002950120 | VALVE |
| 237 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 237 | A 0004210887 | PROTECTIVE CAP |
| A 0005860429 | REPAIR KIT | |
| A 0005860829 | REPAIR KIT | |
| A 0005860929 | REPAIR KIT | |
| A 1112950533 | ROD | |
| Repalced by: A 1112950733 | ||
| 243 | A 1112950733 | ROD |
| 243 | A 1112950733 | ROD |
| 249 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 249 | N 304035008001 | NUT |
| A 1119930610 | SPRING | |
| Repalced by: A 1119931010 | ||
| A 1119931010 | SPRING | |
| A 1119931010 | SPRING | |
| 256 | A 1119931110 | SPRING |
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| SLAVE CYLINDER TO BELL HOUSING | ||
| N 000127008203 | LOCK WASHER | |
| SLAVE CYLINDER TO BELL HOUSING | ||
| N 000934008010 | NUT | |
| Repalced by: N 304032008006 | ||
| N 304032008006 | NUT | |
| SLAVE CYLINDER TO BELL HOUSING | ||
