Transporto priemonė: O 309 B; VIN numerio dalis: 309073

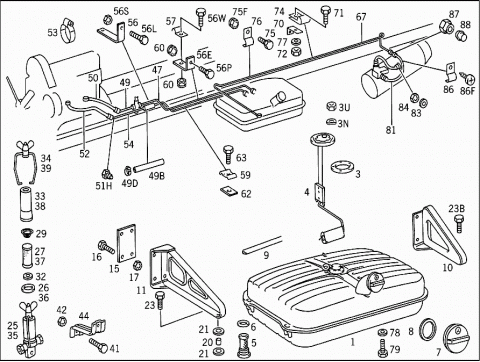

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3094700101 | FUEL TANK | |
| Repalced by: A 3094705901 | ||
| A 3094700201 | FUEL TANK | |
| Repalced by: A 3094705901 | ||
| A 3194702201 | FUEL TANK | |
| Repalced by: A 3094708801 | ||
| A 3194702401 | FUEL TANK | |
| Repalced by: A 3094708801 | ||
| 001 | A 3094705901 | FUEL TANK |
| Repalced by: A 3094708801 | ||
| A 3094708901 | FUEL TANK | |
| Repalced by: A 3094708801 | ||
| 001C | A 3094708801 | FUEL TANK |
| LESS SENDER UNIT | ||
| 60 L | ||
| 003 | A 1104710180 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 003H | A 3524710080 | GASKET |
| Repalced by: A 4044710080 | ||
| 003H | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 003N | N 000137005203 | SPRING WASHER |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 003R | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 003U | N 000934005008 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| A 0005425217 | SENDER UNIT | |
| Repalced by: A 0015427517 | ||
| 004 | A 0015427517 | SENDER UNIT |
| 004E | A 0045425017 | SENDER UNIT |
| Repalced by: A 0075424017 | ||
| 004E | A 0075424017 | SENDER UNIT |
| 005 | A 1204700186 | FUEL STRAINER |
| 006 | N 007603027100 | SEAL RING |
| AT SCREEN | ||
| 006E | A 3094700006 | FUEL STRAINER |
| 006E | A 3094700206 | FUEL STRAINER |
| 006L | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 006L | N 007604014110 | SCREW PLUG |
| AT TANK | ||
| 006P | N 915035000017 | SEAL RING |
| 006S | A 0009873745 | LOCKING CAP |
| RETURN LINE | ||
| 007 | A 0004717430 | FILLER CAP |
| Repalced by: A 1244700005 | ||
| 007 | A 1244700005 | FILLER CAP |
| Repalced by: A 0004700730 | ||
| 007 | A 0004700730 | FILLER CAP |
| Repalced by: A 9014700005 | ||
| 007 | A 9014700005 | FILLER CAP |
| Repalced by: A 9014700105 | ||
| 007 | A 9014700105 | FILLER CAP |
| A 0004710780 | GASKET | |
| Repalced by: A 1104710280 | ||
| 008 | A 1104710280 | GASKET |
| 008 | A 1154710079 | SEAL RING |
| A 3094710081 | BOOT | |
| (FILLER PIPE) | ||
| A 0009908720 | SCREW | |
| ON SIDE PANEL | ||
| 009 | A 0009876870 | RUBBER SECTION |
| 840 MM | ||
| 840 MM | ||
| A 3094700242 | SUPPORT | |
| Repalced by: A 3094703242 | ||
| 010 | A 3094701942 | SUPPORT |
| Repalced by: A 3094703242 | ||
| 010 | A 3094703242 | SUPPORT |
| FUEL TANK TO FRAME | ||
| A 3094700342 | SUPPORT | |
| Repalced by: A 3094703442 | ||
| A 3094702042 | SUPPORT | |
| Repalced by: A 3094703442 | ||
| 011 | A 3094700042 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 011 | A 3094700042 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 011 | A 3094700042 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 011 | A 3094700142 | SUPPORT |
| FUEL TANK TO FRAME | ||
| 015 | A 3094750184 | SHIM |
| CONSOLE TO FRAME | ||
| 016 | N 000933010157 | SCREW |
| CONSOLE TO FRAME | ||
| M 10X25 | ||
| 017 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 017 | N 910113010000 | NUT |
| CONSOLE TO FRAME | ||
| A 3094710053 | SPACER TUBE | |
| Repalced by: A 3094710153 | ||
| 020 | A 3094710153 | SPACER TUBE |
| FUEL TANK TO SUPPORT | ||
| 021 | A 3094710253 | SPACER TUBE |
| Repalced by: A 1119900340 | ||
| 021 | A 3194710081 | BOOT |
| Repalced by: A 1119900340 | ||
| 023 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 023 | N 304017008034 | SCREW |
| FUEL TANK TO CONSOLE | ||
| M 8X25 | ||
| 023B | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 023B | N 304017008027 | SCREW |
| FUEL TANK TO CONSOLE | ||
| M 8X30 | ||
| 023B | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 023B | N 304017008018 | SCREW |
| FUEL TANK TO CONSOLE | ||
| M 8X35 | ||
| 023F | A 1119900340 | WASHER |
| Repalced by: A 0039902940 | ||
| 023F | A 0039902940 | WASHER |
| FUEL TANK TO CONSOLE | ||
| 023M | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 023M | N 009021008213 | WASHER |
| FUEL TANK TO CONSOLE | ||
| N 000125013008 | WASHER | |
| 023R | N 913004008004 | NUT |
| FUEL TANK TO CONSOLE | ||
| 025 | A 0004778301 | FUEL FILTER |
| 026 | A 0004772880 | GASKET |
| 027 | A 0004775015 | FILTER ELEMENT |
| 029 | A 0009940837 | SNAP RING |
| 032 | A 0004772980 | GASKET |
| 033 | A 0004771516 | FILTER BOWL |
| 034 | A 0004771318 | MOUNTING BOW |
| 034B | A 0014773801 | FUEL FILTER |
| 034B | A 0014773901 | FUEL FILTER |
| 035 | A 0004776801 | FUEL FILTER |
| Repalced by: A 0014774301 | ||
| 035 | A 0014774301 | FUEL FILTER |
| 035 | A 0014778001 | FUEL FILTER |
| 036 | A 0004771980 | GASKET |
| TO 001 477 43 01 | ||
| 036 | A 0004771360 | SEAL RING |
| TO 001 477 80 01 | ||
| 037 | A 0004773015 | FILTER ELEMENT |
| Repalced by: A 0004775815 | ||
| 037 | A 0004775815 | FILTER ELEMENT |
| TO 001 477 43 01 | ||
| 037 | A 0004777415 | FILTER ELEMENT |
| TO 001 477 80 01 | ||
| 038 | A 0004770216 | FILTER BOWL |
| TO 001 477 43 01 | ||
| 038 | A 0004771816 | FILTER BOWL |
| TO 001 477 80 01 | ||
| 039 | A 0004770918 | MOUNTING BOW |
| TO 001 477 43 01,001 477 80 01 | ||
| 040 | A 0014774201 | FUEL FILTER |
| 040 | A 0014775601 | FUEL FILTER |
| Repalced by: A 0014776301 | ||
| 040 | A 0014776301 | FUEL FILTER |
| 040 | A 0014776401 | FUEL FILTER |
| 040 | A 0014776601 | FUEL FILTER |
| 040 | A 0014777901 | FUEL FILTER |
| 041 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 041 | N 304017006020 | SCREW |
| FUEL FILTER TO BRACKET | ||
| 042 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 042 | N 913002006009 | NUT |
| FUEL FILTER TO BRACKET | ||
| 044 | A 3140940641 | BRACKET |
| FUEL FILTER TO SIDE MEMBER | ||
| 045 | A 3094761336 | BRACKET |
| FUEL FILTER TO SIDE MEMBER | ||
| 045D | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 045K | N 913002010001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| A 3094700564 | LINE | |
| Repalced by: A 3104282301 | ||
| A 3094282201 | LINE | |
| Repalced by: A 3104282301 | ||
| 047 | A 3104282301 | LINE |
| FROM FUEL TANK TO FILTER | ||
| A 3094700864 | LINE | |
| Repalced by: A 3104282301 | ||
| A 3094709664 | LINE | |
| Repalced by: A 3104282301 | ||
| A 3094700364 | LINE | |
| Repalced by: A 3104282301 | ||
| A 3094700464 | LINE | |
| Repalced by: A 3104282301 | ||
| A 3094282201 | LINE | |
| Repalced by: A 3104282301 | ||
| 049 | A 3404706165 | LINE |
| FROM FILTER TO FUEL PUMP | ||
| 049B | A 0004295235 | HOSE |
| FUEL LINES | ||
| 049D | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 049D | N 916017011001 | CLAMP |
| Repalced by: N 000000000665 | ||
| 049D | N 000000000665 | CLAMP |
| FUEL LINES | ||
| 050 | A 0069979582 | HOSE |
| FUEL LINES | ||
| 050F | N 073379008200 | HOSE |
| FROM FUEL TANK TO FUEL HOSE | ||
| 050F | N 073379008200 | HOSE |
| FROM FUEL PUMP TO FILTER | ||
| 050F | N 073379008200 | HOSE |
| FUEL LINE TO SENDER UNIT | ||
| 050F | N 073379008200 | HOSE |
| FUEL TANK | ||
| 050F | N 073379008200 | HOSE |
| RETURN; FROM DISTRIBUTOR TO TANK | ||
| 050F | N 073379008200 | HOSE |
| FUEL LINE LEADING TO FILTER | ||
| 050K | N 916017011001 | CLAMP |
| Repalced by: N 000000000665 | ||
| 050K | N 000000000665 | CLAMP |
| FUEL LINE TO FEED PUMP | ||
| 050K | N 000000000665 | CLAMP |
| RETURN; FROM DISTRIBUTOR TO TANK | ||
| 050K | N 000000000665 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||
| 051 | N 007603014406 | SEAL RING |
| FUEL TANK | ||
| 051 | A 0079974245 | SEAL RING |
| FUEL TANK | ||
| 051E | N 916002013100 | CLAMP |
| Repalced by: A 0019976990 | ||
| 051E | A 0019976990 | LOOM TIE |
| AT TANK | ||
| 051H | A 1809900066 | UNION SCREW |
| FUEL LINES | ||
| 051P | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 051P | A 0009872727 | PLASTIC PIPE |
| FROM TANK TO PUMP | ||
| 051P | A 0009872727 | PLASTIC PIPE |
| FROM TANK TO FILTER | ||
| 051P | A 0009872727 | PLASTIC PIPE |
| FROM FILTER TO ENGINE | ||
| 051P | A 0009872727 | PLASTIC PIPE |
| RETURN; FROM DISTRIBUTOR TO TANK | ||
| 051S | N 915062006000 | SLEEVE |
| INSIDE BEARING BRACKET TO LEFT SIDE MEMBER | ||
| A 0039975390 | LOOM TIE | |
| CONNECTION OF FUEL LINES | ||
| 052 | A 1364760026 | HOSE |
| Repalced by: A 3094760126 | ||
| 052 | A 3094760126 | HOSE |
| FROM RETURN LINE TO DISTRIBUTOR | ||
| 053 | N 900268012100 | CLAMP |
| FUEL LINES | ||
| 053 | N 916017011001 | CLAMP |
| Repalced by: N 000000000665 | ||
| 053 | N 000000000665 | CLAMP |
| FUEL LINES | ||
| 053 | N 000000000665 | CLAMP |
| FUEL LINES | ||
| A 3094700664 | LINE | |
| Repalced by: A 3404706165 | ||
| A 3094700764 | LINE | |
| Repalced by: A 3404706165 | ||
| 054 | A 3404706165 | LINE |
| FROM HOSE TO TANK | ||
| 054 | A 3104282301 | LINE |
| FROM HOSE TO TANK | ||
| 054 | A 3104282301 | LINE |
| FROM HOSE TO TANK | ||
| 056 | A 3094760036 | BRACKET |
| FUEL LINE | ||
| 056E | A 3094760136 | BRACKET |
| FUEL LINE | ||
| 056L | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 056L | N 304017008021 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 056P | N 000933006102 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 056S | N 913004008004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 056W | N 000084006197 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 057 | A 1989950020 | CLAMP |
| FUEL LINE TO BRACKET | ||
| 059 | A 3199950132 | CLAMP |
| Repalced by: A 3379950332 | ||
| 059 | A 3379950332 | CLAMP |
| FUEL LINE TO BRACKET | ||
| 060 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 060 | N 913004006001 | NUT |
| FUEL LINE TO BRACKET | ||
| 062 | A 3124761036 | BRACKET |
| Repalced by: A 3124761236 | ||
| 062 | A 3124761236 | BRACKET |
| Repalced by: A 3604293140 | ||
| 062 | A 3604293140 | BRACKET |
| FUEL LINE | ||
| 063 | N 007513006209 | TAPPING SCREW |
| LINE MOUNTING | ||
| A 3094701064 | LINE | |
| Repalced by: A 4064207236 | ||
| A 3094701064 | LINE | |
| A 3094701264 | LINE | |
| Repalced by: A 4064207226 | ||
| A 3094701264 | LINE | |
| A 3094701164 | LINE | |
| Repalced by: A 4064207226 | ||
| A 3094701364 | LINE | |
| Repalced by: A 4064207226 | ||
| A 3094702565 | LINE | |
| Repalced by: A 4064207226 | ||
| 067 | A 4064207226 | LINE |
| WITH BANJO UNION | ||
| 8X0.7X1500 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FROM FUEL TANK TO FUEL HOSE | ||
| 067 | A 0004290801 | LINE |
| FROM FUEL TANK TO FUEL HOSE | ||
| 070 | A 3094760136 | BRACKET |
| FUEL LINE TO FRAME | ||
| 071 | N 000933006102 | SCREW |
| FUEL LINE TO FRAME | ||
| 072 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 072 | N 913004006001 | NUT |
| FUEL LINE TO FRAME | ||
| A 0009951801 | CLAMP | |
| Repalced by: A 3609950201 | ||
| 074 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 074 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 074 | N 916016008200 | CLAMP |
| FUEL LINE TO FRAME | ||
| 075 | N 000933005059 | SCREW |
| FUEL LINE TO FRAME | ||
| 075F | N 913004005001 | NUT |
| FUEL LINE TO FRAME | ||
| 076 | A 1989950020 | CLAMP |
| FUEL LINE TO FRAME | ||
| 077 | N 000125006421 | WASHER |
| FUEL LINE TO FRAME | ||
| 078 | N 007603012308 | SEAL RING |
| Repalced by: N 007603012111 | ||
| 078 | N 007603012111 | SEAL RING |
| FUEL LINE TO TANK | ||
| 079 | N 915036008202 | HOLLOW SCREW |
| FUEL LINE TO TANK | ||
| 081 | A 3094760026 | HOSE |
| FUEL LINE LEADING TO HEATER UNIT | ||
| A 1364760026 | HOSE | |
| Repalced by: A 3094760126 | ||
| 081 | A 3094760126 | HOSE |
| FUEL LINE LEADING TO HEATER UNIT | ||
| 083 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 083 | N 000125015019 | WASHER |
| FUEL HOSE TO BODY | ||
| 084 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 084 | N 308673014001 | NUT |
| FUEL HOSE TO BODY | ||
| 086 | N 072571001025 | CLAMP |
| FUEL HOSE TO BODY | ||
| 086F | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 086F | N 000000000460 | SHEET METAL SCREW |
| FUEL HOSE TO BODY | ||
| 087 | N 915017008100 | UNION NUT |
| FUEL HOSE TO FUEL LINE | ||
| 088 | N 003861008005 | GLAND |
| FUEL HOSE TO FUEL LINE | ||
| 094 | A 0019978390 | LOOM TIE |
| FUEL LINE TO BRACKET | ||
| 100 | A 3094760150 | BUSHING |
| FUEL LINE TO FRAME | ||
| 100 | A 3094760350 | BUSHING |
| Repalced by: A 0009973481 | ||
| 100 | A 0009973481 | GROMMET |
| FUEL LINE TO FRAME | ||
| 106 | A 0049881378 | CLIP |
| FUEL LINE TO FRAME | ||
| 112 | A 0019978490 | LOOM TIE |
| FUEL LINE TO FRAME | ||
| 376 MM | ||
| 130 | A 3094700526 | RISING PIPE |
| AT TANK | ||
| 130 | A 3094700726 | RISING PIPE |
| AT TANK | ||
| 136 | A 3094700179 | INTERMEDIATE PIECE |
| AT TANK | ||
| 141 | A 0008354064 | PUMP |
| 148 | A 3094750684 | BRACKET |
| FUEL-OIL PUMP | ||
| 152 | N 000933006102 | SCREW |
| PUMP TO BRACKET | ||
| 154 | N 912004006102 | LOCK WASHER |
| PUMP TO BRACKET | ||
| 157 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 157 | A 0009872727 | PLASTIC PIPE |
| FROM FUEL TANK TO FUEL-OIL PUMP | ||
| 157 | A 0009872727 | PLASTIC PIPE |
| FROM PUMP TO HEATER CASE | ||
| 157 | A 0009872727 | PLASTIC PIPE |
| HEATING RETURN | ||
| 159 | N 915017008100 | UNION NUT |
| FROM PUMP TO HEATER CASE | ||
| 159 | N 915017008100 | UNION NUT |
| HEATING RETURN | ||
| 160 | N 003861008005 | GLAND |
| FROM PUMP TO HEATER CASE | ||
| 160 | N 003861008005 | GLAND |
| HEATING RETURN | ||
| 161 | A 0007630043 | SLEEVE |
| Repalced by: N 915062006000 | ||
| 161 | N 915062006000 | SLEEVE |
| FROM PUMP TO HEATER CASE | ||
| 161 | N 915062006000 | SLEEVE |
| HEATING RETURN | ||
| 164 | A 0009907488 | BANJO UNION |
| Repalced by: N 915052006003 | ||
| 164 | N 915052006022 | BANJO UNION |
| FROM FUEL TANK TO FUEL-OIL PUMP | ||
| 164 | N 915052006022 | BANJO UNION |
| FROM PUMP TO HEATER CASE | ||
| 173 | N 915011004103 | HOLLOW SCREW |
| Repalced by: N 915036006103 | ||
| 173 | N 915036006202 | HOLLOW SCREW |
| FROM FUEL TANK TO FUEL-OIL PUMP | ||
| 173 | N 915036006202 | HOLLOW SCREW |
| FROM PUMP TO HEATER CASE | ||
| 178 | N 007603010401 | SEAL RING |
| FROM FUEL TANK TO FUEL-OIL PUMP | ||
| 178 | N 007603010401 | SEAL RING |
| FROM PUMP TO HEATER CASE | ||
| 211 | A 0049881378 | CLIP |
| FUEL LINE TO FRAME | ||
| 219 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 219 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 219 | N 916016008200 | CLAMP |
| FUEL LINE TO FRAME | ||
| 221 | A 0019978490 | LOOM TIE |
| FUEL LINE TO FRAME | ||
| 221 | A 0019978490 | LOOM TIE |
| VACUUM LINE TO FUEL LINE | ||
| 223 | N 000933006102 | SCREW |
| FUEL LINE TO FRAME | ||
| 225 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 225 | N 913004006001 | NUT |
| FUEL LINE TO FRAME | ||
| 229 | A 3094760150 | BUSHING |
| FUEL LINE TO FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
