Transporto priemonė: O 303; VIN numerio dalis: 301130
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 0004291201 | LINE |
| LEVEL ADJUSTMENT VALVE | ||
| 002 | N 915017008100 | UNION NUT |
| 003 | N 003861008005 | GLAND |
| 004 | A 0009902670 | T-FITTING |
| BRANCH-OFF TO REAR AXLE LEVEL ADJUSTMENT DEVICE | ||
| A 0019972672 | FITTING | |
| Repalced by: A 0039978972 | ||
| A 0039978972 | FITTING | |
| Repalced by: A 0029905971 | ||
| A 0029905971 | FITTING | |
| BETWEEN THE LINES | ||
| 005 | A 0009951801 | CLAMP |
| Repalced by: N 916016008200 | ||
| 005 | N 916016008200 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| 005 | A 0009954701 | CLAMP |
| Repalced by: N 916016015202 | ||
| 005 | N 916016015202 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| 005 | N 916016012200 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| 006 | N 000933006127 | SCREW |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| 006 | N 000933006102 | SCREW |
| COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE | ||
| 007 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 007 | N 009021006208 | WASHER |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| N 912004006102 | LOCK WASHER | |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| 008 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 008 | N 910113006001 | NUT |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| A 0019972572 | FITTING | |
| N 007603012405 | SEAL RING | |
| A 0009902670 | T-FITTING | |
| FRONT AXLE LEVEL ADJUSTMENT | ||
| 011 | A 0003282130 | VALVE |
| FRONT AXLE LEVEL ADJUSTMENT | ||
| A 0019970247 | SEAL RING | |
| A 0019970347 | SEAL RING | |
| 014 | A 0003281925 | VALVE |
| 015 | A 0003282025 | VALVE |
| Repalced by: A 0003282125 | ||
| 015 | A 0003282125 | VALVE |
| 016 | A 0003200027 | LEVER |
| Repalced by: A 0003200127 | ||
| 016 | A 0003200127 | LEVER |
| (PARTS KIT) | ||
| 017 | A 0003200467 | REPAIR KIT |
| Repalced by: A 0003200258 | ||
| 017 | A 0003200258 | REPAIR KIT |
| FRONT AXLE LEVEL ADJUSTMENT VALVE | ||
| 018 | A 0019972572 | FITTING |
| AT VALVE | ||
| 019 | A 0003272125 | VALVE |
| WITH CHECK VALVE | ||
| 020 | N 007603012405 | SEAL RING |
| AT VALVE | ||
| 021 | A 0000750032 | FILTER |
| AT VALVE | ||
| 022 | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 022 | N 304014008002 | SCREW |
| VALVE TO SUBSTRUCTURE | ||
| 023 | N 913004008004 | NUT |
| VALVE TO SUBSTRUCTURE | ||
| 024 | A 3603200589 | ROD |
| Repalced by: A 3073200289 | ||
| 024 | A 3073200289 | ROD |
| PNEUMATIC SUSPENSION CONTROL | ||
| 025 | N 000934008010 | NUT |
| 026 | N 071803013102 | BALL PIVOT |
| 027 | A 3013270040 | BRACKET |
| PNEUMATIC SUSPENSION CONTROL | ||
| N 000960012199 | SCREW | |
| Repalced by: N 308676012018 | ||
| N 308676012018 | SCREW | |
| BEARING BRACKET TO FRONT AXLE | ||
| N 913004012008 | NUT | |
| BEARING BRACKET TO FRONT AXLE | ||
| 028 | N 000934008010 | NUT |
| 029 | N 912004008102 | LOCK WASHER |
| 030 | A 3223200335 | PLATE |
| AT CROSS MEMBER | ||
| 031 | A 3013270011 | RING |
| AT CROSS MEMBER | ||
| 032 | N 000936022002 | NUT |
| AT CROSS MEMBER | ||
| 033 | A 3073270001 | AIR SPRING BELLOWS |
| Repalced by: A 0003270101 | ||
| 033 | A 0003270101 | AIR SPRING BELLOWS |
| FRONT AXLE PNEUMATIC SUSPENSION | ||
| 033 | A 3073270101 | AIR SPRING BELLOWS |
| Repalced by: A 0003270201 | ||
| 033 | A 0003270201 | AIR SPRING BELLOWS |
| FRONT AXLE PNEUMATIC SUSPENSION | ||
| 033 | A 0003270301 | AIR SPRING BELLOWS |
| FRONT AXLE PNEUMATIC SUSPENSION | ||
| 034 | A 3223270430 | RUBBER BUFFER |
| 035 | A 3013200175 | SPRING BRACKET |
| Repalced by: A 6003200434 | ||
| 035 | A 6003200434 | SUPPORT |
| BOTTOM,AIR SPRING BELLOWS | ||
| 036 | A 3013200243 | BRACKET |
| Repalced by: A 3023200143 | ||
| 036 | A 3023200143 | BRACKET |
| FRONT AXLE | ||
| N 001472010004 | GROOVED PIN | |
| 037 | N 000961020035 | SCREW |
| BRACKET TO SUPPORT | ||
| 038 | N 000127020201 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 039 | A 3013200070 | REAR SUBFRAME |
| Repalced by: A 3053200070 | ||
| 039 | A 3053200070 | REAR SUBFRAME |
| Repalced by: A 3003200070 | ||
| 039 | A 3003200070 | REAR SUBFRAME |
| FRONT SPRING SHOCK ABSORBER | ||
| N 000939014023 | STUD BOLT | |
| N 913004014005 | NUT | |
| Repalced by: N 910113014000 | ||
| N 910113014000 | NUT | |
| FRONT SPRINGS TO FRONT AXLE | ||
| N 912004014100 | LOCK WASHER | |
| FRONT SPRINGS TO FRONT AXLE | ||
| 040 | A 0023238000 | SHOCK ABSORBER |
| Repalced by: A 3013230000 | ||
| 040 | A 0033237500 | SHOCK ABSORBER |
| Repalced by: A 3013230000 | ||
| 041 | A 3013230000 | SHOCK ABSORBER |
| Repalced by: A 3013230100 | ||
| 041 | A 3013230100 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 042 | A 3173230444 | RUBBER BUFFER |
| 043 | A 3179911040 | SPACER TUBE |
| 044 | A 3173230667 | RETAINER |
| 045 | N 913001014003 | NUT |
| 046 | A 0003282130 | VALVE |
| REAR AXLE LEVEL ADJUSTMENT,LEFT | ||
| 047 | A 0003282030 | VALVE |
| REAR AXLE LEVEL ADJUSTMENT,RIGHT | ||
| A 0019970247 | SEAL RING | |
| A 0019970347 | SEAL RING | |
| 048 | A 0003281925 | VALVE |
| 049 | A 0003282025 | VALVE |
| Repalced by: A 0003282125 | ||
| 049 | A 0003282125 | VALVE |
| 050 | A 0003200027 | LEVER |
| Repalced by: A 0003200127 | ||
| 050 | A 0003200127 | LEVER |
| (PARTS KIT) | ||
| 051 | A 0003200467 | REPAIR KIT |
| Repalced by: A 0003200258 | ||
| 051 | A 0003200258 | REPAIR KIT |
| LEVEL ADJUSTMENT VALVE | ||
| 054 | A 0019972572 | FITTING |
| 055 | A 0003272125 | VALVE |
| LEVEL ADJUSTMENT | ||
| 058 | N 007603012405 | SEAL RING |
| LEVEL ADJUSTMENT | ||
| 059 | A 0000750032 | FILTER |
| LEVEL ADJUSTMENT | ||
| 060 | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 060 | N 304014008002 | SCREW |
| VALVE TO SUBSTRUCTURE | ||
| 061 | N 913004008004 | NUT |
| VALVE TO SUBSTRUCTURE | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| VALVE TO SUBSTRUCTURE | ||
| 062 | A 3053200089 | ROD |
| Repalced by: A 3073200389 | ||
| 062 | A 3013200189 | ROD |
| Repalced by: A 3073200389 | ||
| 062 | A 3073200389 | ROD |
| LEVEL ADJUSTMENT | ||
| 063 | N 000934008010 | NUT |
| LEVEL ADJUSTMENT | ||
| 064 | N 071803013102 | BALL PIVOT |
| LEVEL ADJUSTMENT | ||
| 065 | N 000934008010 | NUT |
| LEVEL ADJUSTMENT | ||
| 066 | N 912004008102 | LOCK WASHER |
| LEVEL ADJUSTMENT | ||
| 068 | A 3223200335 | PLATE |
| AT CROSS MEMBER | ||
| 070 | A 3013270011 | RING |
| AT CROSS MEMBER | ||
| 071 | N 000936022002 | NUT |
| AT CROSS MEMBER | ||
| 072 | A 3073270001 | AIR SPRING BELLOWS |
| Repalced by: A 0003270101 | ||
| 072 | A 0003270101 | AIR SPRING BELLOWS |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 072 | A 3073270101 | AIR SPRING BELLOWS |
| Repalced by: A 0003270201 | ||
| 072 | A 0003270201 | AIR SPRING BELLOWS |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 072 | A 0003270301 | AIR SPRING BELLOWS |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 72 | ||
| 075 | A 3223270430 | RUBBER BUFFER |
| AIR SPRING BELLOWS SUPPORT | ||
| 076 | A 3013200175 | SPRING BRACKET |
| Repalced by: A 6003200434 | ||
| 076 | A 6003200434 | SUPPORT |
| BOTTOM,AIR SPRING BELLOWS | ||
| 079 | A 3013200975 | SPRING BRACKET |
| Repalced by: A 6003200075 | ||
| 079 | A 6003200075 | SPRING BRACKET |
| REAR AXLE | ||
| 080 | A 3073510125 | U-BOLT |
| Repalced by: A 6003510125 | ||
| 080 | A 6003510125 | U-BOLT |
| SPRING BRACKET TO REAR AXLE | ||
| A 3573250076 | WASHER | |
| Repalced by: A 3573250176 | ||
| A 3573250176 | WASHER | |
| Repalced by: A 3573250376 | ||
| A 3573250376 | WASHER | |
| SPRING BRACKET TO REAR AXLE | ||
| 081 | N 913004024004 | NUT |
| SPRING BRACKET TO REAR AXLE | ||
| 082 | A 0023264100 | SHOCK ABSORBER |
| Repalced by: A 3003260100 | ||
| 082 | A 0033263500 | SHOCK ABSORBER |
| Repalced by: A 3003260100 | ||
| 082 | A 3003260100 | SHOCK ABSORBER |
| Repalced by: A 3003260300 | ||
| 082 | A 3003260300 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 084 | A 3173230444 | RUBBER BUFFER |
| SHOCK ABSORBER MOUNTING | ||
| 085 | A 3179911040 | SPACER TUBE |
| SHOCK ABSORBER MOUNTING | ||
| 086 | A 3173230667 | RETAINER |
| SHOCK ABSORBER MOUNTING | ||
| 089 | A 3013200026 | SPRING RETAINER |
| SHOCK ABSORBER MOUNTING | ||
| 100 | N 000934014020 | NUT |
| SHOCK ABSORBER MOUNTING | ||
| 101 | A 3223301011 | THRUST ARM |
| Repalced by: A 3573303111 | ||
| 101 | A 3573303111 | THRUST ARM |
| LONGITUDINAL CONTROL ARM | ||
| 102 | A 3013300011 | THRUST ARM |
| Repalced by: A 6003300011 | ||
| 102 | A 6003300011 | THRUST ARM |
| TRANSVERSE CONTROL ARM | ||
| 103 | A 3073300013 | BEARING BRACKET |
| LONGITUDINAL & TRANSVERSE CONTROL ARMS | ||
| 104 | A 3173330174 | PIN |
| 106 | N 000960018111 | SCREW |
| BEARING BRACKET TO FRONT AXLE | ||
| M 18X70 | ||
| 106 | N 000960018133 | SCREW |
| BEARING BODY TO SUBSTRUCTURE | ||
| M 18X75 | ||
| 106 | N 000960018142 | SCREW |
| BEARING BODY TO SUBSTRUCTURE | ||
| M 18X65 | ||
| 107 | A 3179901540 | WASHER |
| BEARING BODY TO SUBSTRUCTURE | ||
| A 3013300077 | STOP | |
| NUT LOCK | ||
| 108 | A 3013520084 | SHIM |
| Repalced by: A 3223330184 | ||
| 108 | A 3223330184 | SHIM |
| AS REQUIRED | ||
| 1.00 MM | ||
| 108 | A 3223330084 | SHIM |
| AS REQUIRED | ||
| 2.50 MM | ||
| 108 | A 3013520184 | SHIM |
| AS REQUIRED | ||
| 4.00 MM | ||
| 108 | A 3003330184 | SHIM |
| AS REQUIRED | ||
| 6.00 MM | ||
| 109 | N 913004018004 | NUT |
| BEARING BODY TO SUBSTRUCTURE | ||
| 110 | A 3073330030 | PIN |
| CONTROL ARM TO FRONT AXLE | ||
| 111 | N 000937040001 | NUT |
| STRUT TO FRONT AXLE | ||
| N 000094006320 | COTTER PIN | |
| STRUT TO FRONT AXLE | ||

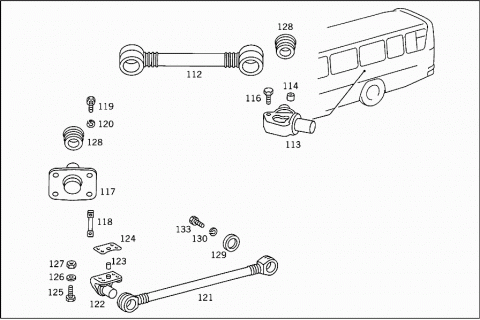

| 112 | A 3173500706 | CONTROL ARM |
| Repalced by: A 6003300111 | ||
| 112 | A 6003300111 | THRUST ARM |
| BEARING BRACKET TO FRAME | ||
| 113 | A 3013520241 | BEARING BODY |
| BEARING BRACKET TO FRAME | ||
| 114 | A 3173510150 | BUSHING |
| BEARING BRACKET TO FRAME | ||
| 114 | A 3223510050 | BUSHING |
| BEARING BRACKET TO FRAME | ||
| 116 | A 3023510171 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 117 | A 3013520030 | PIN |
| LEFT AND RIGHT UPPER CONTROL ARMS | ||
| 118 | A 3013330086 | PLATE WITH THREADED HOLES |
| LEFT AND RIGHT UPPER CONTROL ARMS | ||
| 119 | N 000961016036 | SCREW |
| Repalced by: N 308676016013 | ||
| 119 | N 308676016013 | SCREW |
| LEFT AND RIGHT UPPER CONTROL ARMS | ||
| 120 | N 912004016101 | LOCK WASHER |
| LEFT AND RIGHT UPPER CONTROL ARMS | ||
| 121 | A 3173500606 | CONTROL ARM |
| Repalced by: A 3573303411 | ||
| 121 | A 3573303411 | THRUST ARM |
| REAR AXLE,BOTTOM LEFT AND RIGHT | ||
| 122 | A 3073300013 | BEARING BRACKET |
| REAR AXLE,BOTTOM LEFT AND RIGHT | ||
| 123 | A 3173330174 | PIN |
| 124 | A 3223330184 | SHIM |
| AS REQUIRED | ||
| 1.00 MM | ||
| 124 | A 3223330084 | SHIM |
| AS REQUIRED | ||
| 2.50 MM | ||
| 124 | A 3013520184 | SHIM |
| AS REQUIRED | ||
| 4.00 MM | ||
| 124 | A 3003330184 | SHIM |
| AS REQUIRED | ||
| 6.00 MM | ||
| 125 | N 000960018142 | SCREW |
| BEARING BODY TO SUBSTRUCTURE | ||
| M 18X65 | ||
| 125 | N 000960018133 | SCREW |
| BEARING BODY TO SUBSTRUCTURE | ||
| M 18 X 75 | ||
| 126 | A 3179901540 | WASHER |
| BEARING BODY TO SUBSTRUCTURE | ||
| 127 | N 913004018004 | NUT |
| BEARING BODY TO SUBSTRUCTURE | ||
| 128 | A 3173331164 | RUBBER RING |
| STRUT | ||
| 129 | A 3173330162 | THRUST WASHER |
| STRUT | ||
| 130 | N 912004012100 | LOCK WASHER |
| STRUT | ||
| 133 | A 3079900014 | SCREW |
| STRUT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
